Learn more about the Tripp Lite PDUMH16HV
ModelBrand | Tripp Lite |
---|
Model | PDUMH16HV |
---|
DetailsType | Metered |
---|
Certifications | Class A (Emissions), CE (IEC / EN60950-1), GOST |
---|
ROHS | Yes |
---|
InputInput Voltage | 200V; 220V; 230V; 240V |
---|
Maximum Input Current | 16A |
---|
Input Connector(s) | IEC-309 16A BLUE (2P+E) |
---|
Cord Length | 8.2 ft |
---|
OutputOutput Voltage | 200-240V nominal, single phase |
---|
Output Frequency | 50/60Hz |
---|
Output Connector(s) | 8 x IEC-C13, 2 x IEC-C19 |
---|
EnvironmentalOperating Relative Humidity | 5 - 95% |
---|
Operating Elevation | 0 - 3000 m |
---|
Storage Temperature | -15 to 50 ºC |
---|
FeatureFeatures | 3.8kW 16A single phase 200/220/230/240V Metered Power Distribution Unit / PDU

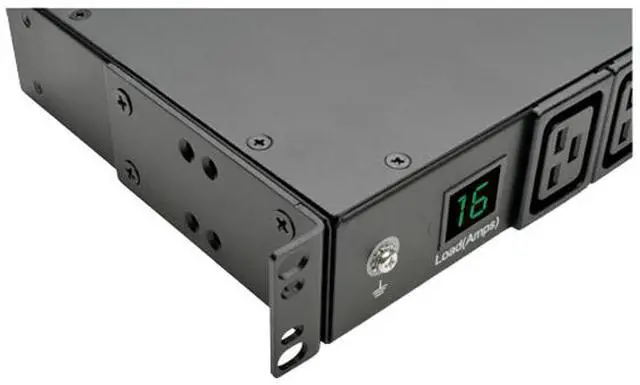

Built-in 2 digit visual meter continuously reports PDU load level in amps

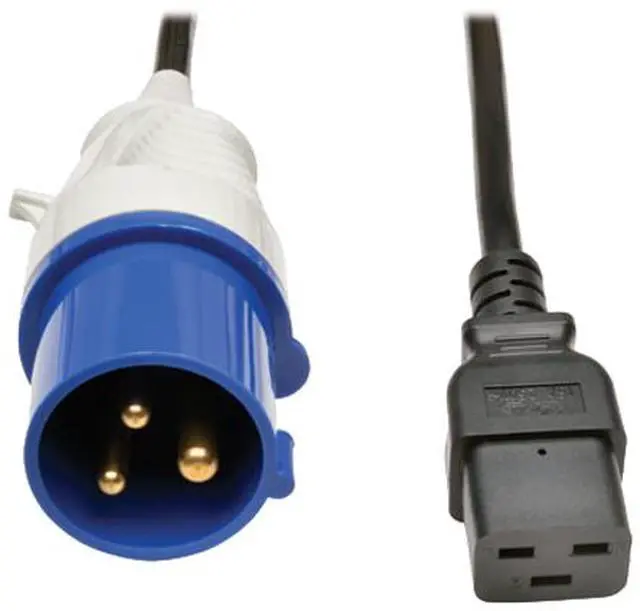

C20 inlet with IEC-309 Blue 16A input; 2.5m line cord
1U horizontal rackmount format installs in one rack space

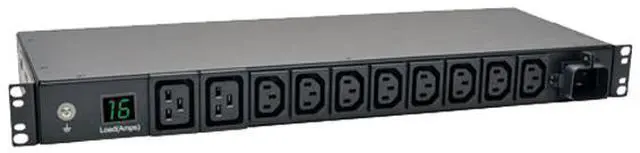

10 total outlets (8 C13 / 2 C19)
Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
Mounting ears are reversible for front or rear facing rackmount installation
Front panel grounding lug |
---|
Dimensions & WeightDimensions | 1.75" x 17.50" x 6.50" (H x W x D) |
---|
Weight | 6.80 lbs. |
---|
Additional InformationFirst Listed on Newegg | April 03, 2025 |
---|
