If i were to hook one of these up to a 120V 15A twist lock adapter, Would that work? I've just bought one second hand, and It doesn't seem to work when I plug it in. No lights come on nor does any noise occur. I only have the primary plugged in if that affects anything.

With only one power source plugged in it should provide power to the outlets. Try that, I don't remember any lights or noise when plugged in.

¥140,897

Consumption Sales Tax-Inclusive Price

¥23,730 Shipping

Limit 99999 per customer.

Ships from United States.

Most customers receive within 9-17 days.

Add to wish list

Sold by Hot Deals 4 Less

Top Rated

4 (3,668 seller ratings)

Shipped by Hot Deals 4 Less

Best Sellers

BeachAudio

Top Rated

4.4 (8,537 total ratings)

¥132,278
+ ¥14,040 Shipping

Deal Targets

Top Rated

3.2 (2,118 total ratings)

¥147,415
+ ¥7,545 Shipping

BTE Outlet

3.5 (1,429 total ratings)

¥170,263
+ ¥178,880 Shipping

Meet Your Seller

Hot Deals 4 Less

See Seller Store

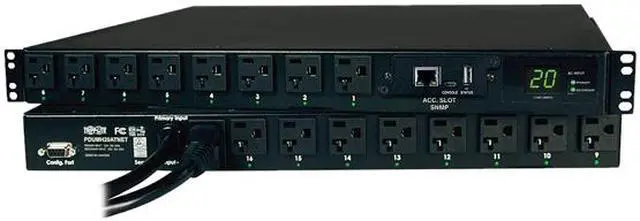

Main image of Tripp Lite 1.9 kWatts Single-Phase ATS / Switched PDU with LX Platform Interface, 120V Outlets (16 x 5-15/20R), 2 x L5-20P / 5-20P 12.0 Feet 120V Inputs, 1U Rack-Mount, TAA (PDUMH20ATNET)

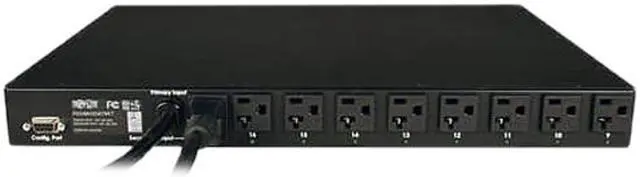

Alt view image 2 of 5 - Tripp Lite 1.9 kWatts Single-Phase ATS / Switched PDU with LX Platform Interface, 120V Outlets (16 x 5-15/20R), 2 x L5-20P / 5-20P 12.0 Feet 120V Inputs, 1U Rack-Mount, TAA (PDUMH20ATNET)

Alt view image 3 of 5 - Tripp Lite 1.9 kWatts Single-Phase ATS / Switched PDU with LX Platform Interface, 120V Outlets (16 x 5-15/20R), 2 x L5-20P / 5-20P 12.0 Feet 120V Inputs, 1U Rack-Mount, TAA (PDUMH20ATNET)

Alt view image 4 of 5 - Tripp Lite 1.9 kWatts Single-Phase ATS / Switched PDU with LX Platform Interface, 120V Outlets (16 x 5-15/20R), 2 x L5-20P / 5-20P 12.0 Feet 120V Inputs, 1U Rack-Mount, TAA (PDUMH20ATNET)

Alt view image 5 of 5 - Tripp Lite 1.9 kWatts Single-Phase ATS / Switched PDU with LX Platform Interface, 120V Outlets (16 x 5-15/20R), 2 x L5-20P / 5-20P 12.0 Feet 120V Inputs, 1U Rack-Mount, TAA (PDUMH20ATNET)

Shop All Tripp Lite Products | Visit Hot Deals 4 Less Store

Tripp Lite 1.9 kWatts Single-Phase ATS / Switched PDU with LX Platform Interface, 120V Outlets (16 x 5-15/20R), 2 x L5-20P / 5-20P 12.0 Feet 120V Inputs, 1U Rack-Mount, TAA (PDUMH20ATNET)

(2 from Tripp Lite) Write a Review

1.9 kWatts 120V ATS / Switched PDU, Single phase 20A 120V. TAA Compliant.
Enables redundant A / B power option for single-corded network devices
1U horizontal rackmount; 2 x L5-20P / 5-20P inputs; 16 x 5-15/20R outlets

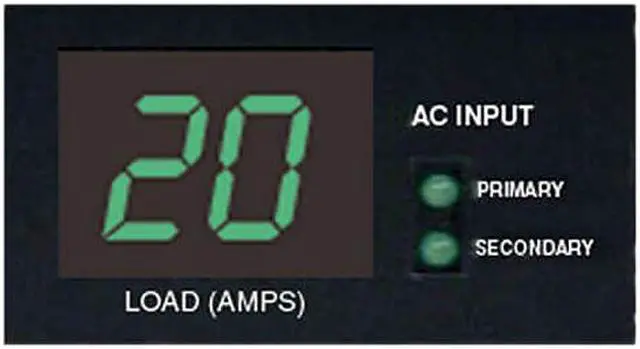

Switched outlets, Built-in LX Platform network interface; Two digit visual current meter

Overview

Specs

Reviews (4)

Digital Power Distribution Unit PDU 16 NEMA 5-15/20R 20A & Web Card

Model
Brand	Tripp Lite
Model	PDUMH20ATNET

Details
Type	Switched
Rack Size	1U
Certifications	Tested to UL 60950 (USA, Canada), Class A (Emissions), NOM (Mexico), RoHS Complaint
ROHS	Yes

Input
Input Voltage	120V
Maximum Input Current	20A
Input Connector(s)	2 x NEMA L5-20P with 2 x NEMA 5-20P plug adapters
Cord Length	12.0 Feet

Output
Output Voltage	120V
Output Frequency	50/60Hz
Output Connector(s)	16 x NEMA 5-15/20R

Environmental
Operating Relative Humidity	Up to 95% (non-condensing)

Feature

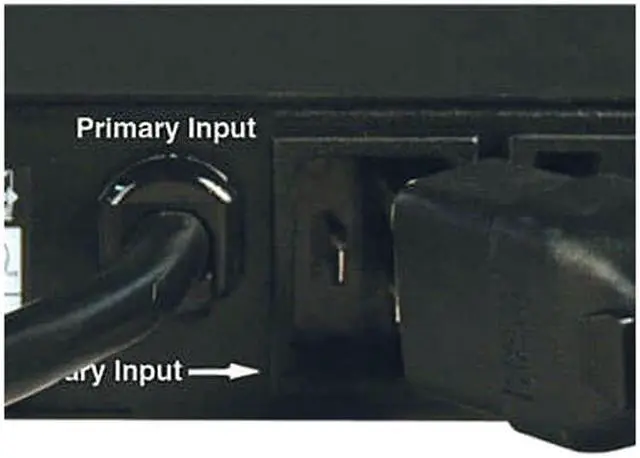

Features	1U switched PDU with digital current monitoring, network interface and 16 individually controllable outlets 20A 120V capacity with 16 NEMA 5-15/20R outlets with support for L5-20P and 5-20P input connections Connects to NEMA 5-20R and locking L5-20R receptacle Optional Auto Transfer Switch (ATS) supports a variety of advanced fault-tolerant and redundant networking applications Supports 2 - 7 ms. transfer between included primary and secondary line cords, even with out of phase power sources

Dimensions & Weight
Dimensions	1.75" x 17.50" x 14.50"
Weight	12.20 lbs.

Additional Information
First Listed on Newegg	October 06, 2018
