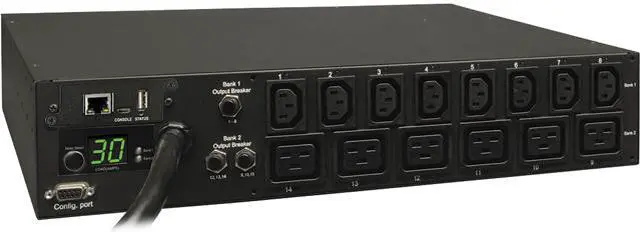

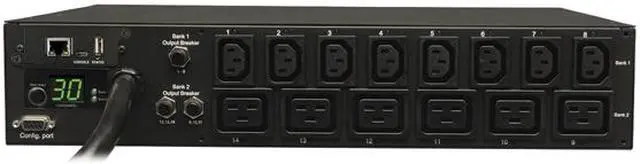

LX Platform network interface enables remote control and monitoring
Reports voltage, frequency and load level; Front-panel digital current meter
14 Switched outlets (8 x C13, 6 x C19) and 15.0 Feet NEMA L6-30P input cord
Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases
+
+
Overview
Specs
Reviews

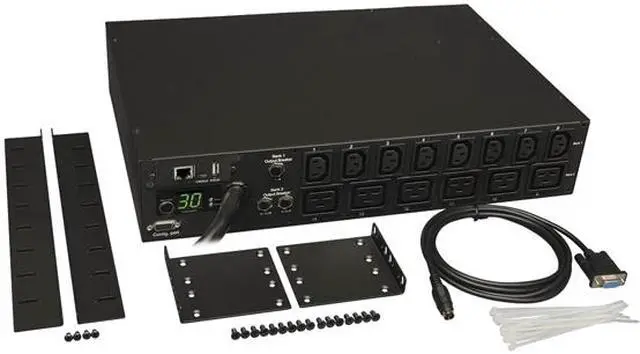

MAIN OVERVIEW FEATURES: Input Receptacles: NEMA L6-30POutput Receptacles: 14Input Voltage: 230 V ACInput Voltage Range: 208 V AC - 240 V ACOutput Voltage: 208 V AC,240 V ACManagement: Protocols:HTTPHTTPSPowerAlert Network Management SystemSMTPSNMPv1SNMPv2TelnetFTPDHCPBOOTPNTPPlacement: RackRack Height: 2UHeight: 3.5"Width: 17.5"Depth: 12.5"Weight (Approximate): 13.80 lbPackage Contents: PDUMH30HV19NET PDU Switched 208V - 240V 30A 14 OutletInstallable 2U Mounting BracketsEnvironmentally Friendly: YesEnvironmental Certification: RoHSLimited Warranty: 2 Year
Learn more about the Tripp Lite PDUMH30HV19NET
Model
Brand
Tripp Lite
Model
PDUMH30HV19NET
Details
Type
Switched
Rack Size
2U
Front Panel LEDs
16 power availability LEDs confirm power off/on status for each built-in outlet. Two additional LEDs with toggle button identify which bank the visual current meter is reporting (bank 1, bank 2 or bank 1&2 combined)
Certifications
Tested to UL 60950-1 (USA, Canada), Class A (Emissions), NOM (Mexico), RoHS compliant
Input
Input Voltage
208/240V
Maximum Input Current
30A
Regulatory Derated Input Current
24A
Input Connector(s)
L6-30P
Cord Length
15 ft
Output
Output Voltage
208/240V
Output Frequency
50/60Hz
Output Connector(s)
8 C13, 6 C19
Overload Protection
Outlets are arranged in three separately breakered loading segments (C13 outlets / 3 C19 outlets / 3 C19 outlets)
Environmental
Storage Relative Humidity
0-95% non-condensing
Feature
Features
2U rackmount switched PDU with digital current monitoring, remote control and temperature / humidity montitoring capability 208/240V 30A maximum total capacity with L6-30P input plug and 14 controllable outlets (8 C13, 6 C19) Enables ability to turn on, turn off, recycle or lock-out power to each individual outlet Programmable or real-time outlet power control via built-in web/network monitoring and control card Automatic sequential outlet turn-on prevents inrush-related equipment interaction on startup Cord retention brackets keep vital equipment plugs connected
