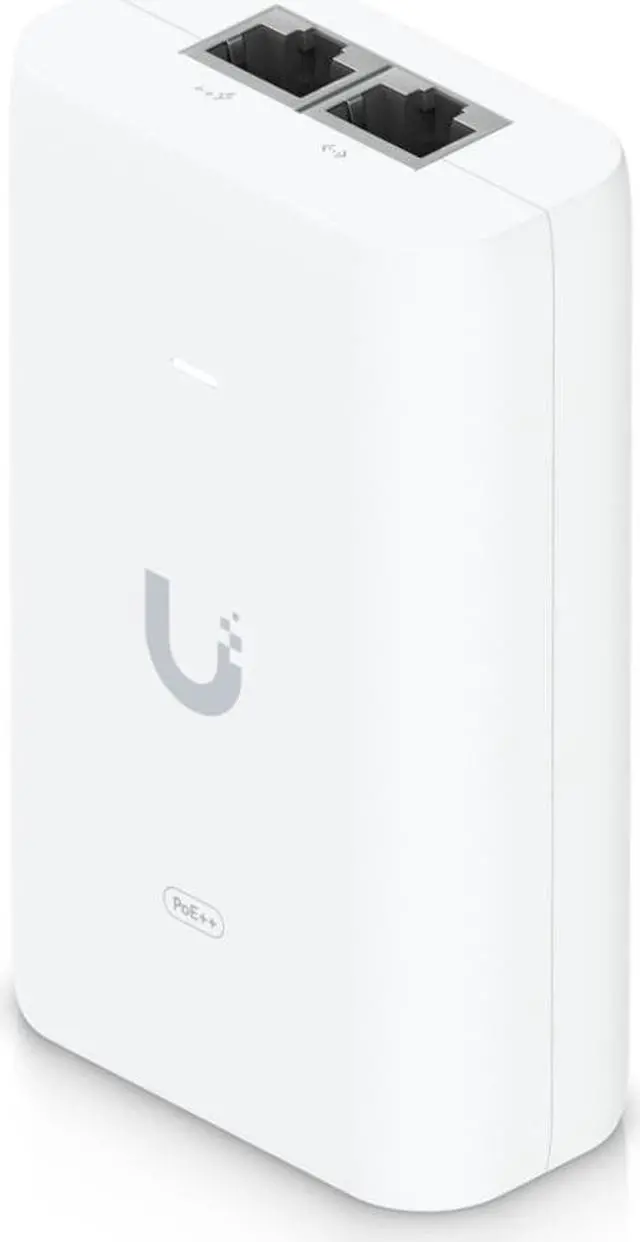

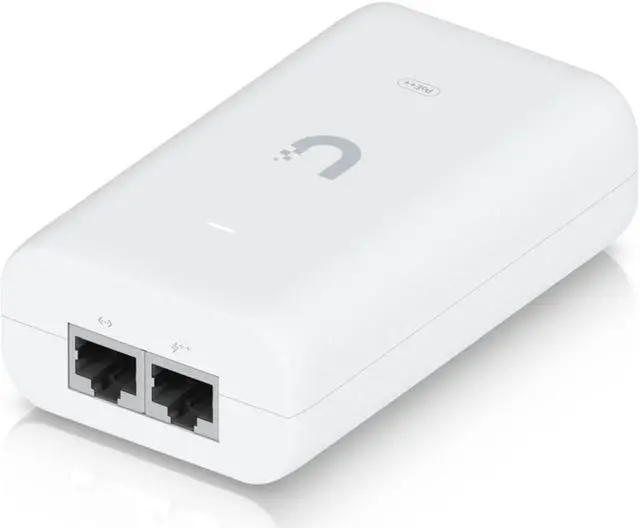

Ubiquiti PoE++ Adapter (60W) (U-PoE++)
- An adapter that can power UniFi PoE++ devices with wireless mesh applications, or offload PoE switch power dependencies.
- Compatibility: UVC-G4-PTZ, UA-G2-SK-Pro, UA-Hub-Door, UA-G2-SK, U6, Enterprise-IW, UC-Display, UA-SK-Elevator
+
+
Specs
Reviews
Learn more about the Ubiquiti Networks U-PoE++
| Brand | UBiQuiTi |
|---|---|
| Model | U-PoE++ |
| Part Number | U-PoE++ |
| Type | PoE Adapter |
|---|---|
| Color | White |

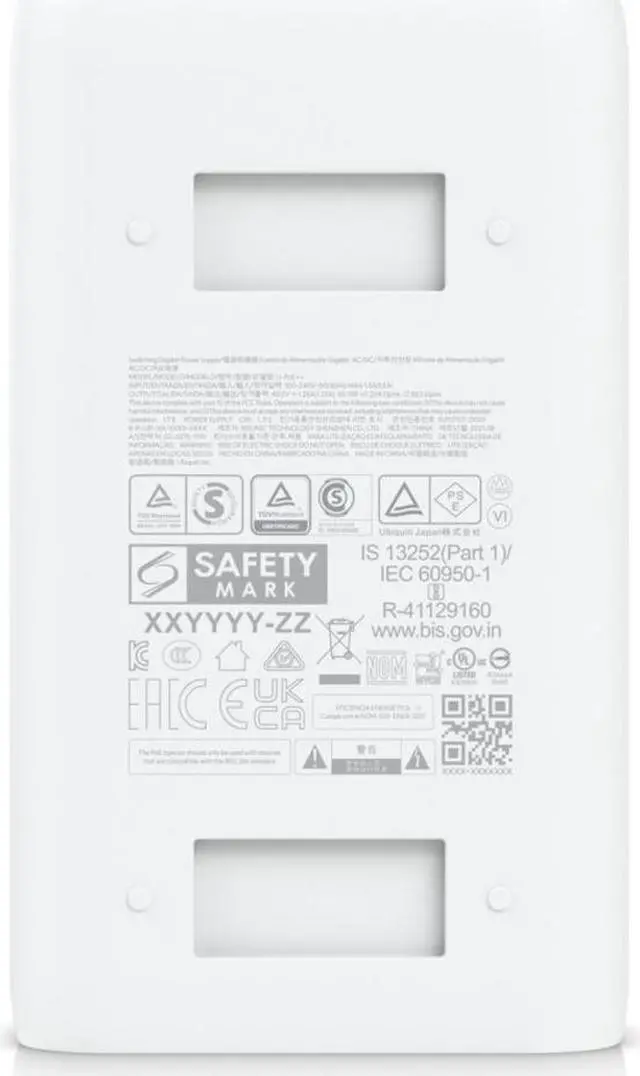

| Features | Dimensions: 106 x 63 x 34 mm (4.2 x 2.5 x 1.3") Weight: 210 g (7.4 oz) Output voltage: 48V DC @ 1.25A Gigabit LAN port Rated voltage: 100—240V AC @ 50/60Hz Input current: 1.3A @ 120V AC 0.75A @ 230V AC Inrush current: <100A peak @ 120V AC <200A peak @ 230V AC Efficiency: 85+% Output ripple: 1% max. Switching frequency 65 kHz Line regulation = 1% Load regulation = 3% 4-pair powering Pins: 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-) AC connector: IEC-320 C6 Data In / PoE: RJ45 shielded socket Surge protection: Difference and common mode Clamping protection: 11V data, 60V power Max. surge discharge: 1500A (8/20 µs) power Peak pulse current: 36A (10/1000 µs) data Shunt capacitance: <5 pF data Response time: <1 ns Power method: Universal AC input, 100—240V AC, 50/60 Hz Power supply: AC/DC Supported voltage range: 100—240V AC Max. PoE+ wattage per port by PSE: 60W Ambient operating temperature: 0 to 40° C (32 to 104° F) Storage temperature: -30 to 70°C (-22 to 158° F) Ambient operating humidity: 10 to 95% noncondensing Certifications: CE, FCC, IC, UL, UKCA, KC, CCC, KC, RoHS NDAA Compliant |
|---|
| First Listed on Newegg | July 16, 2024 |
|---|
