Wenglor Reflex Sensors HN24PA3 PNP New
- Wenglor Reflex Sensors HN24PA3 PNP New
+
+
Overview
Specs
Reviews

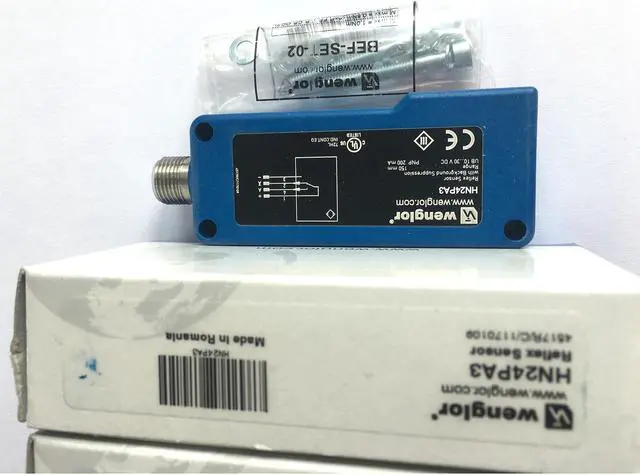

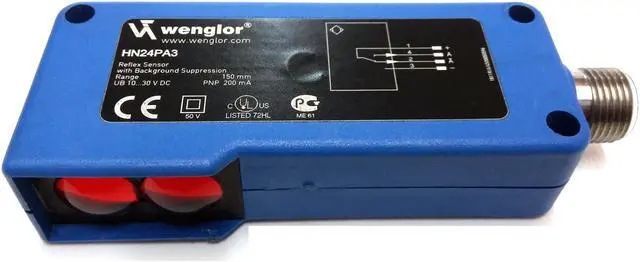

Wenglor Reflex Sensors HN24PA3 PNP New
Range 150 mm
Adjustable Range 50...150 mm
Switching Hysteresis < 5 %
Light Source Red Light
Service Life (T = +25 °C) 100000 h
Max. Ambient Light 10000 Lux
Light Spot Diameter see Table 1
Supply Voltage 10...30 V DC
Current Consumption (Ub = 24 V) < 30 mA
Switching Frequency 900 Hz
Response Time 555 µs
Temperature Drift < 5 %
Temperature Range -25...60 °C
Switching Output Voltage Drop < 2,5 V
PNP Switching Output/Switching Current 200 mA
Short Circuit Protection yes
Reverse Polarity Protection yes
Overload Protection yes
Protection Class III
Setting Method Potentiometer
Housing Material Plastic
Full Encapsulation yes
Degree of Protection IP67
Connection M12 × 1; 4-pin
PNP NO/NC antivalent yes
Range 150 mm
Adjustable Range 50...150 mm
Switching Hysteresis < 5 %
Light Source Red Light
Service Life (T = +25 °C) 100000 h
Max. Ambient Light 10000 Lux
Light Spot Diameter see Table 1
Supply Voltage 10...30 V DC
Current Consumption (Ub = 24 V) < 30 mA
Switching Frequency 900 Hz
Response Time 555 µs
Temperature Drift < 5 %
Temperature Range -25...60 °C
Switching Output Voltage Drop < 2,5 V
PNP Switching Output/Switching Current 200 mA
Short Circuit Protection yes
Reverse Polarity Protection yes
Overload Protection yes
Protection Class III
Setting Method Potentiometer
Housing Material Plastic
Full Encapsulation yes
Degree of Protection IP67
Connection M12 × 1; 4-pin
PNP NO/NC antivalent yes
