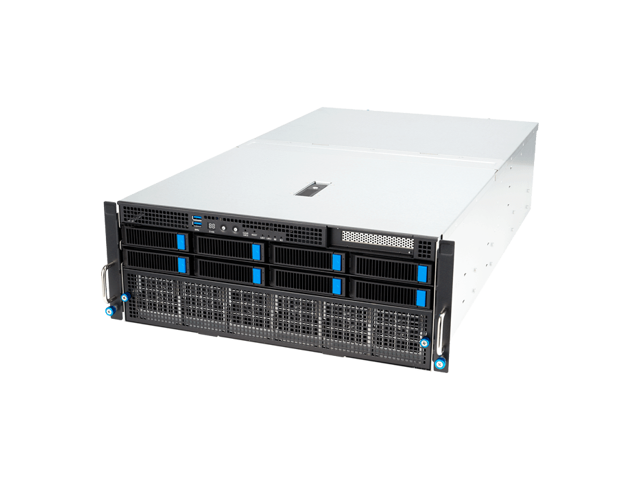

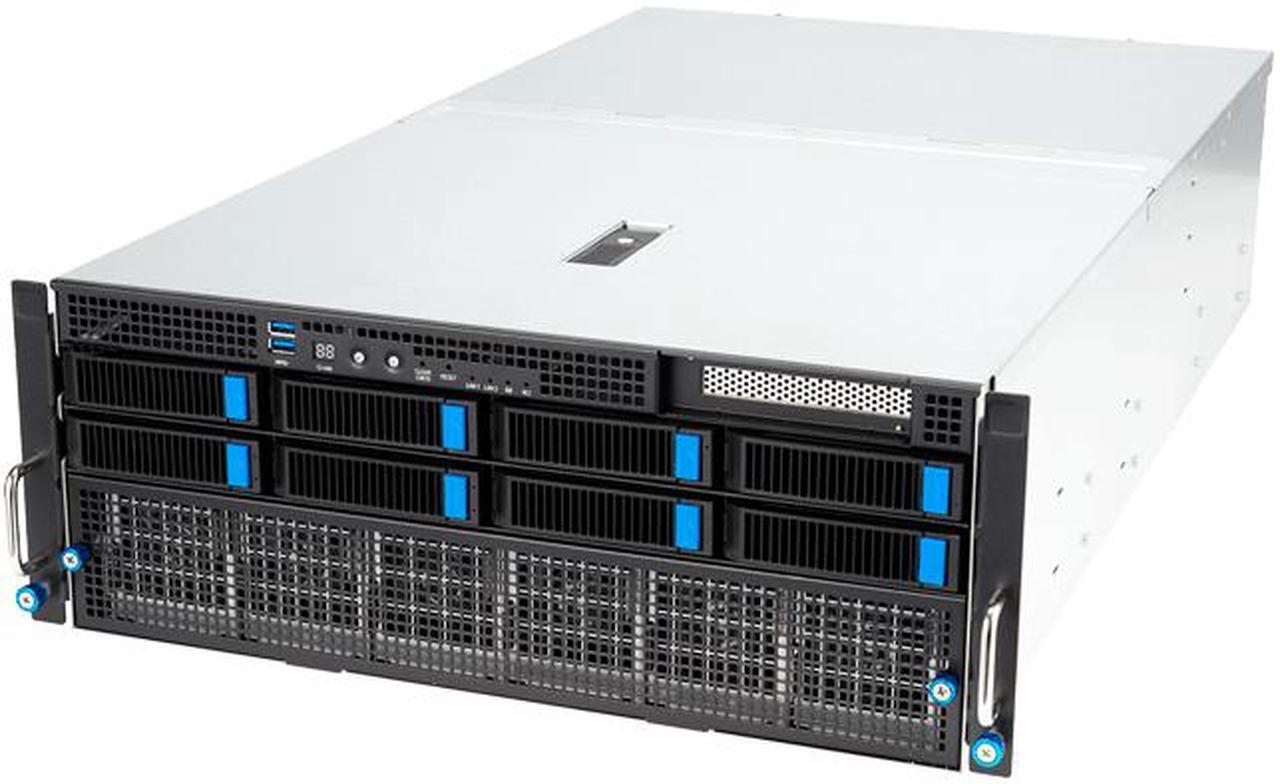

ASUS ESC8000A-E12-26W10G 4U Rackmount Server Barebone

ESC8000A-E12

AMD EPYC™ 9004 dual-processor 4U GPU server that supports eight dual-slot GPUs, up to 24 DIMM, 11 PCIe 5.0 slots, Dual NVMe, four 3000W Titanium power supplies, OCP 3.0 and ASMB11-iKVM

Powerful performance: Powered by AMD EPYC™ 9004 processors with 128 Zen 4c cores, 12-channel, up to 4800 MHz DDR5 and support for a maximum TDP of up to 400 watts per socket
AI and HPC workloads ready: Up to eight dual-slot active or passive GPUs, NVIDIA NVLink® bridge, and NVIDIA Bluefield DPU support to enable performance scaling
Power-efficient system design: Independent CPU and GPU airflow tunnels for thermal optimization and support for up to four 3000W Titanium redundant power supplies for uninterrupted operation
Cooling solutions: Enhanced air cooling based on CPU TDP for versatile workloads
Scale-up storage and expansion design: A total of eight bays in combination of Tri-Mode NVMe/SATA/SAS drives on the front panel and 11 PCIe 5.0 slots for higher bandwidth and system upgrade
Flexible networking module design: Optional OCP 3.0 module with PCIe 5.0 slot in rear panel for faster connectivity
Enhanced IT-infrastructure management: ASUS ASMB11-iKVM remote control with ASPEED AST2600, ASUS Control Center IT management software and hardware-level Root-of-Trust solution

Accelerate performance for HPC and AI workloads

Eight dual-slot GPU compute in 4U

ESC8000A-E12 is an AMD EPYC™ 9004 dual-socket server built for the demands of enterprise AI infrastructure to deliver unprecedented performance with industry-leading GPUs, faster GPU interconnect and higher-bandwidth fabric, and supports up to eight dual-slot active or passive GPUs scalable configuration with a choice of NVIDIA NVLink® Bridge or AMD Infinity Fabric™ Link to enable scaling of performance with increased bandwidth — ready to match your AI and HPC workloads.

PCIe 5.0 Ready

Faster storage, graphics and networking capabilities

PCI Express® (PCIe®) 5.0 delivers 32 GT/s bandwidth, which is twice the speed of PCIe 4.0, and offers lower power consumption, better lane scalability and backwards compatibility. ASUS servers are PCIe 5.0 ready, with scalable designs to satisfy the increasing workloads or modern data centers.

System Layout

* SAS support required a HBA/RAID card.

Panel Layout

Front Panel

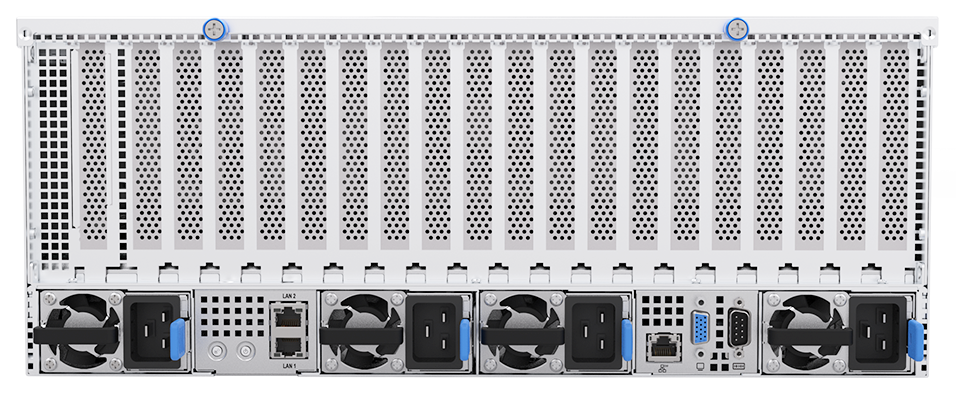

Rear Panel

Block Diagram

MLPerf Benchmarks

Top results on AI workloads

ASUS NVIDIA-Certified GPU servers have achieved top performance results in the data-center Closed division across six tasks on MLCommons® MLPerf™ training and inference benchmarks, outperforming other servers with the equivalent GPU configurations to create complete, optimized solutions and cultivate strong industry partnerships to enhance AI developments in diverse fields to push technology to its limits.

Sustainability

Keep your data center green

Data centers can consume huge amounts of electricity, raising environmental concerns. ASUS servers are designed to optimize both total cost of ownership (TCO) and total cost to the environment (TCE), including thermal design, power efficiency and advanced cooling solutions — reducing the impact of our products on the planet.

Air Cooling

Optimized Thermal Design

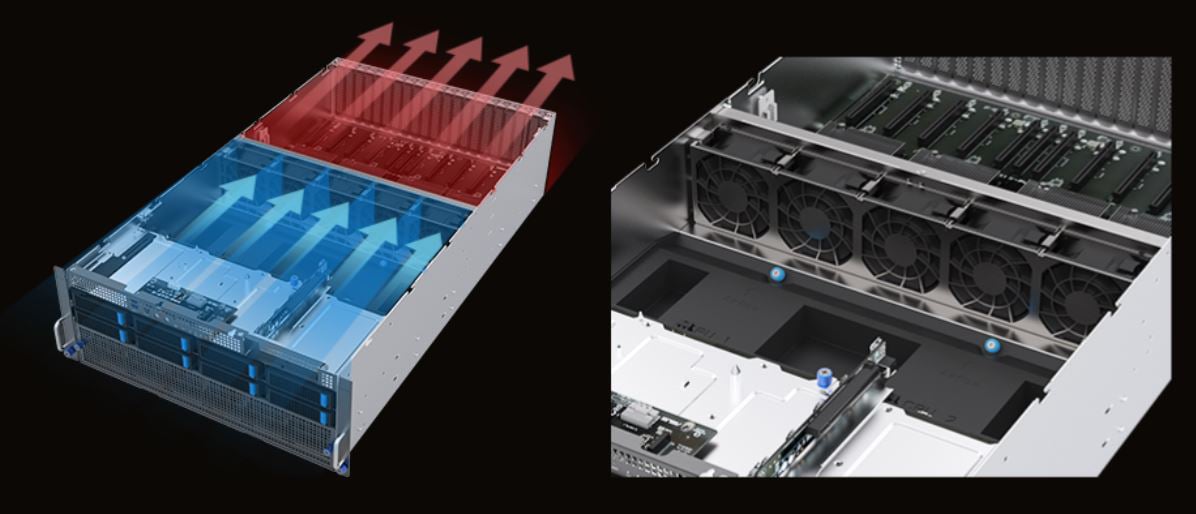

Independent CPU and GPU airflow tunnels

Our servers features a streamlined design with dedicated CPU and GPU airflow tunnels for seriously efficient heat dissipation. This advanced design provides better cooling for both the GPU and CPU, enabling heat to be expelled into the surrounding ambient air for greater energy efficiency and overall savings on system power.

Redundant Power

2+2 Power Supplies

Up to 96% efficient for reduced operating costs

ESC8000A-E12 supports up to four 3000 W 80 PLUS® Titanium redundant power supplies to reduce operating costs and enable easier servicing. When four power supplies are installed, the configuration can be set to redundant with 2+2 or 2+1 models. This ensures power is supplied to the system equally from all power supplies to maximize efficiency, enabling uninterrupted operation.

Storage

Scalable design for growing workloads

ESC8000A-E12 is designed for easy scalability to fit growing businesses and workloads. With PCIe Gen 5.0 x16 slots that fit full-height, full-length GPU cards, ESC8000A-E12 features different combinations of storage and networking expansions and multiple interface types for flexible storage configurations.?

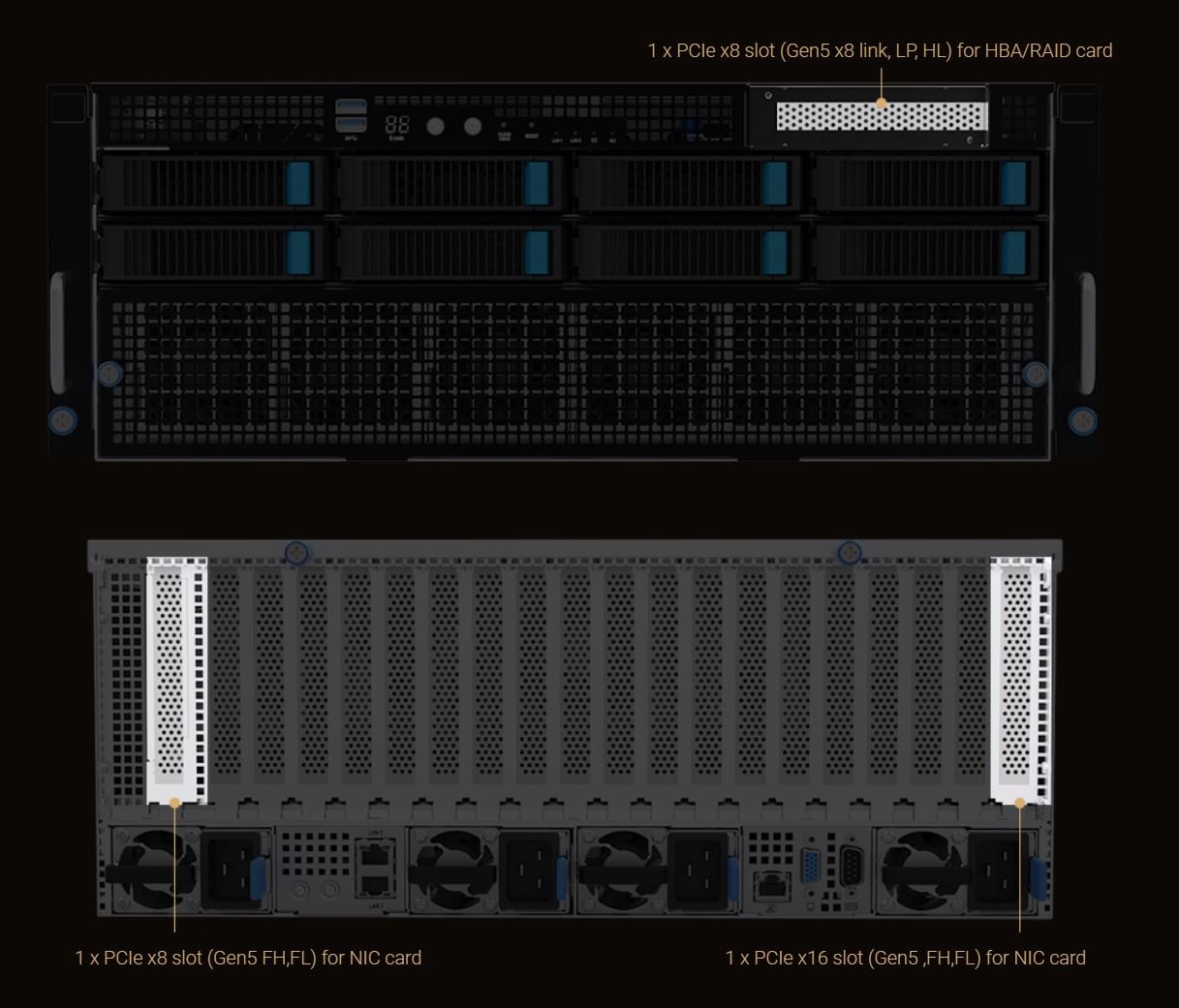

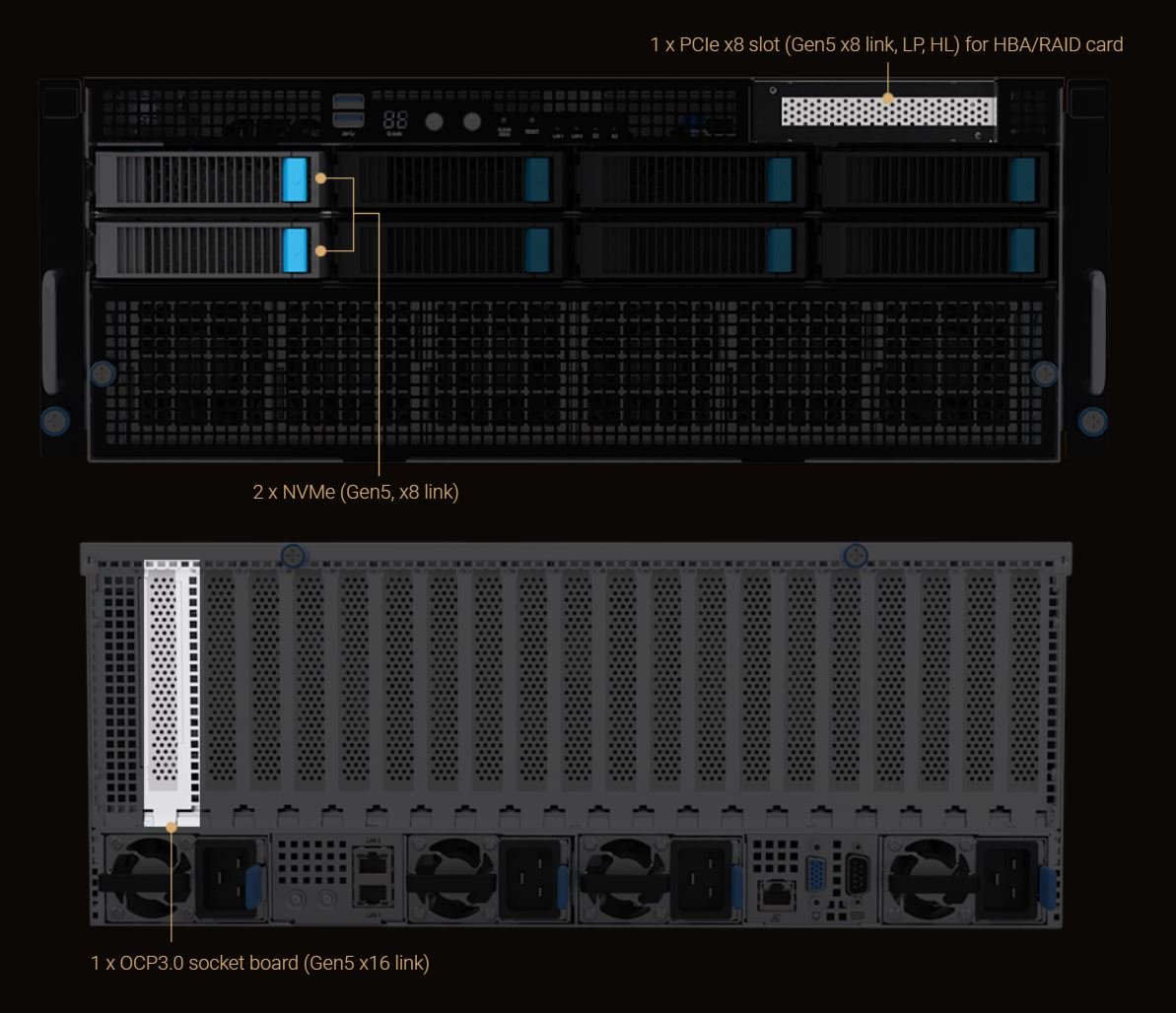

3 PCIe

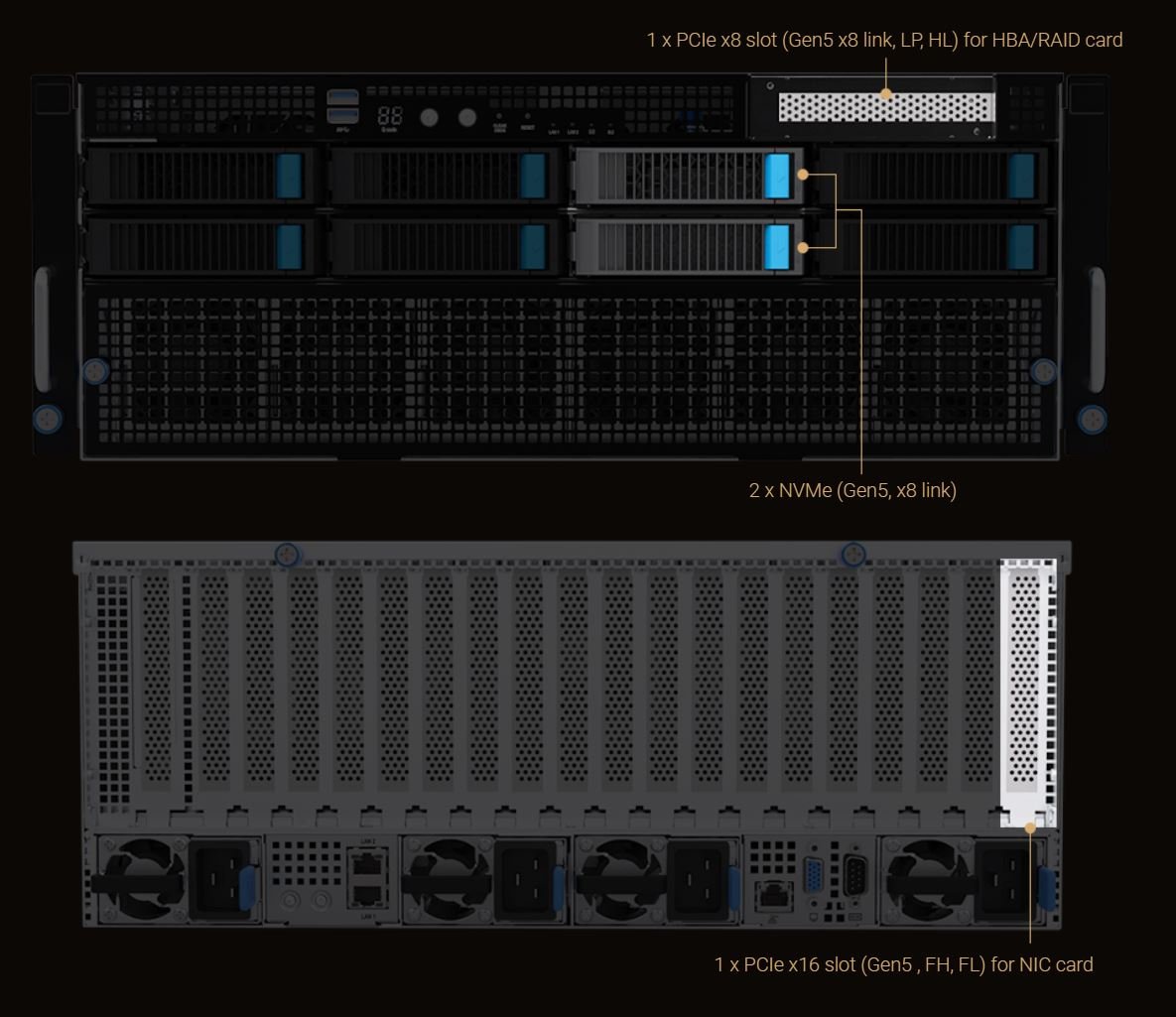

2 PCIe + 2 NVMe

1 PCIe + 2 NVMe + 1 OCP 3.0

Management

Comprehensive IT infrastructure solutions

Advanced ASUS management tools comprise IT assets management, security and reliability to improve the performance, up-time and real-time monitoring of the servers remotely — highly increasing the efficiency of IT infrastructure.

BMC Management

BMC

Remote server management

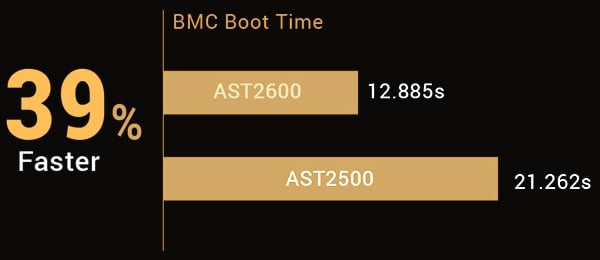

ASUS ASMB11-iKVM is the latest server-management solution from ASUS, built upon the ASPEED 2600 chipset running on the latest AMI MegaRAC SP-X. The module provides various interfaces to enable out-of-band server management through WebGUI, Intelligent Platform Management Interface (IPMI) and Redfish® API.

ASUS Control Center

IT infrastructure-management software

Streamline IT operations via a single dashboard

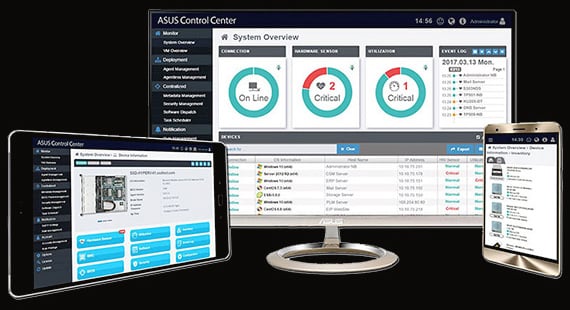

ASUS Control Center (ACC) is remote IT-management software application designed for monitoring hardware and software IT assets and inventory status, and enabling seamless remote BIOS configurations and updates, efficient IT diagnostics and troubleshooting and enhanced security with hotfix updates — allowing easier server management for any IT infrastructure.

Platform Firmware Resiliency

Hardware Root-of-Trust Solution

Detect, recover, boot and protect

ASUS servers integrate PFR FPGA as the platform Root-of-Trust solution for firmware resiliency to prevent from hackers from gaining access to infrastructure. ASUS security solutions are fully compliant with the 2018 National Institute of Standards and Technology (NIST) SP 800 193 specification.

* Platform Firmware Resilience (PFR) module must be specified at time of purchase and is factory-fitted. It is not for sale separately.

TPM 2.0

Trusted Platform Module 2.0

ASUS servers also include support Trusted Platform Module 2.0 (TPM 2.0) to secure hardware through integrated cryptographic keys and offer regular firmware update for vulnerabilities.

Omniverse

NVIDIA® solutions for 3D collaboration

NVIDIA Omniverse partnership

NVIDIA is dedicated to its partners and believes that a strong partnership is the foundation of mutual success.

Full ASUS product lineup for Omniverse Enterprise

ASUS has the world’s best PCs, servers, monitors and graphics cards. With an expanding range of superior content-creation and gaming products, ASUS leads the industry through innovation to create the most ubiquitous, intelligent productivity.

Strong partnership with 3D partners

Connect to the top industry apps your teams use every day, with plug-ins that enable live-sync collaboration and iteration across multiple software suites simultaneously — all brought together in Omniverse Enterprise.

Success cases

Reduce deployment risks with a complete suite of VMware data-center products for Omniverse Enterprise.

Serviceability

Improved IT operational efficiency

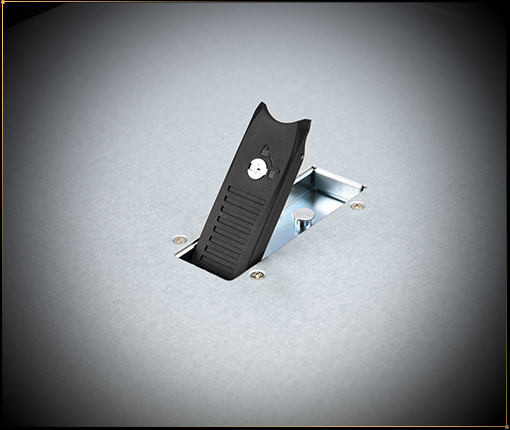

Tool-less Cover

ASUS servers feature three easy-access covers that can be opened without tools, enabling IT staff to perform maintenance on specific components without removing the server fully from the rack.

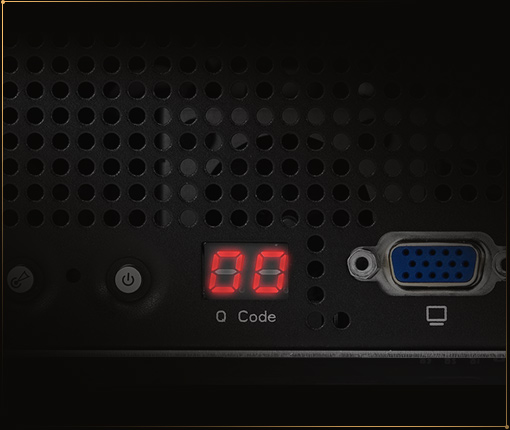

Front-bezel Q-Code

ASUS servers have a visible Q-Code/port-80 LED display LED for simple monitoring of the entire boot process, from power on through loading of the operating system.

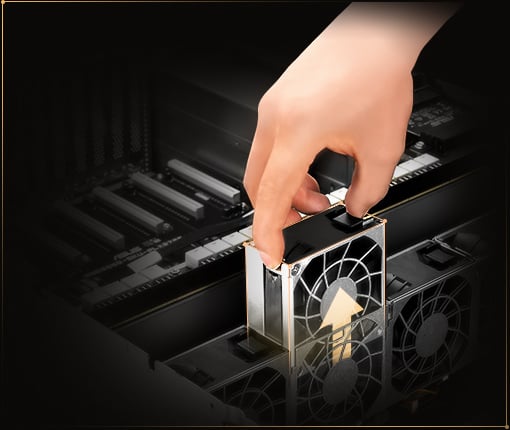

Hot-swap design

ASUS servers feature multiple hot-swap components, including fans, power supplies and storage for easy troubleshooting to keep 24/7 seamless operations.

Performance

AMD EPYC™ 9004 series processors

AMD EPYC™ processors enable efficient data centers that maximize operations, while managing energy costs, delivering impressive performance per system and per rack—critical for allowing capacity growth in power-constrained environments.

up to

128

Zen 4c cores
