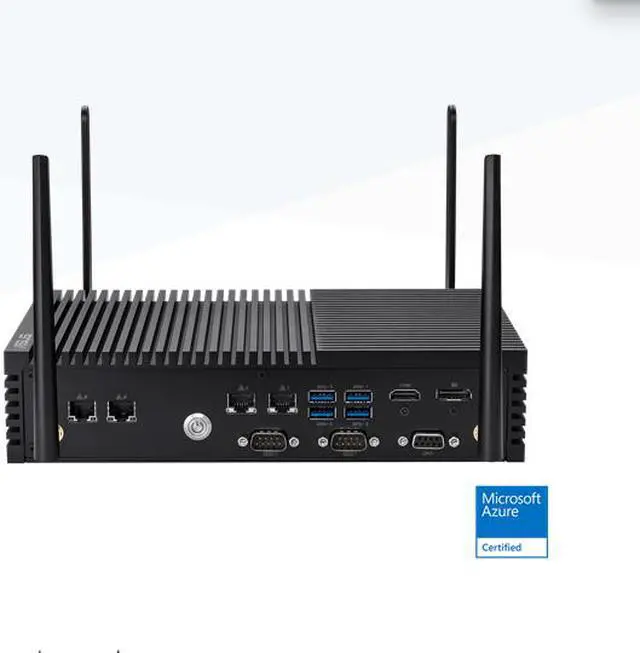

Asus System PE200S-E3930 PE200S AIoT X5-E3930 6 COM ports HDMI/DP

Detail Specifications
System
CPU
Intel Atom X5-E3930
TDP
6.5W
Number of Cores
2
Base Freq.
1.3GHz
Max Turbo Freq.
1.8GHz
Memory
1 x SO-DIMM, DDR3L 1866 MHz, supports up to 8
External Interfaces
Display
1 x HDMI 1.4, supports up to 3840 x 2160 at 30 Hz
1 x DP 1.2a, supports up to 4096 x 2160 at 60 Hz
Ethernet
2 x 10/100/1000 Mbps, RJ45 (2 x Intel i210IT (1Gb)
2 x 802.11af PSE ports, RJ45 (optional)
2 x 10/100/1000 ethernet ports, RJ45 (optional) either one
USB
4 x USB 3.2 Gen 1, type A
2 x USB 2.0, type A (optional)
Audio
1 x Mic-in, phone jack
1 x Line-out, phone jack
COM
2 x COM: RS-232/422/485, DB9
4 x COM: RS232, DB9 (optional)
GPIO
1 x 8bit GPIO, DB9
Storage
SATA
1 x SATA 6 connector supports 2.5 SSD
Micro SD
1 x Micro SD Card slot (on-board)
Expansion Slot
Mini PCIe
1 x Mini PCIe socket ( USB or PCIex2 mode)
M.2 M Key
1 x M.2 2242 M-key socket, (SATA mode) (supports M.2 SSD up to 512GB)
M.2 E Key
1 x M.2 2230 E-key socket (PCIex2 / USB 2.0 mode) (supports BT/Wi-Fi module)
SIM
1 x nano-SIM slot
Power
Power
input 12 to 24 V DC, 2-pin terminal block
Mechanical
Mounting
Wall-mount/ VESA mount
Environment
Operating Temp.
-20-60oC with wide temperature parts, fanless
Storage Temp.
-40-85oC
Relative Humidity
5 to 95% (non-condensing)
EMC
CE (ITE), FCC , VCCI, BSMI
Safety
UL,CB, CCC, BSMI, CE
Vibration
Operating: 0.21Grms, 5-500 Hz, 20min duration
Shock
Operating: 50 G, half sine 11ms duration
Green
GA (RoHS)
Security
TPM
TPM v2.0 powered by Nuvoton NCPT 750 (Optional)
Others
Watch dog timer
Yes. HW WDT Enable (WDT_EN)
Operating System
Windows 10 IoT Enterprise (64 bit) / Linux Yocto
Item Dimension (L"xW"xH")
15 x 13 x 5

Weight
8 lbs

Warranty Information
2 years
