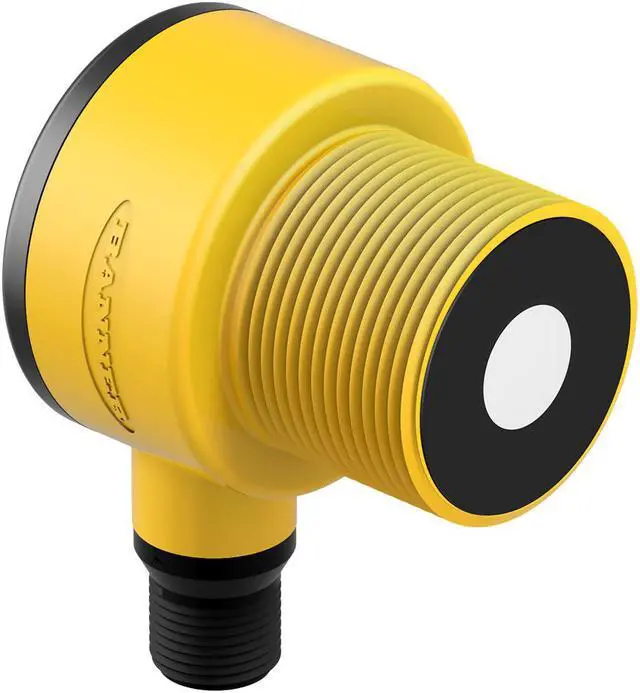

BANNER T30UXIAQ8 Temp Compensation Ultrasonic Sensor New

T30UX Series W/ Analog Output
Range: 100 Mm To 1 M; Input: 10 To 30V Dc
Analog Output: 4 To 20 Ma
4-Pin Euro-Style Integral QD
Part Number: 80481
Sensing Beam Ultrasonic
PC Configurable No
Sensing Mode (General) Proximity
Sensing Mode (Detailed) Time of Flight
Housing Style Barrel
Device Type Sensor
Primary Housing Material PBT
Input/Output Analog
Indicator LED(s)
Connection Integral QD
Analog Output Configuration 4-20 mA
Analog Resolution/Discrete Repeatability 0.1% of distance (0.5 min)
Quick Disconnect Type M12 (Euro)
Max Sensing Distance (mm) 1000
Minimum Sensing Distance (mm) 100
Sensing Beam Ultrasonic
Power Supply 10-30 V dc
Delay at Power-up (ms) 500
Adjustments Teach Button
Temperature Effect (mm/°C) 0.02% of sensing distance/°C
Number of Pins 4
Vibration MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Mechanical Shock IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
Output Saturation Voltage NPN Outputs < 1.6 V at 100 mA
Output Saturation Voltage PNP Outputs < 3 V at 100 mA
Analog Current Output Rating 1 k? max @24 V dc, max load resistance = [(Vcc-4.5 V)/0.02 A] ?
Max Discrete (Switched) Output (mA) 100
Output Protection Protected against short circuit conditions
IP Rating IP67
NEMA Rating NEMA 6
Max Operating Temperature (°C) 70
Min Operating Temperature (°C) -40
Max Op. Relative Humidity Non-Condensing (%) 95 at 50°C
Minimum Response Time (ms) 45
Rep Rate (ms) 15
Analog Linearity (mm) 0.25% of distance
Barrel Diameter (mm) 30
Minimum Window Size (mm) 10
Remote Teach and Laser Control Input Impedence 55 k?
Ultrasonic Frequency (kHz) 224
Max Off-state Leakage Current (µA) NPN: < 200 at 30 V dc; PNP: < 10 at 30 V dc
Power/Current Consumption (exclusive of load) 40 mA
Supply Protection Circuitry Protected against reverse polarity and transient overvoltages
