Why choose Intel Core i5 11400T
Adopted by Intel's Core i5 11th CPU, S2-B560 is equipped with a high-end Core i5-11400T CPU, 6 cores and 12 threads, and is based on the 14nm SuperFin process node.
Frequency speeds have been significantly boosted, with base frequency up to 1.3 GHz and boost frequency up to 3.7 GHz. The CPU also comes with 12 MB cache and a base TDP of 35W.
Equipped with improved Intel UHD Graphics 730 graphics up to 350 MHz.
To bring a better experience, we pre-installed Windows 11 Pro for you.
WiFi 6 installed, with max speed 1200MB, You can download multiple large storage files at the same time without worrying about network speed.

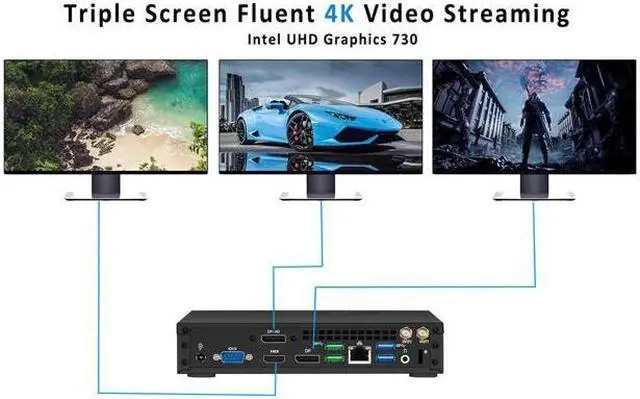

UHD Graphics for ultra 4K 4096*2360px@60Hz display output, realistic display quality will bring you a stunning visual experience.
The NEOSMAY Mini PC with newest USB 3.2 interface, which transfer rate is 5 times faster than USB 3.0.It can transfer large capacity files at storage rates defined by storage devices, also can optimize the machine to reduce energy consumption.
BIOS funtion: Support Auto Power on / PXE/ Wake on Lan/RTC function for commercial applications
With VESA bracket, you can put the mini pc behind the screen, the all-in-one style can not only make your desktop more beautiful, but also save a lot of space.
| Brand | NEOSMAY |
|---|---|
| Model | S2-B560 |
| CPU | Intel 11th Gen Rocket Lake Core i5-11400T, 6 Cores 12 Threads,12 MB Intel® Smart Cache, 1.3GHz(Max 3.7GHz),TDP 35W |
| Memory | 2 x SO-DIMM DDR4 slots, support 3200MHz, Max support 64GB |
| Storage | 1 x M. 2 2280 SATA/NVME SSD & 1 x 2.5''HDD/SSD |
| OS | Preinstalled Windows 11 pro,Support WIN10/WIN11/Linux |
| Power | Input: 100-240V AC, Output: 19V 4.74A DC |
| LAN | 1 x RJ45 Gigabit LAN port |

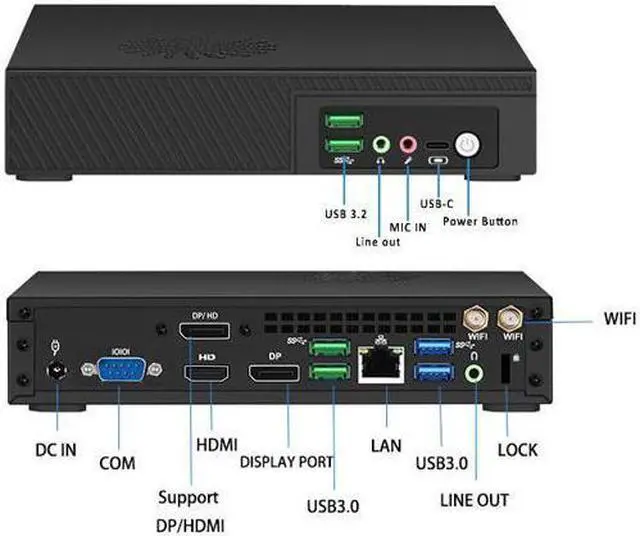

| Front I/O | 1 x Type-C, 2 x USB 3.0, 1 x MIC IN, 1 x Line out, 1 x Power Button |
| Back I/O | 1 x 2.5Gbe LAN, 2 x USB 3.0, 2 x USB 3.2, 1 x COM,2 x HD, 2 x DP, 1 x Line out, 1 x DC IN, |
| Operating Temperature | -10°c~70°c |
| Storage Temperature | 0°c~70°c |
| Humidity | 0%~95%(non-condensing) |
| Other Function | Auto Power On when power is applied, Wake on LAN,PXE boot,WIFI 6, BT 5.2 |
| Packing List | MINI PC, US Power Adapter, HDMI Cable, Antenna, VESA Mount(70x70/100x100mm) |

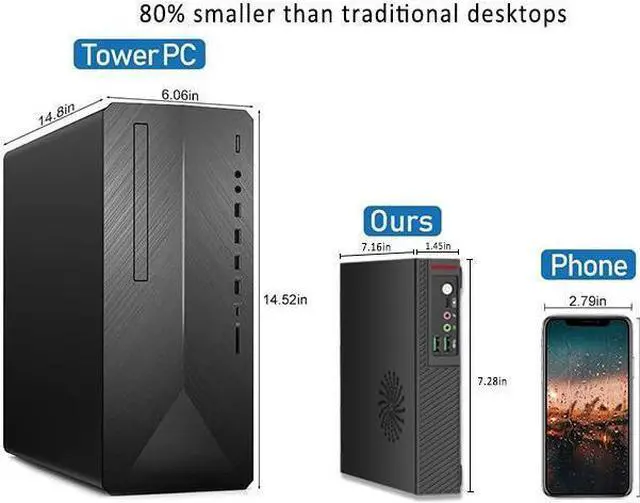

| Dimension | 182mm (L) x179mm (W) x37mm (H), 1.26kg |
