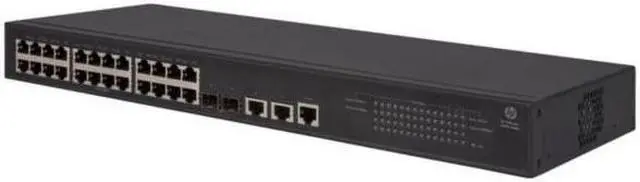

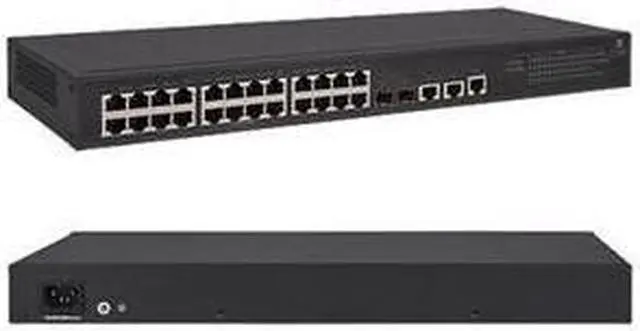

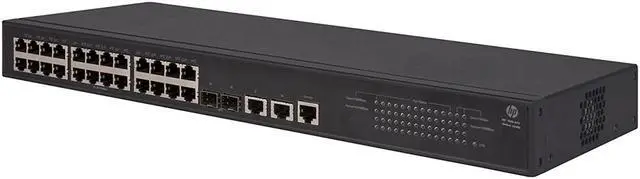

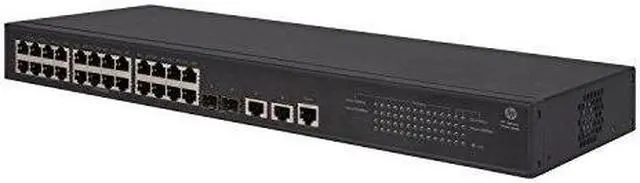

HP 1950-24G-2SFP+-2XGT Switch - JG960A#ABA

SpecificationsManufacturer: Hewlett Packard EnterpriseManufacturer
Part Number: JG960A#ABA
Manufacturer Website Address:
http: //www. hpe.
comBrand Name: HPE
Product Series: 1950Product
Model: 1950-24G-2SFP+-2XGT
Product Name: 1950-24G-2SFP+-2XGT

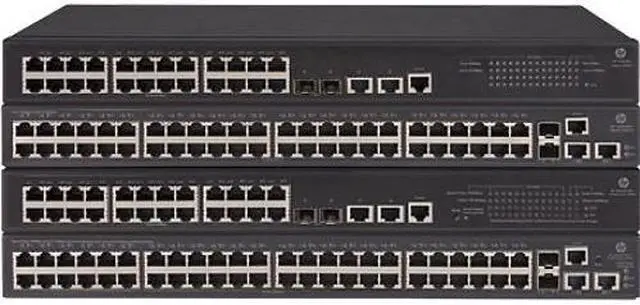

SwitchMarketing Information: The HP 1950 Switch Series consists of smart web-managed Gigabit Ethernet switches with 10-Gigabit uplinks, for advanced small business customers needing high-performance connections to servers and network storage. The 1950
Switch Series includes four switches: two standard models and two PoE+ models in 24- and 48-port configurations. The switches each have two 10GBASE-T ports supporting copper-based Category 5e-based cabling, and two 10G SFP+ ports for fiber connectivity. The PoE+ models both have a PoE power budget of 370 W to power up PoE/PoE+ compliant client devices. The 1950 Switch Series has an intuitive Web-based interface for simple customization of network operation. It supports true-stacking, allowing up to four devices to be logically administered as a single entity, simplifying administration while supporting greater network redundancy. Models support both rack mounting and desktop operation. They have IPv4 and IPv6 operation, with Layer 2 switching as well as Layer 3 static routing.
Other features include: link aggregation to boost link performance; VLA
Ns, Access Control Lists, and 802.1X network login for enhanced security; and three versions of Spanning Tree Protocol (STP) for added network resiliency. The switches come with a limited lifetime warranty covering the unit, fans, and power supplies, as well as 24X7 phone support for the first three years of ownership.
Product Type: Ethernet SwitchInterfaces/PortsTotal Number of
Network Ports:
26Modular: NoPort/Expansion
Slot Details: 24 x Gigabit Ethernet Network2 x 10 Gigabit Ethernet Network2 x 10 Gigabit Ethernet Expansion SlotMedia & PerformanceMedia
Type Supported: Twisted
PairOptical FiberEthernet Technology: Gigabit
Ethernet10 Gigabit EthernetNetwork Technology: 10/100Base-TX10/100/1000Base-T10GBase-T10GBase-XI/O ExpansionsNumber of Total
Expansion Slots: 2Expansion
Slot Type: SFP+Number of
SFP+ Slots: 2Network
& CommunicationLayer Supported: 3Management
& ProtocolsManageable: YesPower
DescriptionPower Source: Power
SupplyPhysical CharacteristicsCompatible Rack Unit: 1UForm
Factor:
Rack-mountableHeight: 1.7"W
idth: 17.2"D
epth: 6.3"W
eight (Approximate): 6.61 lbMiscellaneousPackage
Contents: 1950-24G-2SFP+-2XGT Switch Mounting hardware
Environmentally Friendly: YesEnvironmental
Certification: RoHSWEEEREACH
WarrantyLimited Warranty: Lifetime
