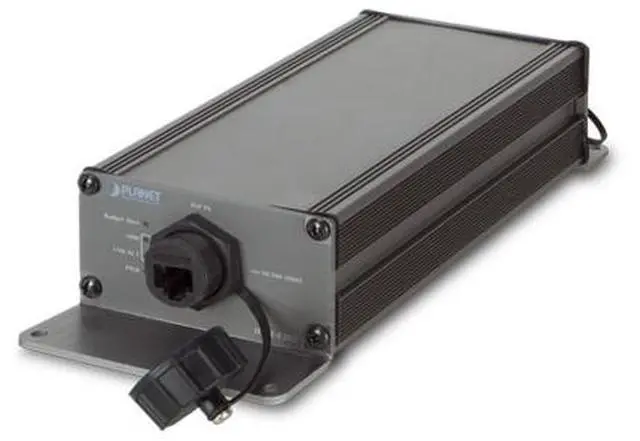

Planet IPOE-E202 Industrial 1-Port 802.3at PoE+ to 2-Port 802.3af PoE Extender

PoE Solution for Breaking RJ45 100m Limitation
PLANET IPOE-E202 is an industrial IP63-rated 1-port PoE+ to 2-port 802.3af/at Gigabit PoE Extender designed especially for point to multipoint PoE application. The IPOE-E202 can obtain a maximum of 30-watt PoE power from PoE+ input port and supplies a maximum of 25-watt PoE power budget for 2 PoE output ports, extending both the Gigabit Ethernet Data and IEEE 802.3at/802.3af Power over Ethernet over the UTP cable. The IPOE-E202 provides a simple solution for adding PoE ports without running more cabling and achieves more flexible network applications without requiring an external power adapter.

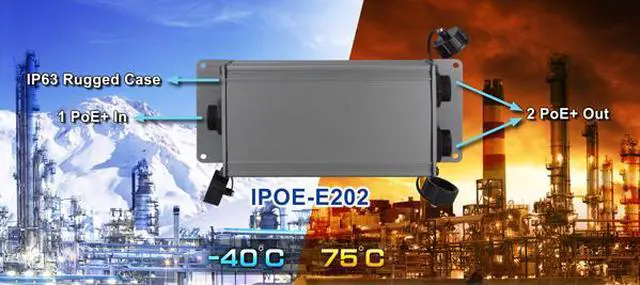

Environmentally Hardened Design
With industrial-level IP63-rated aluminum case, the IPOE-E202 provides a high level of immunity against electromagnetic interference, and is able to protect itself from dust and water ingress and to operate under the temperature range from -40 to 75 degrees C. All these features ensure the highest level of reliability for mission-critical applications in any difficult environment.

Physical Port
3 10/100/1000BASE-T Gigabit RJ45 interfaces

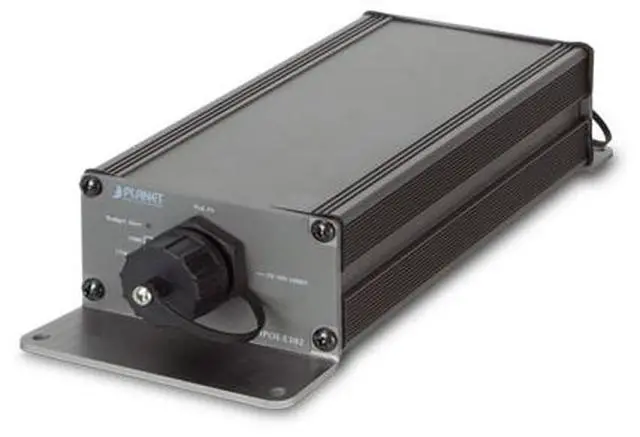

- 1-port data + power input

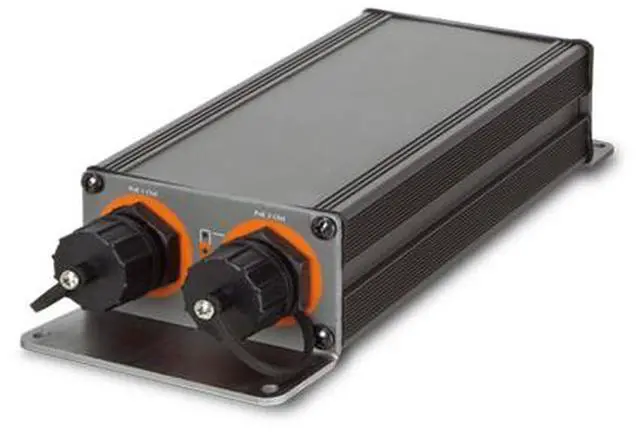

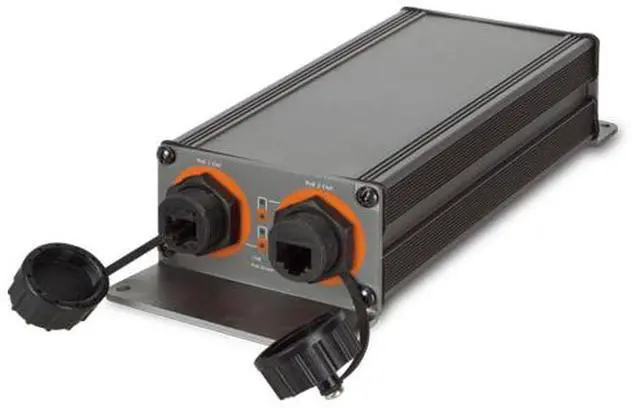

- 2-port data + power output

Power over Ethernet
1-port data + power input
- Complies with IEEE 802.3at Power over Ethernet Plus end-span/mid-span PD
Supports PoE input power up to 30.8 watts

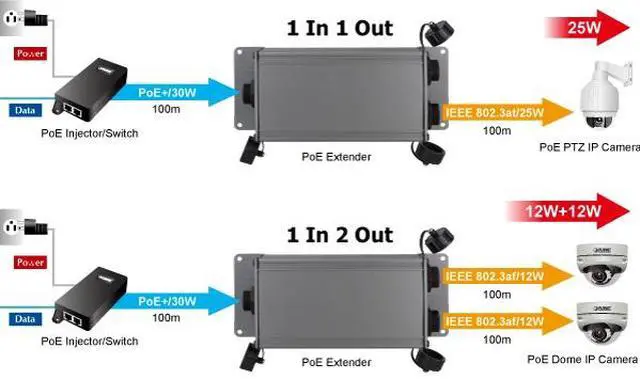

2-port data + power output
- Complies with IEEE 802.3af/802.3at Power over Ethernet/end-span PSE
- Up to 2 IEEE 802.3af/802.3at devices powered
- Supports PoE power up to 25 watts for each PoE port
- Auto detects powered device (PD)
Extends the range of PoE to an additional 100 meters (328ft.)
Forwards both Ethernet data and PoE power to remote device

Layer 2 Features
Hardware based 10/100Mbps, half/full duplex and 1000Mbps full duplex mode, flow control, auto-negotiation and auto MDI/MDI-X
Features Store-and-Forward mode with wire-speed filtering and forwarding rates
IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
Integrates address look-up engine, supporting 8K absolute MAC addresses
9K jumbo frame support in 1000Mbps duplex mode
Automatic address learning and address aging
Supports CSMA/CD protocol

Industrial Case and Installation
IP63-rated aluminum case

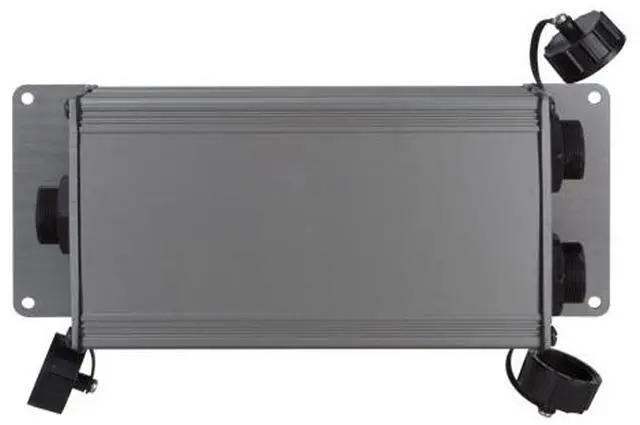

Wall-mount design
Waterproof and dustproof
Supports EFT protection of 2000 VDC for power line
Supports 2000 VDC Ethernet ESD protection
-40 to 75 degrees C operating temperature
No external power cable required for installation
Plug and Play installation

Standard Compliance
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3x Flow Control
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3af Power over Ethernet
FCC Part 15 Class A, C
