Type: USB-C, HDMI or Mini DisplayPort to HDMI Converter Cable
Color: Black
Cable Length: 6.6 ft.
Specifications: Adapter Style: Cable Adapter
Audio: Yes
Converter Type: Passive
Connector A: 1 x Mini-DisplayPort (20 pin) Male, 1 x HDMI (19 pin) Male, 1 x USB-C (24 pin) Male
Connector Type(s): 1 x USB Micro-B (5 pin) Female
Power Source: USB-Powered
Humidity: 5 to 90% RH
Operating Temperature: 0 to 60 degree C (32 to 140 degreeF)
Storage Temperature: -10 to 80 degree C (14 to 176 degree F)
Specifications: Audio: Yes
Chipset ID: NXP - PTN5100 / Pericom - PI3DPX1203
Converter Type: Format Converter
Audio Specifications: 7.1 surround sound
Maximum Digital Resolutions: 4K (3840 x 2160) @ 60 Hz
Supported Resolutions:
1024 x 768
1280 x 720
1920 x 1080 @ 144hz
1920 x 1200
2560 x 1440
2560 x 1600
3840 x 2160 @ 60Hz
Video Revision: DisplayPort 1.2
Wide Screen Supported: Yes
Connector:
1 x USB-C (24 pin) DisplayPort Alt Mode Male Input
1 x Mini-DisplayPort (20 pin) Female Output
System and Cable Requirements:
Your USB-C device must support DisplayPort over USB-C (DP alt mode) to work with this adapter
This adapter outputs a single-mode Mini DisplayPort signal and will not work with additional video adapters such as Mini DisplayPort to HDMI, Mini DisplayPor...

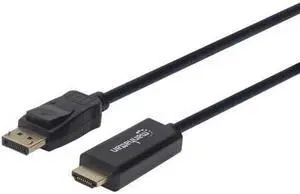

Type: DisplayPort 1.2a to HDMI 2.0 Active Adapter Cable
Color: Black
Connector Number: 2
Specifications: Side A - Connector 1: DisplayPort 1.2a
Side B - Connector 1: HDMI 2.0
Contact Plating: Gold
Wire Gauge (AWG): 28 AWG
Typical Applications:
Watch 4K video content from a DisplayPort-enabled PC, Mac or Surface on an Ultra HD television or projector
Edit HDR production video or digital photos using a 4K monitor
Connect a Chromebook or MacBook to a conference table’s A/V box to give a video presentation on a large screen
Upgrade the video quality of your trade show presentation or digital signage installation in a commercial or educational setting to 4K x 2K
Specifications: Audio: Yes
Chipset ID: STDP4320
Converter Type: MST Hub
Output Signal: HDMI
Ports: 2
Maximum Digital Resolutions: 3840x2160 @ 30 Hz
Supported Resolutions:
Note: MST shares 21.6 Gbps across all attached displays. Higher resolutions can restrict the available bandwidth with the remaining ports, please see our guideline below for determining an ideal resolution for your setup.
Average resolution bandwidth allocation
1920 x 1080 (High-definition 1080p) @60 Hz - 22%
1920 x 1200 @60hz - 30%
2560 x 1440 @60hz - 35%
2560 x 1600 @60hz - 38%
3840 x 2160 (Ultra HD 4K) @30 Hz - 38%
Note: Exceeding 100% will reduce functionality.
Wide Screen Supported: Yes
Connector A: 1 x USB-C (24 pin) DisplayPort Alt Mode Male Input
Specifications: Audio Specifications: HDMI output - 7.1 surround sound; DVI output - 2-channel stereo audio
General Specifications: Only one video output is supported on the video adapter at a time. If multiple connections are made, only one of the outputs will function.
Maximum Analog Resolutions: 1920 x 1200
Maximum Digital Resolutions: 3840 × 2160
Maximum Power Delivery Support: None
Supported Resolutions: HDMI output: 3840 x 2160 (@ 30 Hz), 2560 x 1600, 2048 x 1280 (@ 60 Hz), 1920 x 1200, 1920 x 1080, 1280 x 720; VGA and DVI output: 1920 x 1200 (@ 60 Hz), 1920 x 1080, 1280 x 720
Video Revision: DisplayPort 1.2
Wide Screen Supported: Yes
Output Connector: 1 x HDMI (19 pin) Female Output
1 x DVI-I (29 pin) Female Output
1 x VGA (15 pin, High Density D-Sub) Female Output
Specifications: Audio Specifications: 7.1 surround sound
Maximum Digital Resolutions: 3840 x 2160 @ 60Hz
Supported Resolutions: 3840 x 2160 @ 60Hz
2560 x 1600
2048 x 1280
1920 x 1200
1920 x 1080
1280 x 720
1680 x 1050
1600 x 900
1440 x 900
1360 x 768
1280 x 800
1280 x 768
Wide Screen Supported: Yes
Connector A: 1 x USB-C (24 pin) DisplayPort Alt Mode Male Input
Specifications: Converter Type: Format Converter
Audio Specifications: 7.1 surround sound
Maximum Digital Resolutions: 3840 x 2160 (Ultra HD 4K) @ 60hz
Supported Resolutions: 1024 x 768, 1280 x 720, 1920 x 1080, 1920 x 1200, 2560 x 1440, 2560 x 1600, 3840 x 2160
Wide Screen Supported: Yes
Connector A: 1 x USB-C (24 pin) Male Input
Connector Type(s): 1 x USB Type-C (24 pin) USB 3.0 Female
System and Cable Requirements: Your USB-C port must support DisplayPort over USB-C (DP Alt mode) in order to work with this adapter.
Humidity: 25% to 85% RH Non-Condensing
Operating Temperature: 5 to 35 degree C (41 to 95 degree F)
Storage Temperature: 5 to 35 degree C (41 to 95 degree F)
