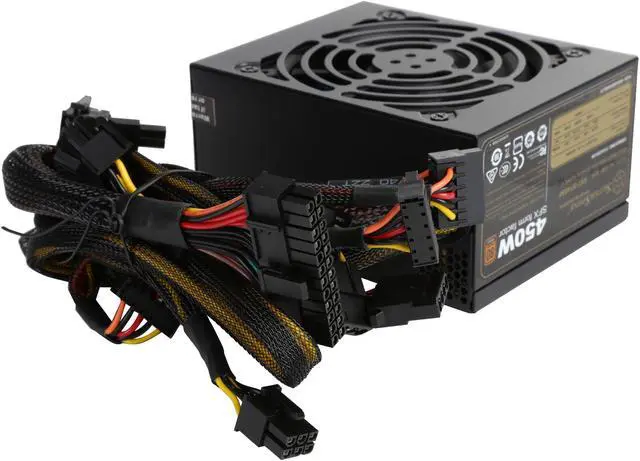

SILVERSTONE SFX Series 80 Plus Bronze Certificated SST-ST45SF-V3 450W SFX Active PFC Power Supply
- 80+ Bronze Certificated
- SFX Active PFC
- +3.3V@20A, +5V@20A, [email protected], +5VSB@3A, [email protected]

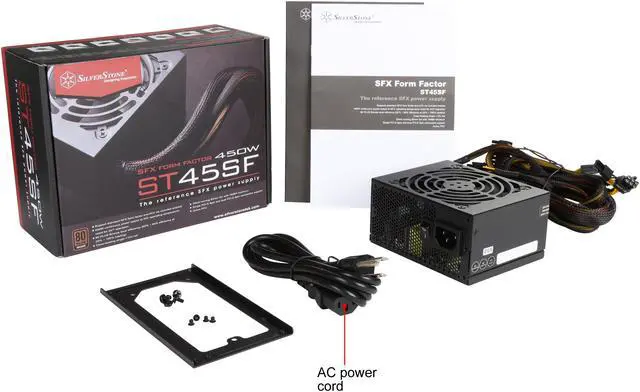

- Supports standard SFX form factor and ATX via included bracket
+
+
Specs
Reviews (3)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Silverstone SST-ST45SF-V3
| Brand | SilverStone |
|---|---|
| Series | SFX Series |
| Model | SST-ST45SF-V3 |
| Type | SFX |
|---|---|
| Maximum Power | 450 W |

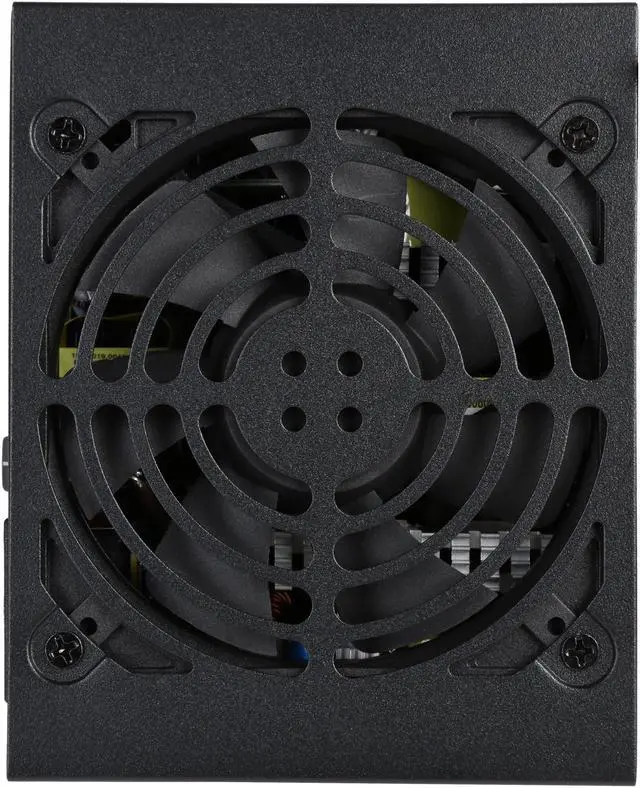

| Fans | Single 92mm silent fan |
| PFC | Active |
| +12V Rails | Single |
| PCI-Express Connector | 1 x 6+2-Pin |
| SATA Power Connector | 3 |
| Max PSU Length | 100 mm |
| Efficiency | 82% - 85% |
| Energy-Efficient | 80 PLUS BRONZE Certified |
| Over Voltage Protection | Yes |
| Input Voltage | 90 - 264 V |
| Input Frequency Range | 47 - 63 Hz |

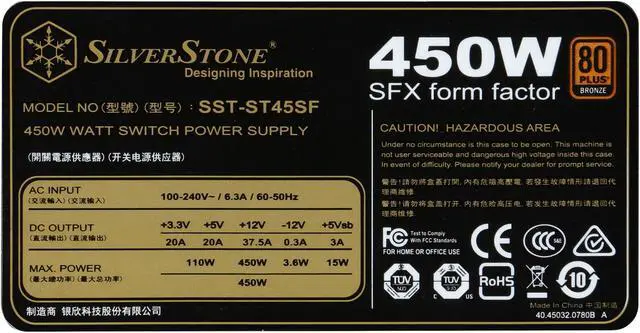

| Output | +3.3V@20A, +5V@20A, [email protected], +5VSB@3A, [email protected] |
| MTBF | >100,000 Hours |

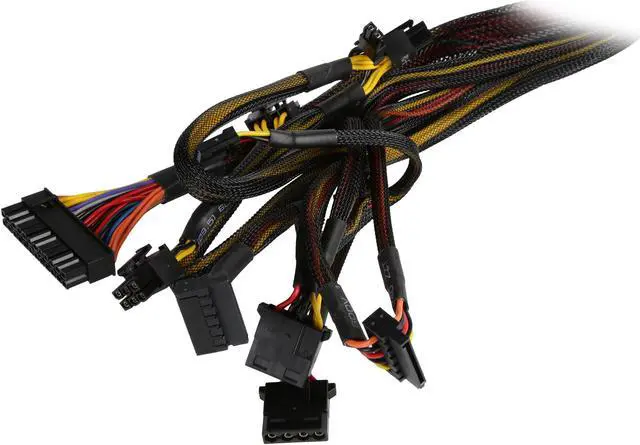

| Connectors | 1 x 24 / 20-Pin motherboard connector 1 x 8 / 4-Pin EPS / ATX 12V connector 1 x 8/6-Pin PCIE connector 1 x 6-Pin PCIE connector 3 x SATA connector 2 x 4-Pin Peripheral connector 1 x 4-Pin Floppy connector |
| Features | Supports standard SFX form factor and ATX via included bracket 450W continuous power output at 40? temperature rated for 24/7 operation 80 PLUS Bronze level efficiency (82% ~ 85% efficiency at 20% ~ 100% loading) Class-leading single +12V rail with 36A Silent running 92mm fan Single PCI-E 8pin and dual PCI-E 6pin connectors support Active PFC Over current protection, Over voltage protection, Short circuit protection, Over Power Protection, Under Voltage Protection |
|---|
| Dimensions | 2.50" x 4.92" x 3.94" |
|---|---|
| Weight | 2.43 lbs. |
| First Listed on Newegg | October 18, 2016 |
|---|
