SIIG 1x8 HDMI Splitter Over Cat6 Extender with Loopout, IR, ARC & RS-232 CE-H27B11-S1
- HDMI
- Transmitting unit (TX):
- 1x 19-pin HDMI, Type A, Female, Input
- 1x 19-pin HDMI, Female, Loopout
- Receiving unit (RX):
- 1x 19-pin HDMI, Type A, Female, Output
+
+
Specs
Reviews
Learn more about the SIIG, Inc CE-H27B11-S1
| Brand | SIIG |
|---|---|
| Model | CE-H27B11-S1 |
| Splitter Type | HDMI |
|---|---|
| Color | Black |
| Specification | Compliant with HDCP 2.2 Transmission Distance: 4K@60Hz: Up to 70m via Cat6/7 cable 4K@60Hz: Up to 40m via Cat5 cable Full frequency IR signal from 20KHz to 60KHz RS-232: 3-pin: GND-RxD-TxD, follow RS-232 Levels, Support up to 115200 baud rates Network cable: UTP/STP CAT5e/6/6a/7 |
| Resolution Support | Up to 3840x2160 @60Hz, 2160p / 1080p / 1080i / 720p / 480p |
|---|---|
| Audio | HDMI: PCM2/5.1/7.1, Dolby & DTS 5.1 Toslink: PCM2, Dolby & DTS 5.1 |

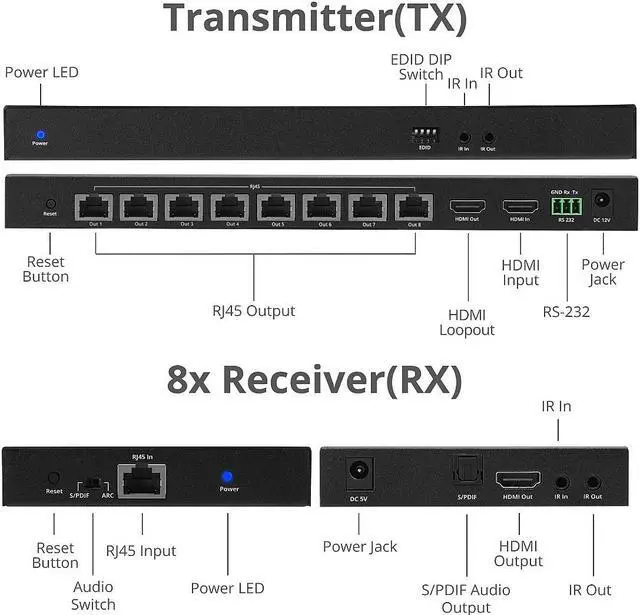

| HDMI | Transmitting unit (TX): 1x 19-pin HDMI, Type A, Female, Input 1x 19-pin HDMI, Female, Loopout Receiving unit (RX): 1x 19-pin HDMI, Type A, Female, Output |
|---|---|
| Network Interface | Transmitting unit (TX): 8x 8-pin, RJ45, video output Receiving unit (RX): 1x 8-pin, RJ45, video input |
| Other Connector | Transmitting unit (TX): 1x 3.5mm jack, IR Blaster 1x 3.5mm jack, IR Receiver 1x 3-pin Terminal Block, RS-232 for control 1x 4-pin DIP Switch for EDID management 1x Power jack 1x Reset button Receiving unit (RX): 1x 3.5mm jack, IR Blaster 1x 3.5mm jack, IR Receiver 1x S/PDIF Toslink, Audio & ARC 1x Slide switch, (S/PDIF & ARC) 1x Power jack 1x Reset button |
| Power Supply | Input: 100-240V / 50-60Hz TX: DC 12V/3A RX: DC 5V/2A |
|---|

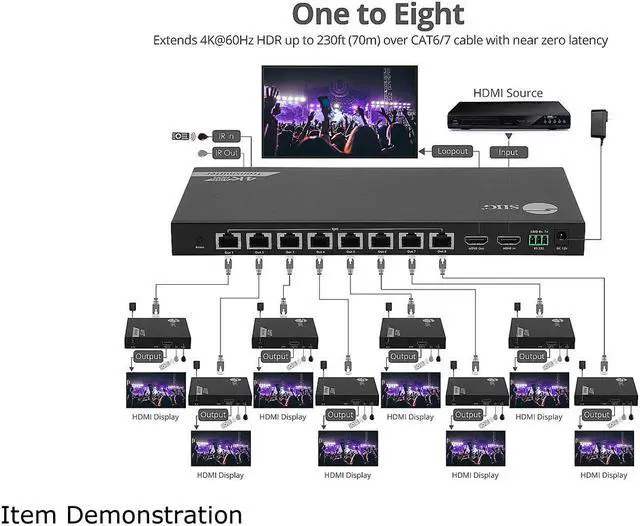

| Feature | 4K HDMI Extension - Easily extends UHD 4K@60Hz HDMI signals up to 230ft (70m) over economical Cat6/7 cabling to up to 8 displays Advanced Transmission Technology - Unique ultra-high-definition video digital transmission and connection extender technology, can extend and transmit 4K@60Hz YUV 4:4:4 video and audio, with zero latency, HDR HDMI Loopout + Extend 8 Displays - Supports one HDMI loop-out for additional local display connections and extender 8 receivers for HDTV or Projector via Cat6/7 cable EDID Management - Support EDID management capability to controls the resolution output to the display(s) Audio Extraction - Extracts digital audio from the HDMI signal and routes it through the receiver's digital S/PDIF port via PCM2, Dolby 5.1, DTS 5.1 audio signal IR Control - Built-in bi-directional IR provides full remote control capabilities, control the HDMI source device at the remote display location and vice versa ARC and Audio Extraction - Through the Toslink connection of the Receiver (RX) RS-232 Control - Support RS-232 command control in the Transmitter Protection - Lightning Protection, Surge Protection, ESD Protection High Quality Wall mount Design - High quality metal housing improve heat dissipation and ensure system stability during long hours of operation Easy Installation - Plug and play installation, no driver installation required |
|---|

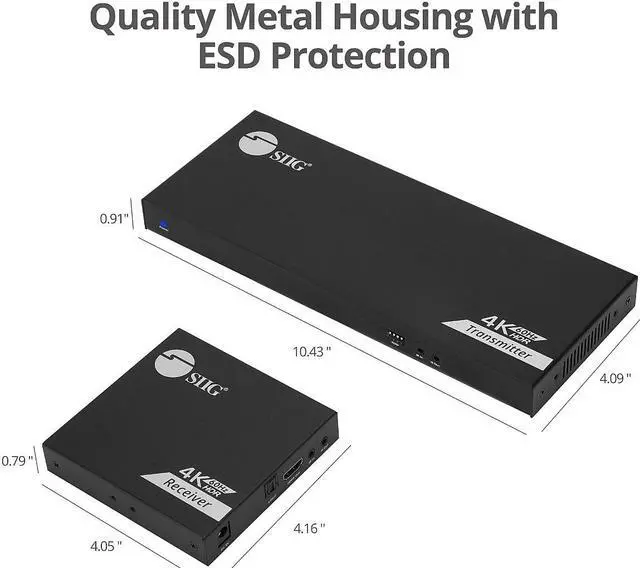

| Dimensions | Transmitting unit (TX): 0.91" x 10.39" x 4.72" Receiving unit (RX): 0.79" x 4.15" x 4.04" |
|---|---|
| Weight | Transmitting unit (TX): 1.61 lbs. Receiving unit (RX): 0.54 lb. |

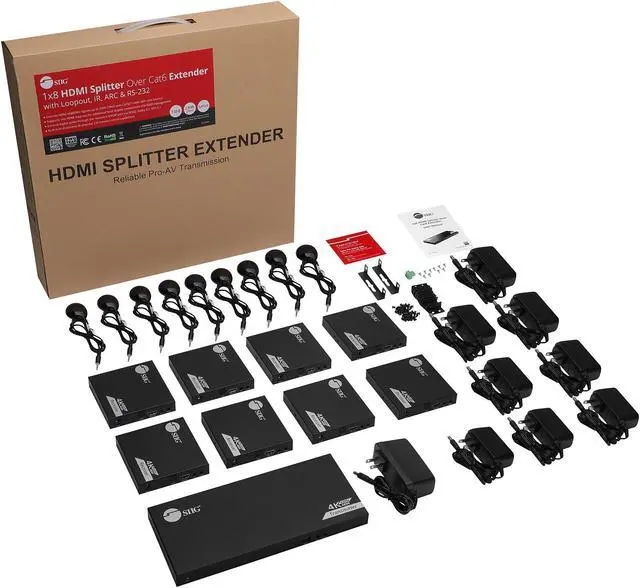

| Package Content | 1x8 HDMI Splitter Over Cat6 Extender with Loopout, IR, ARC & RS-232 Power adapter (x9) IR Blaster extension cable (x1) IR Receiver extension cable (x8) Terminal block Mounting kit User Manual |
|---|
| First Listed on Newegg | August 04, 2022 |
|---|
