SILVERSTONE ST70F-ESG 700W ATX12V / EPS12V SLI Ready CrossFire Ready 80 PLUS GOLD Certified Active PFC Power Supply

(17) Write a Review
  • ATX
  • 90 - 264 V
  • 80 Plus GOLD Certified l
Overview
Specs
Reviews (17)
INTRODUCTION

SilverStone ST70F-ESG 700W ATX Active PFC Power Supply

SilverStone Essential Gold are PSUs with 80 PLUS Gold certification within the affordable Strider Essential series. They retain practical and reliable fixed-cable layout from other Strider Essential PSUs and adhere to the same outstanding characteristics from all Strider series PSUs with no comprise in quality and reliability.

The 80 PLUS Gold certification ensures that Strider Essential Gold PSUs produce 40% less wasted heat from energy conversion compared to PSUs with basic 80 PLUS certification for lower burden on cooling and electricity consumption. In addition, features from higher-level Strider series such as ±3% voltage regulation, high amperage single +12V rail design and multiple GPU support are also preserved to provide the best quality solutions at any price.


SPECIAL FEATURES
SILVERSTONE
  • High efficiency with 80 PLUS Gold certification
  • 24/7 continuous power output with 104°F (40°C) operating temperature
  • Class-leading single +12V rail
  • Strict ±3% voltage regulation and low ripple & noise
  • Multiple protection circuitry
  • PCI-E 8-pin and PCI-E 6-pin connectors support

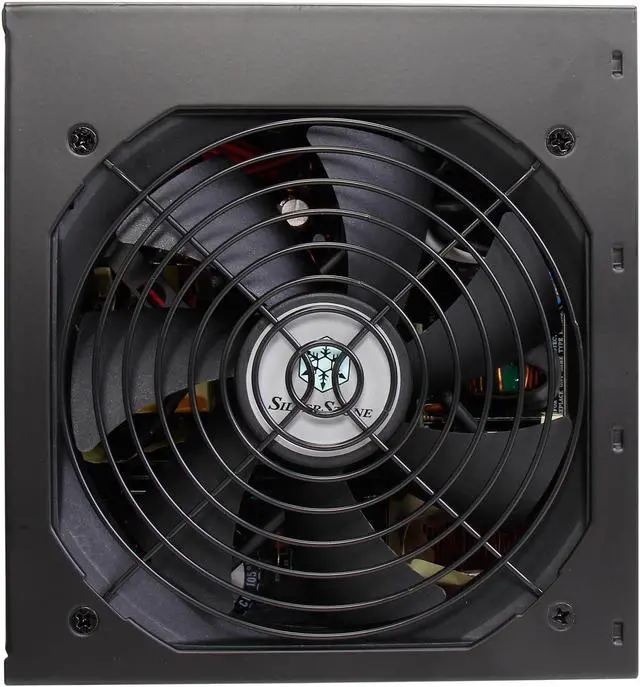

  • Built-in silent & durable hybrid ceramic bearing (HYB) fan
  • Active PFC

FEATURE PHOTOS
SILVERSTONESILVERSTONESILVERSTONESILVERSTONESILVERSTONESILVERSTONESILVERSTONE
DETAILS
SILVERSTONE

Designed for 80 PLUS Gold level of efficiency to reduce wasted heat and save on electricity.

SILVERSTONE

Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking.

SILVERSTONE

±3% Regulation and low ripple & noise performance for high stability.

SILVERSTONE

Built-in hybrid ceramic bearing (HYB) fan has lower noise and high durability, perfect for important home and office use.


SPECIFICATIONS
Model No. SST-ST70F-ESG
Max. DC Output 700W
Load Range
+3.3V +5V +12V1 +12V2 +12V3 +12V4 +5VSB -12V -5V
Max. (Amps) 25A 25A 56A / / / 3A 0.3A /
Peak (Amps) / / / / / / / / /
Min. (Amps) 0.2A 1A 1A / / / 0A 0A /
Range (%) ±3% ±3% ±3% / / / ±5% ±10% /
Line Reg.(%) ±1% ±1% ±1% / / / ±1% ±2% /
Ripple (mVp-p) 50mV 50mV 120mV / / / 50mV 120mV /
Combined +3.3, +5V 160W
Combined +12V 672W
Input Voltage 90 ~ 264Vrms
Input Frequency Range 47Hz - 63Hz
PFC Active PFC (PF>0.95 at Full Load)
Efficiency 87%~90% @ 20% ~ 100% loading
MTBF 100,000 hours
Operating Temperature 32 - 104°F (0 - 40°C)
Protection Over current protection
Over power protection
Over voltage protection
Under voltage protection
Over temperature protection
Short circuit protection

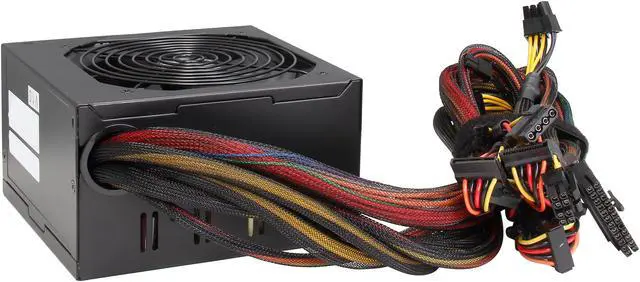

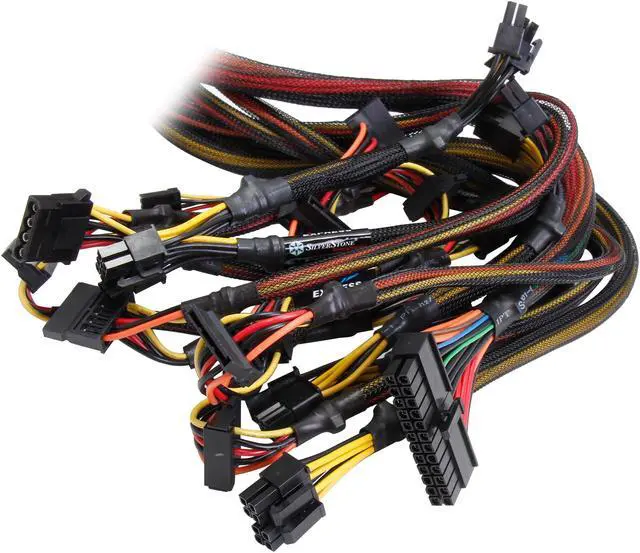

Connectors 1 x 24-Pin motherboard connector(500mm)
1 x 8 / 4-Pin EPS / ATX 12V connector(600mm)
4x 8/6-Pin PCIE connector(”500mm / 150mm” x 2)
1 x SATA connector(550mm)
4 x SATA connector(550mm / 50mm / 50mm / 50mm)
4 x SATA connector(550mm / 155mm / 155mm / 155mm)
3 x 4-Pin Peripheral connector (705mm / 155mm / 155mm)
1 x 4-Pin Floppy connector(705mm / 155mm / 155mm / 100mm)
Color Black (Lead-Free Paint)
Cooling System Single 120mm HYB fan
Noise Level 18dBA minimum
Dimensions (W x H x D) 6 x 3.3 x 5.5 inches (150 x 86 x 140mm)
Weight 4.3lbs (1.95kg)
Form Factor ATX
Certification 80 PLUS Gold
Other GPU Support list
Haswell CPU support

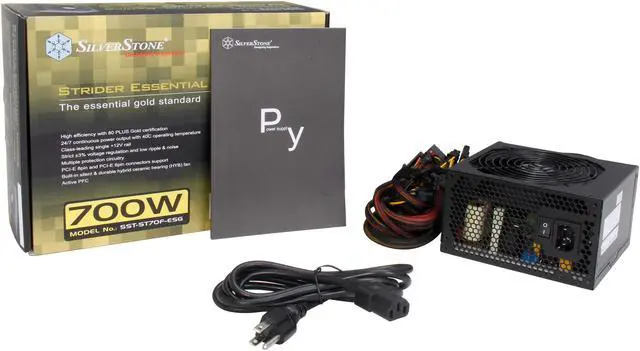

WHAT'S IN THE BOX
SILVERSTONE
