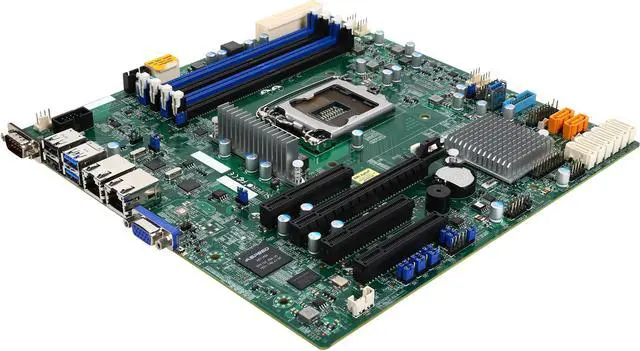

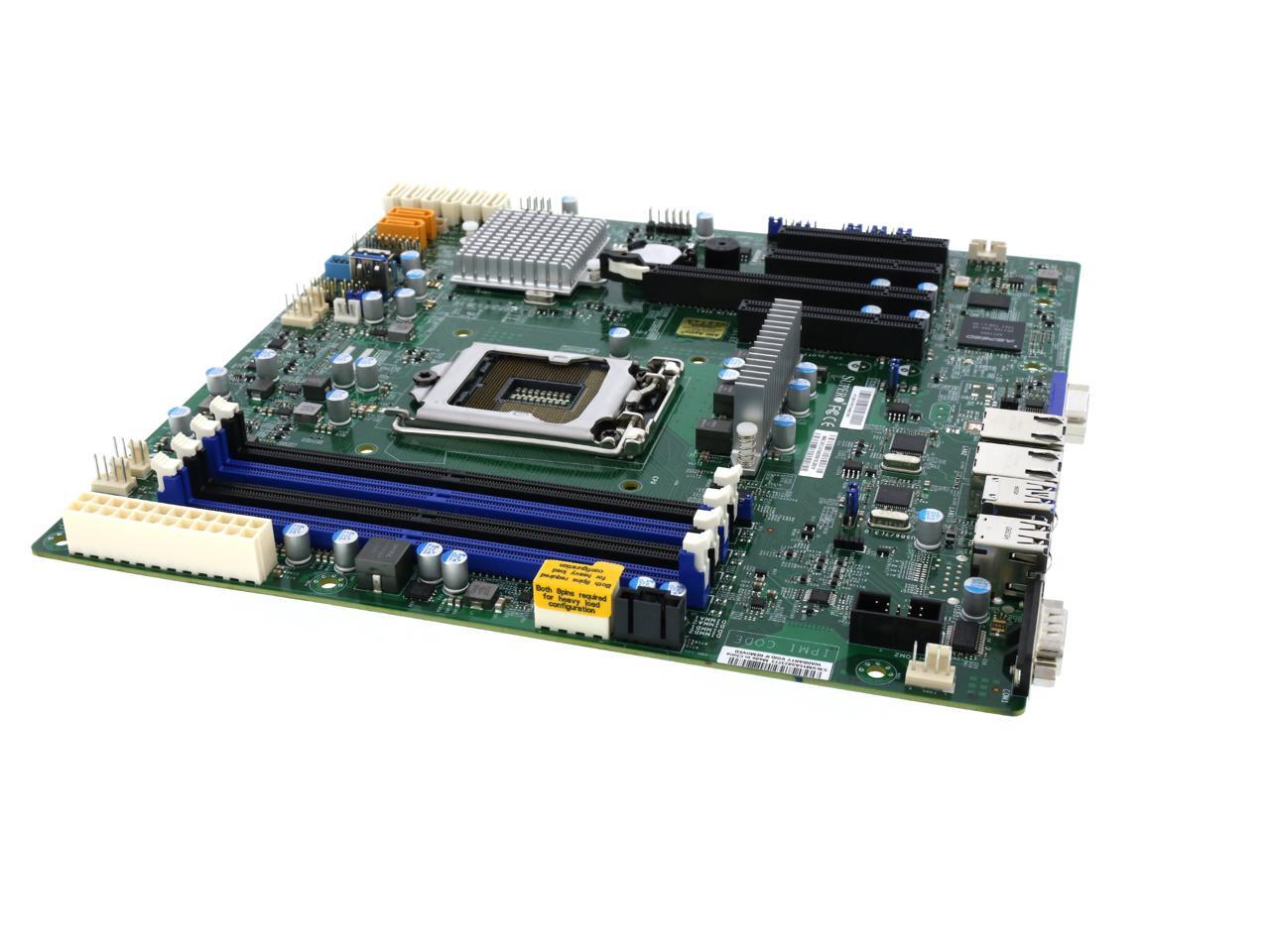

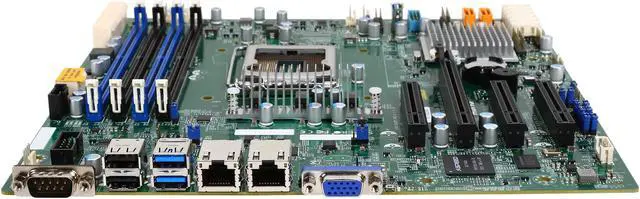

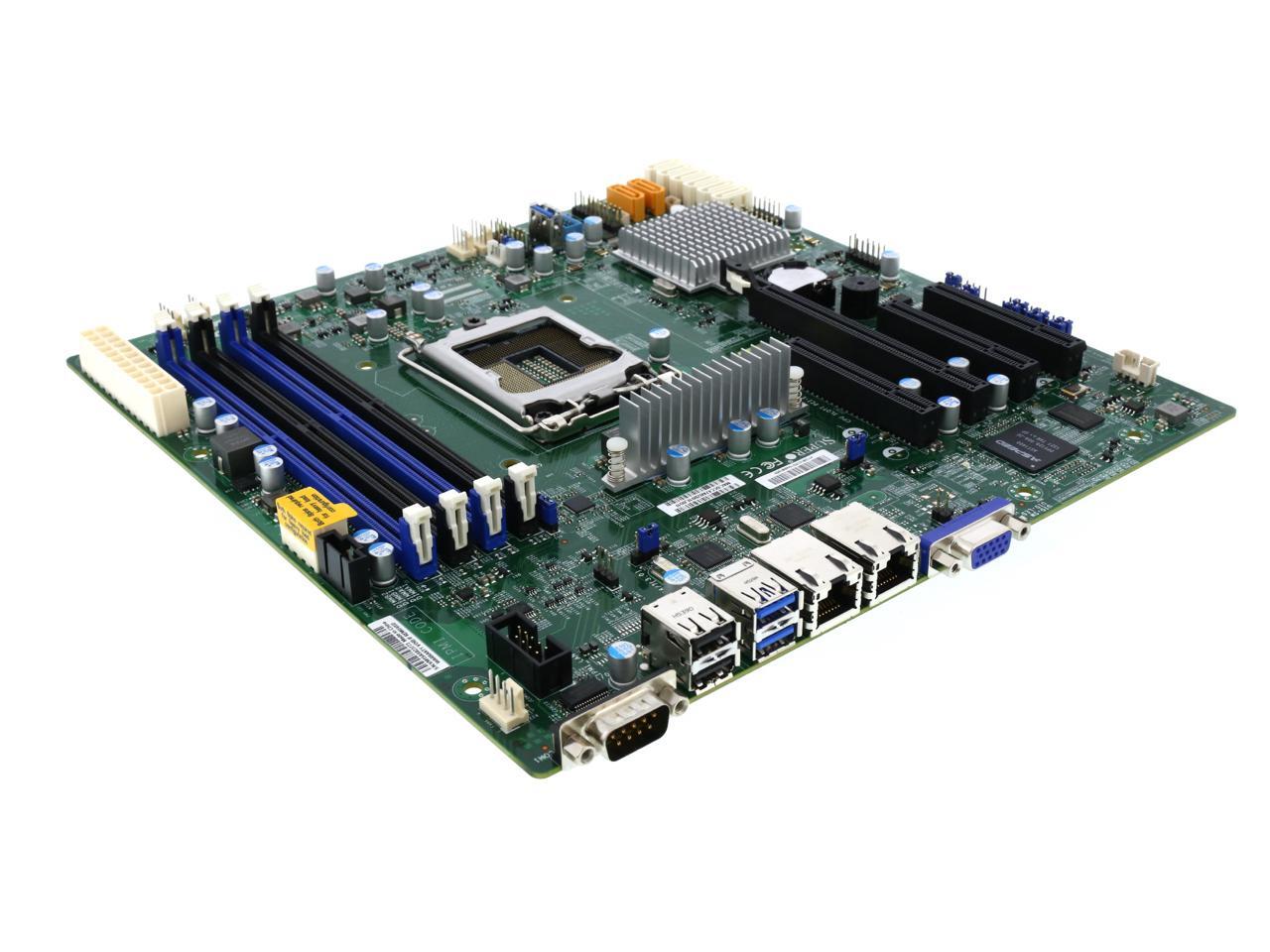

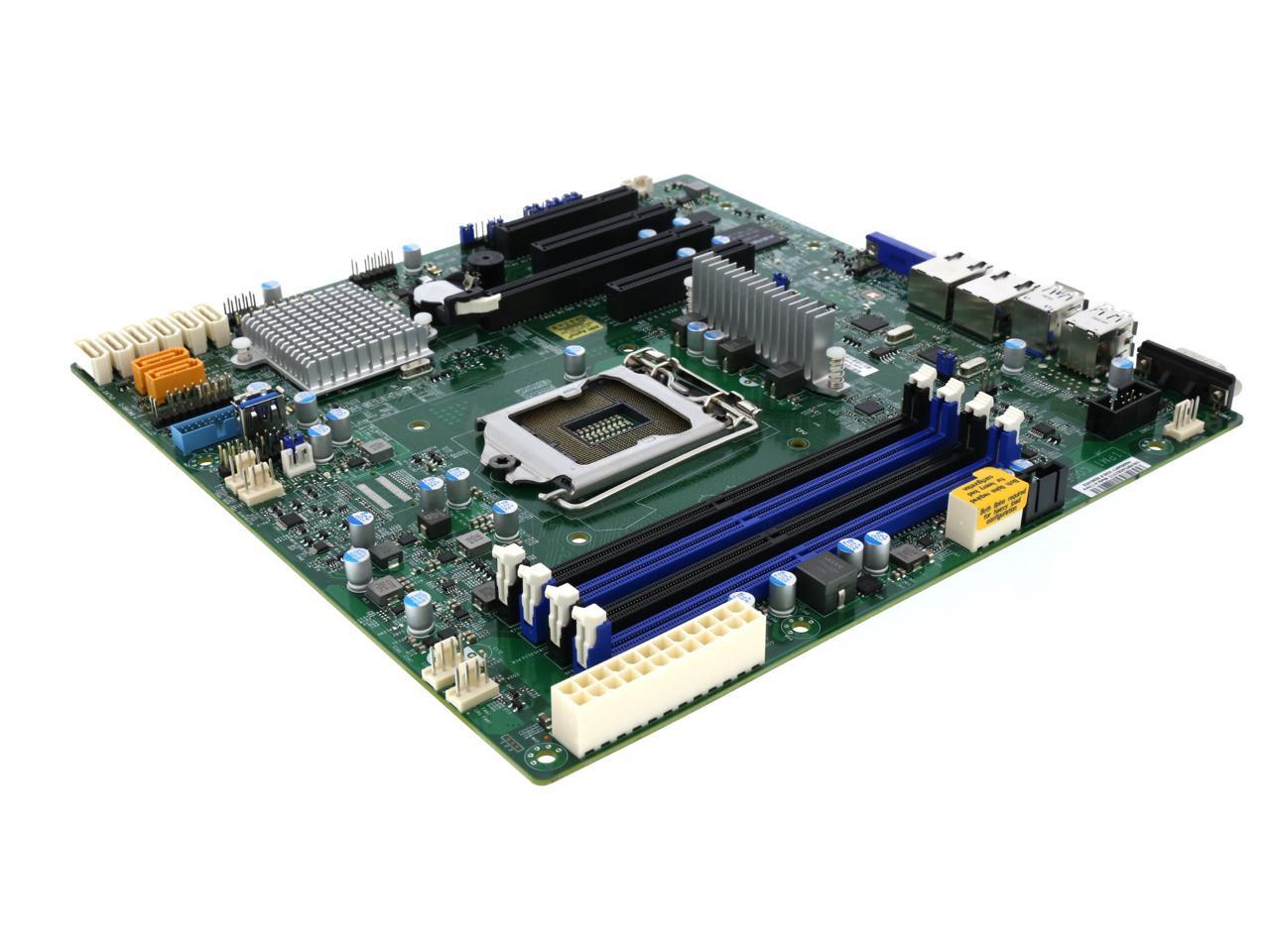

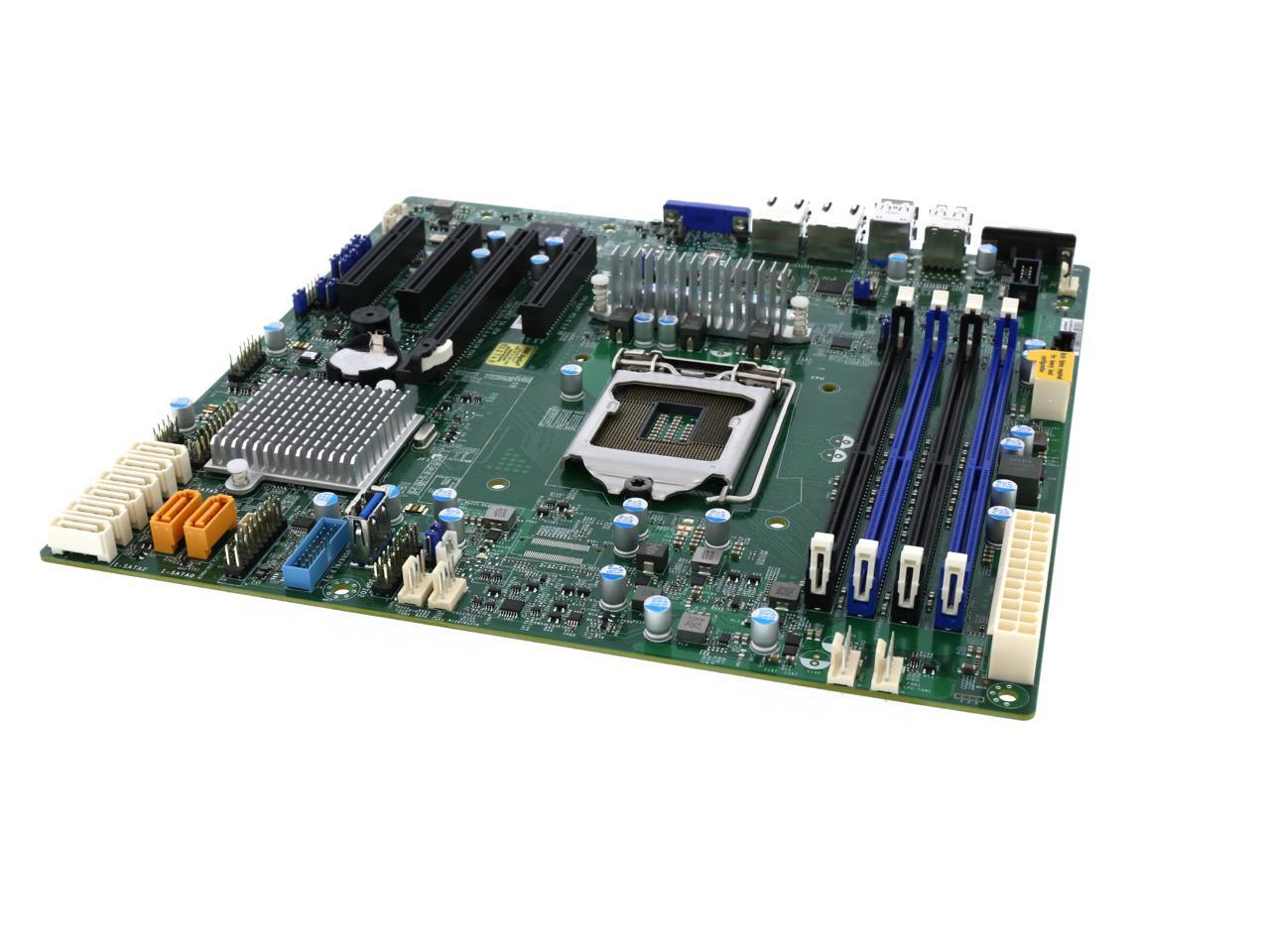

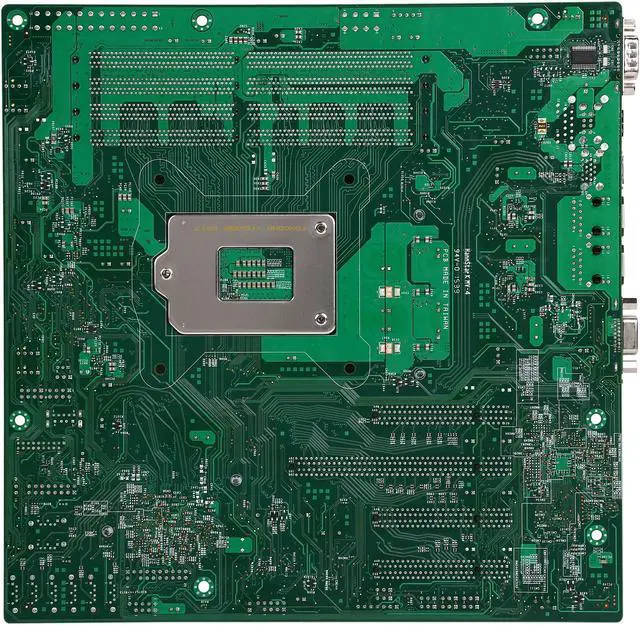

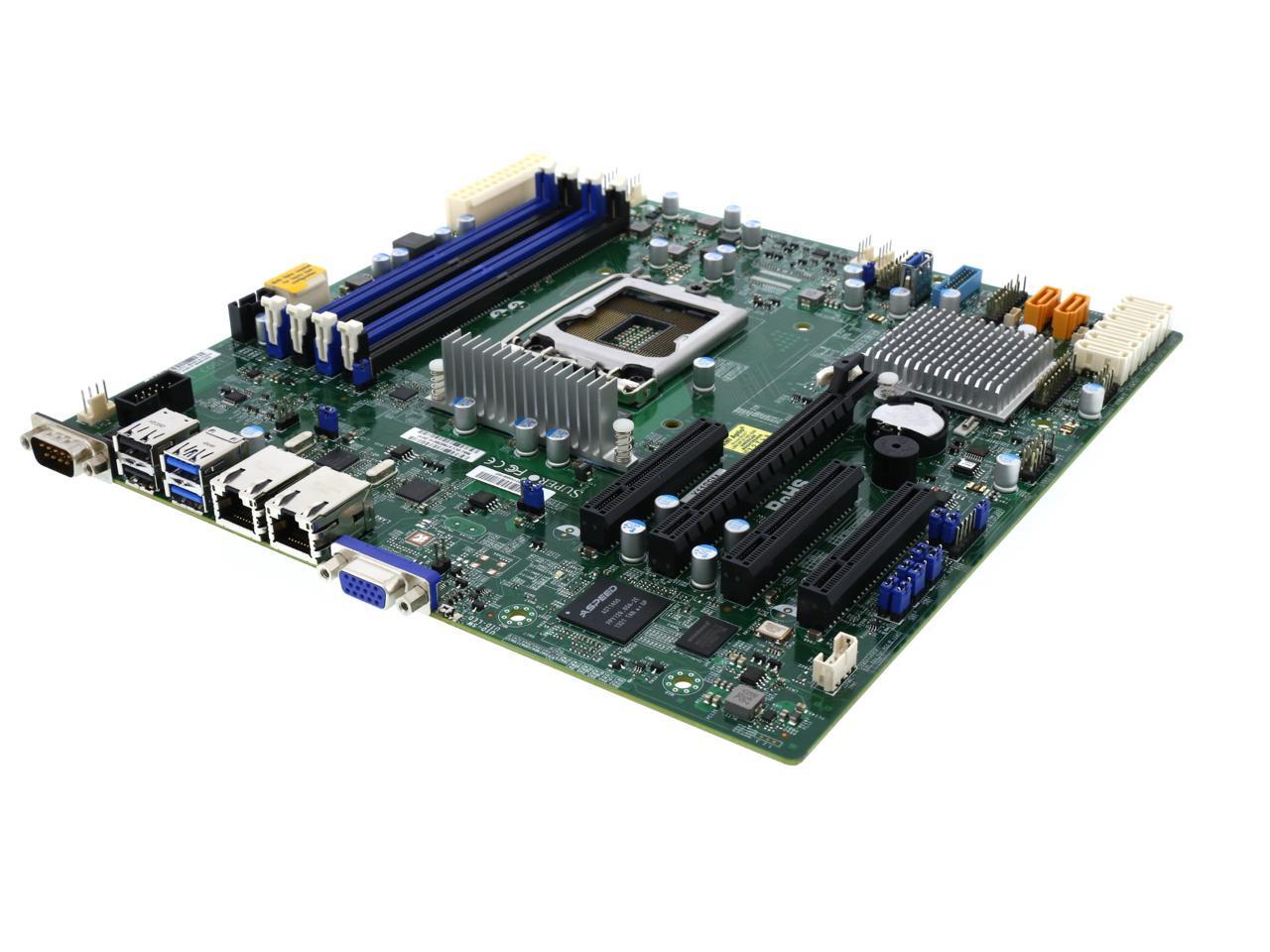

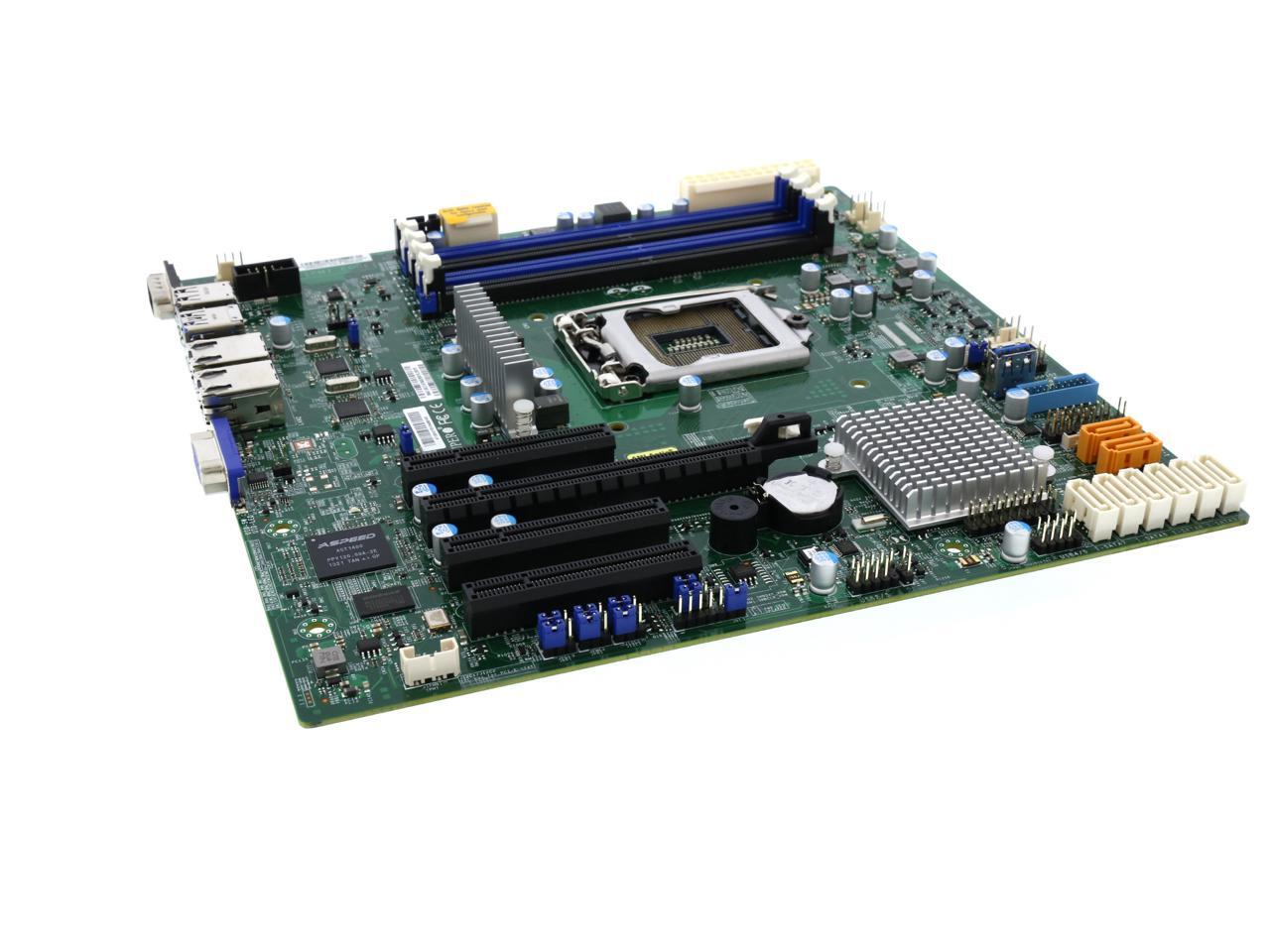

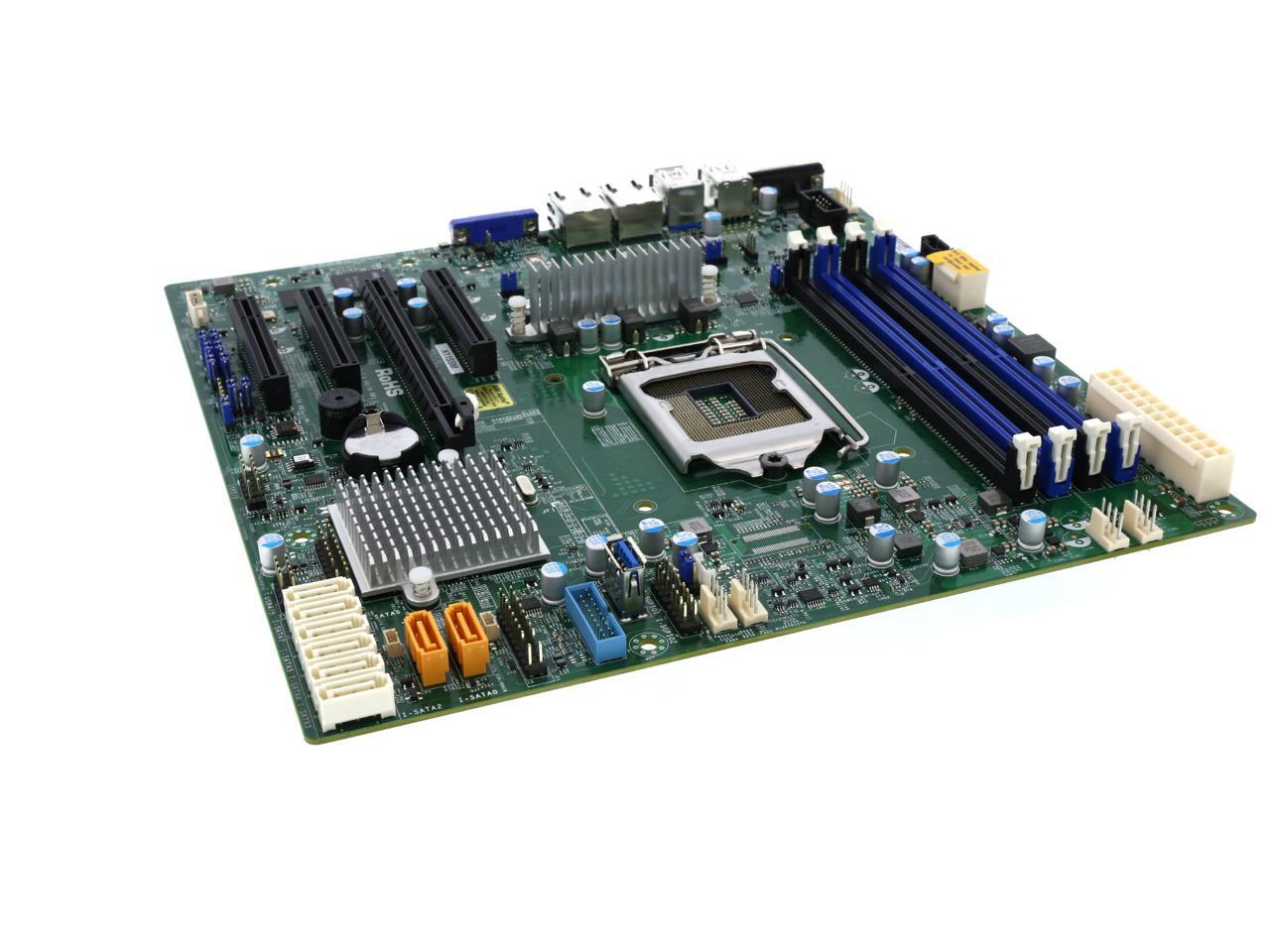

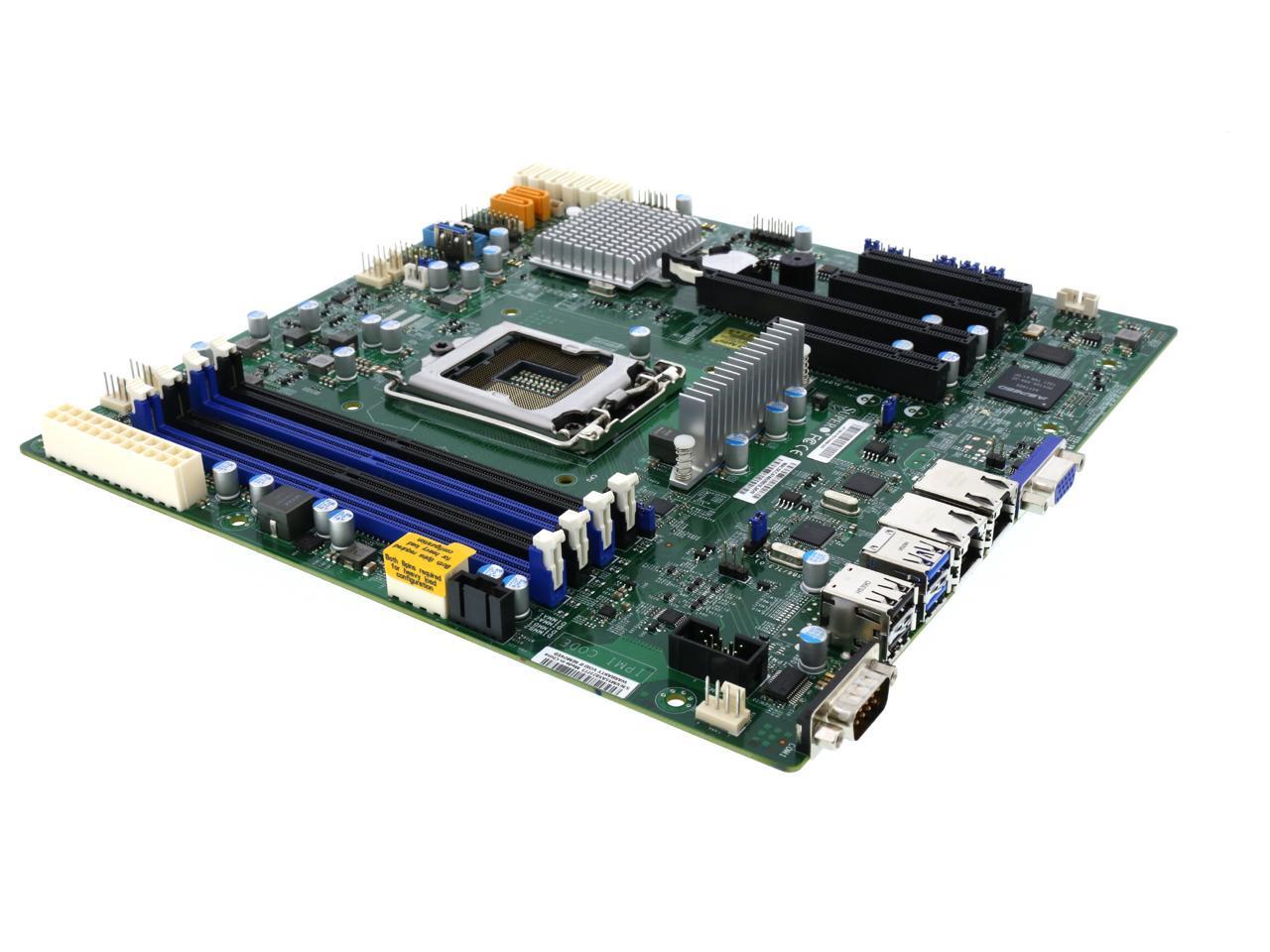

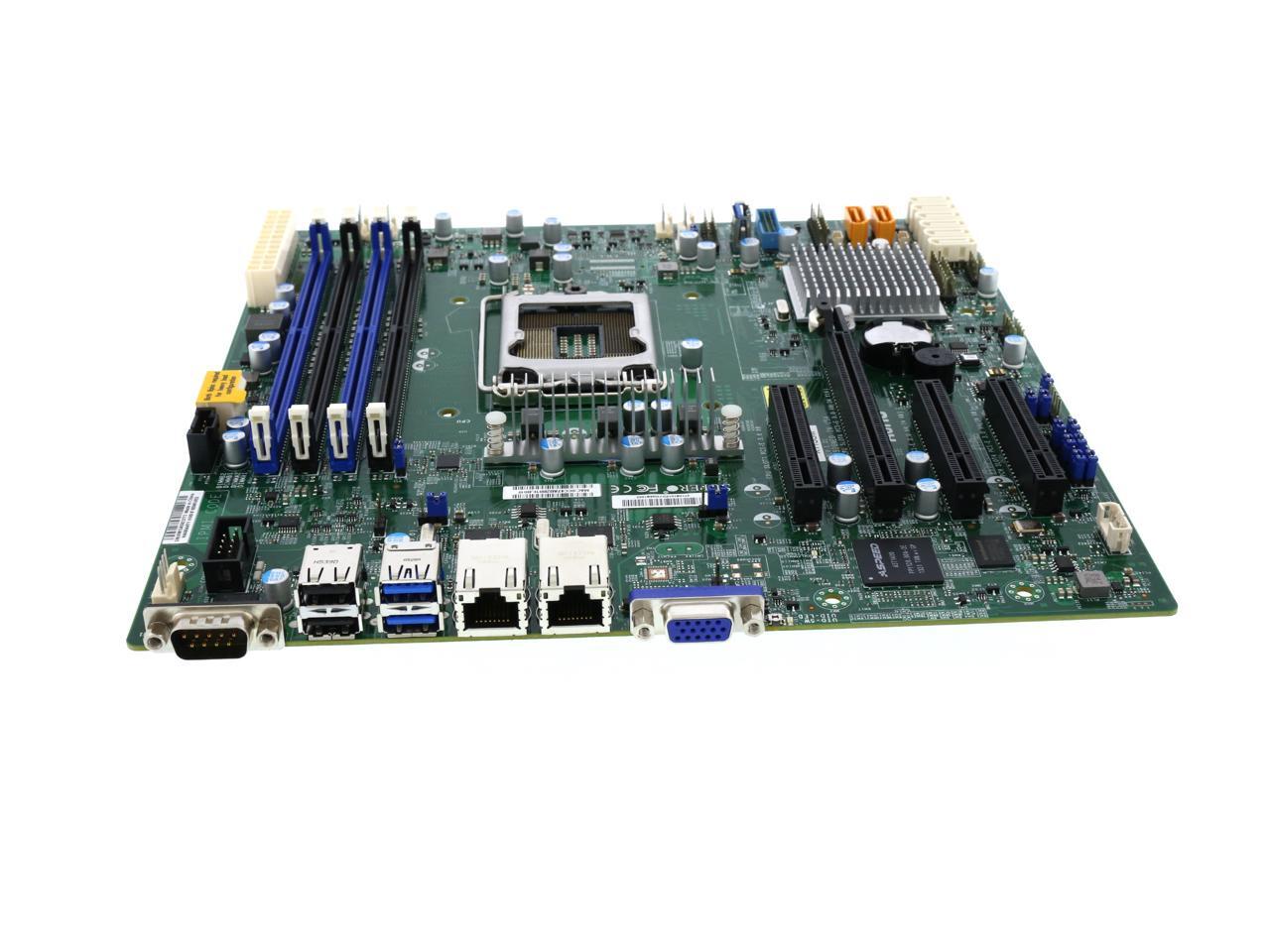

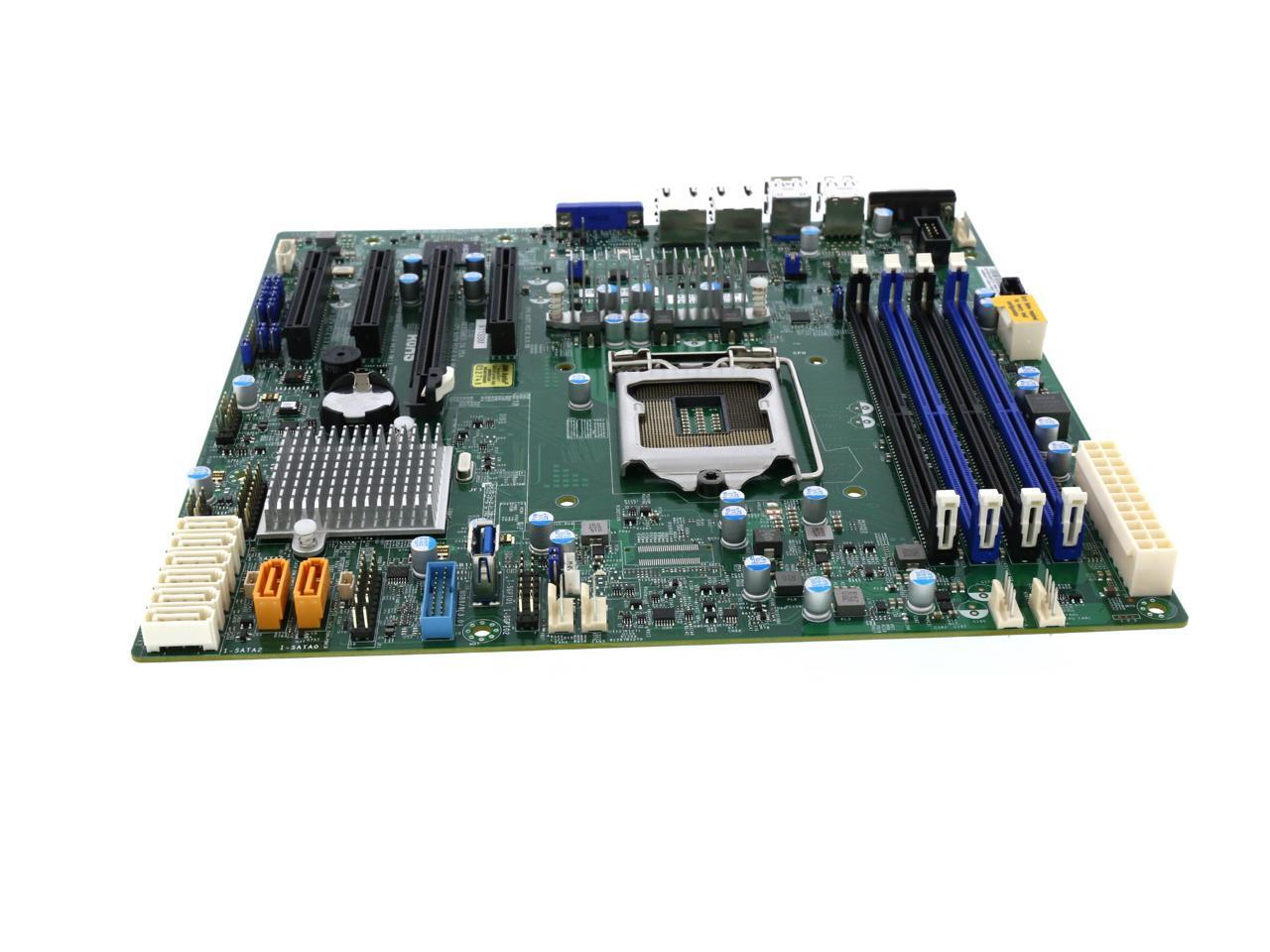

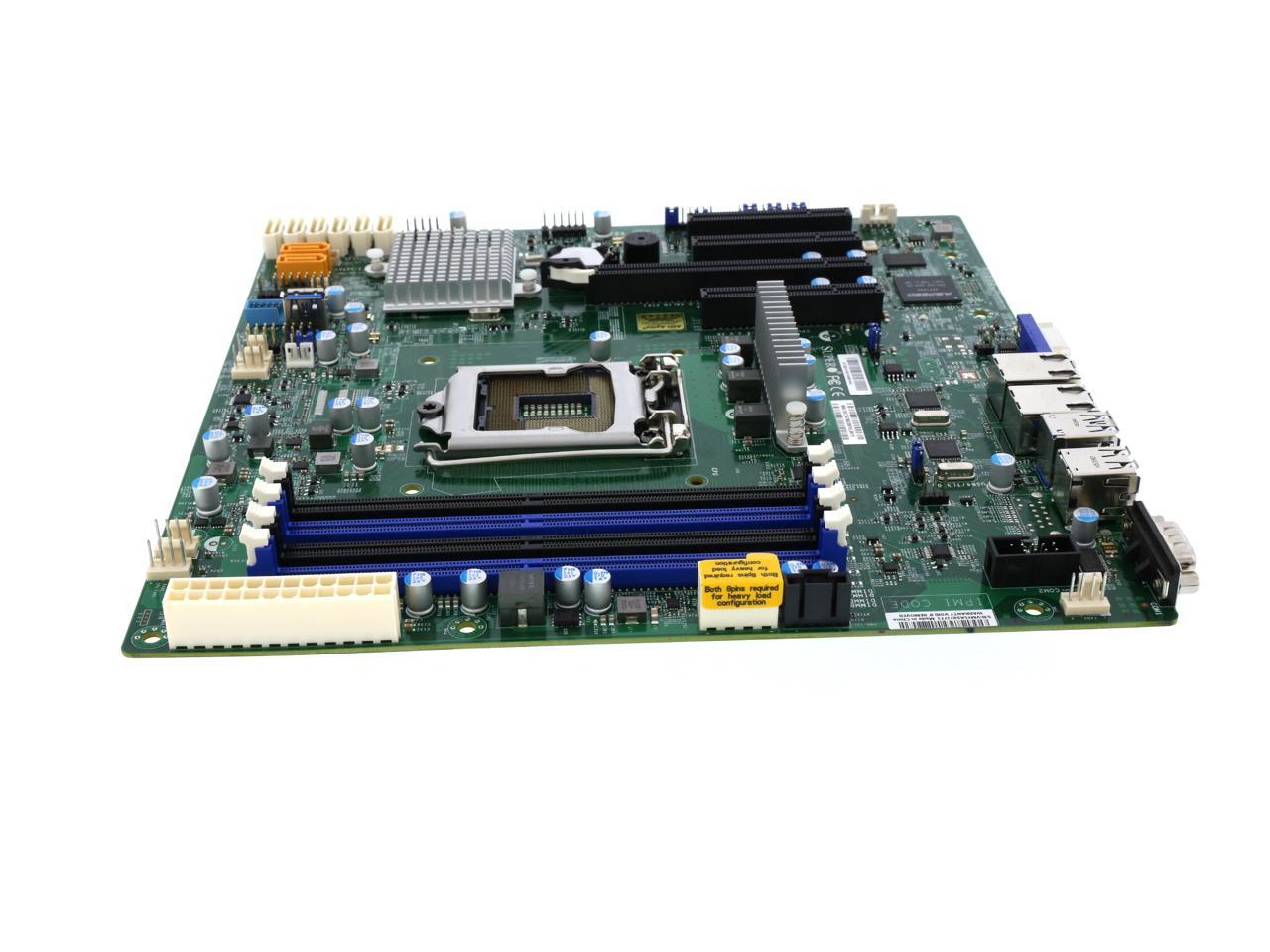

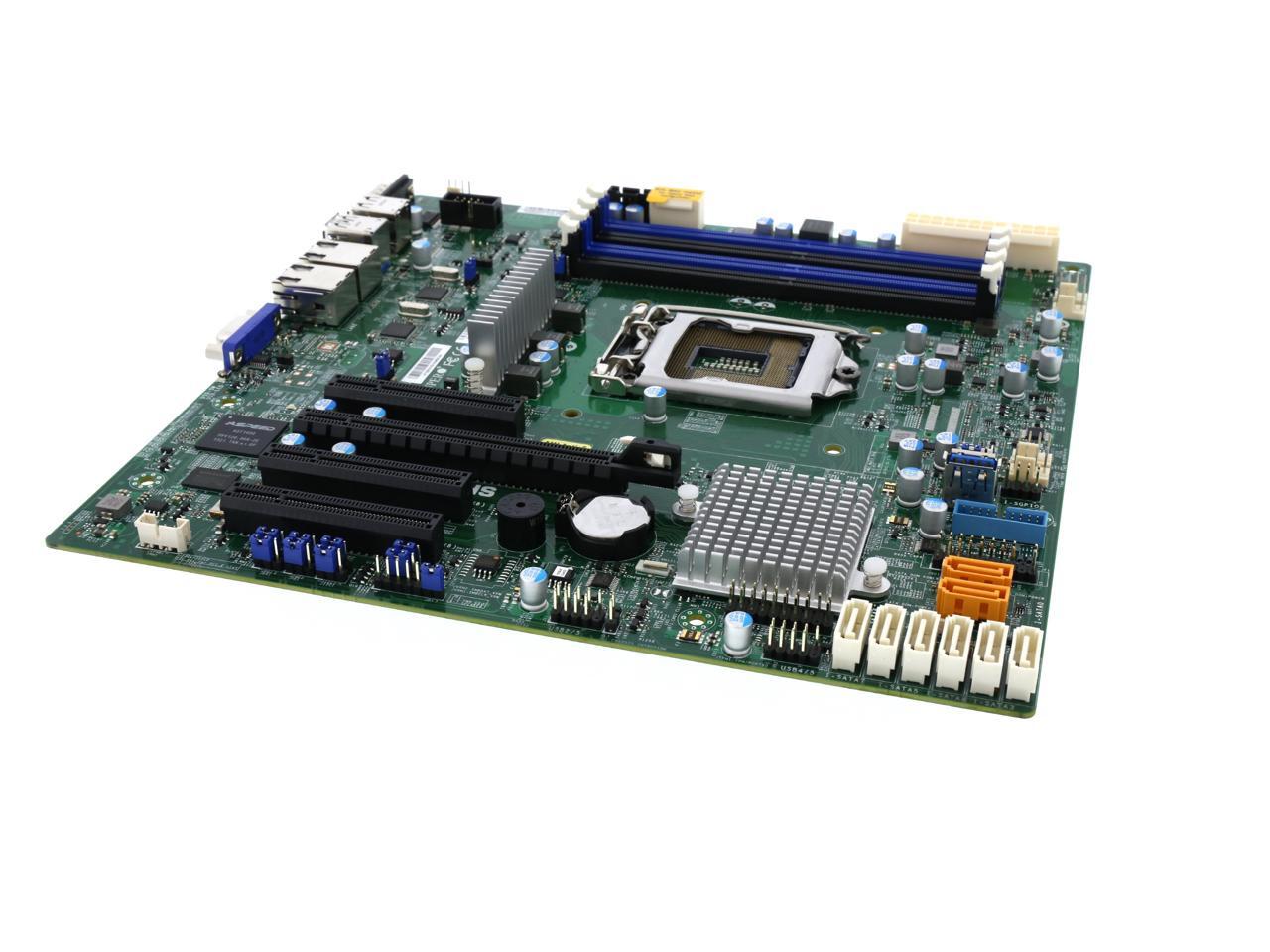

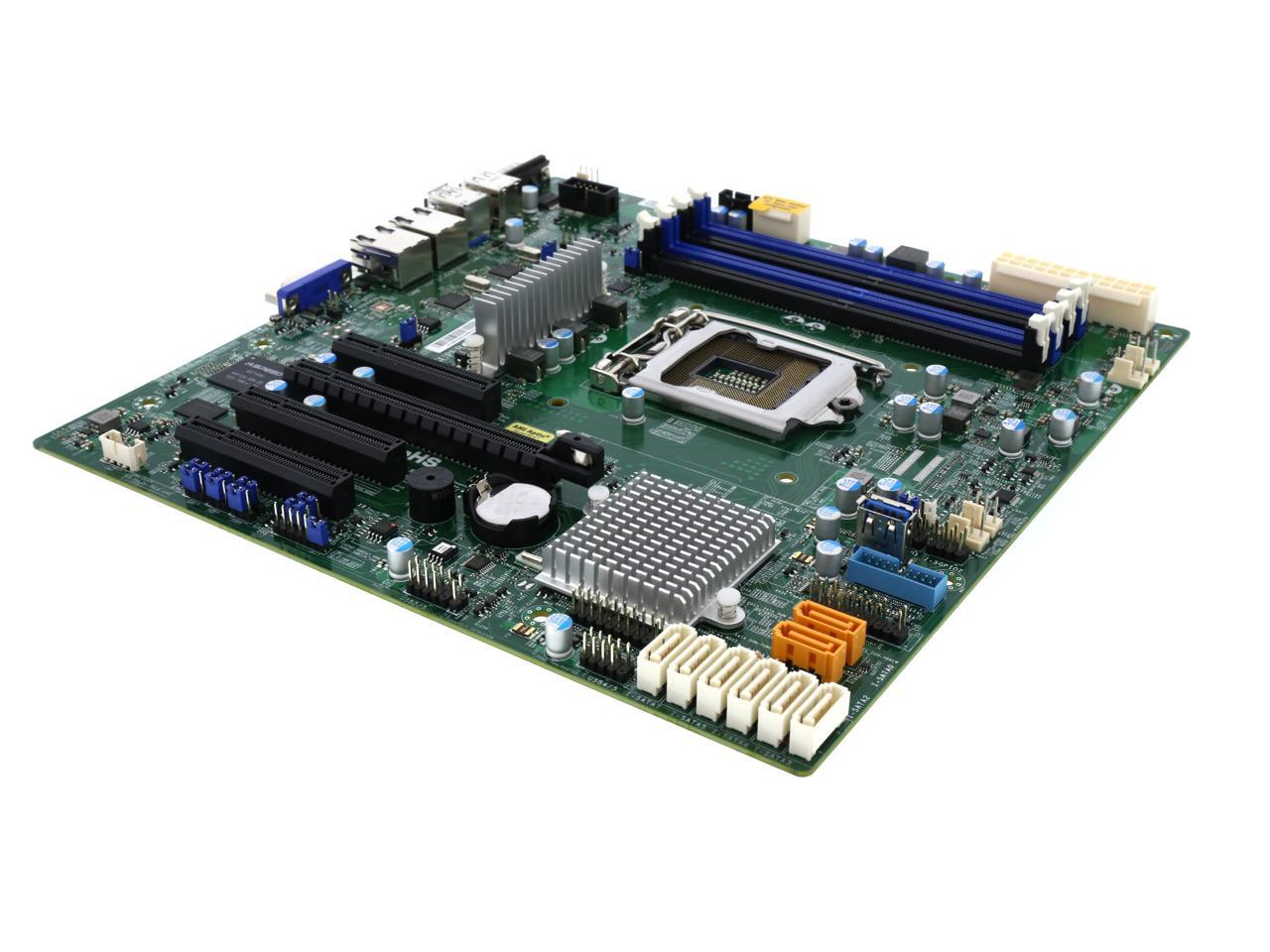

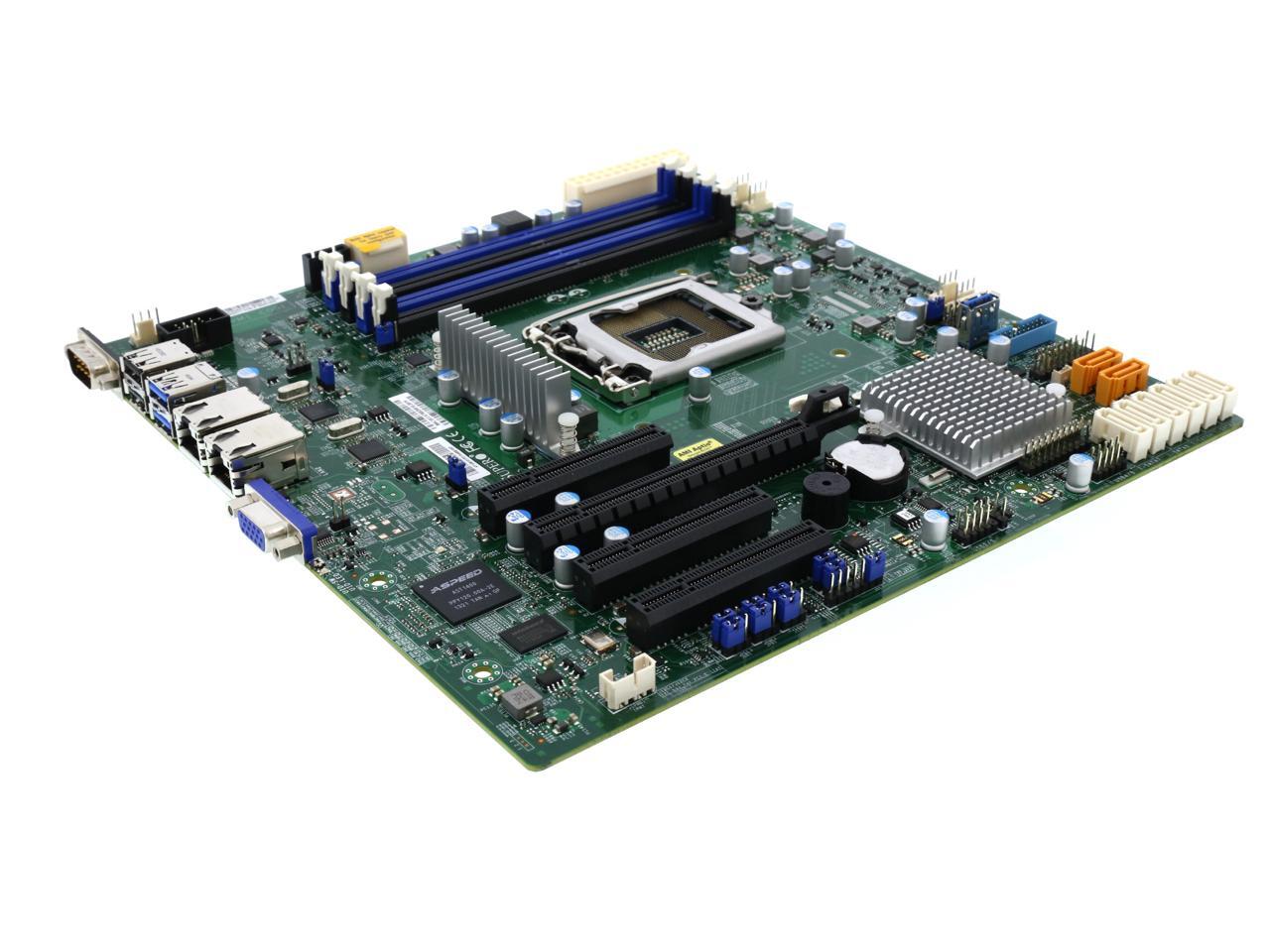

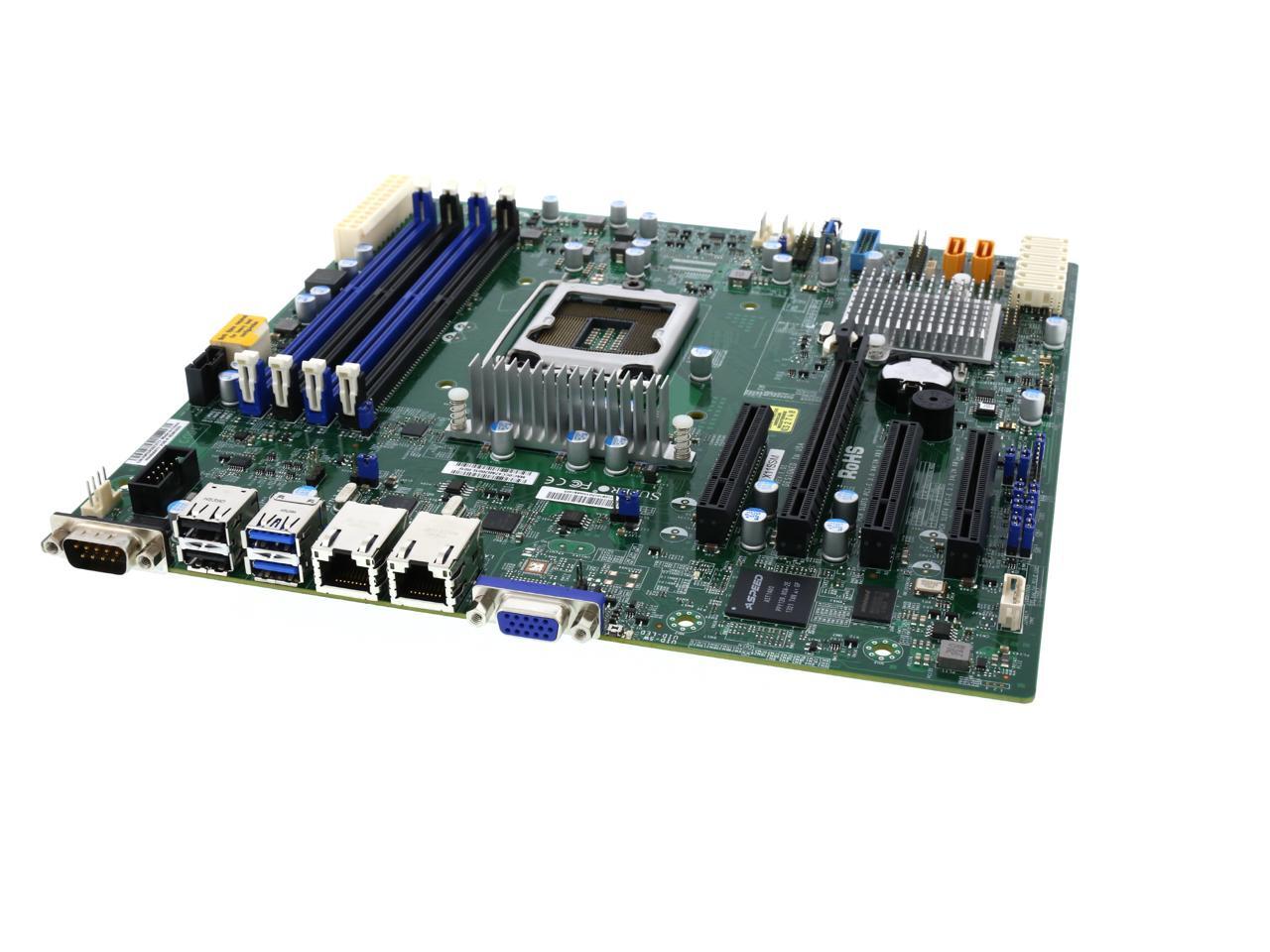

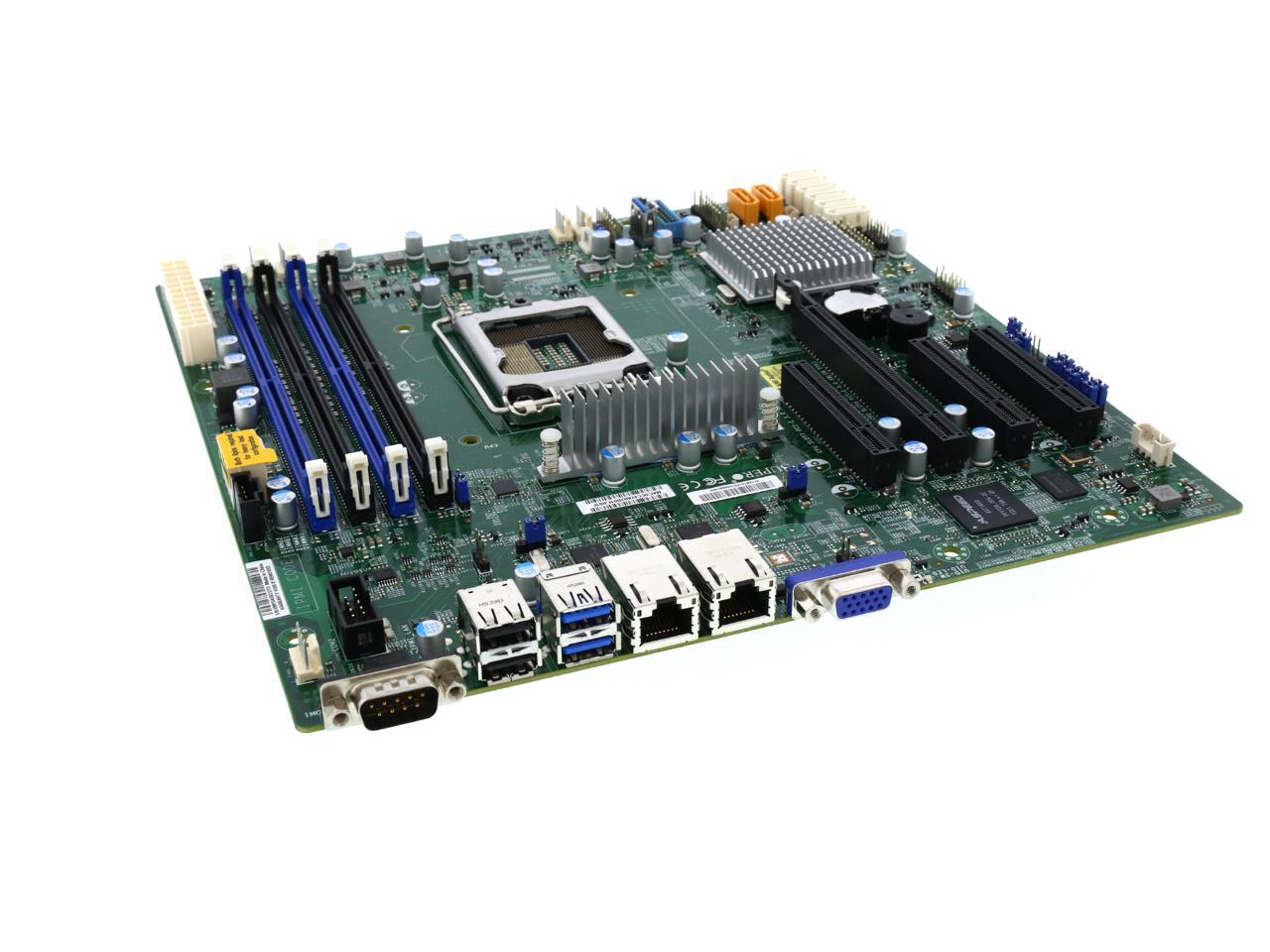

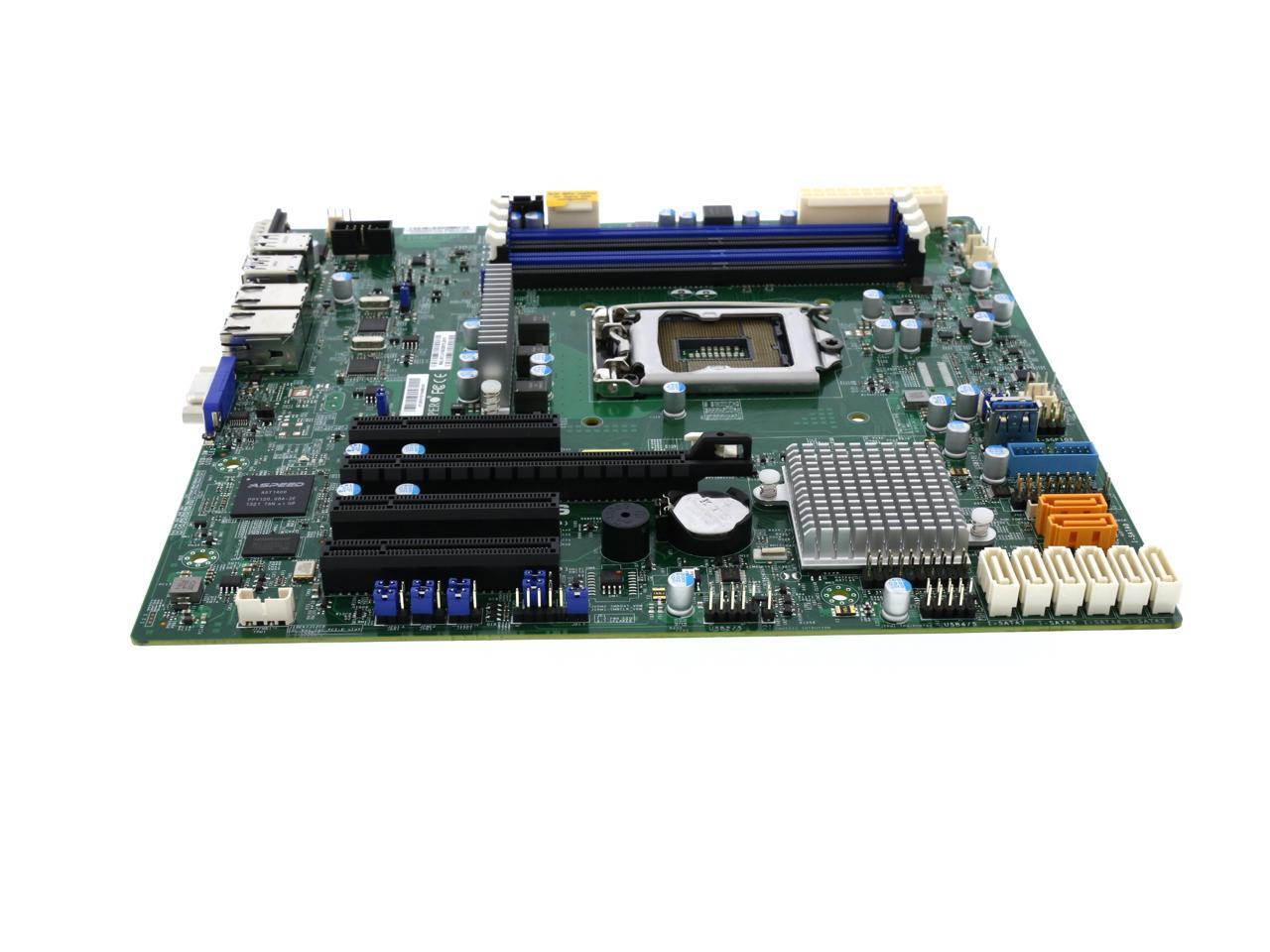

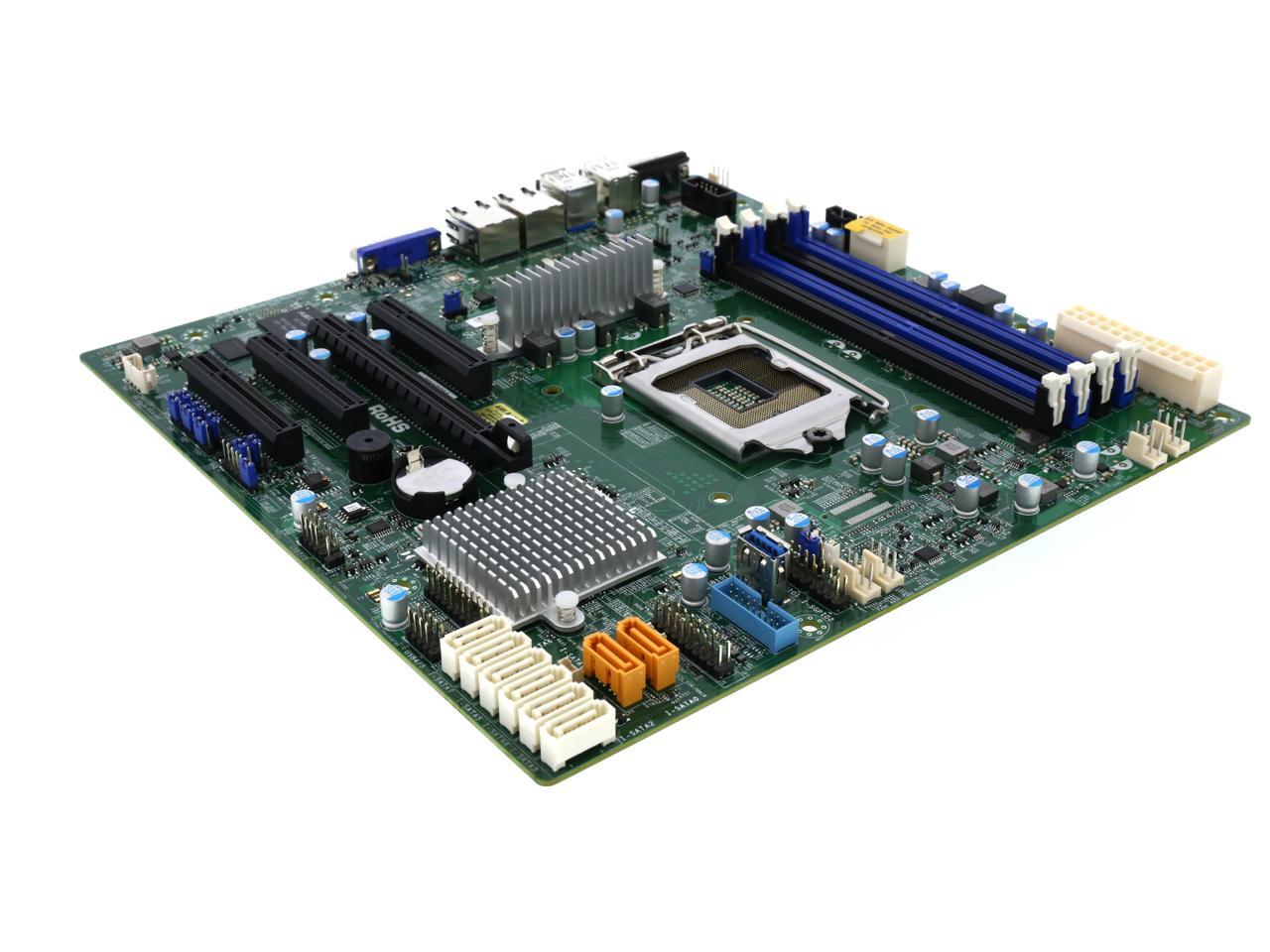

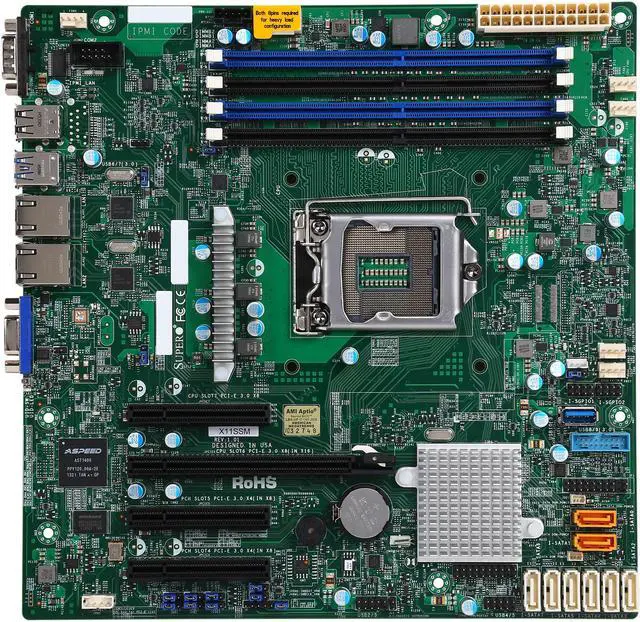

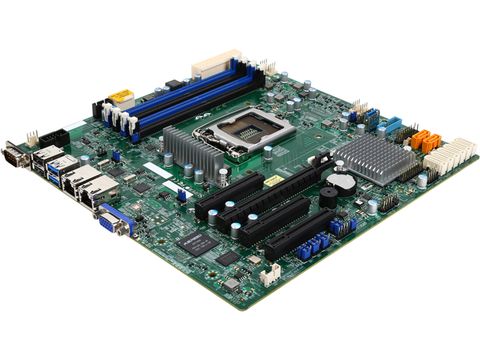

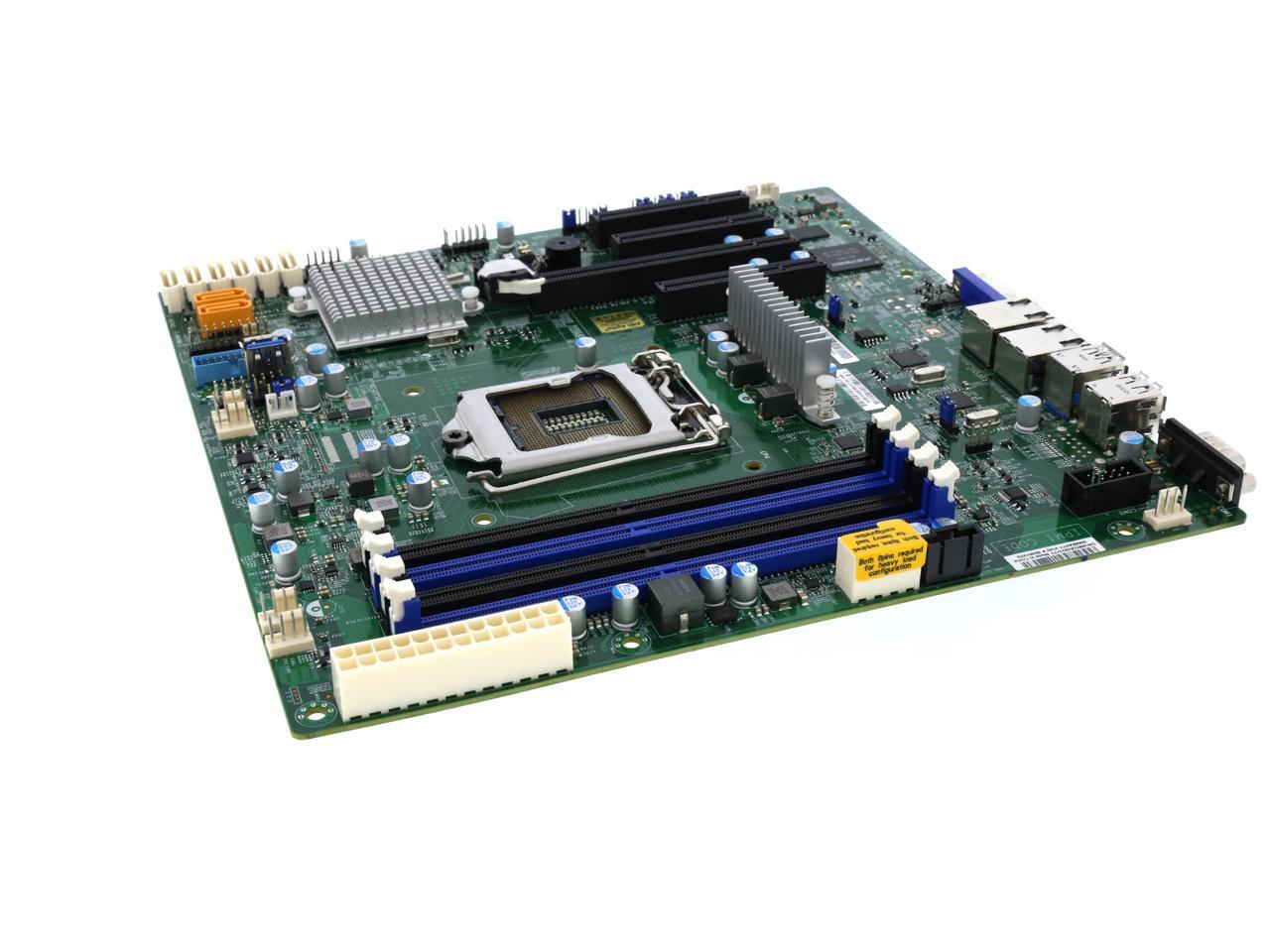

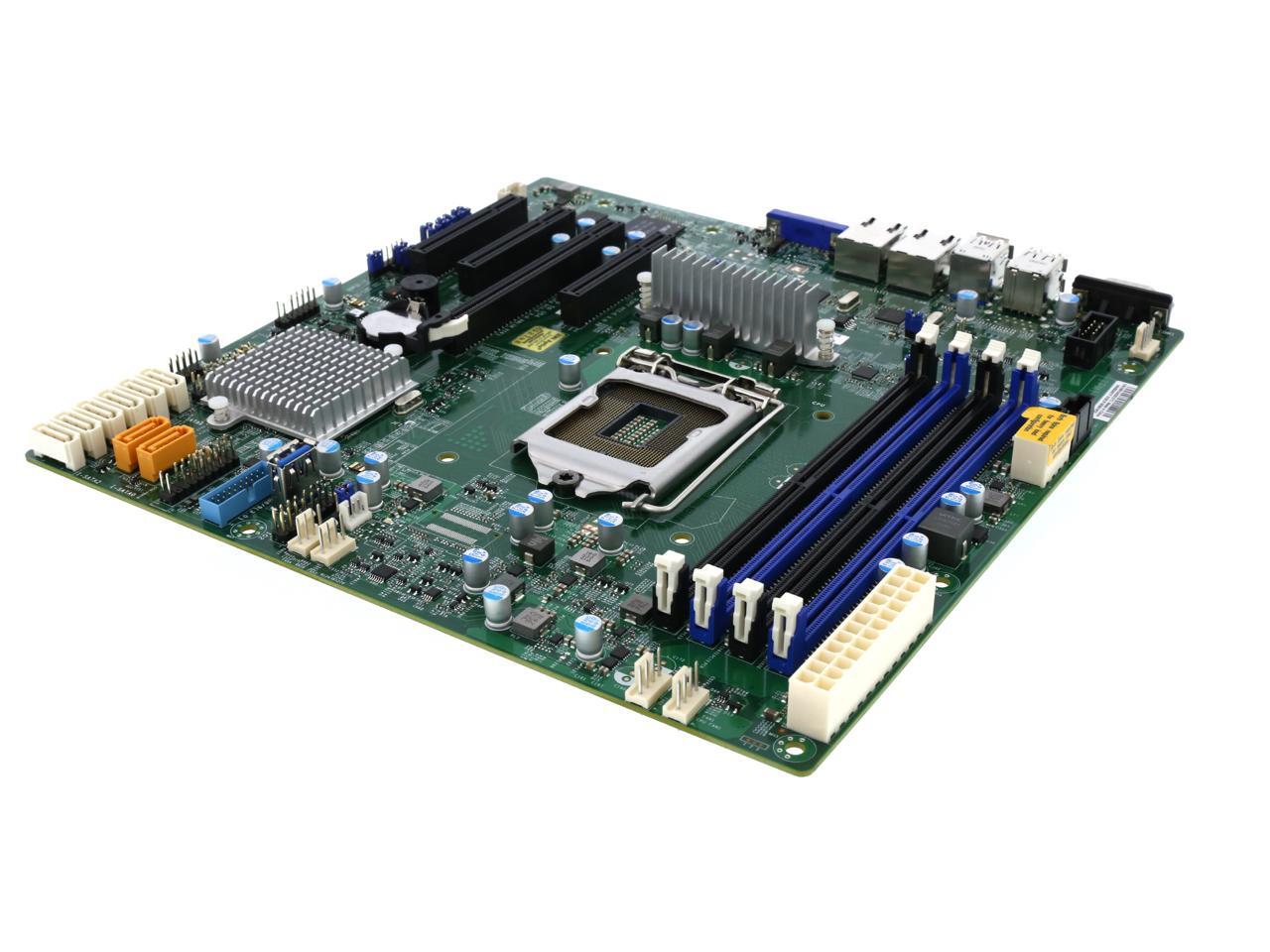

SUPERMICRO MBD-X11SSM-O Micro ATX Server Motherboard LGA 1151 Intel C236
- LGA 1151
- Intel C236
+
+
Overview
Specs
Reviews
- Xeon® E3-1200 v5 Family Boards / Socket H4 (LGA 1151)
Supermicro's single processor Socket H4 designs feature the Intel® C236/C232 chipset which support the Intel® Xeon E3-1200 v5 processor family and Intel® 6th Gen Core i7/i5/i3 processor family. With outstanding features that include up to 64GB of fast DDR4 DRAM in 4 DIMMS, onboard IPMI or vPro, USB 3.0/USB 3.1, PCI-E 3.0 M.2 and SATA 3.0 (6Gbps) HDD. With support for next generation graphics controller, 4K HD graphics resolution and 3 displays with HDMI, DP, and DVI ports. Designed with performance, reliability, manageability and long life in mind, Supermicro's single processor motherboards are the perfect solution for a variety of server, workstation and embedded applications.

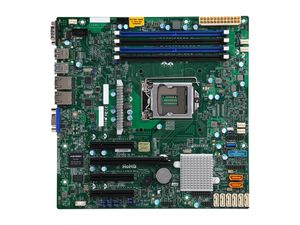

SUPERMICRO MBD-X11SSM-O Micro ATX Server Motherboard
Features
- Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v5, Intel® 6th Gen. Core™ i3 series, Intel® Celeron® and Intel® Pentium®
- Intel® C236 chipset
- Up to 64GB Unbuffered ECC UDIMM DDR4 2133MHz; 4x DIMM slots
- Expansion slots: 1 PCI-E 3.0 x8 (in x16), 1 PCI-E 3.0 x8, 2 PCI-E 3.0 x4 (in x8)
- Dual GbE LAN with Intel® i210-AT
- 8x SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10
- I/O: 1x VGA, 2x COM, 2x SuperDOM
- 5x USB 3.0 (2 rear + 2 via header + 1 Type A), 6x USB 2.0 (2 rear + 4 via headers)
Specifications
| Product SKUs | |
| MBD-X11SSM -B | X11SSM (Bulk Pack) |
| Physical Stats | |
| Form Factor | microATX |
| Dimensions | 9.6" x 9.6", (24.4cm x 24.4cm) |
| Processor/Cache | |
| CPU |
|
| System Memory | |
| Memory Capacity |
|
| Memory Type | 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs |
| DIMM Sizes | 16GB, 8GB, 4GB |
| Memory Voltage | 1.2 V |
| Error Detection |
|
| On-Board Devices | |
| Chipset | Intel® C236 chipset |
| SATA |
|
| Network Controllers |
|
| Graphics | ASPEED AST1400 BMC |
| Input / Output | |
| SATA | 8x SATA3 (6Gbps) ports |
| LAN | 2x RJ45 Gigabit Ethernet LAN ports |
| USB |
|
| Video | 1x VGA port |
| Serial Port / Header | 2x COM ports (1 rear, 1 header) |
| SuperDOM | 2x SuperDOM (Disk on Module) ports with built-in power |
| TPM | 1x TPM 1.2 20-pin Header |
| System BIOS | |
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
| BIOS Features |
|

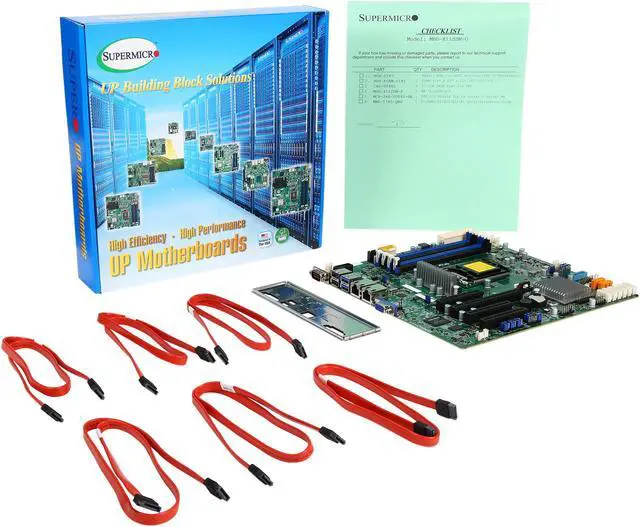

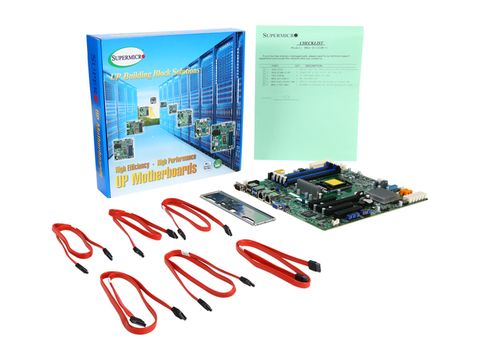

Whats in the Box
