U7 Lite
U7-Lite
WiFi 7 Access Point
- Spectral Analyzer Radio: The dedicated spectral analyzer radio scans the environment to proactively identify interference and optimize Wi-Fi performance.
- Multi-Link Operation: Unifi's MLO combines multiple Wi-Fi bands to maximize performance, reduce latency and enhance reliability.
- Radio Controls: Customize channels, widths and transmit power to match your requirements and performance goals.

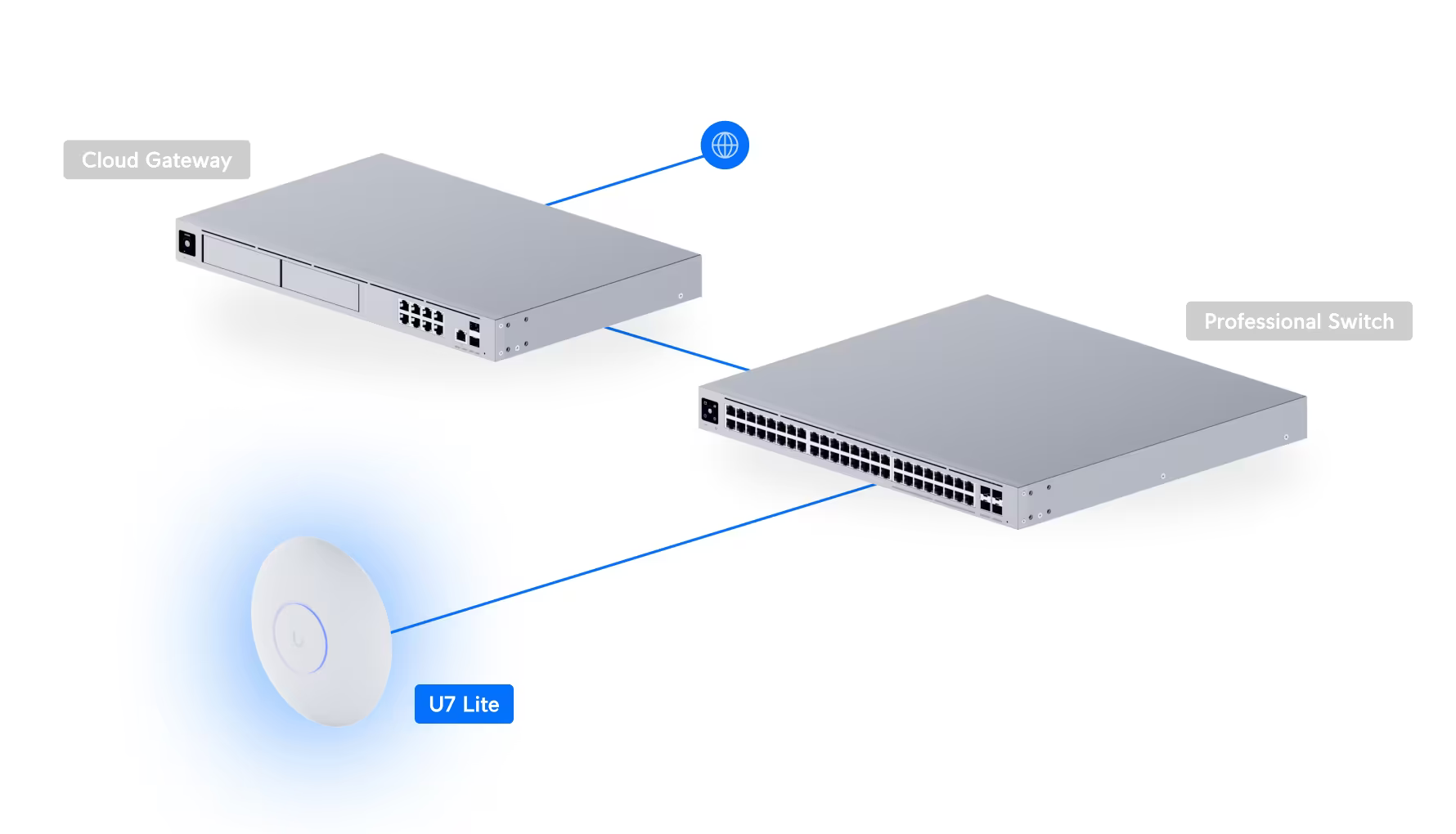

Deployment
UniFi Site Manager allows you to quickly visualize and optimize channel distribution across the entire deployment.

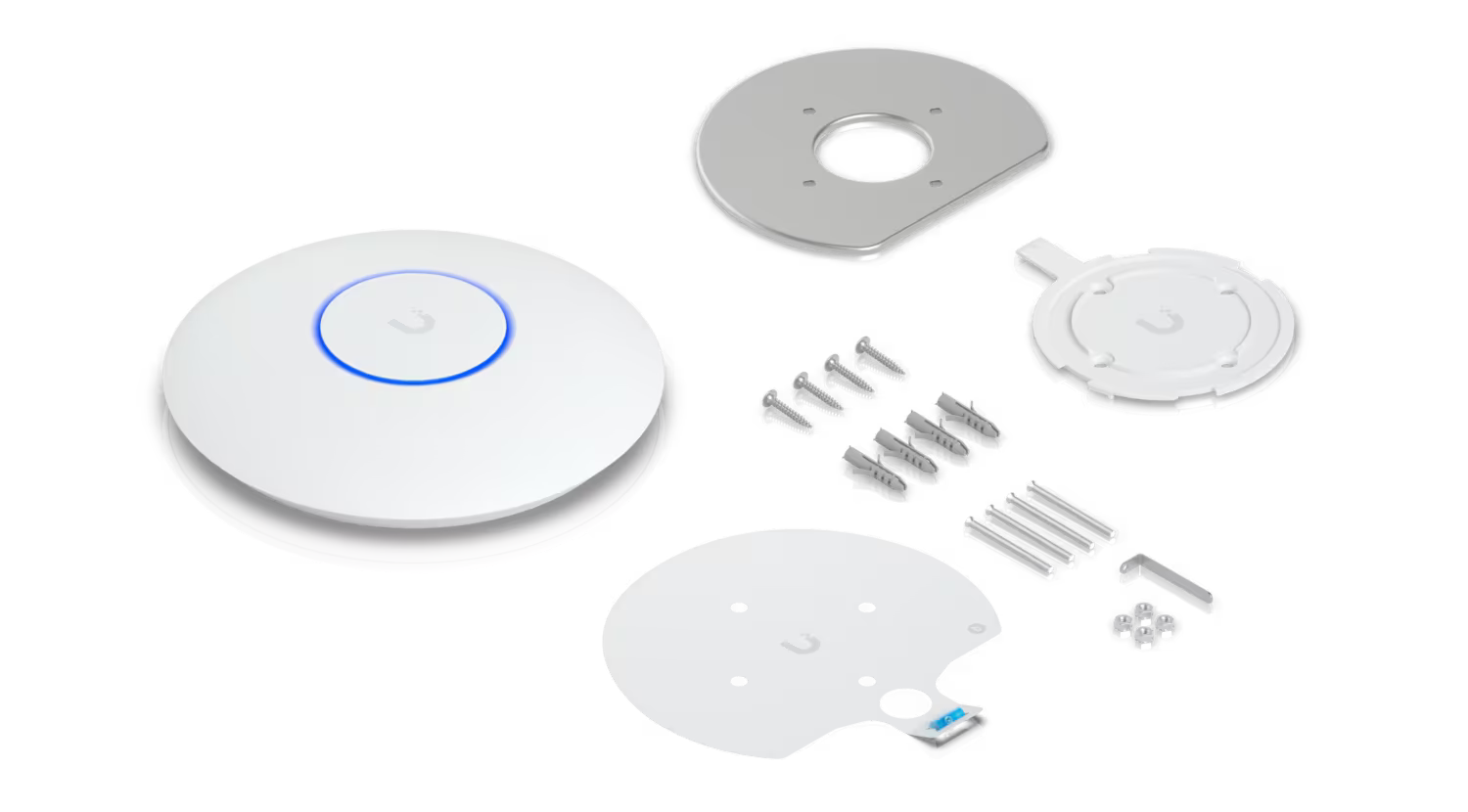

Package Content
Included:
- (1) Access Point
- (1) Mounting Accessories
Product Comparison
|
U7 Pro Max High-density WiFi 7 |
U7 Pro WiFi 7 AP with 6 streams, 6 GHz for large spaces |
U7 Long-Range WiFi 7 AP with 5 streams and extended signal range New |
U7 Lite Compact WiFi 7 |
|
|
Dimensions |
Ø206 x 46 mm (Ø8.1 x 1.8") |
Ø206 x 46 mm (Ø8.1 x 1.8") |
Ø175.7 x 43 mm (Ø6.9 x 1.7") |
Ø171.5 x 33 mm (Ø6.8 x 1.3") |
|
WiFi Technology |
WiFi 7 Tri-radio 2.4 / 5 / 6 GHz 8 spatial streams |
WiFi 7 Tri-radio 2.4 / 5 / 6 GHz 6 spatial streams |
WiFi 7 Dual-radio 2.4 / 5 GHz 5 spatial streams |
WiFi 7 Dual-radio 2.4 / 5 GHz 4 spatial streams |
|
6 GHz Radio |
✓ | ✓ | - | - |
|
6 GHz Extended Range Mode |
- | - | - | - |
|
Dedicated Spectral Scanning Radio |
✓ | - | - | - |
|
High Selectivity PRISM™ RF Filtering Technology |
- | - | - | - |
|
Antenna Type |
Omnidirectional | Omnidirectional | Omnidirectional | Omnidirectional |
|
Coverage |
160 m² (1,750 ft²) | 140 m² (1,500 ft²) | 160 m² (1,750 ft²) | 115 m² (1,250 ft²) |
|
Connected Devices |
500+ | 300+ | 300+ | 200+ |
|
Weatherproofing |
- | - | - | - |
|
Power Method |
PoE+ | PoE+ | PoE | PoE |
|
Uplink |
2.5/1 GbE | 2.5/1 GbE | 2.5/1 GbE | 2.5/1 GbE |
|
Redundant RJ45 Port for High Availability |
- | - | - | - |
|
Mounting |
Ceiling Wall | Ceiling Wall | Ceiling Wall | Ceiling Wall |
