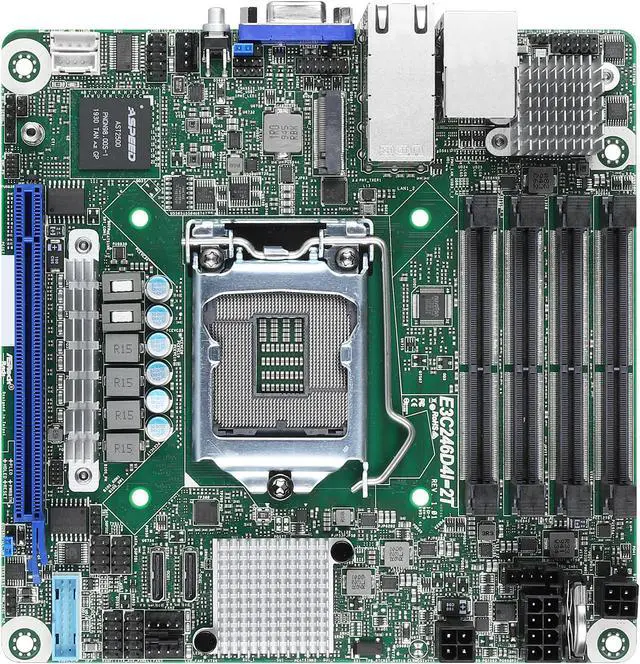

AsRock Rack E3C246D4I-2T Mini-ITX Server Motherboard Intel LGA 1151 C246

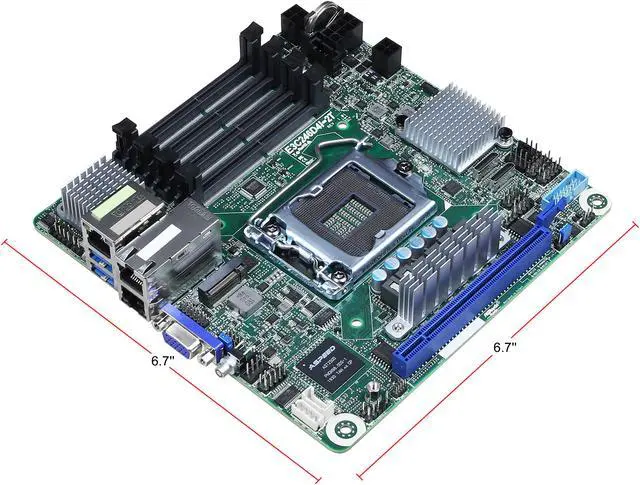

- Mini-ITX 6.7" x 6.7"
- Support Intel Xeon E-2100 Processors (Max. 95W)
- Support 4 x SO-DIMM slots, Dual channel DDR4 2666/2400/2133 ECC/non-ECC SO-DIMM max 128 GB
- Support 1 x PCIe 3.0 x16
- Support 8 x SATA3 by C246 (from 2 x OCulink) + 1 x M.2 (NGFF 2280, PCI-E Gen3 x4 link or SATA signal)

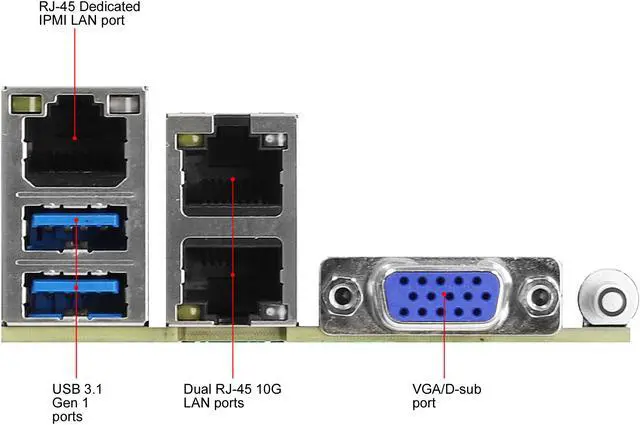

- Support 2 x 10GLAN by Intel X550 + 1 x Dedicated IPMI
Specs
Reviews (2)
Learn more about the ASRock Rack E3C246D4I-2T
| Brand | AsRock Rack |
|---|---|
| Model | E3C246D4I-2T |
| CPU Type | Supports Intel Xeon E-2100 / E-2200 Series Processors |
|---|
| North Bridge | Intel C246 |
|---|
| Number of DDR3 Slots | 4 x 204pin |
|---|---|
| Maximum Memory Supported | 128GB |
| ECC Supported | Yes |
| PCI Express 3.0 x16 | SLOT7: Gen3 x16 link |
|---|
| SATA | 8 x SATA 6.0Gb/s |
|---|
| Onboard Video Chipset | Aspeed AST2500 |
|---|
| LAN Chipset | Intel X550 |
|---|---|
| LAN Speed | 10Gbps |
| Max LAN Speed | 10Gbps |

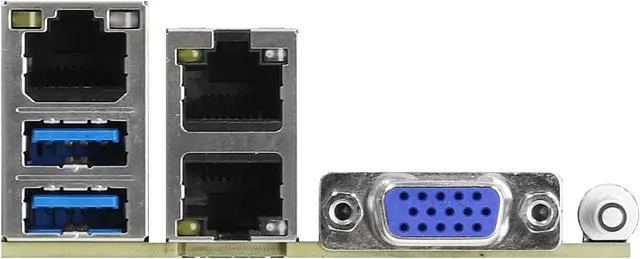

| Video Ports | 1 x D-Sub |
|---|---|
| USB 3.1 | 2 x USB 3.1 Gen1 |
| Other Connectors | M.2: 1 x M.2 (NGFF 2280, PCI-E Gen3 x4 link or SATA signal) OCuLink: 2 ports (support SATA x4ports or PCIEx4 ) Auxiliary Panel Header: 1 (include chassis intrusion, location button & LED, front LAN LED, event log LED) TR1 Header: 1 TPM Header: 1 IPMB Header: 1 Buzzer: N/A Fan Header: 3(1CPU/1Front/1Rear) ATX Power: 1x (4-pin) + 1x (8-pin) support 12V DC-IN (DC-IN mode power budget is up to 432W) USB 3.1 (Gen2) Header: 1 (support 2 USB 3.0) PWR SMB Header: 1 Front Panel: 1 (RST, HDLED, PLED, PERBTN) SATA Power Connector: 1 x 4-pin Speaker Header: N/A SGPIO Header: 2 COM from BMC: 1 SMBUS from BMC: 1 Clear CMOS: 1 NC-SI: 1 BIOS_PH: 1 BMC_PH: 1 Debug1: 1 MFG_1: 1 X550_DEBUG1: 1 SEC_OR1: 1 |
|---|
| Form Factor | Mini ITX |
|---|---|
| Dimensions (W x L) | 6.7" x 6.7" |
| First Listed on Newegg | July 09, 2020 |
|---|
