Intel LGA 1700 SocketSupports 13th & 12th Gen Intel Core / Pentium / Celeron Processors & Windows 11 Ready
Max Power Supply with 10-Layer PCB8+1 phases digital power rated for 90A Dr.MOS. The 10-layer PCB quickly dissipates heat around the VRM to improve overall system stability and give the CPU more overclocking headroom(Potential:7200MHz)
Large Heatsink with AI Cooling FanA VRM heatsink provides a large contact area for the MOSFETs and chokes, and an integrated fan enables more efficient cooling for better performance and wattage resistance. The M.2 heatsink keeps the M.2 SSD at the optimum operating temperature for consistent performance and reliability.
WIFI 6E-High-Speed Wireless Internet6GHz Frequency - faster speed, higher throughput, wider bandwidth, lower latency. Note: Magnetic WIFI gain antenna is included.

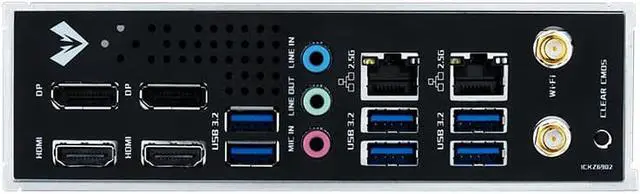

Intel LGA 1700 SocketSupports 12th Gen Intel Core / Pentium / Celeron Processors & Windows 11 Ready Max Power Supply with 10-Layer PCB8+1 phases digital power rated for 90A Dr. MOS. The 10-layer PCB quickly dissipates heat around the VRM to improve overall system stability and give the CPU more overclocking headroom(Potential: 7200MHz) Large Heatsink with AI Cooling FanA VRM heatsink provides a large contact area for the MOSFETs and chokes, and an integrated fan enables more efficient cooling for better performance and wattage resistance. The M. 2 heatsink keeps the M. 2 SSD at the optimum operating temperature for consistent performance and reliability. WIFI 6E-High-Speed Wireless Internet6GHz Frequency - faster speed, higher throughput, wider bandwidth, lower latency. Note: Magnetic WIFI gain antenna is included. Fastest ConnectivityDual Channel DDR5 Memory(Overclocking: 6000MHz), PCIe 5.0 x16 Slot & 2*M. 2 SSD PCIe 4.0 x4 Connectors, USB 3.2 Gen1, HDMI 2.0 /DP 1.4, Dual 2.5G Ethernet. Quick Maintenance & RGB PinsDebug light-Easily check the bug position. Clr Cmos Button-One-click recovery of security settings. Provide 2*ARGB(3Pin, 5V)+1*NRGB(4Pin, 12V).

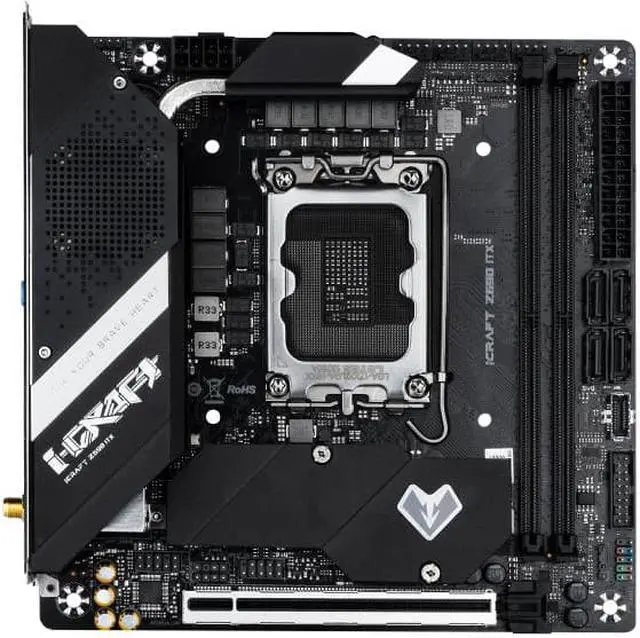

Neat and Simple Layout
More convenient for our installation
Easier lines organizing
Colored Front Panel Pins
Clear to see
More friendly to novice installers
CLEAR CMOS Button
One-click maintenance, simple and convenient
Chipset/Socket
Intel Z690 / Intel LGA 1700 12th & 13th gen CPU
Form Factor
ITX (17.2*17.2cm)
Memory Support
Dual DDR5, Overclocking:6000MHz
PCIe
PCIE5.0
Power Support
8+1 Power Stages Rated for 90A Dr.Mos
M.2 Slots
1*PCIE4.0x4(2280), 1*PCIE4.0*4(2280,NVME/SATA Auto Switch)
