  6. Item#: N82E16813162094
Sold & Shipped by Newegg
  • Est. Shipping Fee KWD13.47
VAT-Inclusive Price
KWD72.99
Add To ListFound on 27 wish lists

Are you an E-Blast Insider?

Free Shipping on This Item! When you spend KWD80.00 or more on eligible products. restrictions apply.

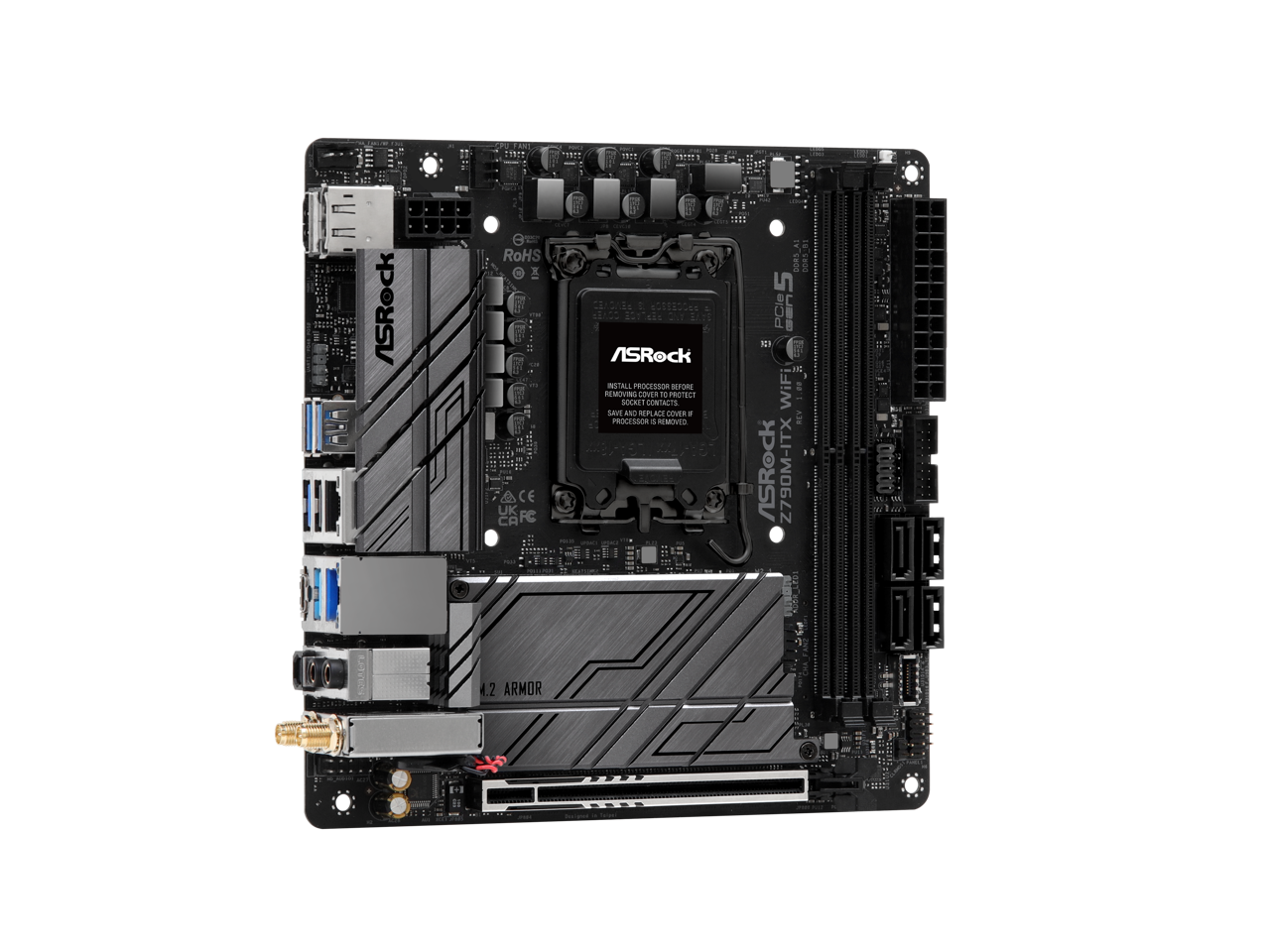

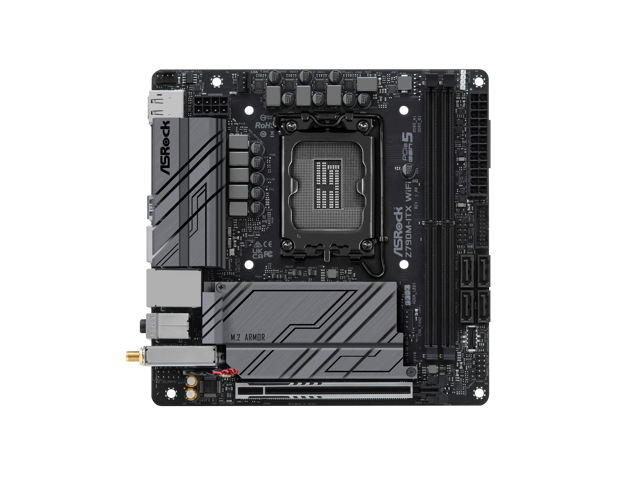

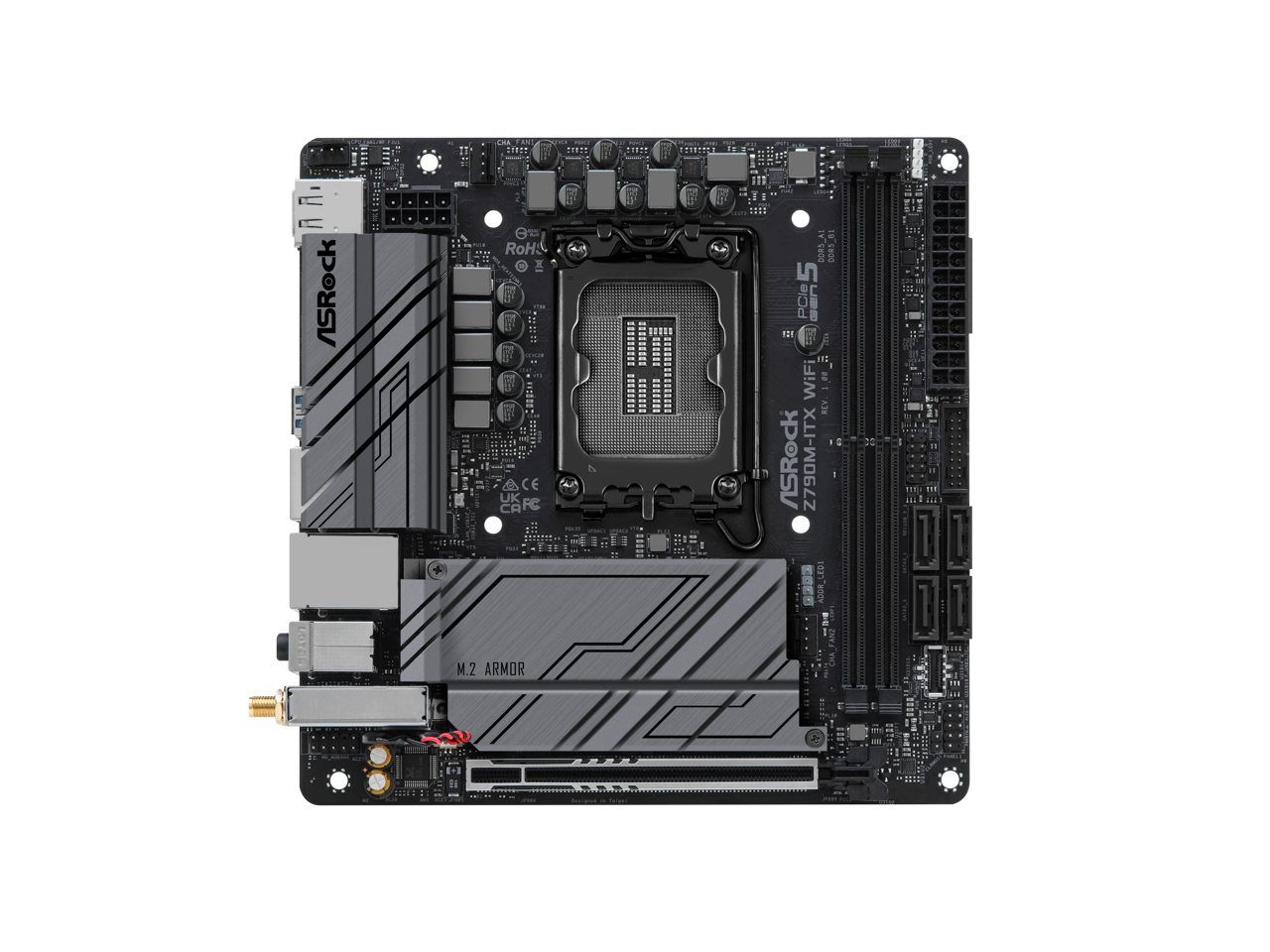

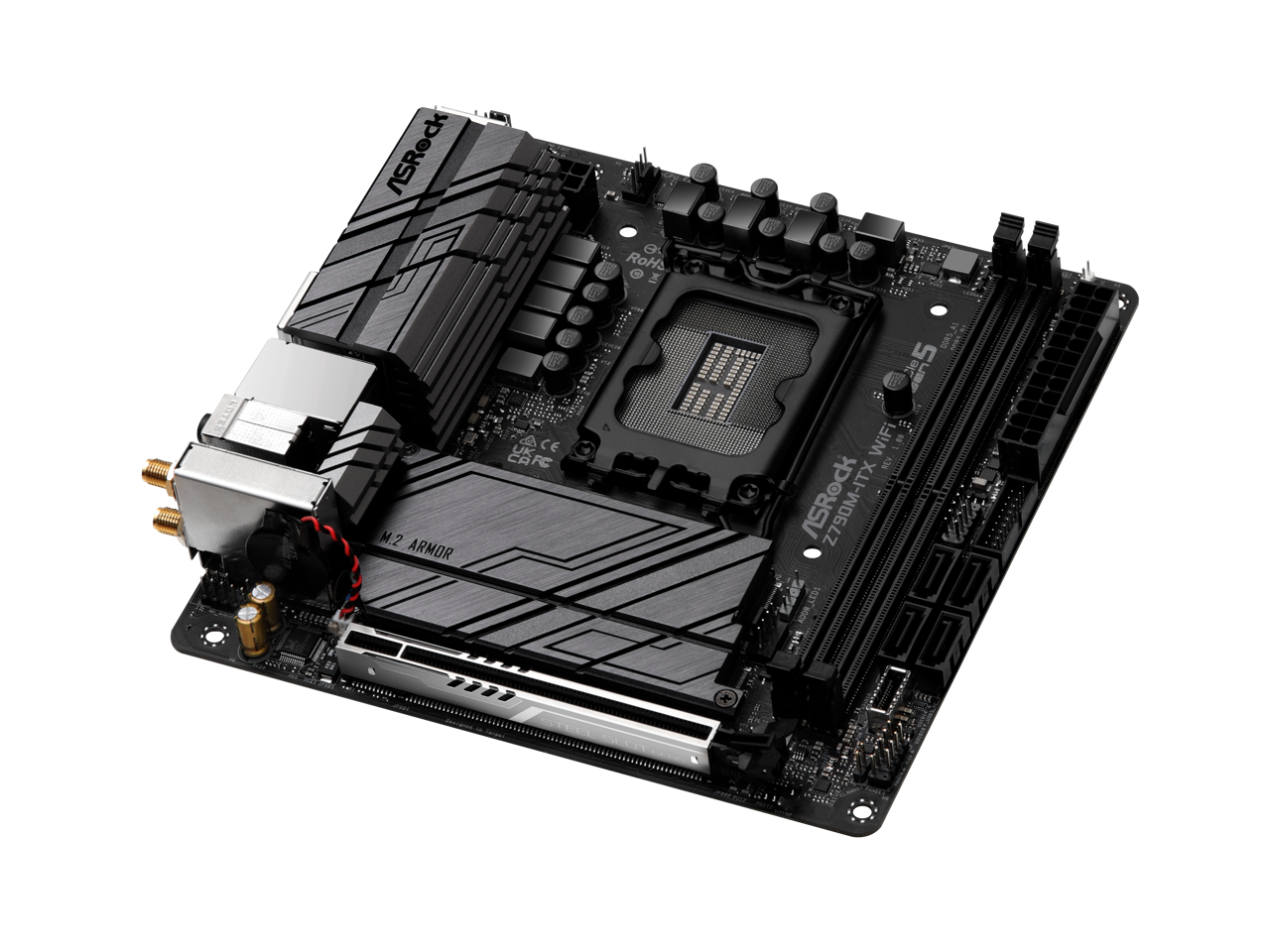

ASRock Z790M-ITX WIFI Intel LGA1700 Mini-ITX Mainboard , 2 slots DDR5, PCIE 5.0 x16, HDMI 2.1port Dual Lan 2.5Gb,1Gb, Dual M.2 slots 7.1 Nahimic Audio , USB3.2 Gen2X2 Type_C , 7+1+1 Power Phase

(19)(1) Write a Review
See more "z790 itx"
In stock. Limit 2 per customer.
Ships from United States.
  • Z790 PG LIGHTNING
  • Z790 PRO RS
  • Z790M-ITX WIFI
  • Z790 STEEL LEGEND WIFI
  • Z790 PG RIPTIDE
  • Z790 PG-ITX/TB4
  • Z790 TAICHI
  • Z790 PRO RS/D4
  • Z790 TAICHI CARRARA
  • Z790M PG LIGHTNING/D4
  • Supports 13th Gen & 12th Gen Intel CoreTM Processors (LGA1700).
  • Supports DDR5 6800MHz (OC).
  • 7+1+1 Power Phase, Dr.MOS for VCore+GT.
  • 1 PCIe 5.0 x16.
  • Graphics Output Options: HDMI, DisplayPort, eDP.
  • Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio.
  • 4 SATA3, 1 Hyper M.2 (PCIe Gen4x4): 1 Hyper M.2 (SATA & PCIe Gen4x4).
  • 1 USB 3.2 Gen2x2 Rear Type-C: 1 USB 3.2 Gen2x2 Front Type-C, 4 USB 3.2 Gen2 Rear Type-A, 2 Front USB 3.2 Gen1, 3 USB 2.0 (1 Rear, 2 Front).
  • Intel 2.5G LAN: Intel 1G LAN, 802.11ax (WiFi 6E) + Bluetooth.
  • Supports ASRock Auto Driver Installer.
Specs
Reviews

Learn more about the ASRock Z790M-ITX WIFI

Model
Brand ASRock
Model Z790M-ITX WIFI
Supported CPU
CPU Socket Type LGA 1700
CPU Type Supports 13th / 12th Gen Intel Core Processors, Intel Pentium Gold, Celeron Processors
Chipsets
Chipset Intel Z790
Memory
Number of Memory Slots 2x288pin (DDR5)
Memory Standard Supports DDR5 non-ECC, un-buffered memory up to 6800+(OC)*
1DPC 1R Up to 6800+ MHz (OC), 5600 MHz Natively.
1DPC 2R Up to 5200+ MHz (OC), 5200 MHz Natively.

Supports Intel Extreme Memory Profile (XMP) 3.0
* Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/)
Maximum Memory Supported 64GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 5.0 x16 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*

* Supports PCIe riser cards to extend one x16 slot to two x8 slots
* Supports NVMe SSD as boot disks
Storage Devices
SATA 6Gb/s 4 x SATA 6Gb/s
M.2 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*

* Supports Intel Volume Management Device (VMD)
* Supports NVMe SSD as boot disks
SATA RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Additional RAID Controller Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices*
* Requires additional M.2 NVMe expansion cards to support RAID 5
Onboard Audio
Audio Chipset Realtek ALC897
Audio Channels 7.1 Channels
Onboard LAN
LAN Chipset Intel I226-V
Second LAN Chipset Intel I219V
Max LAN Speed 2.5Gbps
Wireless LAN 802.11ax Wi-Fi 6E Module
Bluetooth Yes

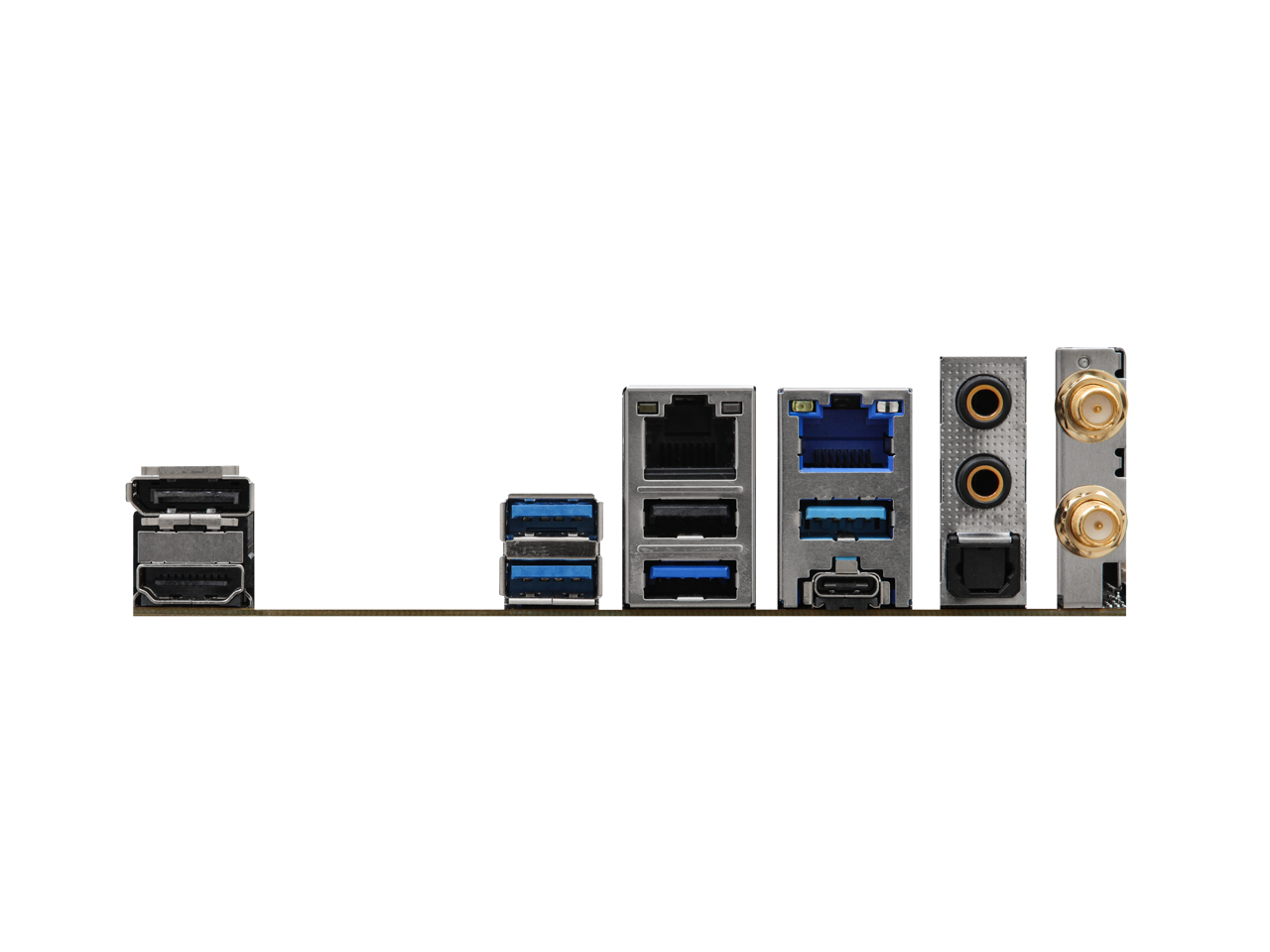

Rear Panel Ports
Back I/O Ports 2 x Antenna Ports
1 x HDMI Port
1 x DisplayPort 1.4
1 x Optical SPDIF Out Port
4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
1 x USB 2.0 Port
2 x RJ-45 LAN Ports
1 x Line Out Jack (Gold Audio Jack)
1 x Microphone Input Jack (Gold Audio Jack)
Internal I/O Connectors
Onboard USB 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)*****
Other Connectors 1 x eDP Signal Connector
1 x RGB LED Header*
1 x Addressable LED Header**
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
2 x Chassis Fan Connectors (4-pin)****
1 x Front Panel Audio Connector

* Supports in total up to 12V/3A, 36W LED Strip
** Supports in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1/WP supports the fan power up to 2A (24W).
*** CPU_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.
**** CHA_FAN1~2 support the fan power up to 1A (12W).
***** Actual speed depends on USB devices and extension cable in the chassis
Physical Spec
Form Factor Mini ITX
Dimensions (W x L) 6.7" x 6.7"
Power Pin 1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
Windows Compatibility
Windows 11 Supported
Features
Features Superb Productivity
- PCIe Gen5 (Graphic)
- Dual Channel DDR5
Rock-Solid Durability
- 7+1+1 Power Phase, 50A Dr.MOS for VCore+GT
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
Ultrafast Connectivity
- 2.5G LAN, 802.11ax Wi-Fi 6E Module
EZ Update
- ASRock Auto Driver Installer

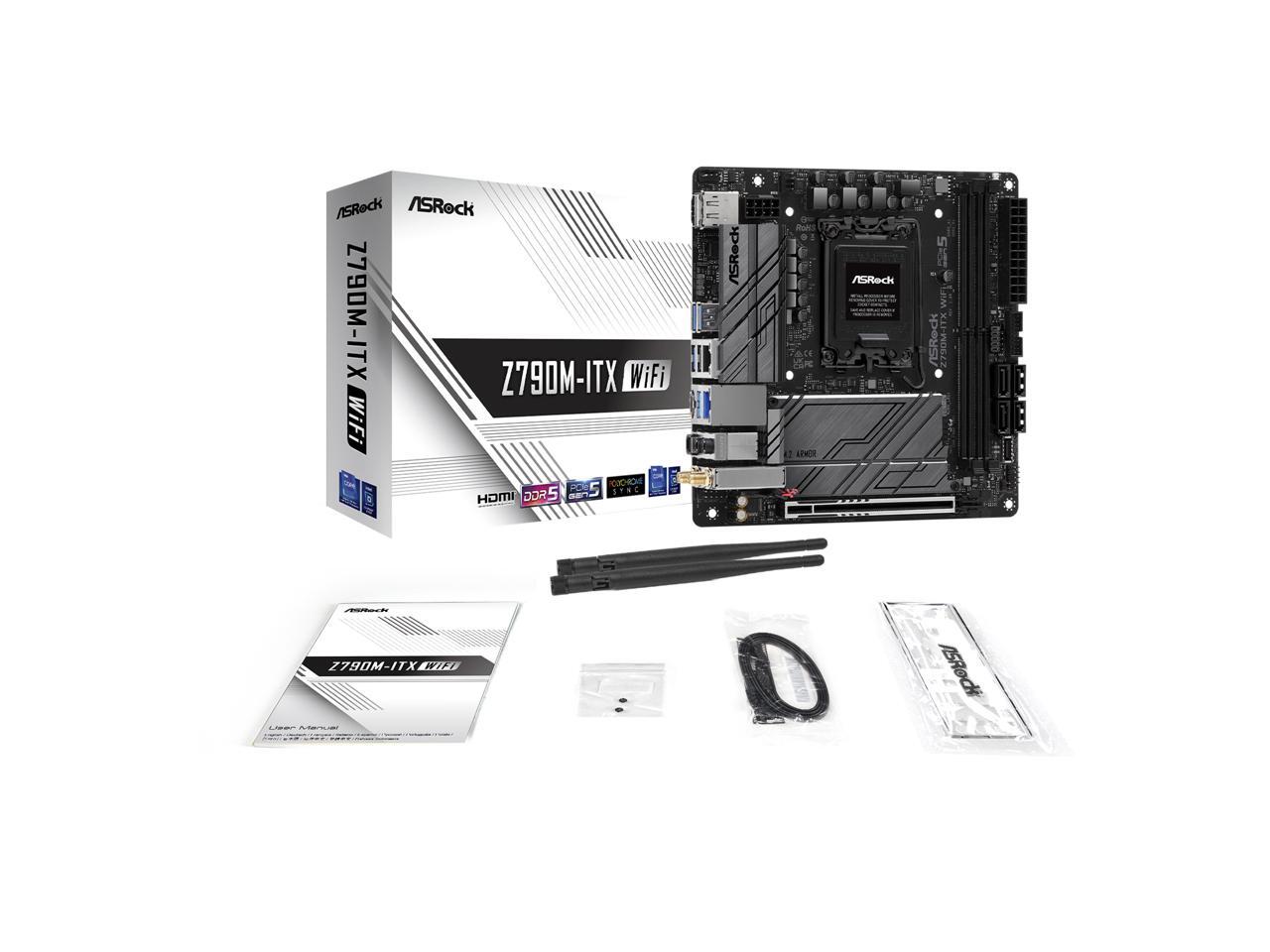

Packaging
Package Contents 1 x User Manual
1 x I/O Shield
2 x SATA Data Cables
2 x ASRock WiFi 2.4/5/6 GHz Antennas
2 x Screws for M.2 Sockets
Additional Information
Date First Available September 27, 2022
