- Main Features
- Thermal pad has 12.8 W/mK Thermal Conductivity, Used to fill the gap between the heating element and the Heatsink, Achieve the best cooling effect. At the same time, the thermal pad also has Insulation, Non-conductive, wear-resistant, fire-retardant, compression, buffering, no damage to metal materials, etc effect.
- Why use thermal silicone Pad ?
- The main purpose of the choice of Thermal Pad is to reduce the heat source surface and the heat dissipation device contact surface between the contact thermal resistance. Thermal conductivity of silicone Pad can be good filling the gap between the contact surface;
- Because the air is hot bad conductor, will seriously hinder the heat transfer between the contact surface, And in the heat source and the radiator between the installation of thermal silica Pad can be out of the air contact surface;

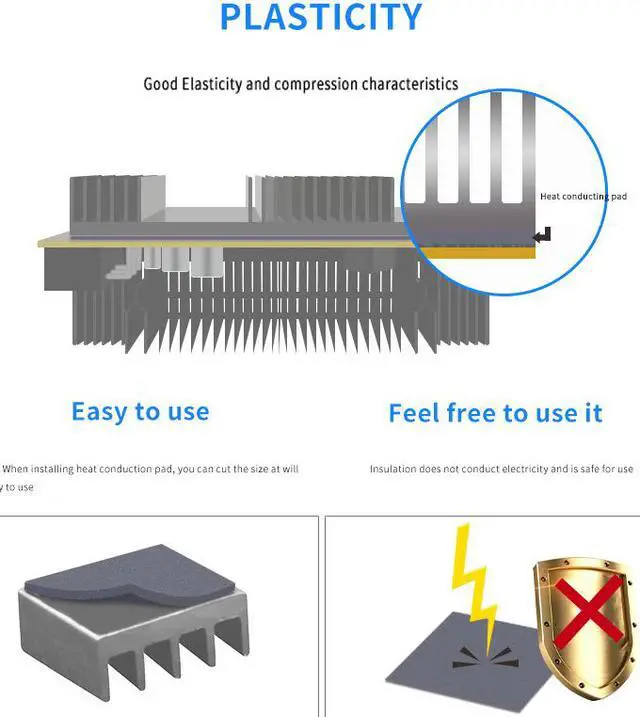

- With thermal silicone Pad supplement, you can make the heat source and the heat sink between the contact surface better full contact, Truly face to face contact in the temperature of the reaction can be achieved as small as possible temperature difference.
- Applicable industry: LED industry, automotive electronics industry, power industry, PDP/LED flat-panel TV, communications industry, Industrial industry, household electrical appliance industry.
- Scope Application: electronic products, motherboard, motor, external pad and foot pad, electronic, appliances, high power LED lighting, Car machine, power devices, automotive electronic modules (engine scrubber) Power modules, high power power supplies, computer host (CPU, GPU, USICS, RDRAMTM, CD-ROM, IGPT module, hard drives) ,laptop and any electronic equipment needing to be filled with heat dissipation
Odyssey Thermal Pad
The thermal pads applied high-performance thermal conductive materials to eliminate air gaps, thereby improving the overall thermal conversion capability and enabling the device to work at a lower temperature, We are committed to providing high-quality thermal pads, easy to install
Warning:
The heat dissipation effect of the thermal pad sheet is very good. During the manual installation of the thermal pad, care should be taken to avoid air bubbles, which will affect the thermal conductivity, waste money and time
Scissors cutting
Use scissors to freely cut the thermal pad
One Pad , multi-purpose, durable,insulated, non-conductive
Can be DIY cut according to needs
0.5/1.0/1.5/2.0/3.0mm Thickness optional
Scope Application:
electronic products, motherboard, motor, external pad and foot pad, electronic, appliances, high power LED lighting, Car machine, power devices, automotive electronic modules (engine scrubber) Power modules, high power power supplies, computer host (CPU, GPU, USICS, RDRAMTM, CD-ROM, IGPT module, hard drives) ,laptop and any electronic equipment needing to be filled with heat dissipation.

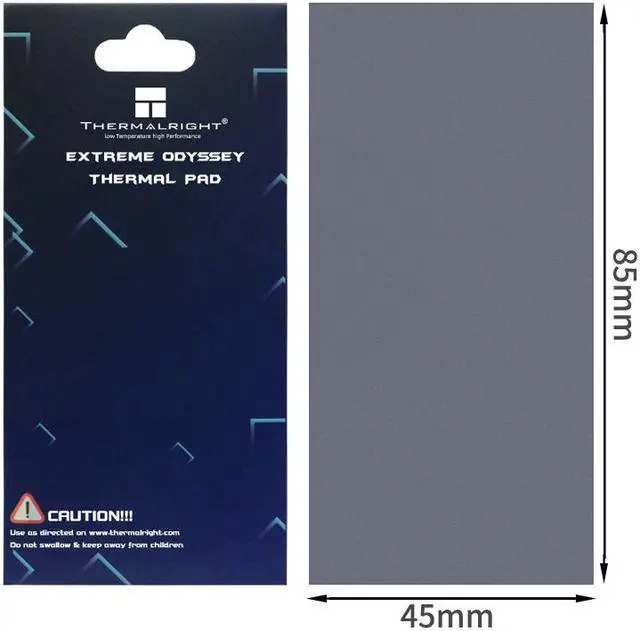

| Size: | 85x45x1.0mm |
|---|---|
| Hardness: | 30-55(Sc) |
| Breakdown Voltage: | >9.8KV(1mm) |
| Temperature Range: | -40Celsius~200Celsius |
