ASRock B760M-HDV/M.2 LGA 1700 DDR4 Micro ATX Motherboard

(135)(17) Write a Review
  • B760M Steel Legend WiFi
  • B760M-HDV/M.2 D4
  • Supports 13th Gen & 12th Gen Intel® Core Processors (LGA1700)
  • Supports DDR4 5333MHz (OC)
  • Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo
  • The USB 3.2 Gen1 Type-C provides a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way
  • Supports the next generation PCIe 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation
  • The LAN driver has already prepacked in BIOS ROM, simply rollow the instructions and install all necessary drivers automatically
  • Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) Slot
+
+
Specs
Reviews (135)

Learn more about the ASRock B760M-HDV/M.2 D4

Model
Brand ASRock
Model B760M-HDV/M.2 D4
Supported CPU
CPU Socket Type LGA 1700
CPU Type Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700)
Chipsets
Chipset Intel B760
Memory
Number of Memory Slots 2x288pin (DDR4)
Memory Standard DDR4 3200
Maximum Memory Supported 64GB
Channel Supported Dual Channel
Memory Feature Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*
1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively.
1DPC 2R Up to 4400+ MHz (OC), 3200 MHz Natively.
Supports ECC UDIMM memory modules (operate in non-ECC mode)
Supports Intel Extreme Memory Profile (XMP) 2.0
* Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/)
Expansion Slots
PCI Express 4.0 x16 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
PCI Express x1 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3) *

* Supports NVMe SSD as boot disks
Storage Devices
Serial ATA (SATA) 4 x SATA 6Gb/s
M.2 CPU:
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*

* Supports Intel Volume Management Device (VMD)
* Supports NVMe SSD as boot disks
** If M2_2 is occupied by a SATA-type M.2 device, SATA3_3 will be disabled.
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset Realtek ALC887/897 Audio Codec
Audio Channels 7.1 Channels
Onboard LAN
LAN Chipset Realtek 8111H
Max LAN Speed 1Gbps

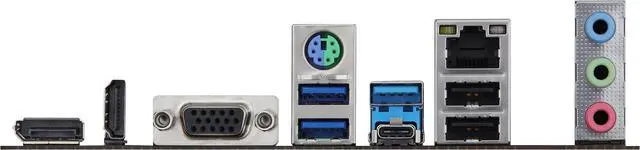

Rear Panel Ports
Back I/O Ports 2 x Antenna Mounting Points
1 x PS/2 Mouse/Keyboard Port
1 x D-Sub Port
1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen1 Type-C Port
3 x USB 3.2 Gen1 Type-A Ports
2 x USB 2.0 Ports
1 x RJ-45 LAN Port
HD Audio Jacks: Line in / Front Speaker / Microphone
Internal I/O Connectors
Onboard USB 2 x USB 2.0 Headers (Support 3 USB 2.0 ports)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
Other Connectors 1 x SPI TPM Header
1 x Chassis Intrusion and Speaker Header
1 x CPU Fan Connector (4-pin)*
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***
1 x Front Panel Audio Connector

* CPU_FAN1 supports the fan power up to 1A (12W).
** CPU_FAN2/WP supports the fan power up to 2A (24W).
*** CHA_FAN1~2/WP support the fan power up to 2A (24W).
*** CPU_FAN2/WP and CHA_FAN1~2/WP can auto detect if 3-pin or 4-pin fan is in use.
Software Feature
Windows 11 Supported
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 7.9"
Power Pin 1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
Features
Features Rock-Solid Durability
- 5+1+1 Power Phase
EZ Update
- ASRock Auto Driver Installer
Packaging
Package Contents 1 x User Manual
1 x I/O Shield
2 x SATA Data Cables
3 x Screws for M.2 Sockets
Additional Information
First Listed on Newegg June 06, 2025
