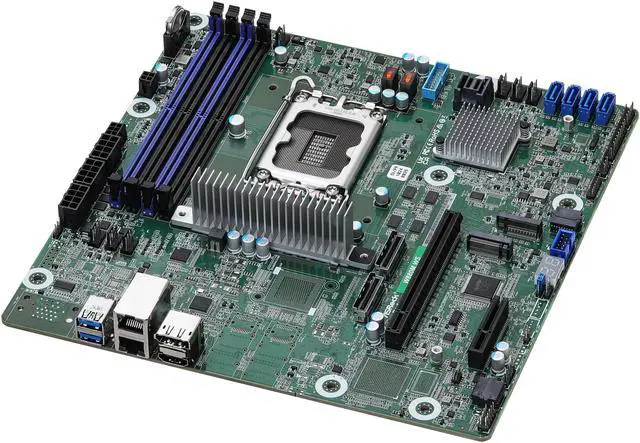

ASRock Rack Server Motherboard W880M WS Micro-ATX Single Socket LGA 1851 Intel Core Ultra Desktop Processors (Series 2) - OEM
- Support ATX PSU or 12V DC-in
- Micro-ATX (9.6" x 9.6")
- Supports Intel Core Ultra Desktop Processors (Series 2)
- 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM Memory
- 1 PCIe5.0 x16, 1 PCIe5.0 x4
- 1 MCIO (PCIe5.0 x8 or 2 PCIe5.0 x4), 1 MCIO (2 PCIe4.0 x4)
- Supports 2 M.2 (PCIe4.0 x4)
- 8 SATA 6Gb/s
- 2 RJ45 (1GbE) by Intel i210
- 1 HDMI, 1 DisplayPort
+
+
Specs
Reviews
Learn more about the ASRock Rack W880M WS
| Brand | ASRock |
|---|---|
| Model | W880M WS |
| CPU Socket Type | LGA 1851 |
|---|---|
| CPU Type | Intel Core Ultra Processors (Series 2) |
| Number of Processor Support | 1 |
| North Bridge | Intel W880 |
|---|
| Memory Slots | 4 x DDR5 288-pin |
|---|---|
| Memory Standard | DDR5 5600 |
| Maximum Memory Supported | 48GB |
| ECC Supported | Yes |
| PCI Express 5.0 x16 | SLOT6: PCIe5.0 x16 [CPU]* *MCIO1 shared lanes x8 with SLOT6. To enable MCIO1, BIOS settings are required. |
|---|---|
| PCI Express x4 | SLOT4: PCIe5.0 x4 [CPU] |
| SATA | 8 x SATA 6.0Gb/s |
|---|---|
| SATA RAID | 0/1/5/10 |
| M.2 | 1 M-key (PCIe4.0 x4), supports 2280 form factor [CPU] 1 M-key (PCIe4.0 x4), supports 2280 form factor [PCH] |
| LAN Chipset | Intel I210 |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 1Gbps |

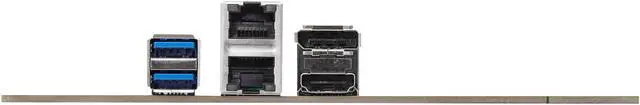

| Back I/O Ports | 1 x DisplayPort / 1 x HDMI / 2 x LAN (RJ45) / 2 x USB 3.2 Gen 1 Type-A |
|---|
| Onboard USB | USB 3.2 (Gen1) Header: 1 header (19-pin, 2 USB3.2 Gen1) USB 2.0 Header: 1 header (9-pin, 2 USB2.0) |
|---|---|
| Other Connectors | Power Connector: 1 Micro-Fit (4-pin, ATX PSU signal) w/ ATX 24-pin adapter cable, 3 (8-pin, ATX 12V) support 12V DC-in Other Power Connectors: 1 (6-pin) for HDD power when using 12V DC-in power source Auxiliary Panel Header: 1 (9-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate System Panel: 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED COM Header: 1 (9-pin) Speaker Header: 1 Fan Header: 7 (4-pin) Thermal Sensor Header: 1 TPM Header: 1 (13-pin, SPI) SGPIO Header: 1 Clear CMOS: 1 (2-pin) NMI Header: 1 |
| BIOS Feature | AMI 256Mb SPI Flash ROM Plug and Play, ACPI 6.4 and above compliance wake up events, SMBIOS 2.3 and above, ASRock Rack Instant Flash |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| First Listed on Newegg | November 03, 2025 |
|---|
