MAIN OVERVIEW FEATURES: Receptacles: 12 x NEMA 5-20RInput Voltage: 120 V ACOutput Voltage: 120 V ACSurge Energy Rating: 1800 JPower Cord/Cable Length: 15 ftHeight: 1.8"Width: 17.5"Depth: 2.3"Weight (Approximate): 4.90 lbPackage Contents: Rackbar Surge Suppressor RM 1U RKBS20ST4F8R 20A 12-OutletMounting Brackets (2 Sets)Cord Retention TrayCord OrganizersUser ManualEnvironmentally Friendly: YesEnvironmental Certification: RoHSLimited Warranty: Lifetime

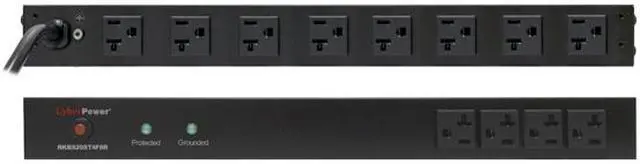

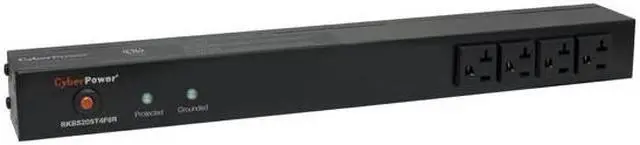

The CyberPower 12-outlet (4 Front and 8 Rear) rack mounted Rackbar surge suppressor (RKBS20ST4F8R) provides 120V 20A output and a surge suppression rating of 1,800 joules. It distributes power to 12 NEMA 5-20R receptacles from a single NEMA L5-20P twist lock plug. Designed for data centers and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 15-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty and $150,000 Connected Equipment Guarantee ensures the Rackbar surge suppressor is free of defects in design, assembly, material or workmanship.
Learn more about the CyberPower RKBS20ST4F8R
Model
Brand
CyberPower
Series
Rackbar
Model
RKBS20ST4F8R
Details
Outlets
12 (4 x Front + 8 x Rear)
Outlets Type
NEMA 5-20R
Cord Length
15 ft.
Input Voltage
120V
Voltage Compatibility
120V AC
Output Amperage Capacity
20
AC Suppression Joule Rating
1,800 J
Clamping Voltage
N-H 400V, N-G 500V, H-G 400V
Certifications
UL1363 UL1449 certified by ETL(USA), CSA C22.2(Canada)
Color
Black
Specification
Surge Protection & Filtering Maximum Surge Current: 90,000 amps Maximum Surge Voltage: 6,000 volts Response Time: 1 nanosecond EMI/RFI Filtration: Yes Attenuation: Up to 50 dB
Output / Input LED Indicators: Power On (green) / Grounded (green) Overload Protection: 20A Frequency: 50/60 Hz Plug Type: NEMA L5-20P Plug Style: Straight
Physical Rack Size: 1U Form Factors Supported: 1U rackmount, 0U vertical rackmount, undercounter installation supported Style: Rackmount, Vertical Rackmount, Under-Counter Cord Retention Tray/Cord Organizers: Yes External Site Ground Pin: Yes Material of Construction: Metal Adjustable Mounting Brackets: 2 sets (L-short, L-long)
Environmental Operating Temperature: 32 to 95 degrees Fahrenheit (0 to 35 degrees Celsius) Operating Humidity: 0 to 95% (non-condensing) Storage Temperature: 5 to 113 degrees Fahrenheit (-15 to 45 degrees Celsius) Maximum Operating Elevation: 10,000 ft (3,000 m) Maximum Storage Elevation: 50,000 ft (15,000 m)
Features
Features
Rackbar Surge Protectors are professional-grade rackmount surge protectors designed for the most demanding applications. Available in 15-Amp and 20-Amp models, these surge suppressors safeguard systems and networking equipment against destructive power events that can cause equipment damage and loss of valuable data. Rackbars may be installed vertically or horizontally in racks or under benches. Key features include switch-free design, LED indicators, metal housing, network-grade plugs and outlets, and a long input power cord.
