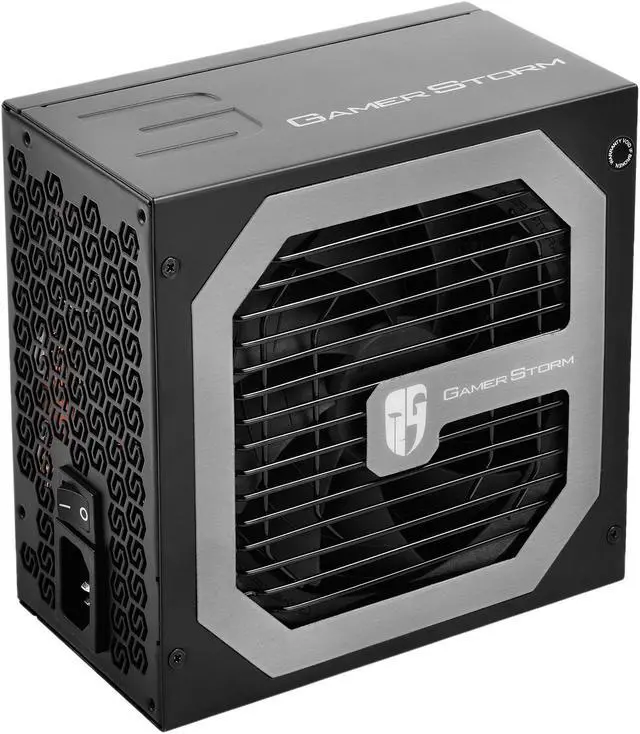

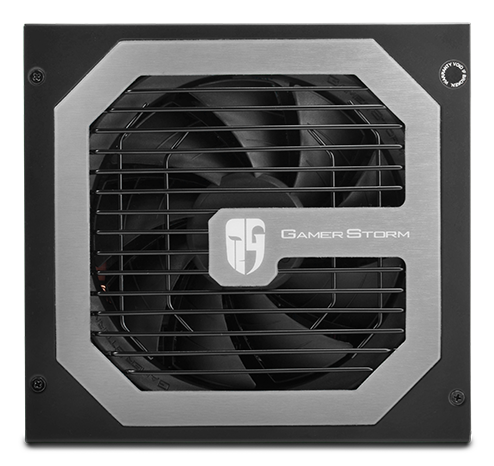

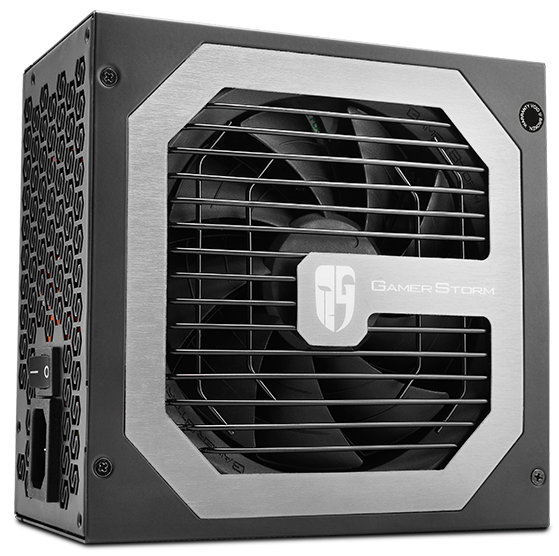

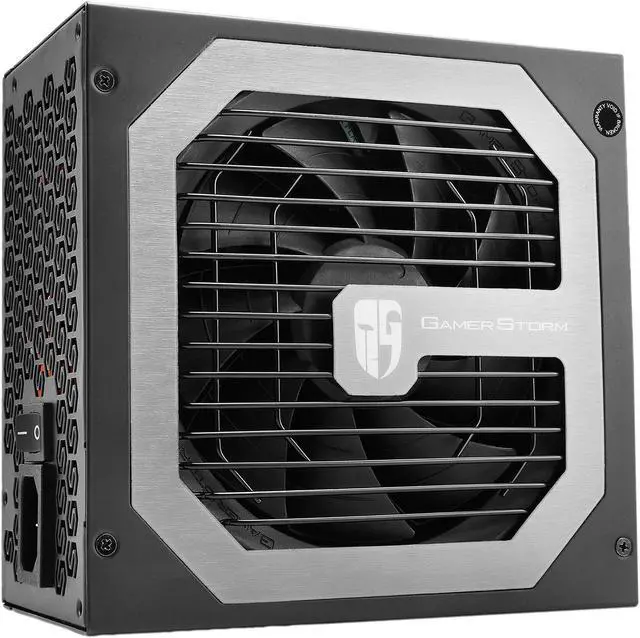

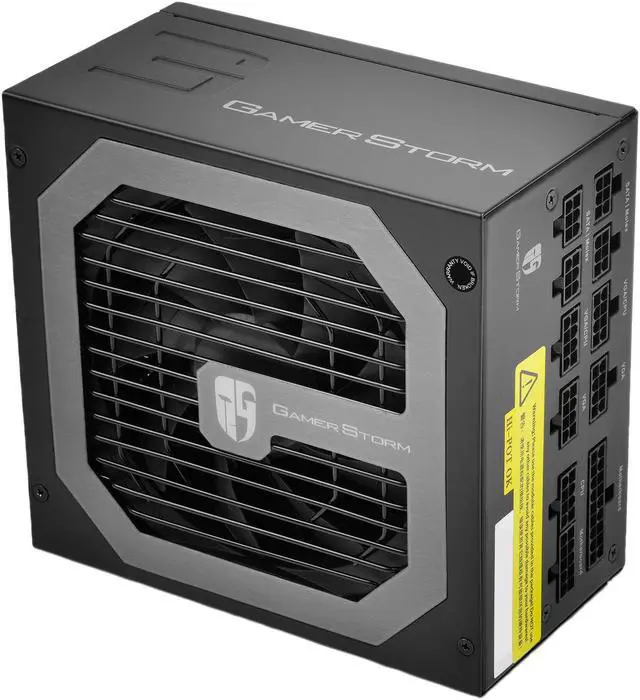

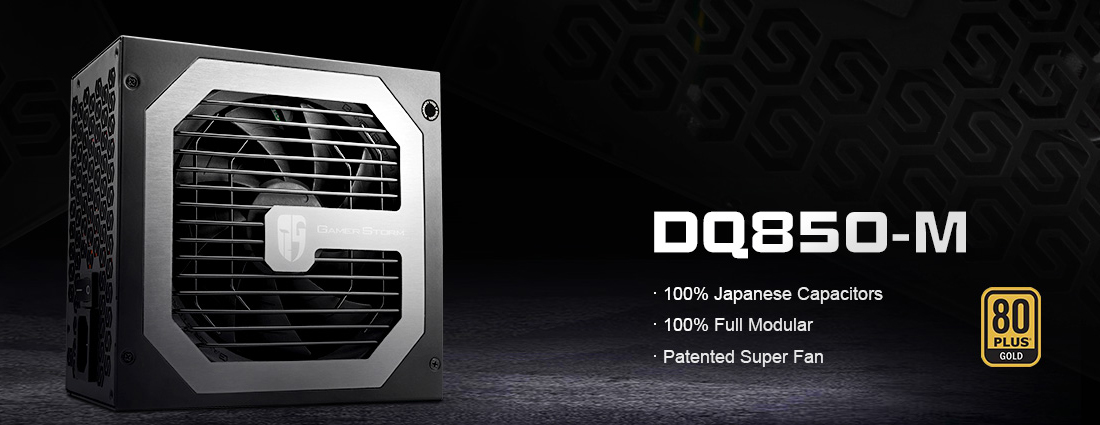

DEEPCOOL Gamer Storm DQ850-M 850W ATX12V v2.31/EPS 2.92 80 PLUS GOLD Certified Full Modular Power Supply Japanese capacitors

ATX12V v2.31 & EPS 2.92 & 80 PLUS GOLD Certified
120mm FDB Bearing PWM fan, double-layer fan-blade, super low noise, excellent performance
Full modular design, with longer flat cable, excellent for cable management
High quality Japanese capacitors
MTBF of at least 120,000 hours of use
E3Ready for AMD Ryzen Threadripper & Intel Skylake LGA2066 CPU

Description

GamerStorm DQ850-M Series power supplies give you extremely tight voltage control, quiet operation, 80 PLUS Gold-certified efficiency and black casing, and fully modular cabling. It's built with 100% Japanese 105? capacitors; they're a great choice for high-performance PCs where reliability is essential. 80 PLUS Gold efficiency reduces operating cost and excess heat. It is equipped with 120mm FDB speed adjustable silent fan. We give it a 5 year warranty. It is sure to be one of the most ideal equipment for gamers.

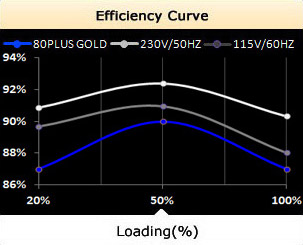

80 PLUS Gold

80 PLUS^® Gold certified - Up to 87~90% efficient .

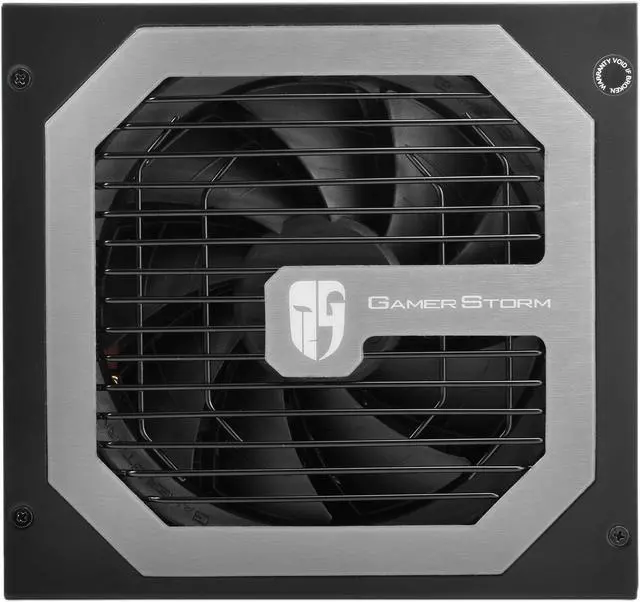

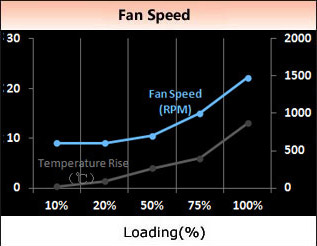

Silent and High Performance Fan

120mm silent fan with temperature function to provide incredible performance-noise ratio.

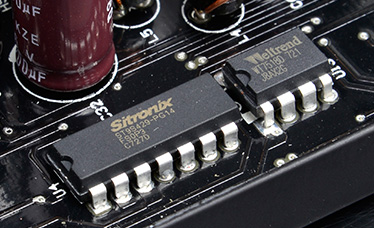

High Grade Components

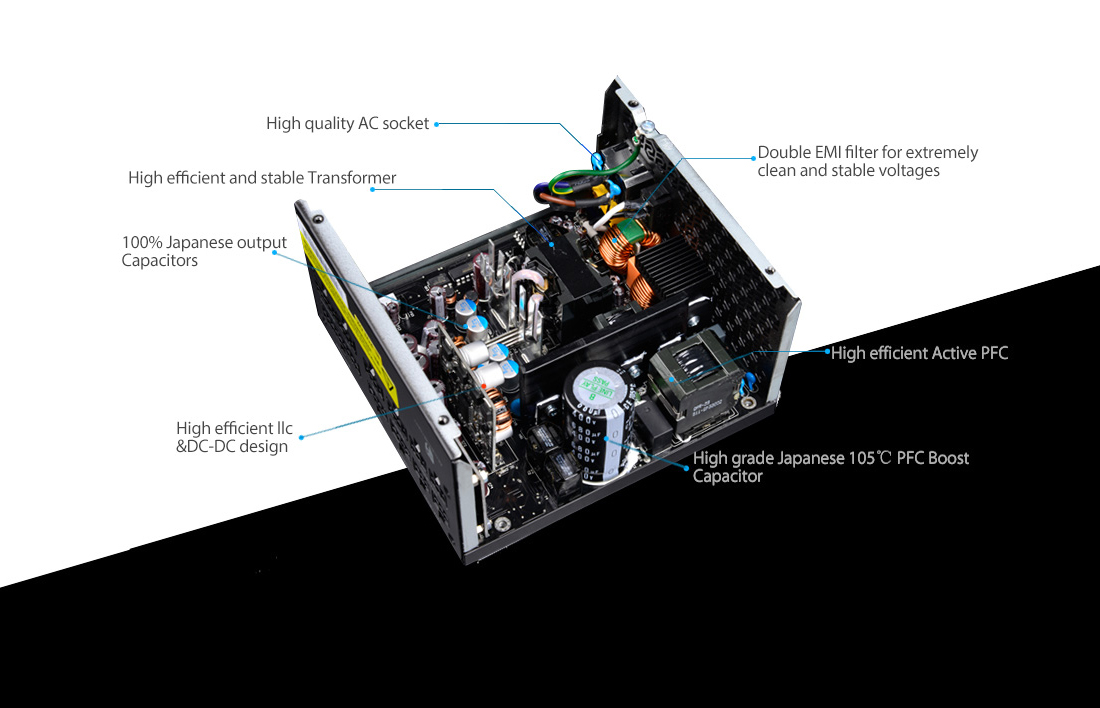

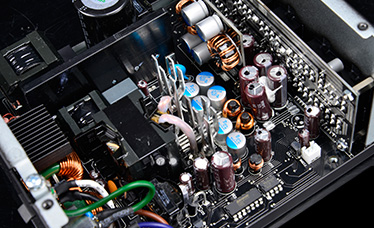

Details Discovered

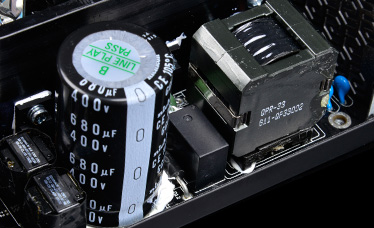

High grade Japanese 105? PFC Boost Capacitor

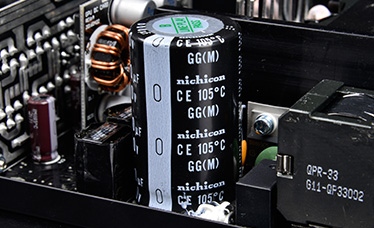

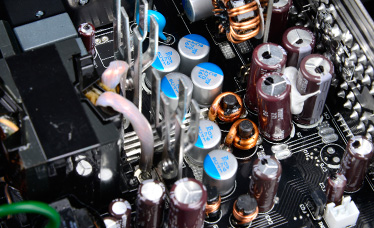

100% Japanese 105? Capacitors

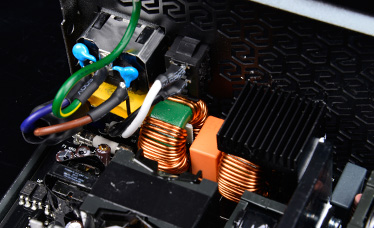

Excellent 1- and 2-stage EMI filter circuit

Highly efficient Active PFC

Excellent manufacturing process

Highly reliable multi-layered protection

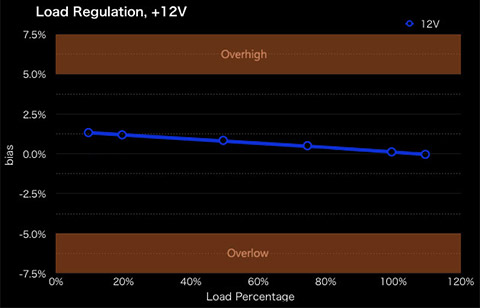

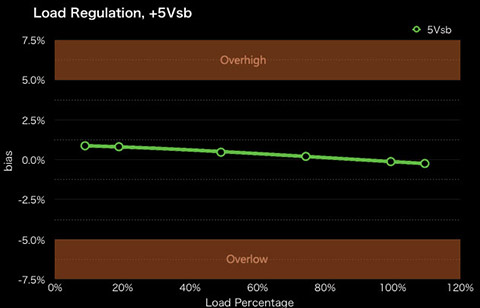

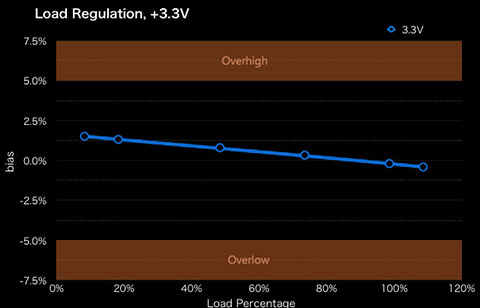

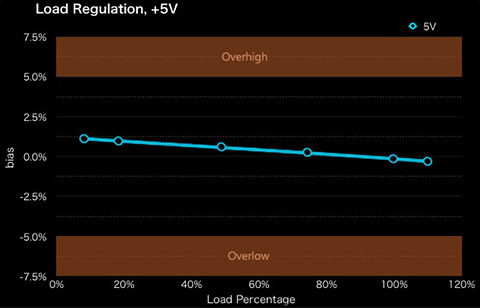

Voltage Regulation

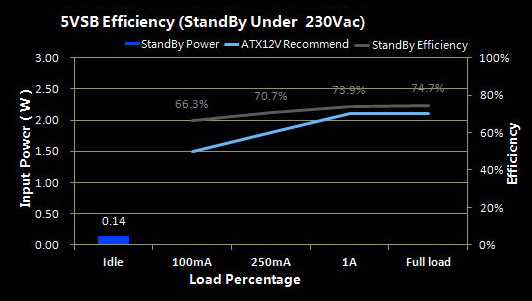

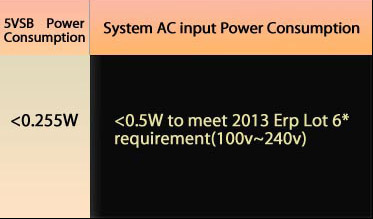

Idle/Standby Efficiency

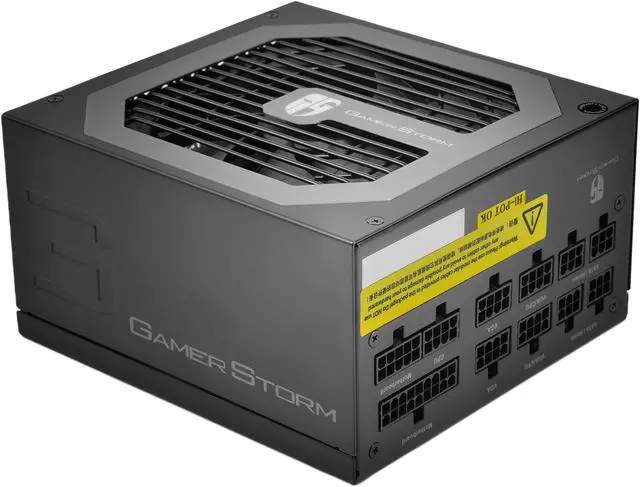

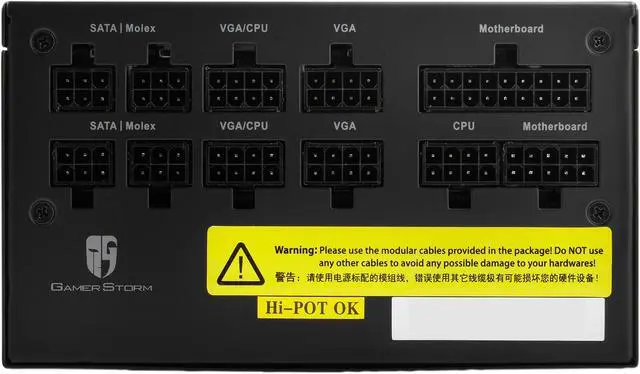

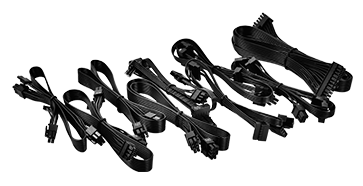

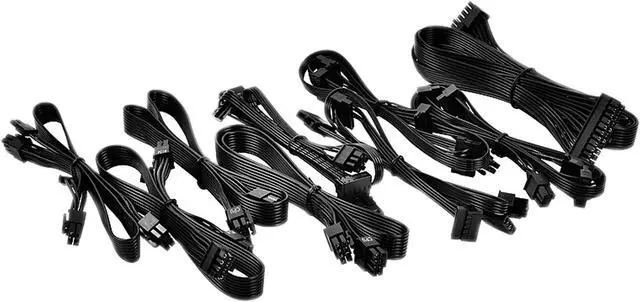

Full Modular Cable System

With full modular cable system, you can connect only the cables you need to ensure a tidy and nice-looking case.

Brand	Deepcool
Model	DQ850-M

Type	ATX12V v2.31 / EPS 2.92
Maximum Power	850 W
Fans	1 x 120mm FDB fan
PFC	Active PFC (>0.99)
Main Connector	20+4Pin
+12V Rails	4
PCI-Express Connector	4 x 6+2-Pin
SATA Power Connector	10
SLI	Yes
CrossFire	Yes
Modular	Full Modular
Efficiency	Up to 87~90% efficiency (20~100% loading)
Energy-Efficient	80 PLUS GOLD Certified
Over Voltage Protection	Yes
Input Voltage	100 - 240 V
Input Frequency Range	47 - 63 Hz
Input Current	6 - 12 A

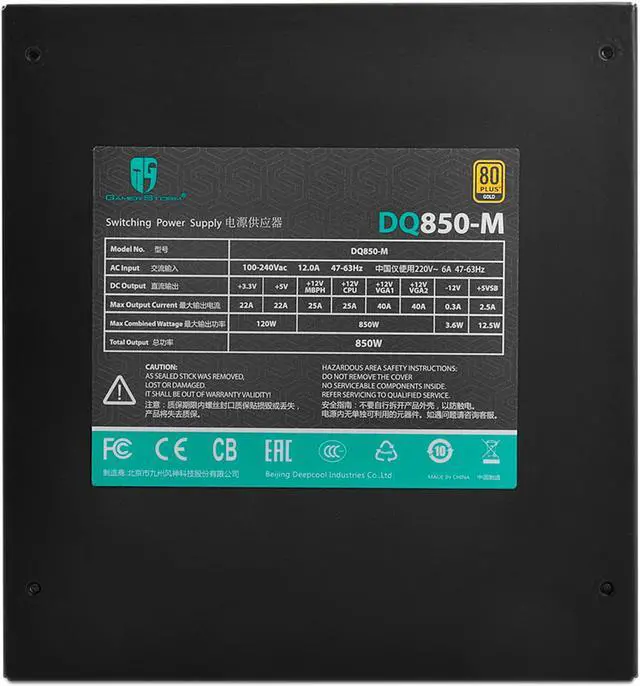

Output	+3.3V@22A, +5V@22A, +12V MBPH@25A, +12V CPU@25A, +12V VGA1@40A, +12V VGA2@40A, [email protected], [email protected]
MTBF	>120,000 Hours
Connectors	1 x M/B 20+4 Pin Connector (550mm) 1 x CPU 4+4 Pin (700mm) 1 x CPU 4+4 Pin (700mm) 2 x PCI-E 6+2 Pin (500mm+100mm) 2 x PCI-E 6+2 Pin (500mm+100mm) 3 x SATA + 1 x 4 Pin Peripheral (450mm+150mm+150mm+150mm) 3 x SATA + 1 x 4 Pin Peripheral (550mm+150mm+150mm+150mm) 2 x 4 Pin Peripheral + 2 x SATA (450mm+150mm+150mm+150mm) 2 x 4 Pin Peripheral + 2 x SATA (550mm+150mm+150mm+150mm)
