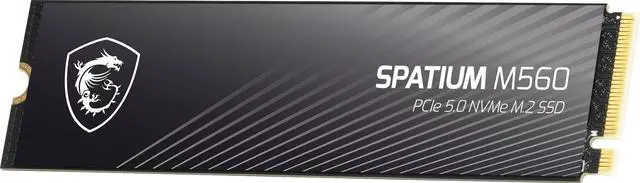

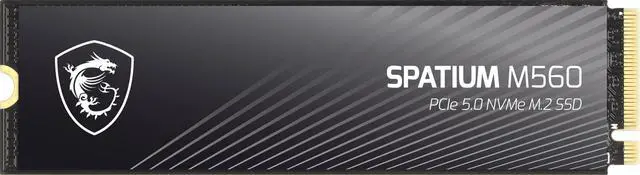

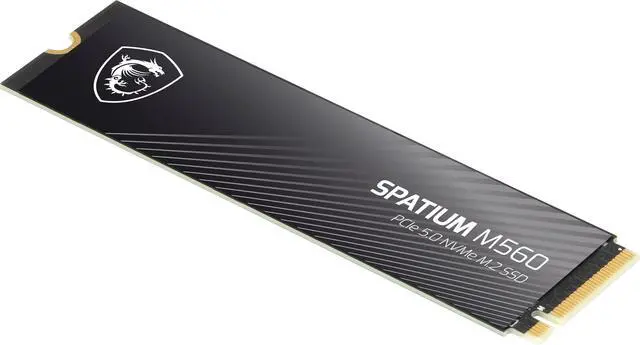

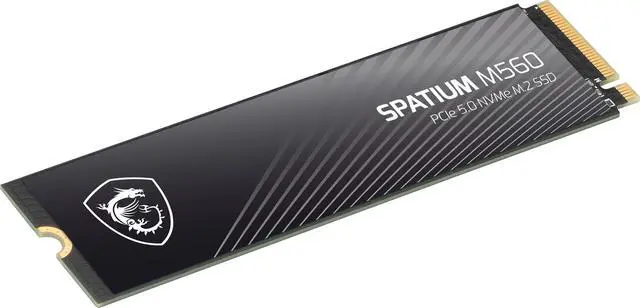

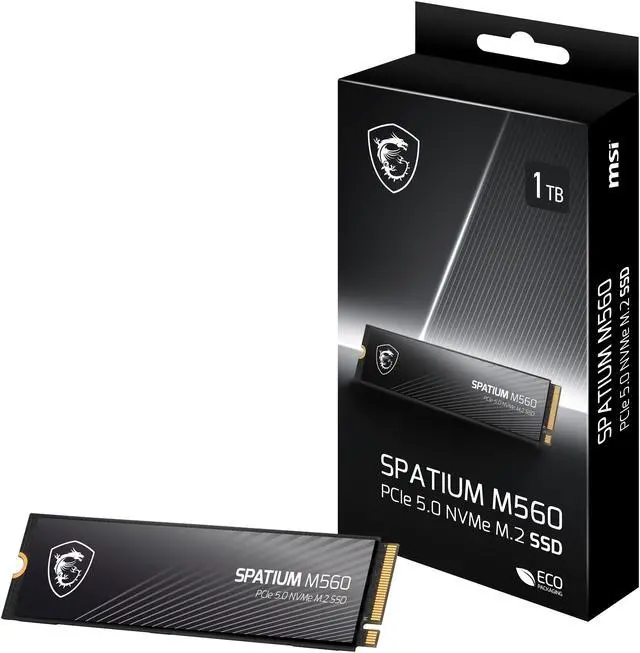

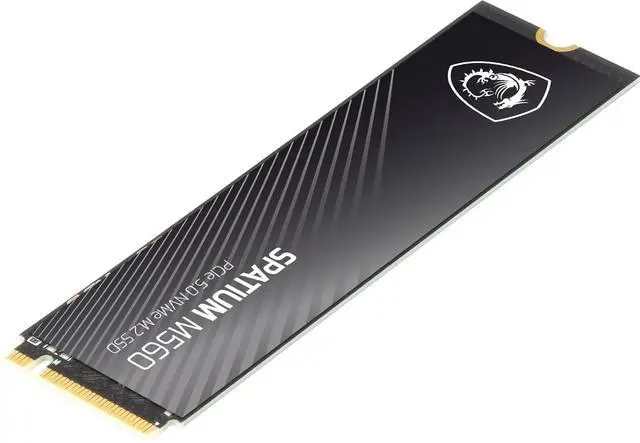

Learn more about the MSI SM560N1TB
ModelBrand | MSI |
---|
Series | SPATIUM M560 |
---|
Model | SM560N1TB |
---|
Device Type | Internal Solid State Drive (SSD) |
---|
Used For | Consumer |
---|
DetailsForm Factor | M.2 2280 |
---|
Capacity | 1TB |
---|
Memory Components | 3D NAND |
---|
Interface | PCI-Express 5.0 x4 |
---|
Protocol | NVMe 2.0 |
---|
Controller | PHISON E31T |
---|
PerformanceMax Sequential Read | Up to 10200 MBps |
---|
Max Sequential Write | Up to 8400 MBps |
---|
4KB Random Read | Up to 1,300,000 IOPS |
---|
4KB Random Write | Up to 1,400,000 IOPS |
---|
Terabytes Written (TBW) | 600TB |
---|
MTBF | 1,500,000 hours |
---|
FeaturesFeatures | TRIM (Performance Optimization, OS support required) SMART (Self-Monitoring, Analysis and Reporting Technology) LDPC (Low Density Parity Check) ECC Algorithm End to End Data Path Protection APST (Autonomous Power State Transition) |
---|
EnvironmentalPower Consumption (Idle) | 50 mW |
---|
Power Consumption (Active) | 5.9W |
---|
Operating Temperature | 0°C ~ +70°C |
---|
Dimensions & WeightHeight | 22mm |
---|
Width | 80mm |
---|
Depth | 2.15mm |
---|
Additional InformationDate First Available | February 25, 2025 |
---|
