Learn more about the MSI Cubi NUC 1MG-276BUS
GeneralBrand | MSI |
---|
Series | Cubi NUC 1M |
---|
Model | Cubi NUC 1MG-276BUS |
---|
Part Number | CUBINUC1M276B |
---|
Color | Black |
---|
CPU SupportedCPU Type | Intel Core 5 120U |
---|
CPU Cores | 10-Core (2P+8E) |
---|
Memory SupportedMemory installed | No Memory |
---|
Memory slot | 2 x 262Pin SO-DIMM |
---|
Memory Type Supported | DDR5 5200 |
---|
Max Memory Supported | 64GB |
---|
StorageM.2 | 1 x M.2 2280 PCIe free slot |
---|
GraphicsIntergrated Graphics | Intel Graphics |
---|
CommunicationsLAN | Intel i226V |
---|
Max LAN Speed | 10/100/1000/2500Mbps |
---|
Wireless LAN | 802.11ax |
---|
WiFi Generation | Wi-Fi 6E |
---|
Bluetooth | Bluetooth 5.3 |
---|
Extension Bays2.5" Internal Bays | 1 x 2.5" SSD/HDD |
---|

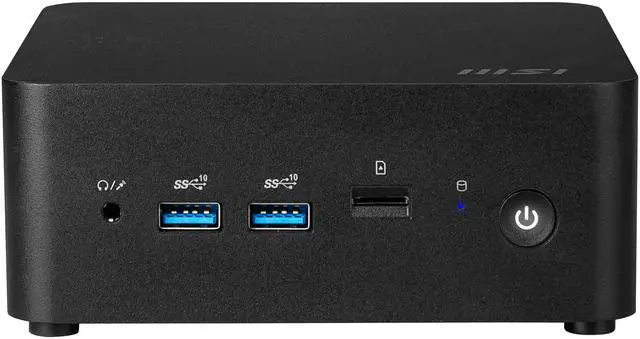

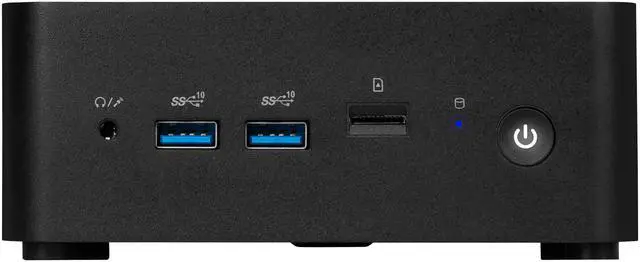

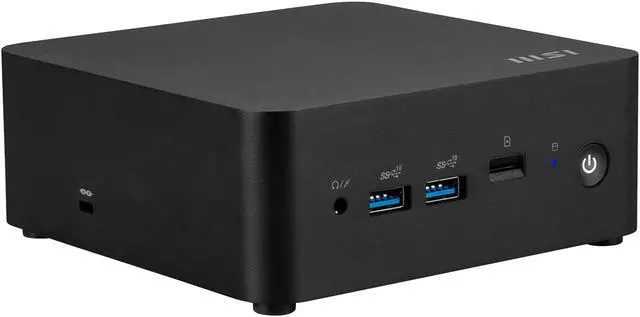

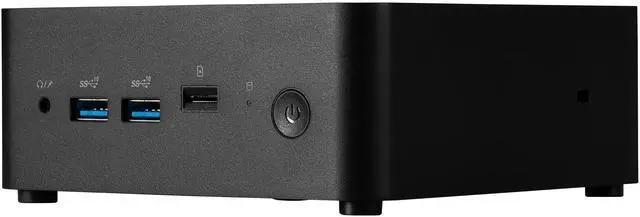

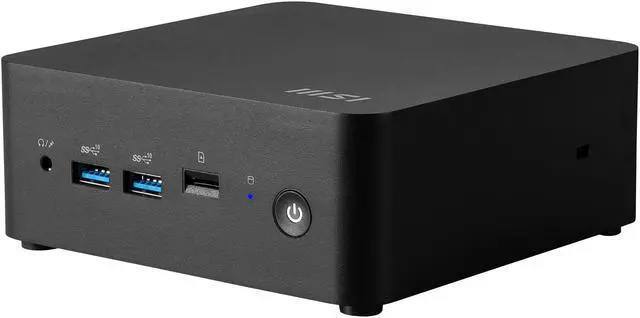

Front Panel PortsFront USB | 2 x USB 3.2 Gen2 Type-A (front) |
---|
Card Reader | MicroSD card Reader |
---|

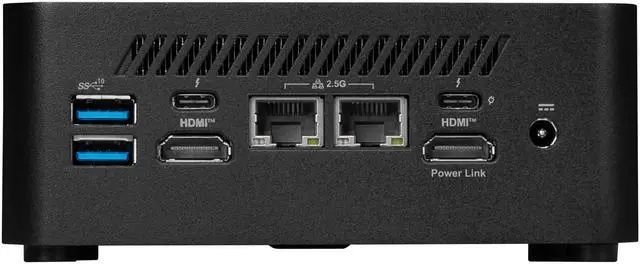

Back Panel PortsHDMI | 2 x HDMI out (supports 4K @60Hz as specified in HDMI) |
---|
Thunderbolt | 2 x ThunderBolt4 Type-C (Rear) |
---|
Rear USB | 2 x USB 3.2 Gen2 Type-A (rear) |
---|
RJ45 | 2 |
---|
Rear Audio Ports | 1 x Mic-in / Headphone-out combo |
---|
Power SupplyPower Supply | 120W |
---|
Physical SPECDimensions | 1.97" x 5.34" x 5.22" |
---|
Weight | 1.38 lbs. |
---|
Additional InformationFirst Listed on Newegg | August 22, 2025 |
---|
