Business Elegance

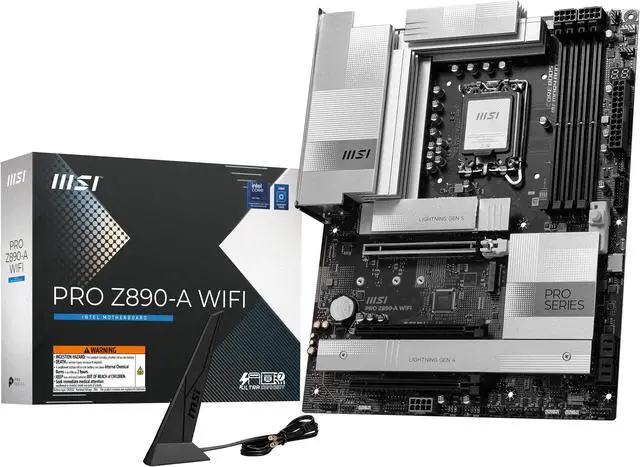

The PRO Z890-A WIFI is a creation-oriented ATX motherboard with a 16 Duet Rail Power System, constructed around the latest Intel Z890 chipset which supports Intel Core Ultra Processors (Series 2), featuring PCIe 5.0, 5G LAN, Wi-Fi 7, DDR5 and Frozr design that delivers the capacity to support a broad spectrum of both cutting-edge and innovative hardware.
Supports Intel Core Ultra Processors (Series 2)
The PRO Z890-A WIFI motherboard supports Intel Core Ultra Processors (Series 2).
- Form Factor: ATX
- Socket Type: LGA 1851
- Chipset: Intel Z890
Ultra Power - 16 Duet Rail Power System with 90A Smart Power Stage
With exclusive Core Boost technology and EZ OC Tuning functions, the PRO Z890-A WIFI is able to sustain heavy CPU power loads to support system-demanding game settings:
- Digital PWM IC 16 Duet Rail Power System (90A / SPS)
- 1-Phase SA Power
- 1-Phase GT Power
- 1-Phase VNNAON Power
Frozr Design
Frozr Guard: Extended Heatsink design, 7W/mK MOSFET thermal pads, extra choke thermal pads and EZ M.2 Shield Frozr II for improved thermal dissipation.
Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers - including CPU fan header (2A), Combo fan (3A, supports both pump fan and system fan) and system fans.
Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.
4 x DDR5 Dual Channel (9200+ MT/s OC)*
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
XMP Profiles in the MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.
* 1DPC 1R Max. overclocking frequency 9200+ MT/s, supports Intel XMP.
Fortified PCIe 5.0 x16 Slot
The MSI PCI Express Steel Armor II slot is reinforced with additional solder points on the motherboard, supporting 21% more graphics card weight compared to 1st Gen Steel Armor.
- 1 x PCIe 5.0/4.0/3.0 x16 slot* (with Steel Armor II** and EZ PCIe Release)
- 2 x PCIe 4.0/3.0 x16 slots*
* Support x16/x4/x4
** MSI Surface Mount Technology (SMT) solder welding improves signal clarity.
Gen5 M.2 Connector
The PRO Z890-A WIFI motherboard features MSI's M.2 slots:
- 1 x Gen5 x4 128Gbps slots (with EZ M.2 Shield Frozr II)
- 3 x Gen4 x4 64Gbps slots
EZ DIY
The DIY Friendly designs optimize the assemble process and experience.
EZ PCIe Release: With just one press of a button, users can easily install or remove the graphics card with one hand.
EZ M.2 Shield Frozr II: MSI patented Shield Frozr cover features a tool-free design so users don't have to worry about lost screws or overtightening.
EZ M.2 Clip II: Install or remove the SSD with a simple push of the latch, without using any screws.
EZ Antenna: MSI's latest Wi-Fi antenna not only boasts a beautiful appearance but also features a magnetic design, making it easier to adjust the antenna's placement.
Ultra Connect
5G LAN: A Realtek 5Gbps LAN controller delivers a premium network gaming experience.
Wi-Fi 7: Features the full-speed Wi-Fi 7 solution (ultra-low latency, high-bandwidth) & Bluetooth 5.4 technology.
Thunderbolt 4 Type-C: Connect to devices and transfer files at high bandwidth rates: 40Gbps, with 8K display support*.
* Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
