MESTEK Digital Multimeter AC DC Multimeters Current Voltage Auto-Ranging NCV Voltage Tester Amp Volt Ohm Hz Diode Resistance Meter with Battery Electric Test Lead Probes with LED Light & Backlight

Highlights:

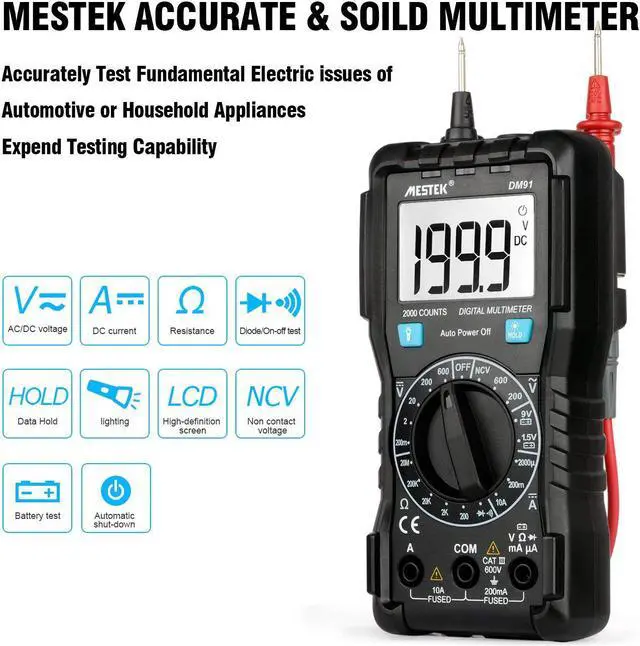

MULTI FUNCTIONS - Reach 1999 counts.Measure the DC voltage, DC current,AC Voltage,resistance, diodes, circuit continuity etc.Durable enough for long term use, test fundamental electric issues of automotive or household appliances, suitable for electrical circuit, home users, enthusiasts, professional electricians and technicians.

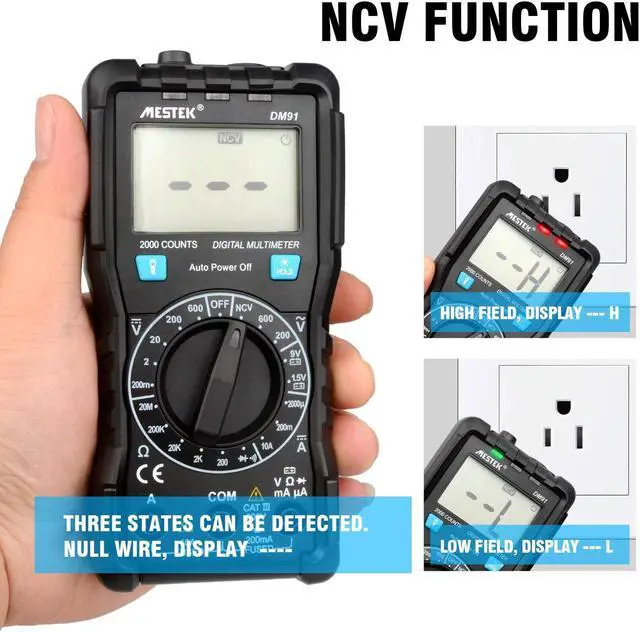

NCV INDUCTION FUNCTION-Turn the rotary swith to the NCV gear and close to the lead being measured,buzzer will alarm while the backlight will flash when instrument detects AC voltage.

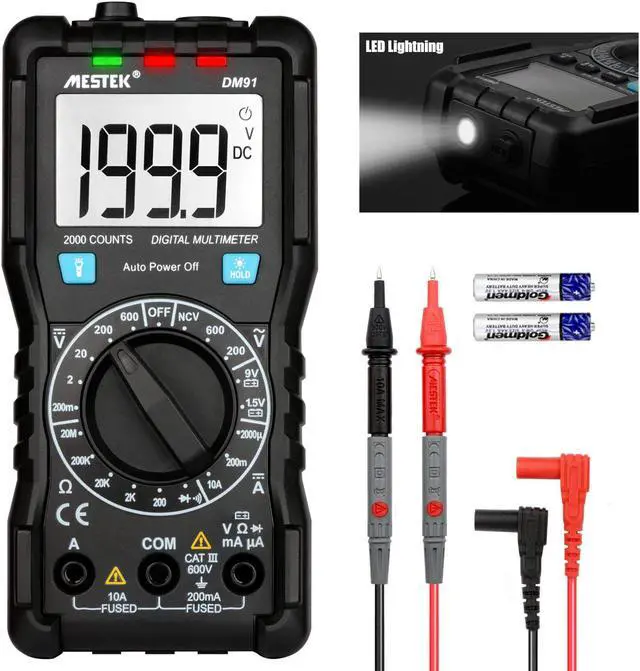

DATA HOLD/BACKLIGHT & FLASHLIGHT-Press the "HOLD" button,the last reading measured on the display will be maintained,you have no need to worry about forget the data you have measured.Independent Flashlight and Backlight humanized design for visibility in dark areas.

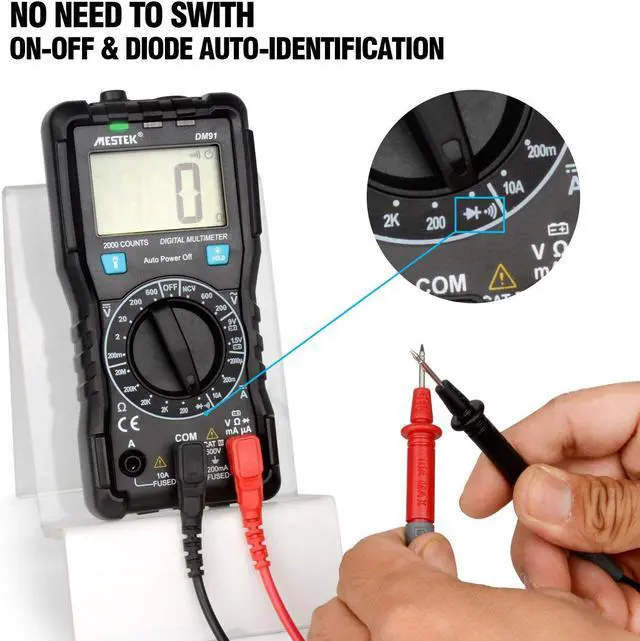

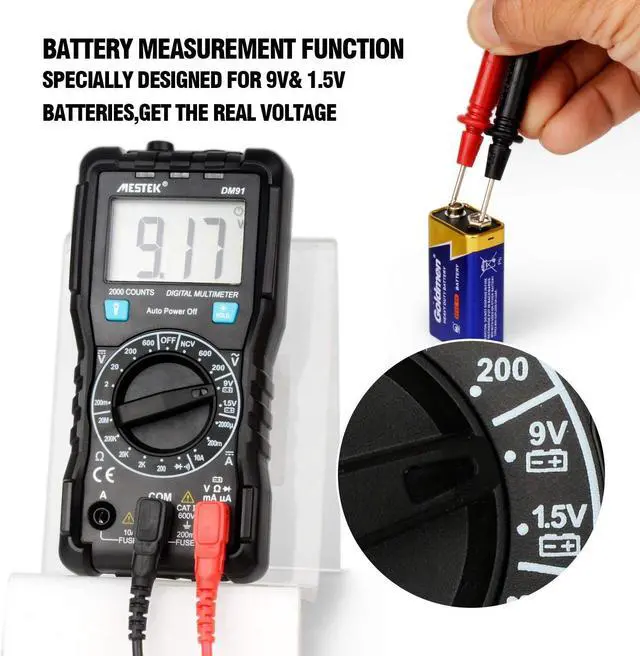

SMART DIODE/CONTINUITY & BATTERY VOLTAGE MEASUREMENT-Continuity test and diode measurement are executed in smart mode without the need to switching button.Independent battery measurement function makes it easy to measure battery voltages of 1.5V and 9V.

KEEP YOU AND THE ENVIRONMENTAL SAFE- EN61010-1,-2-030, EN61010-2-032 600V CAT III & ROHS/REACH.We strive to make the BEST Products Possible.If you don't feel 100% satisfied with the product, please contact us and we will do our best to solve all problems.



MESTEK DM91 is designed to safely and accurately address automotive and household electrical issues.

Small but convenient, full-featured can used for household sockets, distribution box,fuses, cables, universal batteries, automotive batteries and charging systems, automotive circuits and more.



Advanced functions prepare everything for you:
NCV measurement, Smart diodes& continuity,while still measuring AC/DC voltage, DC current, capacitance, frequency, resistance, continuity, etc.

Super-large screen:
31/2 digit super-large screen with clear and accurate reading.

Keep your safety:
Overload protection,Double fuse provide the HIGH SECURITY during your working.

User-friendly design makes operation more convenient:
The flashlight and backlight are separately designed,Automatic shut-down,Data hold,Polarity display,Low battery indication,Over-range indication make your work easier and faster.


Ergonomic design is more comfortable to use:

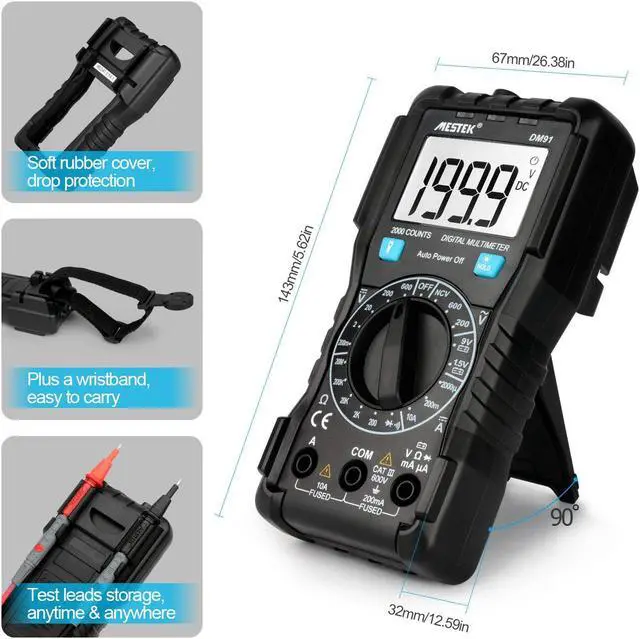

Built-in support backstand for hands-free use, durable rubber cover protects the multimeter from dropping & falling accidents.





Specifications:

Safety/Compliances: IEC61010 CAT.III 600V over voltage and double insulation

Measurement Speed: Updates 3 times/second

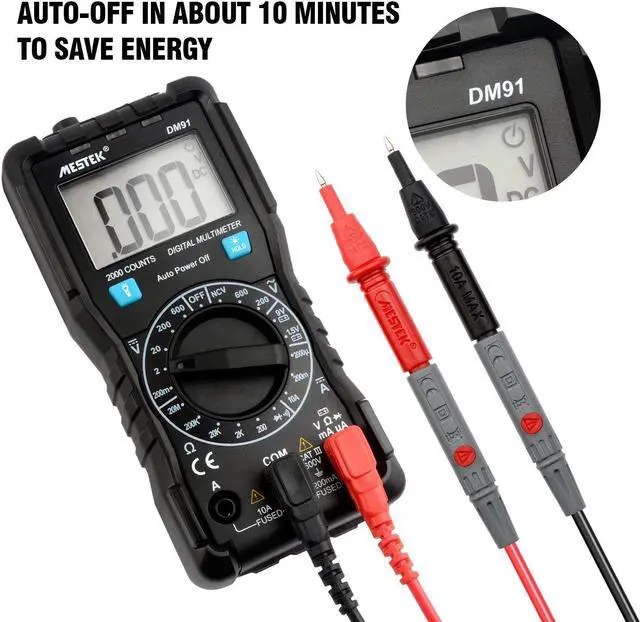

Auto-showdown Time:10 Minutes

Operating temperature: 0~40?(32~104?)

Storage temperature: -10~50?(14~122?)




AC Voltage:

- Range and Accuracy: 200V/600V± (1.2%+10)

-Frequency Range:40Hz~400Hz

-Overload Protection:PTC 600V DC or AC RMS.

DC Voltage:

- Range and Accuracy: 200mV/2V/20V/200V ± (0.5%+2); 600V± (0.8%+2)

-Overload Protection:PTC 600V DC or AC RMS.

DC Current:

- Range and Accuracy:2000µA±(1% + 2);200mA±(1.5% + 2);10A (3% + 3)

- Overload Protection:F200mA/250V Fuse F10A/250V Fuse.

Resistance:

- Range and Accuracy: 200O± (0.8%+3);2KO/20KO/200KO± (0.8%+2);20MO ± (1.2%+3)



Package Contents:

1 x MESTEK Digital Multimeter

2 x Test Lea
