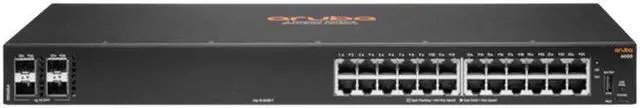

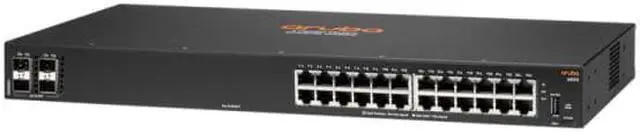

HPE Aruba 6000 24G 4SFP Switch - switch - 24 ports - managed - rack-mountable
- Expansion / Connectivity: 24 x 10/100/1000 Base-T RJ-45
- Power: Internal power supply
- Miscellaneous: CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825-1, CAN/CSA C22.2 No. 60950, CNS 13438, IEC 60825-1 Class 1, EN 55024:2010, EN 60825-1:2007, FCC CFR47 Part 15 A, ICES-003 issue 6 Class A, UL 62368-1 Second Edition, CISPR 32 Class A, EN 62368-1:2014, VCCI-CISPR 32:2016 Class A, CISPR 35, EN 55035:2017, EN 55032:2015/AC:2016-07 Class A, IEC 62368-1 Second Edition
+
+
Overview
Specs
Reviews
Description
24x ports 10/100/1000BASE-T Ports
4x 1G SFP ports
1x USB-C Console Port
1x USB Type-A Host port
Power supplies
Fixed power supply
Fans
Fixed fans
Dimensions
(H) 4.39 cm
(W) 44.2 cm
(D) 20.12 cm
( 1.73" x 17.4" x 7.92" )
CPU
Dual Core ARM Cortex A9 @ 1016 Mhz
Memory and Flash
4 GB DDR3
16 GB eMMC
Packet Buffer
12.38MB ( 4.5MB Ingress/ 7.875MB Egress)
Model Switching Capacity
56 Gbps
Model Throughput Capacity
41.6 Mpps
Average Latency
(LIFO-64-bytes packets)
1 Gbps: 1.5 Sec
Switched Virtual Interfaces (dual stack)
16
IPv4 Host Table (ARP)
1, 024
IPv6 Host Table (ND)
512
IPv4 Unicast Routes
512
IPv6 Unicast Routes
512
MAC Table Capacity
8, 192
IGMP Groups
512
MLD Groups
512
IPv4/IPv6/MAC ACL Entries (ingress)
256 / 128 / 256
Operating Temperature
32°F to 113°F (0°C to 45°C) up to 5000 ft ( 1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft ( 1.5 km) to 10000 ft ( 3.0 km)
Operating Relative Humidity
15% to 95% at 104°F (40°C) non-condensing
Non-Operating
-40°F to 158°F (-40°C to 70°C) up to 15000 ft ( 4.6 km)
Non-Operating Storage Relative Humidity
15% to 90% @ 149°F (65°C) non-condensing
Max Operating Altitude
10000 feet (3 km) Max
Max Non-Operating Altitude
15000 feet ( 4.6 km) Max
Acoustic
Sound Power, LWAd = 3.9 Bel
Sound Pressure, LpAm (Bystander) =
20.9 dB
Primary Airflow
Side-to-side
Aruba 6000 24G 4SFP Switch (R8N88A)
Frequency
50 / 60 Hz
AC Voltage
100-127 VAC / 200-240 VAC
Current
0.6 A / 0.4 A
Power Consumption (230 VAC)
Idle: 15.4W
Max Power (w/o PoE): 33W
Safety
UL 60950-1; IEC 60950-1;
EN 60950-1; CAN/
CSA-C 22.2 No. 60950-1;
EN 60825-1
UL 62368-1 Ed. 2; IEC
62368-1 Ed. 2; EN 62368-
1:2014
Emissions
VCCI-CISPR 32, Class A; CNS
13438; ICES-003 Issue 6
Class A; FCC CFR 47
Part 15, Class A;
EN 55032: 2015 +AC: 2016 /
CISPR-32, Class A
Lasers
EN 60825- 1:2007 / IEC 60825-
1:2007 Class 1
Class 1 Laser Products / Laser Klasse 1
(Applicable for accessories - Optical Transceivers only)
Generic
CISPR 24 / CISPR 35
EN
EN 55024:2010 /
EN 55035:2017
ESD
IEC 61000-4-2
Radiated
IEC 61000-4-3
EFT/Burst
IEC 61000-4-4
Surge
IEC 61000-4-5
Conducted
IEC 61000-4-6
Power frequency magnetic field
IEC 61000-4-8
Voltage dips and interruptions
IEC 61000-4-11
Harmonics
EN 61000-3-2, IEC 61000-3-2
Flicker
EN 61000-3-3, IEC 61000-3-3
Mounting and Enclosure
Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting
24x ports 10/100/1000BASE-T Ports
4x 1G SFP ports
1x USB-C Console Port
1x USB Type-A Host port
Power supplies
Fixed power supply
Fans
Fixed fans
Dimensions
(H) 4.39 cm
(W) 44.2 cm
(D) 20.12 cm
( 1.73" x 17.4" x 7.92" )
CPU
Dual Core ARM Cortex A9 @ 1016 Mhz
Memory and Flash
4 GB DDR3
16 GB eMMC
Packet Buffer
12.38MB ( 4.5MB Ingress/ 7.875MB Egress)
Model Switching Capacity
56 Gbps
Model Throughput Capacity
41.6 Mpps
Average Latency
(LIFO-64-bytes packets)
1 Gbps: 1.5 Sec
Switched Virtual Interfaces (dual stack)
16
IPv4 Host Table (ARP)
1, 024
IPv6 Host Table (ND)
512
IPv4 Unicast Routes
512
IPv6 Unicast Routes
512
MAC Table Capacity
8, 192
IGMP Groups
512
MLD Groups
512
IPv4/IPv6/MAC ACL Entries (ingress)
256 / 128 / 256
Operating Temperature
32°F to 113°F (0°C to 45°C) up to 5000 ft ( 1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft ( 1.5 km) to 10000 ft ( 3.0 km)
Operating Relative Humidity
15% to 95% at 104°F (40°C) non-condensing
Non-Operating
-40°F to 158°F (-40°C to 70°C) up to 15000 ft ( 4.6 km)
Non-Operating Storage Relative Humidity
15% to 90% @ 149°F (65°C) non-condensing
Max Operating Altitude
10000 feet (3 km) Max
Max Non-Operating Altitude
15000 feet ( 4.6 km) Max
Acoustic
Sound Power, LWAd = 3.9 Bel
Sound Pressure, LpAm (Bystander) =
20.9 dB
Primary Airflow
Side-to-side
Aruba 6000 24G 4SFP Switch (R8N88A)
Frequency
50 / 60 Hz
AC Voltage
100-127 VAC / 200-240 VAC
Current
0.6 A / 0.4 A
Power Consumption (230 VAC)
Idle: 15.4W
Max Power (w/o PoE): 33W
Safety
UL 60950-1; IEC 60950-1;
EN 60950-1; CAN/
CSA-C 22.2 No. 60950-1;
EN 60825-1
UL 62368-1 Ed. 2; IEC
62368-1 Ed. 2; EN 62368-
1:2014
Emissions
VCCI-CISPR 32, Class A; CNS
13438; ICES-003 Issue 6
Class A; FCC CFR 47
Part 15, Class A;
EN 55032: 2015 +AC: 2016 /
CISPR-32, Class A
Lasers
EN 60825- 1:2007 / IEC 60825-
1:2007 Class 1
Class 1 Laser Products / Laser Klasse 1
(Applicable for accessories - Optical Transceivers only)
Generic
CISPR 24 / CISPR 35
EN
EN 55024:2010 /
EN 55035:2017
ESD
IEC 61000-4-2
Radiated
IEC 61000-4-3
EFT/Burst
IEC 61000-4-4
Surge
IEC 61000-4-5
Conducted
IEC 61000-4-6
Power frequency magnetic field
IEC 61000-4-8
Voltage dips and interruptions
IEC 61000-4-11
Harmonics
EN 61000-3-2, IEC 61000-3-2
Flicker
EN 61000-3-3, IEC 61000-3-3
Mounting and Enclosure
Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting
