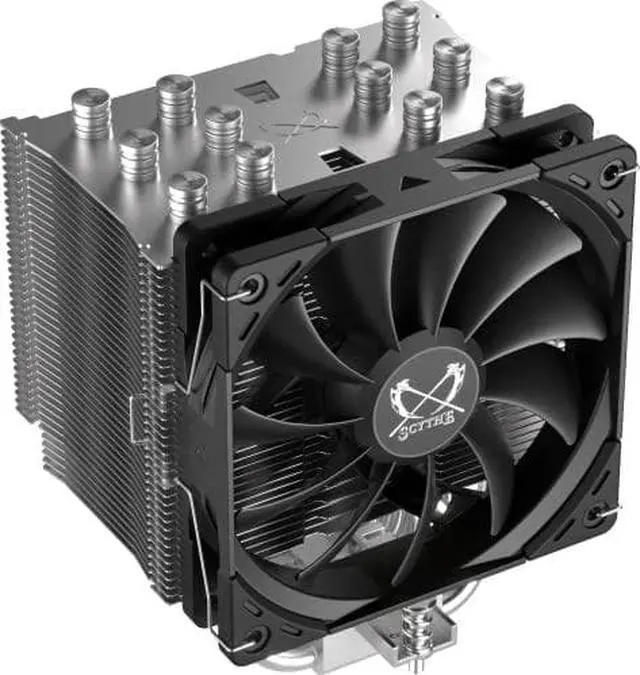

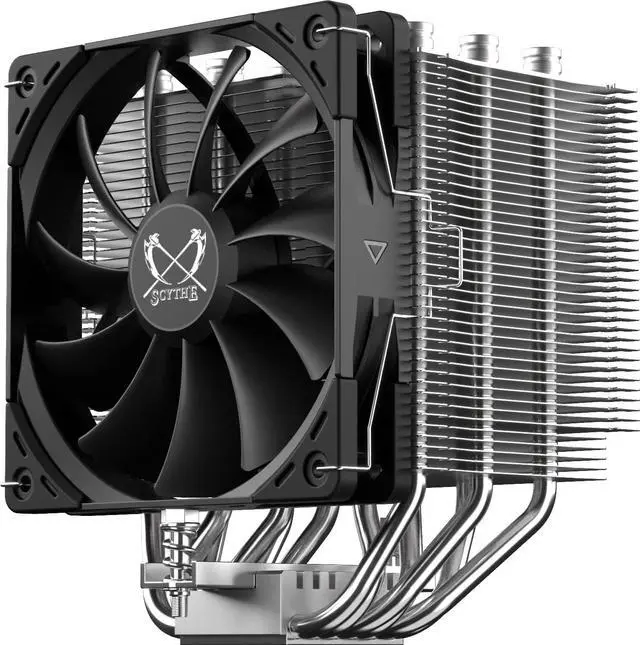

Mugen 5 Rev.C (SCMG-5200)
The Mugen 5 has become a default choice for many PC DIY builders. On the basis of classic Mugen 5 Rev.B heatsink design with its iconic top cover metal caps, the Mugen 5 Rev.C is now upgraded with an new Kaze Flex II 120mm PWM fan speeding up to 1500RPM in maximum. 6 sintered heatpipes and copper base provide top-tier performance for high TDP CPUs, and equipped with quiet Kaze Flex II 120mm fan(Sealed Precision FDB) for quiet operation and long lifespan of 120,000 hrs. Offset and cut-fin design ensure excellent access to memory even with tall heat spreader.
Excellent Space Management
Standing only 154.5mm tall, the cooler perfectly fits into the most popular tower cases on the market and keep your computer chassis spacious.

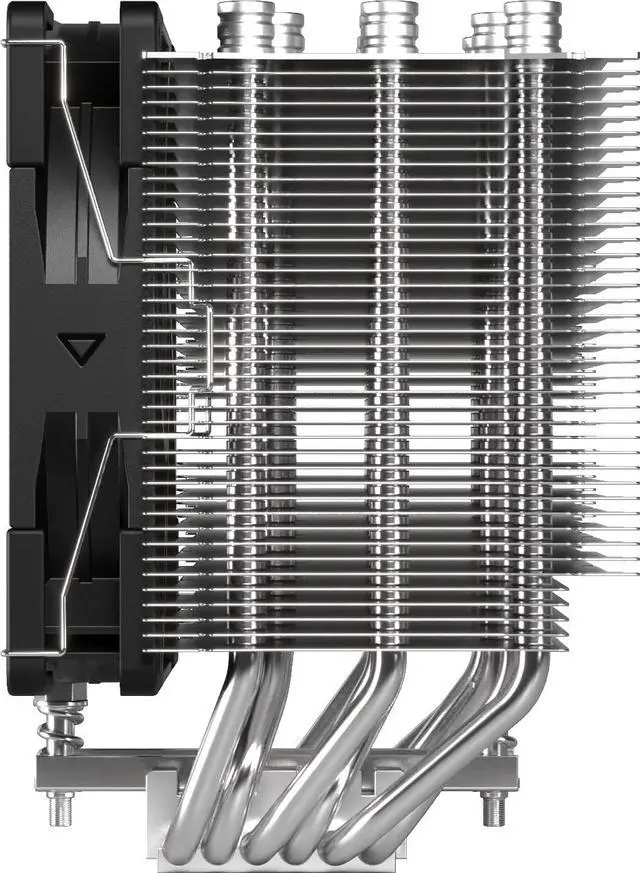

Asymmetrical Design

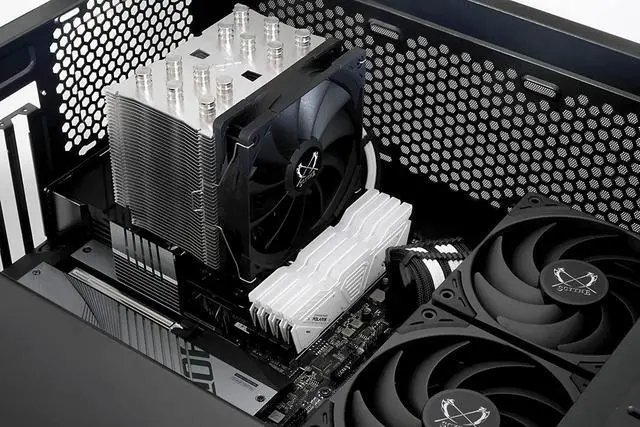

The asymmetrical design provides excellent access to memory slots (front bank) and would not overhang the RAM even with tall heat spreader, the cut-out fin(55mm) in the rear allows full compatibility on LGA2011(V3)/ LGA 2066 motherboards and platforms.

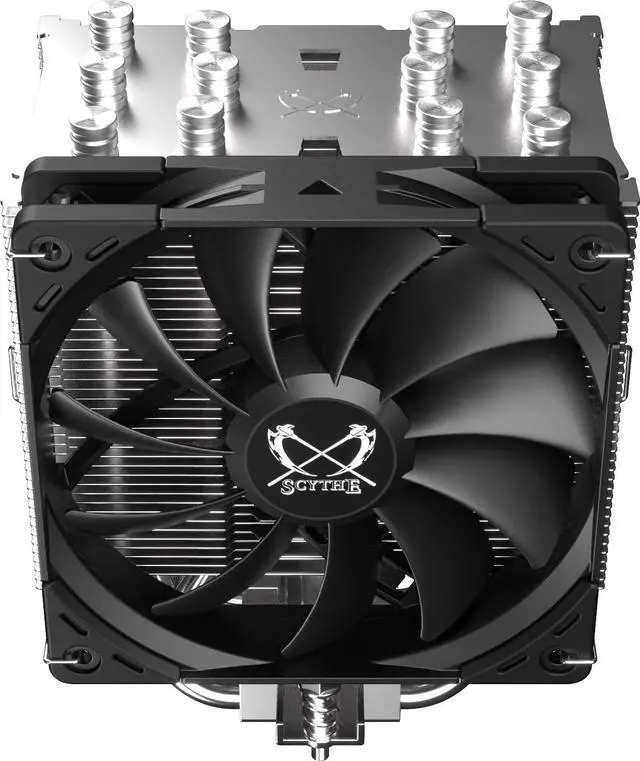

New Kaze Flex II PWM Quiet fan
With a new Kaze Flex II PWM 300-1500 RPM fan, the Mugen 5 Rev. C offers improved performance. Thanks to a new fan frame with Anti-Shocking rubber pads, the Mugen 5 Rev.C works silently to reduce the noise operation.

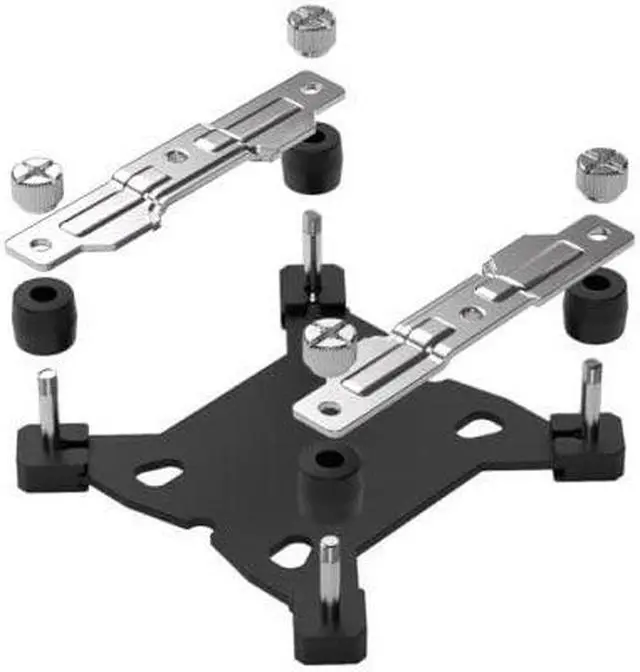

Hyper Precision Mounting System IV (HPMS IV)
Scythe reliable HPMS IV mounting system is a secure easy-to-install spring loaded mounting system, now ready for INTEL LGA 1700 support and provides optimal contact pressure to the motherboard.
lassic 120mm tower design with high-quality copper base, 6 heat pipes, and a smooth copper base ensures superior performance. The Kaze Flex II fan offers improved performance thanks to a new fan frame, which has been specially designed for use on CPU coolers, provides superior cooling performance for mainstream, gaming PC, even overclocking with high TDP processor(12900K, 12700K, 11900K, 11700K, 10900K, 10980XE, 9900k, 9700k, 9600k, 3700x) Quiet 120mm Kaze Flex II fan (Fluid Dynamic Bearing) for high airflow and static pressure with silent operation(PWM, 300-1500RPM).
Addition fan clip for adding 2nd fan (optional) as push-pull configuration for maximal performance. The asymmetrical heat sink layout provides full access to the front RAM slots. Cut-out fins on the back allow a clearance of 55mm for the rear RAM slots. (LGA2011 / LGA 2066). Standing only 154.5 mm tall, the cooler perfectly fits into the most popular tower cases on the market. HPMS IV (Hyper Precision Mounting System 4th Gen) is a secure and easy-to-install spring loaded mounting system compatible with socket INTEL LGA 1700 / 1200 / 1150 / 1151 / 1155 / 1156 / 1366 / 2011 (V3) Square ILM / 2066 Square ILM & AMD AM4 / AM3(+) / AM2(+) / FM2(+) / FM1
ProductDimension: (W) 136.0 x (D) 109.5 x (H) 154.5 mm
Weight: 900 g / 31.7 oz

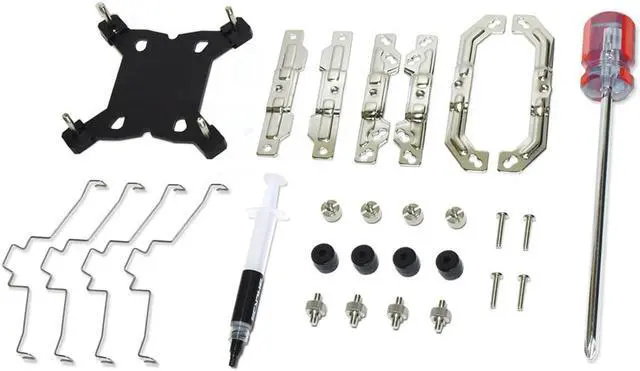

Included: Mugen 5 cooler, Kaze Flex II fan, 2 sets of fan clips, H. P. M. S. IV mounting kit, high-end Thermal compound grease, screwdriver, manual
