Partaker Fanless Mini PC, Desktop Computer, HTPC, Intel Core i5 1235U 12th Gen 10 Cores CPU, 8G RAM 256G SSD Windows 11 Pro, VGA, HDMI, LAN, 4 x USB3.0, 4 x USB2.0, Kodi Box



1. 8-12th Generation Intel Core i3-8145U/i5-8250U/i5-1235U Processors

2. Dual-channel DDR4 high-frequency memory, up to 64GB

3. 2 * M.2 SSD, support SATA 6Gb/s bus, also support NVME protocol

4. Processor Graphics: Intel UHD Graphics 630/Intel Iris Xe Graphics eligible

5. Support 4K HD display

6. Built-in dual-band WiFi

7. Interface: 4*USB3.0, 4*USB2.0

8. Fanless Mini PC

9. Support 24 hours boot, Wake on LAN, Diskless boot, Power on

10. Good choices for business office, meeting room, home entertainment, educations, Industrial equipment.



Equipped with Core i5-1235U, i5-8250U, i3-8145U Mini PC, Windows 10 Pro pre-installed, Can upgrade windows 11, can handle multiple tasks in same time, games, office, design, web, Power can be switched freely. Whether it is for work or for fun, it is convenient to face various challenges with serenity.



Mini PC Support 32 * 2 SODIMM, maximum memory 64GB, 2.5 inch SATA3.0 SSD / HDD. 1 * Msata3.0, M.2 solid-state hard drive, can easily install various applications to store personal files (video, music, etc.), read and write speed, operation execution speed.



1 * HDMI and 1 * VGA support dual display output, integrated graphics card: UHD Graphics 620, HDMI support 4K HD dual display output, large classroom or conference projector, small home theater. Enjoy the reality of life and bring shocking visual effects



4xUSB 3.0, 4xUSB 2.0, 1xVGA, 1xHDMI, 1xLAN, 1x headphone / microphone combination. USB3.0 offers faster transmission speed, stable wired connection, and smoother transmission and download.



1, The CPU Model is intel i5 8th Generation Processor:
8250U: 4 Cores, 8 Threads; Base Frequency: 1.6GHz, Max Turbo Frequency: 3.4GHz, 6MB Smart Cache, Integrated Intel UHD Graphics 620:
Intel UHD Graphics 620: Base Frequency: 300MHz; Max Dynamic Frequency: 1.10GHz; 4096x2304@24Hz.

2, The Operating System is Windows 10 Pro; It is licensed and activated before shipping.
Please check its licensed condition when it arrives: press "Win+R" keys-input "slmgr.vbs -xpr" to run(note the space between vbs and -xpr).

3, It has been tested well before shipping; If any questions, please contact me, you will get a satisfied solution.

Features: intel i5 8th Generation CPU, Fanless, Smart Design, Zero Noise, Full Metal Case.

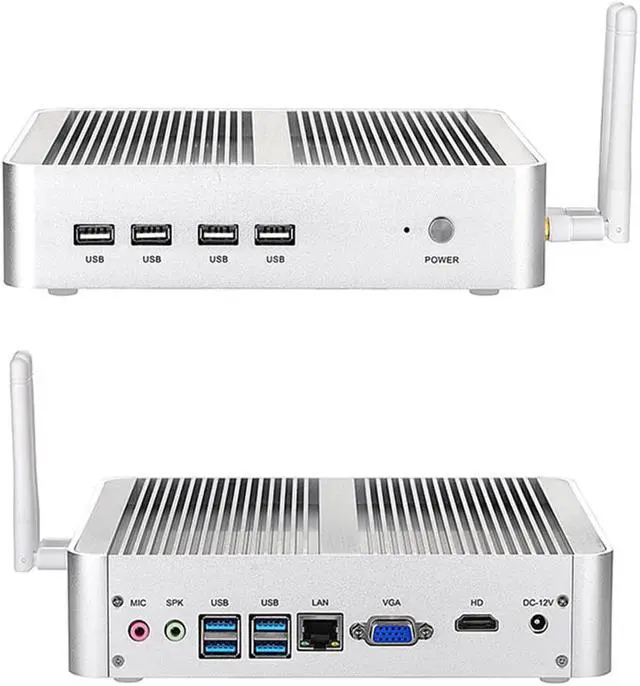

Front-Panel Connectors:
1 x Power Switch Button;
1x Power LEDs;
4 x USB 2.0 ports

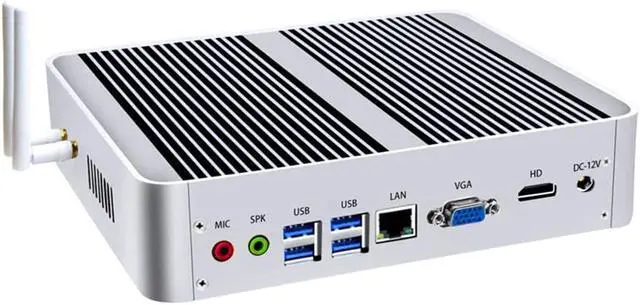

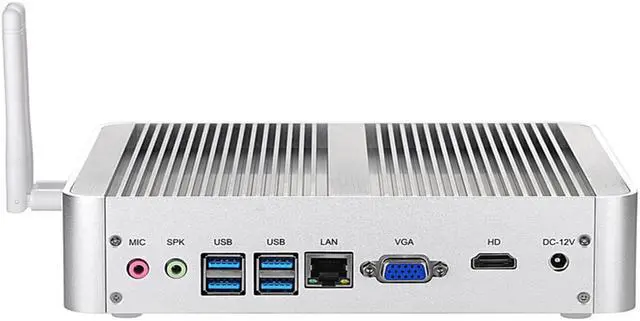

Back-Panel Connectors:
1 x 12V DC input
1 x HD port
1 x VGA port
1 x Gigabit LAN port
4 x USB 3.0 ports
2 x Audio in/out Connectors

Motherboard:
RAM: 2x so-dimm DDR4 Slots
PCIE: 2x Mini PCIE interfaces:
full height one for mSATA solid state hard drive.
Half height one for Mini PCIE wireless card.
1x Mini PCIE for NGFF 2280 M.2 SSD
1x SATA for 2.5 inch drive
Network Card: Onboard RTL 8111DL 10/100/1000 BaseT LAN;
Wireless: 300M 2.4/5GHz 802.11.b/g/n with Dual Antenna
Sound card: ALC892 chip, providing 6-channel sound

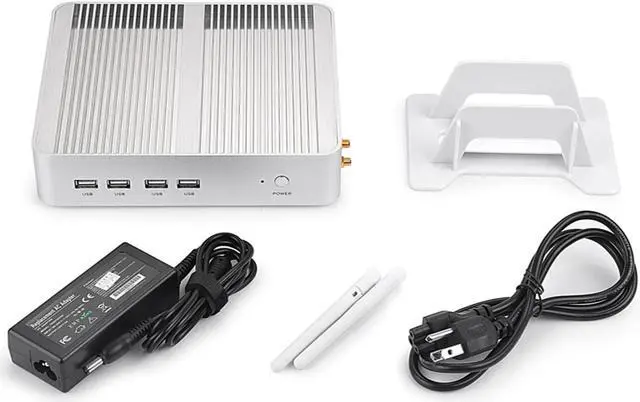

What in Box:
1x Mini PC
1x Power Adapter
1 x Power Cable with US plug
1x Desktop Bracket
2 x Wi-Fi Antennas
1x Set SATA power and data cables ( for 2.5'' drive)
1x HD cable
some screws

Compact design

The mini computer size is 6.69*8.07*1.77in, it is very convenient to put on the desk and will not take too much space. Whether you are traveling or on business, you can easily deal with work matters



Multi-function ports

Mini pc is very suitable for daily needs. It can be connected to various devices such as TVs, printers, projectors, etc.



Low power consumption, Fanless design, zero noise

Adopting all aluminum alloy shell, design of heat dissipation holes on both sides, fast heat dissipation to ensure the normal operation of the computer, zero noise brings a comfortable experience
