Highlights:
Updated New software program to be compatible with more sink device; Compatible HDMI1.3, Support HDMI input from 480i to 1080P. Does NOT support 3D
Supports NTSC and PAL two standard TV formats with a select switch. Easily works with the traditional TV produced in North America or most of the rest of the world

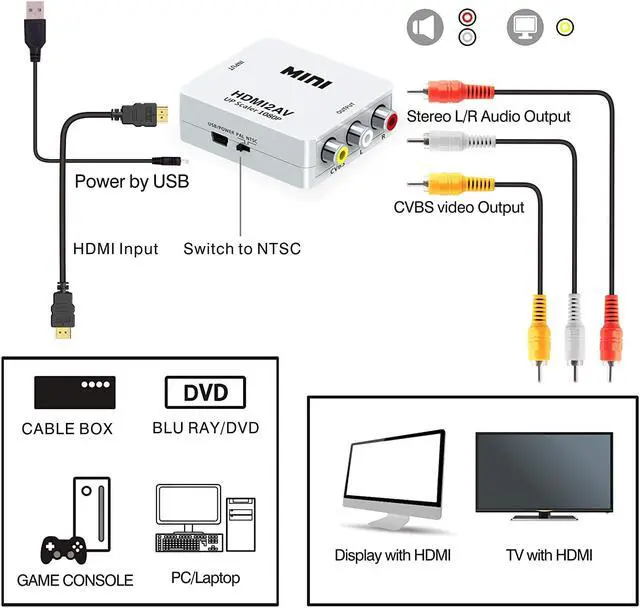

HDMI Input; Composite Video + Audio R/L Output
No need to install drivers, portable, flexible, plug and play. It's able to power this HDMI to RCA Converter from Phone Adapter and a USB jack on the TV or nearby USB port device
Package includes: Converter, USB Power Cable and User Manual
Introduction:

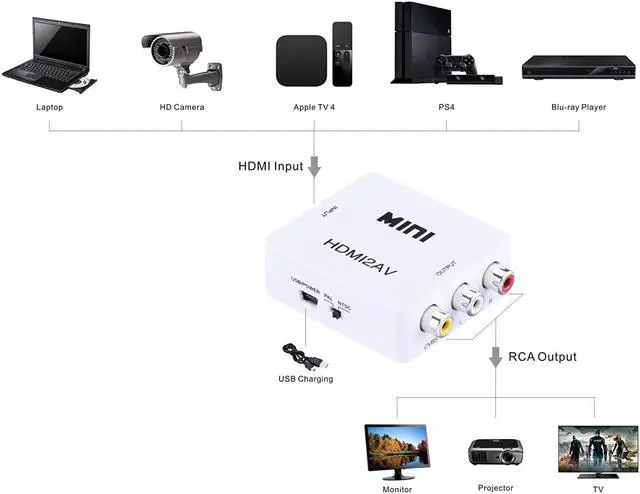

The Mini HDMI to AV signal converter which will convert HDMI video signal or audio signal to AV(CVBS)composite video signal and the FL/FR stereo audio signals, while support DVI system sideline signals.
To help users convert the high quality of the HDMI video signal into normal CVBS signal(standard-definition 480i,576i). So that can play on TV,VHS VCR,DVD recorders,etc and support NTSC and PAL two TV format.
Features:
1.No need to install drivers,portable,flexible,plug and play.
2.Output the audio synchronization with video.
3.High bandwidth capability support 1920x1080@60Hz.
4.Support NTSC and PAL two standard TV formats output.
5.Compatible:HDMI 1.3
Specifications:

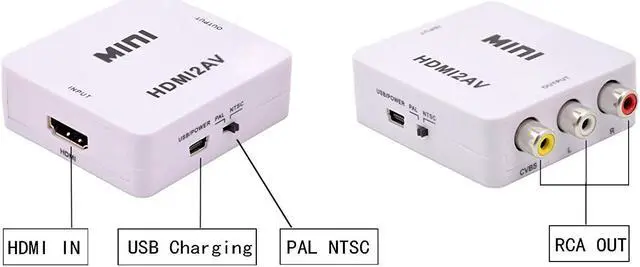

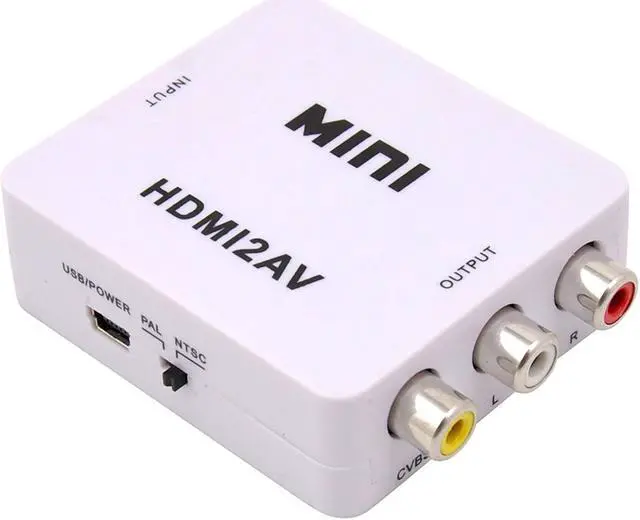

Output ports: 1x RCA (Yellow,White,Red).
Input ports: 1x HDMI.

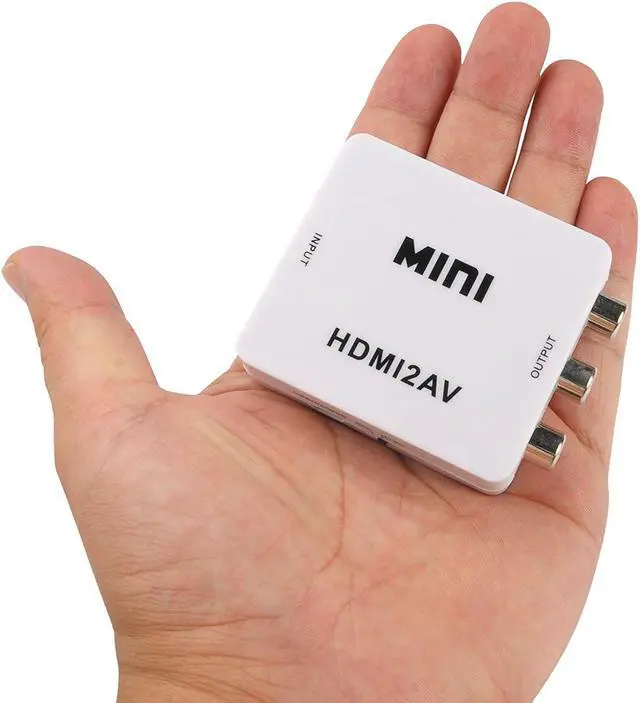

Product dimension: 66(D)x55(W)x20(H) mm
Weight: 110(g)
HDMI Input Resolution: 640x480@60Hz,800x600@60Hz,1024x768@60Hz,1280x720@60Hz,1280x1024@60Hz,1360x768@60Hz,1600x1200@60Hz,1920x1080@60Hz. 180i/60Hz,480p/60Hz,576i/60Hz,576p/60Hz,720p50/60Hz,1080I50/60Hz,1080p/60Hz. CVBS output:PAL,NTSC_M,and NTSC_J
Compatible with Older& Smart TV

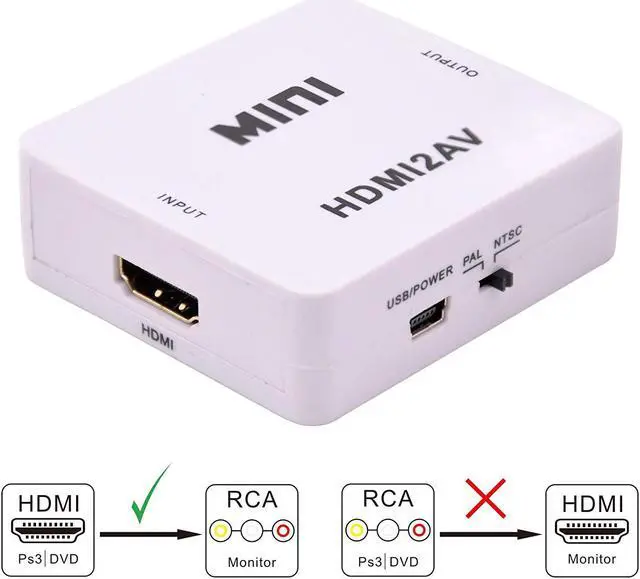

Convert HDMI video signal or audio signal to AV(CVBS) composite video signal and the FL/FR stereo audio.
Support HDMI input from 480i to 1080P.
Package content:
1 x HDMI to AV Converter (not include PS3)
1 x USB Cable
1 x User Manual
Note:
1) Video signal transfer only, can\'t improve the video quality, please import HD video.
2) PLEASE DO HOOP UP THE USB POWER CABLE TO 5V POWER SOURCE BEFORE USE, OTHERWISE, THE CONVERTER MAY NOT WORK PROPERLY.
3) The converter is not fit for Fire Stick, Roku, mobile phones and iPad series.
