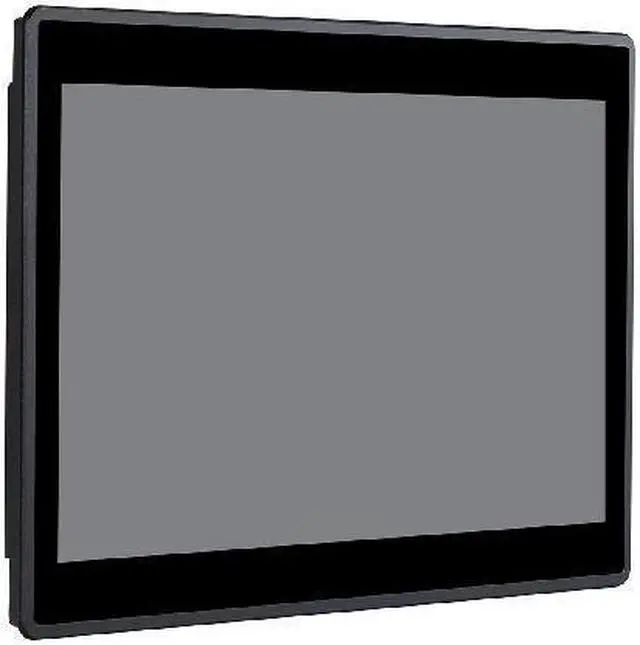

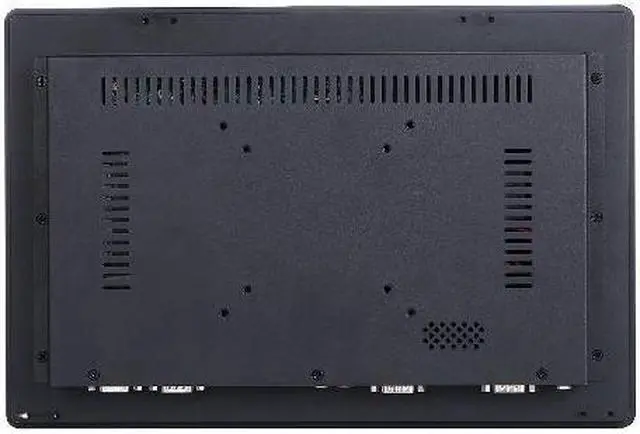

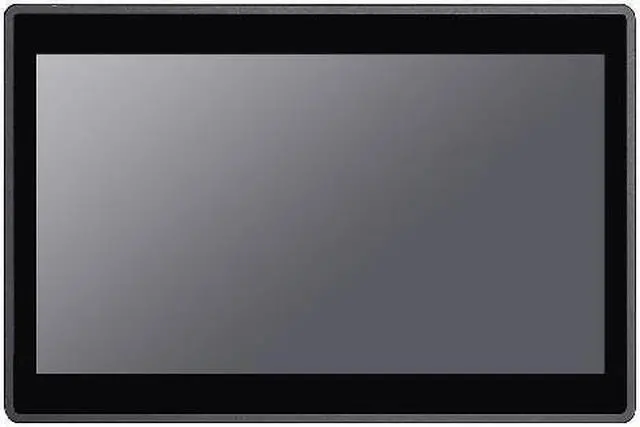

14 Inch TFT LED IP65 Industrial Panel PC, 10-point Projected Capacitive Touch Screen, J6412, HUNSN PW09, HDMI, 2 x LAN, 3 x COM, Barebone, NO RAM, NO Storage, NO System
- 14 inch tft led industrial grade touch panel pc, front panel protection IP65, 10-point projected capacitive touch screen, typical 1600 x 900 resolution, powered by celeron quad core j6412 processor, applicable to a wide range of industrial applications, 7 x 24 hours of stable work
- Please note, this is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system
- Aluminum alloy fanless passive cooling design, silent solution thats ultra energy-efficient
- HUNSN PW09 designed with 12v dc, 3 x com, hdmi, 4 x usb3.0, 2 x lan, audio, power_sw, industrial aesthetic design and reasonable interface layout, support automatically power on after power failure, with mounting embedded buckle kits
- Size at 346.3 x 231.3 x 42.7mm, 2.55kgs, 12v power supply, with power cord, make sure to use a big brand memory and ssd/hdd with quality assurance
+
+
Overview
Specs
Reviews
Please note: This is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system
Model Number: HUNSN PW09
Panel: 14" TFT LED panel, front panel protection IP65
CPU: Intel® Celeron® Processor J6412 (1.5M Cache, up to 2.60 GHz)
Memory: 1 x SODIMM DDR4 3200MT/s, max. to 32GB RAM
Storage: 1 x M.2 2280 SATA SSD, 1 x 2.5" SATA SSD/HDD
I/O: 12V DC, 3 x COM, HDMI, 4 x USB3.0, 2 x LAN, AUDIO, POWER_SW
Expansion: M.2 slot for WiFi, sim slot is a customized option
Watchdog Timer: 255
Cooling System: Aluminum alloy, fanless
Dimension: 346.3 x 231.3 x 42.7mm
Weight: 2.55kgs
Opening Hole: 340.3 x 225.3mm
Resolution: 1600 x 900
Perspective: 45(L), 45(R), 15(T), 35(B)
Brightness: 200cd/m2
Contrast: 400
Backlight Life: 10,000 hours (min.)
Touch Screen: 10-point projected capacitive touch screen
Transmittance: 86±5% at 550 nm wavelength
Durability (Touch Count): 200 million times
Installation: Embedded recommended/Wallmounted/Desktop/Cantilevered etc
Operating Temperature: 0 ~ 50°C with SSD, 0 ~ 40°C with HDD
Storage Temperature: -20 ~ 60
Operating Humidity: 10% ~ 95% @ 40 without condensation
EMC/Safety: CCC
Power Supply: DC100-240V AC/50-60Hz, 12V
Packing List: HUNSN PW09 Panel PC, Power Supply, Power Cord, Embedded Buckle Kits, Warranty Card
System Support: Windows 10/11, Linux Ubuntu etc
Model Number: HUNSN PW09
Panel: 14" TFT LED panel, front panel protection IP65
CPU: Intel® Celeron® Processor J6412 (1.5M Cache, up to 2.60 GHz)
Memory: 1 x SODIMM DDR4 3200MT/s, max. to 32GB RAM
Storage: 1 x M.2 2280 SATA SSD, 1 x 2.5" SATA SSD/HDD
I/O: 12V DC, 3 x COM, HDMI, 4 x USB3.0, 2 x LAN, AUDIO, POWER_SW
Expansion: M.2 slot for WiFi, sim slot is a customized option
Watchdog Timer: 255
Cooling System: Aluminum alloy, fanless
Dimension: 346.3 x 231.3 x 42.7mm
Weight: 2.55kgs
Opening Hole: 340.3 x 225.3mm
Resolution: 1600 x 900
Perspective: 45(L), 45(R), 15(T), 35(B)
Brightness: 200cd/m2
Contrast: 400
Backlight Life: 10,000 hours (min.)
Touch Screen: 10-point projected capacitive touch screen
Transmittance: 86±5% at 550 nm wavelength
Durability (Touch Count): 200 million times
Installation: Embedded recommended/Wallmounted/Desktop/Cantilevered etc
Operating Temperature: 0 ~ 50°C with SSD, 0 ~ 40°C with HDD
Storage Temperature: -20 ~ 60
Operating Humidity: 10% ~ 95% @ 40 without condensation
EMC/Safety: CCC
Power Supply: DC100-240V AC/50-60Hz, 12V
Packing List: HUNSN PW09 Panel PC, Power Supply, Power Cord, Embedded Buckle Kits, Warranty Card
System Support: Windows 10/11, Linux Ubuntu etc
