MXN$16,819.33
VAT-Inclusive Price
Ships from China.
Most customers receive within 10-17 days.
Meet Your Seller

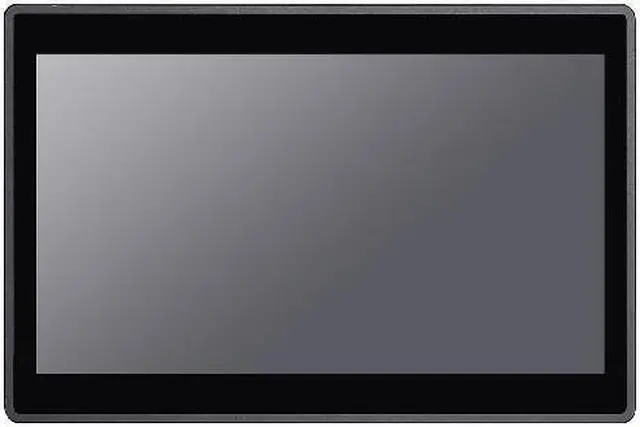

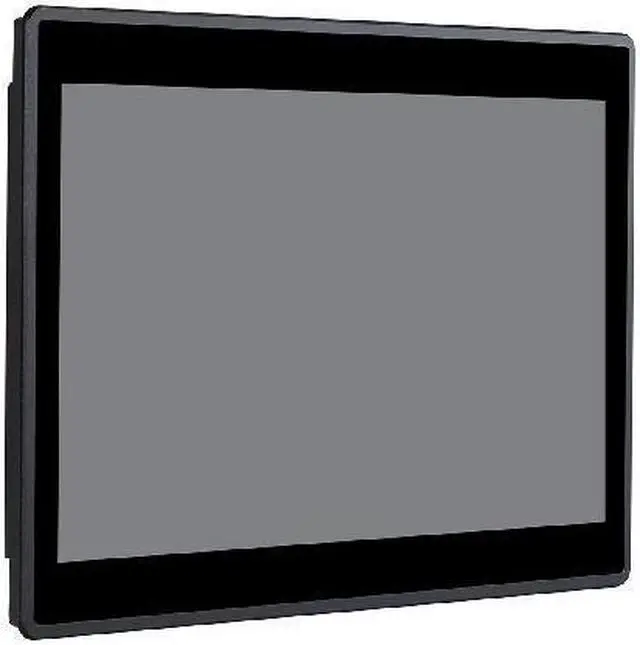

14" TFT LED IP65 Industrial Panel PC, 10-point Projected Capacitive Touch Screen, 6th Core I5, HUNSN PW09, VGA, HDMI, 2 x LAN, 2 x COM, Barebone, NO RAM, NO Storage, NO System
- 14 inch tft led industrial grade touch panel pc, front panel protection IP65, 10-point projected capacitive touch screen, typical 1600 x 900 resolution, powered by gen 6th core i5 processor, applicable to a wide range of industrial applications, 7 x 24 hours of stable work
- Please note, this is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system
- Aluminum alloy fanless passive cooling design, silent solution thats ultra energy-efficient
- HUNSN PW09 designed with 12v dc, hdmi, vga, 2 x usb3.0, 2 x usb2.0, 2 x lan, audio-in&out, 2 x com, power_sw, industrial aesthetic design and reasonable interface layout, support automatically power on after power failure, with mounting embedded buckle kits
- Size at 346.3 x 231.3 x 42.7mm, 2.55kgs, 12v power supply, with power cord, make sure to use a big brand memory and ssd/hdd with quality assurance
+
+
Overview
Specs
Reviews
Please note: This is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system
Model Number: HUNSN PW09
Panel: 14" TFT LED panel, front panel protection IP65
CPU: Intel Core I5 Gen. 6th CPU, ship one of them
Memory: 2 x SODIMM DDR3L 1333/1600, max. to 16GB RAM
Storage: 1 x mSATA SSD, 1 x 2.5" SATA SSD/HDD
I/O: 12V DC, HDMI, VGA, 2 x USB3.0, 2 x USB2.0, 2 x LAN, AUDIO-IN&OUT, 2 x COM, POWER_SW
Expansion: Mini PCIE slot for WiFi/4G, with sim slot
Watchdog Timer: 255
Cooling System: Aluminum alloy, fanless
Dimension: 346.3 x 231.3 x 42.7mm
Weight: 2.55kgs
Opening Hole: 340.3 x 225.3mm
Resolution: 1600 x 900
Perspective: 45(L), 45(R), 15(T), 35(B)
Brightness: 200cd/m2
Contrast: 400
Backlight Life: 10,000 hours (min.)
Touch Screen: 10-point projected capacitive touch screen
Transmittance: 86±5% at 550 nm wavelength
Durability (Touch Count): 200 million times
Installation: Embedded recommended/Wallmounted/Desktop/Cantilevered etc
Operating Temperature: 0 ~ 50°C with SSD, 0 ~ 40°C with HDD
Storage Temperature: -20 ~ 60
Operating Humidity: 10% ~ 95% @ 40 without condensation
EMC/Safety: CCC
Power Supply: DC100-240V AC/50-60Hz, 12V
Packing List: HUNSN PW09 Panel PC, Power Supply, Power Cord, Embedded Buckle Kits, Warranty Card
System Support: Windows 10/11, Linux Ubuntu etc
Model Number: HUNSN PW09
Panel: 14" TFT LED panel, front panel protection IP65
CPU: Intel Core I5 Gen. 6th CPU, ship one of them
Memory: 2 x SODIMM DDR3L 1333/1600, max. to 16GB RAM
Storage: 1 x mSATA SSD, 1 x 2.5" SATA SSD/HDD
I/O: 12V DC, HDMI, VGA, 2 x USB3.0, 2 x USB2.0, 2 x LAN, AUDIO-IN&OUT, 2 x COM, POWER_SW
Expansion: Mini PCIE slot for WiFi/4G, with sim slot
Watchdog Timer: 255
Cooling System: Aluminum alloy, fanless
Dimension: 346.3 x 231.3 x 42.7mm
Weight: 2.55kgs
Opening Hole: 340.3 x 225.3mm
Resolution: 1600 x 900
Perspective: 45(L), 45(R), 15(T), 35(B)
Brightness: 200cd/m2
Contrast: 400
Backlight Life: 10,000 hours (min.)
Touch Screen: 10-point projected capacitive touch screen
Transmittance: 86±5% at 550 nm wavelength
Durability (Touch Count): 200 million times
Installation: Embedded recommended/Wallmounted/Desktop/Cantilevered etc
Operating Temperature: 0 ~ 50°C with SSD, 0 ~ 40°C with HDD
Storage Temperature: -20 ~ 60
Operating Humidity: 10% ~ 95% @ 40 without condensation
EMC/Safety: CCC
Power Supply: DC100-240V AC/50-60Hz, 12V
Packing List: HUNSN PW09 Panel PC, Power Supply, Power Cord, Embedded Buckle Kits, Warranty Card
System Support: Windows 10/11, Linux Ubuntu etc
Warranty & Returns
Warranty, Returns, And Additional Information
Return Policies*
- Return for refund within: 30 days
- This item is covered by HUNSN OFFICIAL STORE Return Policy
- *Subject to applicable law
Warranty Notice:
This product does not include manufacturer warranty when purchased or used outside of its designated sales region. By purchasing internationally, you acknowledge that warranty support from the manufacturer will not be available.
