Changer Type: Mini DisplayPort 1.2 to VGA/DVI/HDMI All-in-One Converter Adapter
Color: Black
Specifications: Mini DP to HDMI/VGA/DVI adapter connects your Mini DP or Thunderbolt 1/2 laptop to a VGA, DVI or HDMI display.
Multiple video outputs connect to most displays—no more carrying multiple adapters
HDMI port delivers UHD quality at resolutions up to 3840 x 2160 (4K x 2K) @ 60 Hz
DVI and VGA ports support 1080p for sharp high-definition video presentations
Compact unit fits easily into briefcase or laptop bag for instant use anywhere
Plug-and-play operation with no software required for easy, immediate installation
Specifications: Quad-shielded cable with PVC jacket for maximum audio/video performance & prevention of signal loss
Display modes:
PC VGA, SVGA, XGA, SXGA, & UXGA display modes
HDTV: 480i, 576i, 480p, 576p, 1080i & 1080p
Supports multi-channel digital audio (system's DisplayPort must support audio)
AC to DC level trigger - requires dual-mode Display Port source
RoHS compliant
Changer Type: Mini DisplayPort to HDMI, VGA and DVI
Color: White
Specifications: This Axiom 3-in-1 Mini Displayport (Thunderbolt) adapter seamlessly connect your laptop/computer/tablet with a mini display port to high definition displays, provides options for using the additional screen space. It replaces need for multiple adapters and allows you to connect to a variety of display equipment.
Specifications: Chipset: PTN3361B
Compliant with DisplayPort 1.1a receiver
Compliant with DVI 1.1 specification
Configurable 1 or 2 lane operation
Supports Down Spread Spectrum (SSC)
Display modes:
PC: VGA, SVGA, XGA, SXGA & UXGA display modes
HDTV: 480i, 576i, 480p, 576p, 1080i and 1080p
Product:
Overall Length: 9.65" +/- 0.6" (245mm +/- 15mm)
Weight: 0.09 lbs
Color: Black
Material: Plastic
Connector:
Connectors: 20-Pin DisplayPort (male) to 24-pin DVI-D (female)
DisplayPort connector housing (L x W x H): 1.93" x 0.78" x 0.51" (49 x 20 x 13 mm)
DVI-D connector housing (L x W x H): 1.77" x 1.77" x 0.59" (45 x 45 x 15 mm)
Environmental conditions:
Operating temperature: 32 to 140 degrees F
Storage temperature: 14 to 158 degrees F
Humidity: < 85% non-condensing
Certifications/ Standards: FCC, CE, RoHS
Warranty: 3 ...
Specifications: Connect a HDMI monitor to a computer with a Displayport output
Displayport (Male) to HDMI (Female); fully-molded
Supports computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p
The P136-000-1 supports transmission of an audio signal as long as it is supported by the Displayport source. Check the documentation for your Displayport source for compatibility.
Supports DTS-HD, Dolby True HD and 7.1 Channel Surround Sound Audio
The P136-000-1 is a passive adapter and requires that the connected computer has a DP++ ( Displayport ++ ) port, which allows HDMI and DVI signals to be passed through; check the documentation for your Displayport source for compatibility.
HDCP-compliant
System Requirements
Computer with a Displayport output
Dis...
Changer Type: Connector A: 1 x USB-C Male
Connector B: 1 x HDMI Female
Color: Black
Specifications: Max Supported Video Resolution: 4K x 2K (3840 x 2160) @30Hz
HDMI Specification: 1.4
HDCP Specification: 1.4
Driver Required: No
USB Power Delivery (PD) Charging Support: No

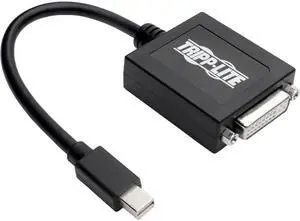

Specifications: mDP to DVI adapter connects a DVI monitor to the Mini DisplayPort port on your laptop, MacBook, Chromebook or Surface.
Keep using your current DVI display with a Mini DisplayPort source
Delivers high-definition picture quality up to 1920 x 1200, including 1080p
Compact unit fits easily into briefcase or laptop bag for immediate use anywhere
Easy installation with plug-and-play operation-no software required
Ideal for digital signage, video presentations and watching movies in HD
Specifications: USB-C to VGA cord connects your VGA display to the USB-C or Thunderbolt 3 port on your laptop, MacBook or Chromebook.
Transmits video signals from sources supporting USB DisplayPort Alt Mode
Delivers HD picture quality at resolutions up to 1920 x 1080 (1080p) @ 60 Hz
Supports USB 3.1 Gen 1 speeds up to 5 Gbps to ensure fast data transfers
Reversible USB-C plug connects in either direction for immediate no-fuss use
Easy installation with plug-and-play operation-no software required
Connector:
Side A - Connector 1: USB-C (MALE)
Side B - Connector 1: VGA (FEMALE)
Specifications: Easy to Add an HDMI Display
USB-A Hub Port
USB-C Port for Charging Portable Devices
System Requirements:
USB-C device that supports USB DisplayPort Alternate Mode
HDMI-enabled display
Specifications: System Requirements:
Computer with USB-C port that supports USB DisplayPort Alternate Mode
DisplayPort, Mini DisplayPort, VGA, DVI or HDMI external display
Ethernet network
Thunderbolt 3: Yes
Package Contents: U442-DOCK1 USB 3.1 Gen 1 USB-C Docking Station
Owner’s manual
Specifications: Connector A: USB C (MALE)
Connector B: HDMI (FEMALE)
Chromebook Compatible: Yes
System Requirements
Windows XP, Vista, 7, 8 or 8.1 or Mac OS X 10.8.3 and later (32- and 64-bit versions)
Computer with USB-C port and at least 1.2 GHz single-core CPU and 512 MB of RAM
HDMI-enabled monitor
Supports Surface tablets running non-RT Windows 8 or 8.1
Package Contents: U444-06N-HD-AM USB 3.1 Gen 1 to HDMI Alternate Mode Dual/Multi-Monitor External Video Graphics Card Adapter
Quick Start Guide
Specifications: Resolution: 3840 x 2160 at 30Hz (Dual Display)
Resolution: 3840 x 2160 at 60Hz (Single Display)
Output: Requires 5V, 2A external power over Micro-B USB port
DisplayPort 1.2a compliant
Link Rate: HBR2/HBR/RBR
Bandwidth: 5.4Gbps max.
Support SST and MST (when both host and monitor support)
Support 7.1 sound channel; max. sampling size 192KHz
Rating: Temp 80°C, Voltage 30V
Conductor Resistance: At 20°C max 30AWG: 376.95 O/KM
Insulation Resistance: 10M -KM min at 20°C DC 500V (EIA-364-21)
Dielectric Strength: AC 500V/1 minute no breakdown (EIA-364-20)
Impedance: Pairs (differential mode) 100±50HMS
Attenuation (max.): 5.02dB@100~450MHz; 7.695dB@1GHz; 12.595dB@2GHz; 17.495dB@3GHz; 22.395dB@4GHz; 27.295dB@5GHz; 32.195dB@6GHz; 37.095dB@7GHz
Return...
Specifications: Operating: 0 to 40 C / 32 to 104 F
Storage: -40 to 70 C / -40 to 158 F
Cable Length (in.): 6
Color: White
Connector A: MINI DISPLAYPORT (MALE)
Connector B: HDMI (FEMALE)
