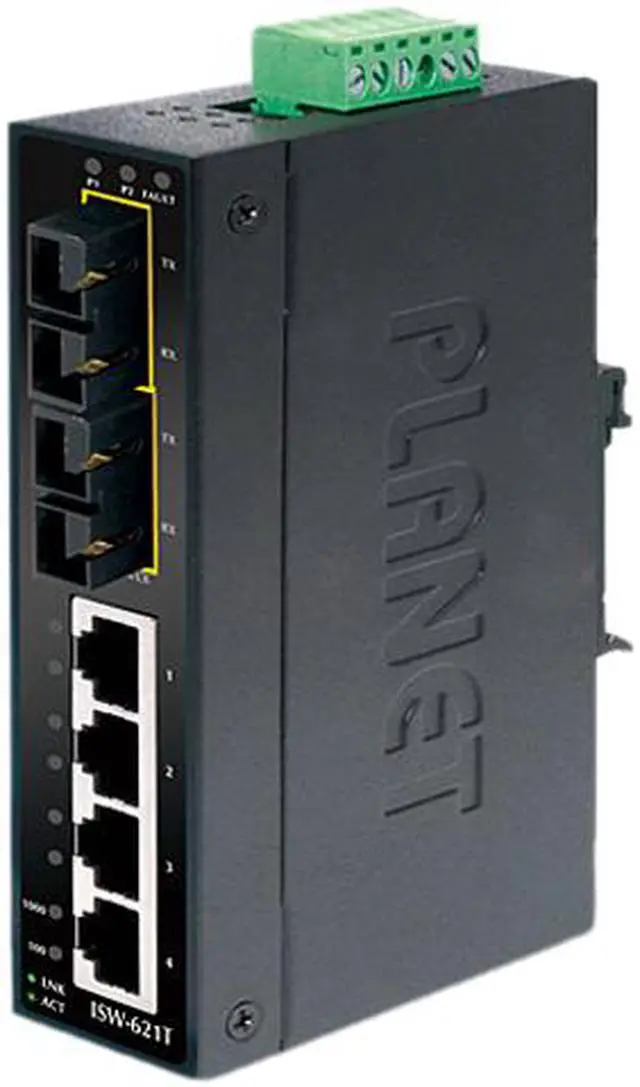

Planet ISW-621T 4+2 100FX Port Multi-mode Industrial Ethernet Switch - 2 km (-40 ~ 75 Degrees C Operating Temperature)
- 2K MAC Address Table
- 1MB Buffer Memory
- Unmanaged
+
+
Specs
Reviews
Learn more about the PLANET ISW-621T
| Brand | PLANET |
|---|---|
| Model | ISW-621T |
| Format | DIN Rail Kit and Wall Mount Ear |
|---|---|
| Standards | IEEE 802.3 Ethernet, 10Base-T IEEE 802.3u Fast Ethernet, 100Base-TX, 100Base-FX IEEE 802.3x Full-duplex flow control |
| Network Management Type | Unmanaged |
| Primary Ports | 4 x port 10/100Base-TX RJ-45 with auto MDI / MDI-X function for ISW-621T series 2 x port 100Base-FX interface on ISW-621T for up to 2km (multi-mode fiber 62.5/125µm, 50/125µm) transmission distance |
|---|---|
| Primary Port Speed | 10/100Mbps |
| MAC Address Table | 2K |
|---|---|
| Switching Method | Store and Forward |
| Buffer Memory | 1MB |
|---|---|
| Power | Power Requirements: 12 ~ 48V DC Redundant power with polarity reverse protection function Power Consumption / Dissipation: Max. 16 watts / 54 BTU |
| Features | Cable: 50/125µm / 62.5/125µm fiber Mode: Multi-mode Distance: 2 km Frequency: 1310 nm Launch Power: Max. -14 dBm, Min. -20 dBm Receive Sensitivity: -32 dBm Max. Input Power: -14 dBm |
|---|
| Dimensions | 1.26" x 5.31" x 3.82" |
|---|---|
| Weight | 0.97 lb. |
| Temperature | Operating Temperature: -40 ~ 75 degree Celsius Storage Temperature: -40 ~ 85 degree Celsius |
|---|---|
| Humidity | Operating Humidity: 5% ~ 90% Storage Humidity: 5% ~ 90% non-condensing |
| First Listed on Newegg | September 05, 2017 |
|---|
