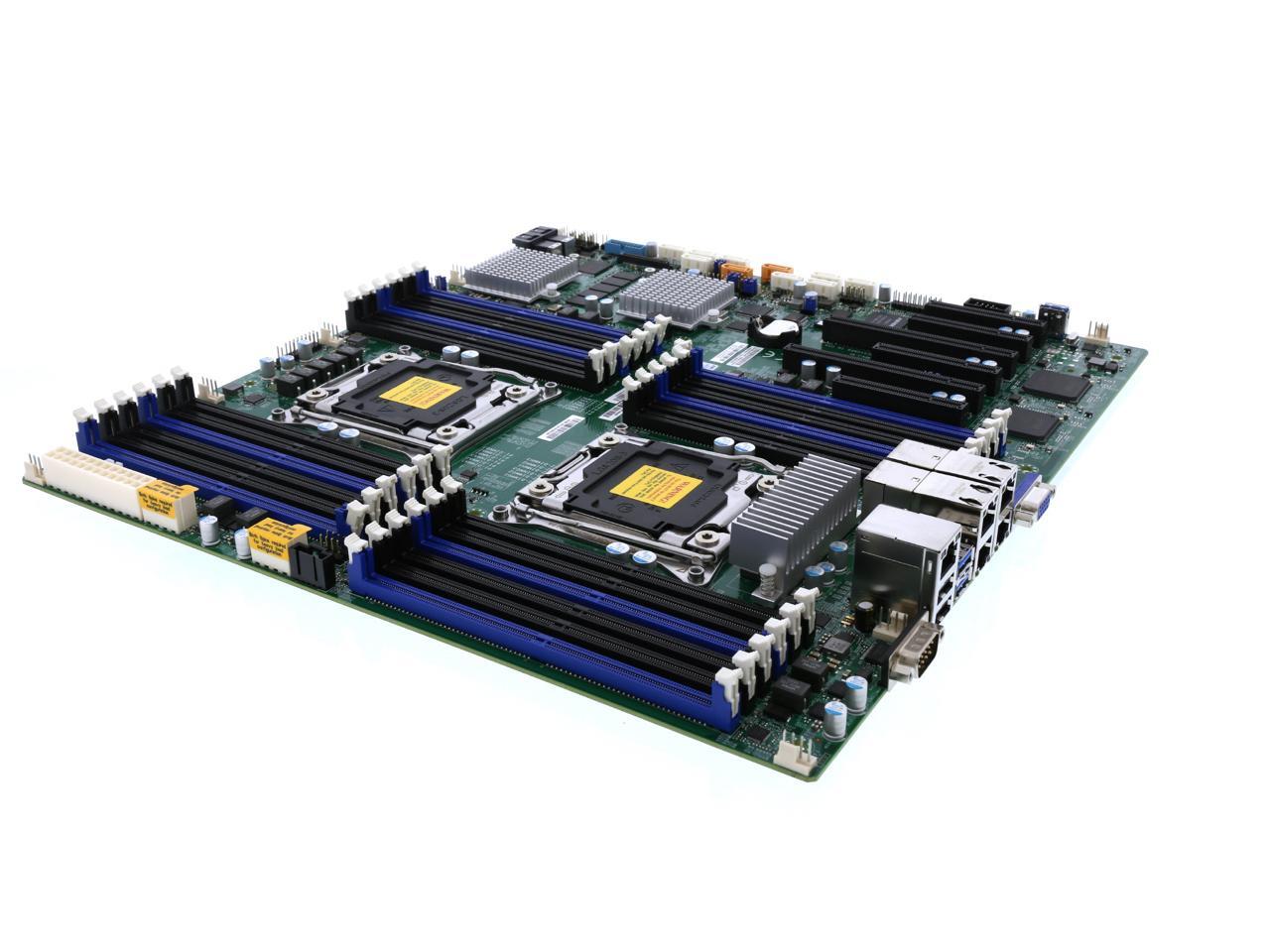

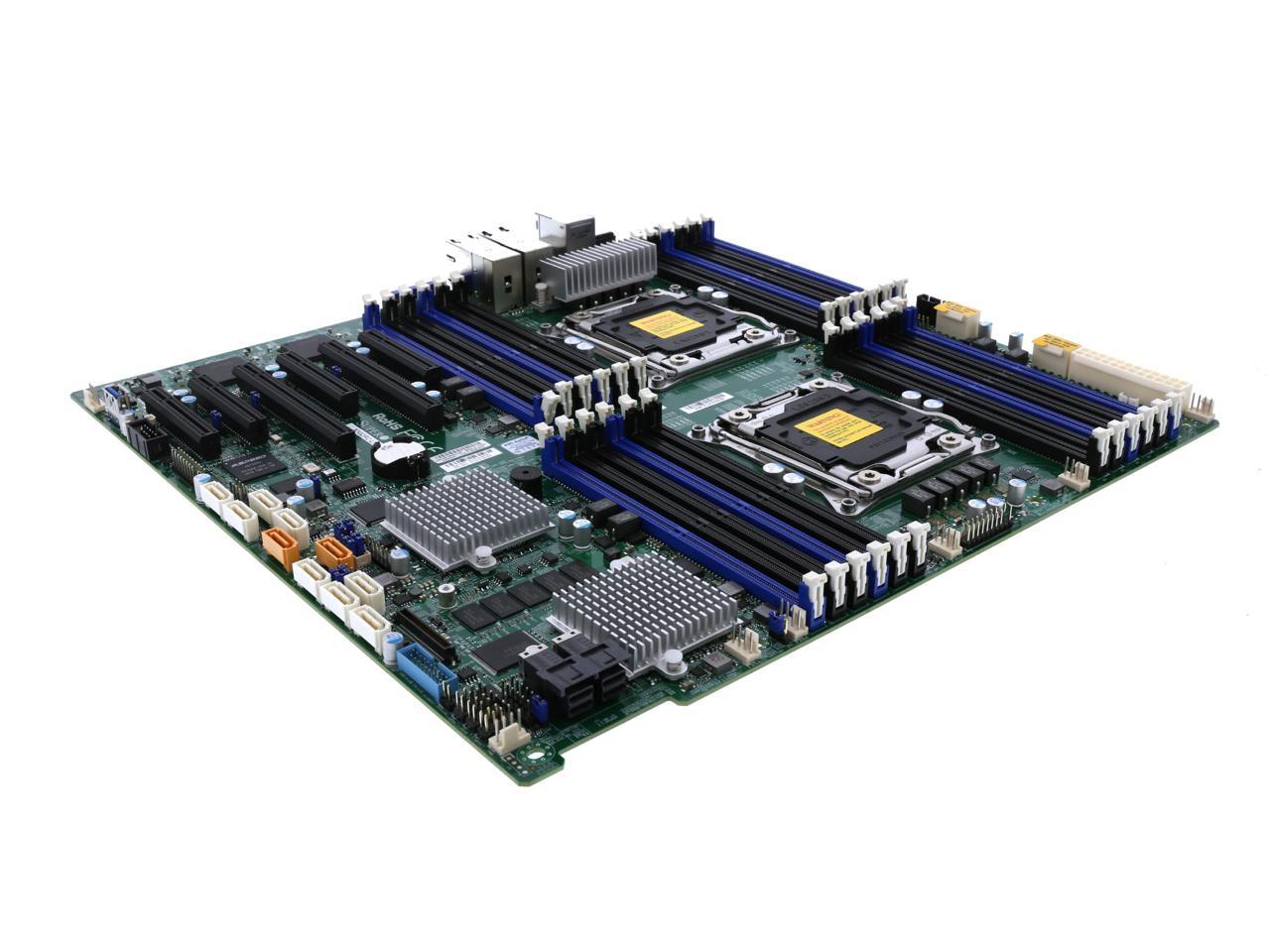

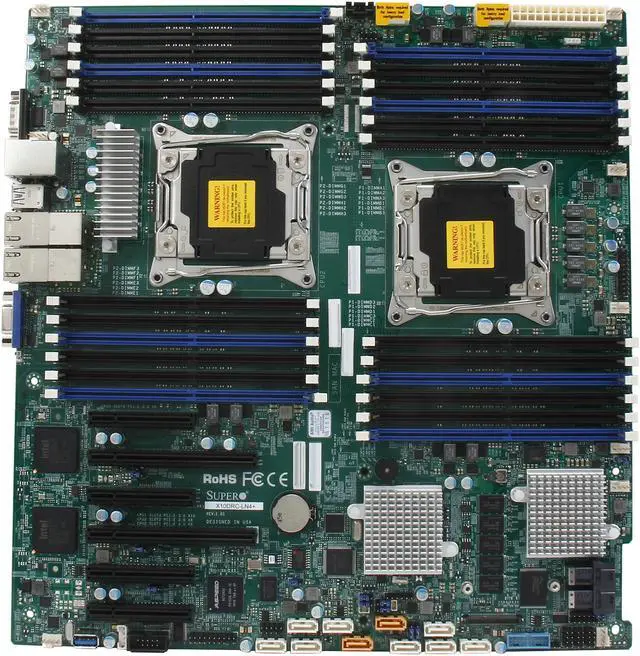

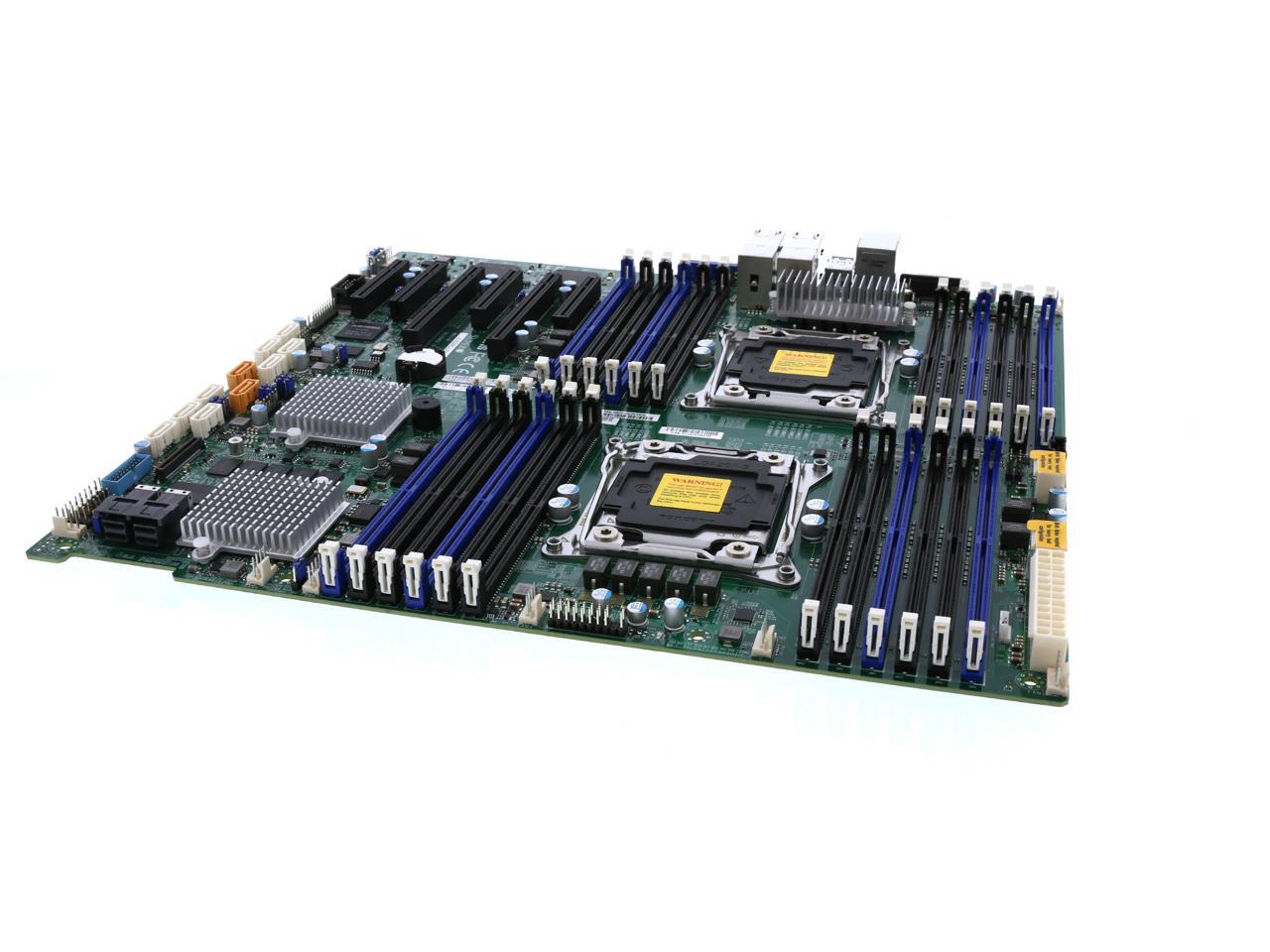

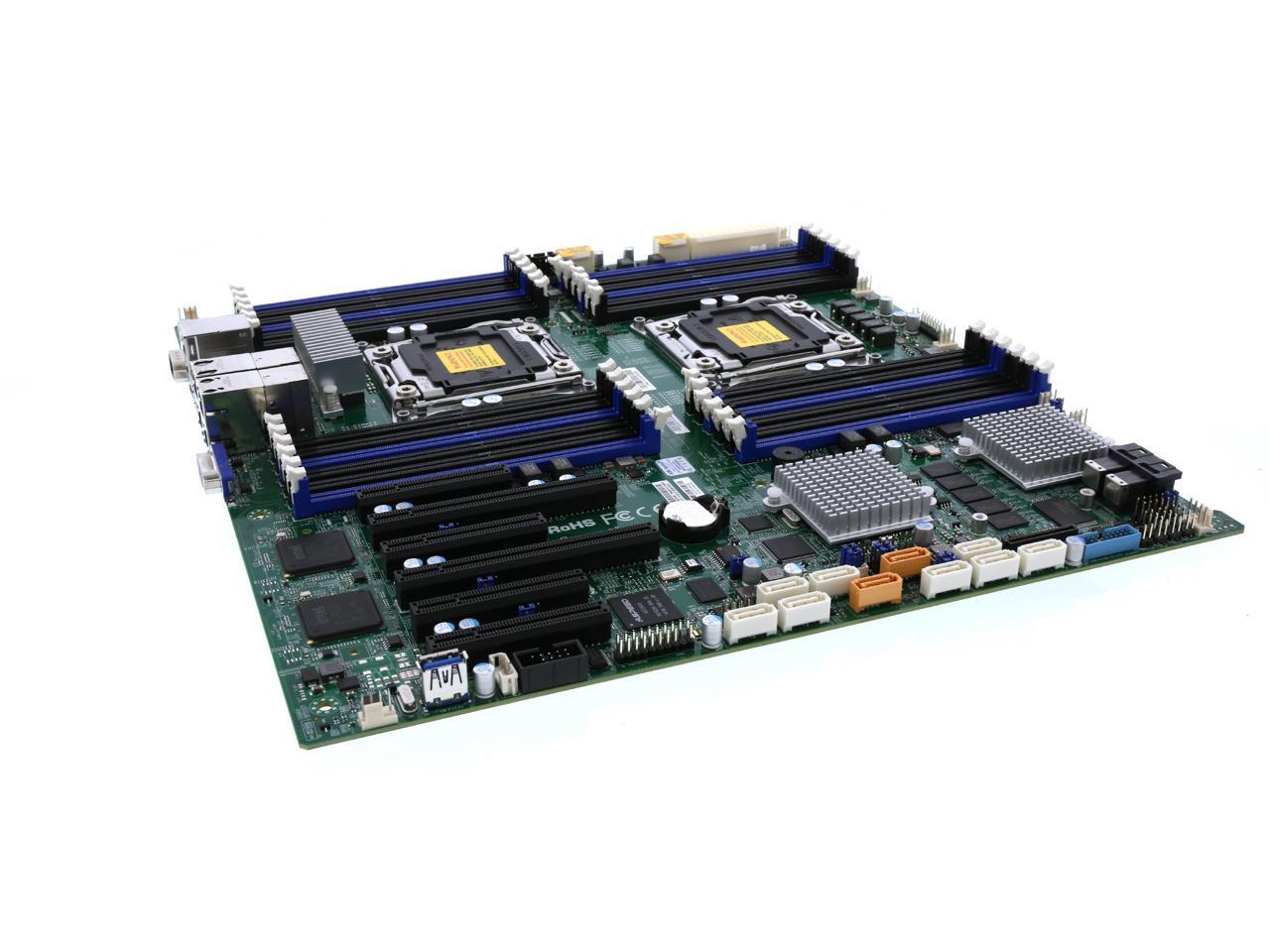

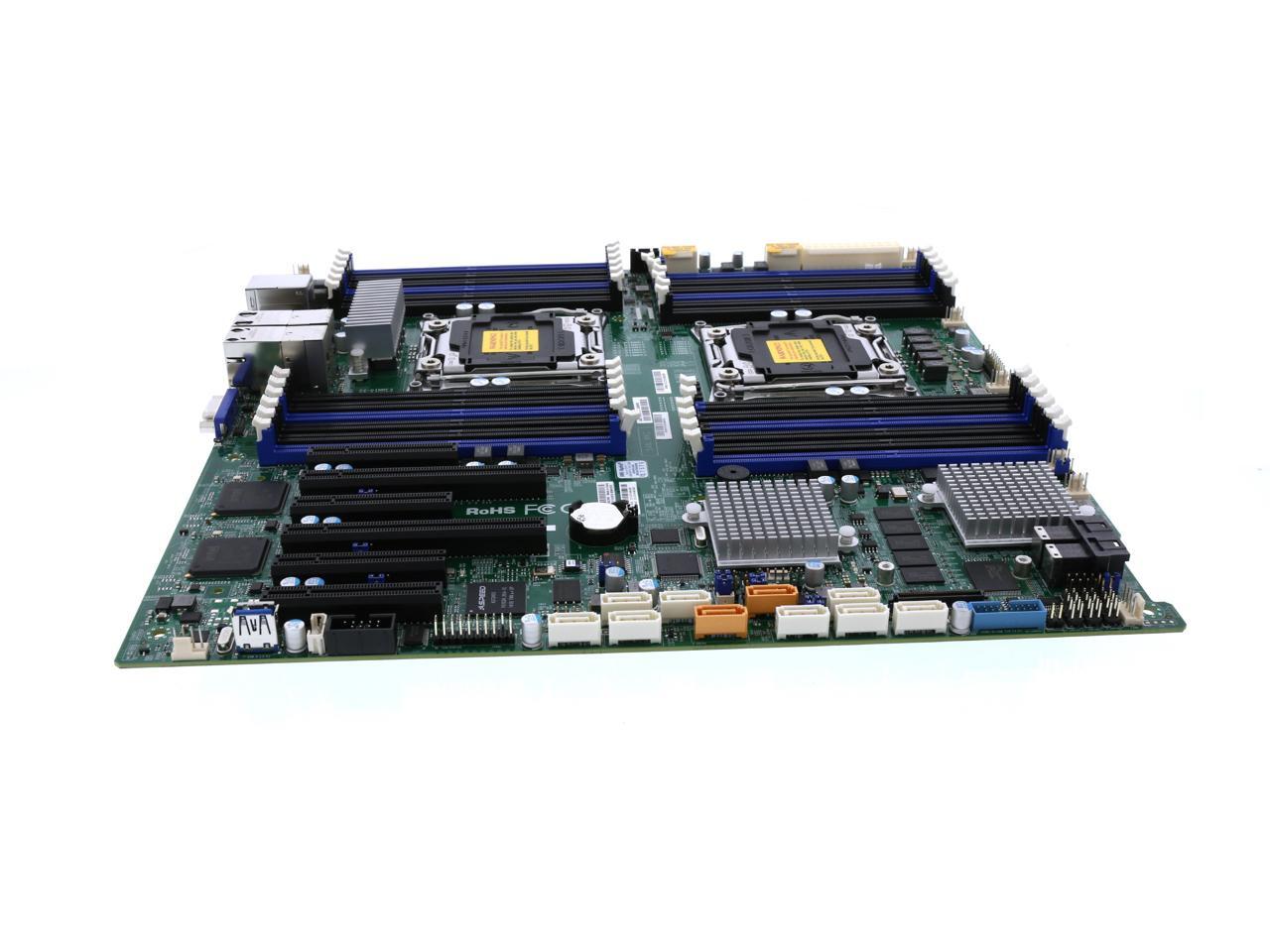

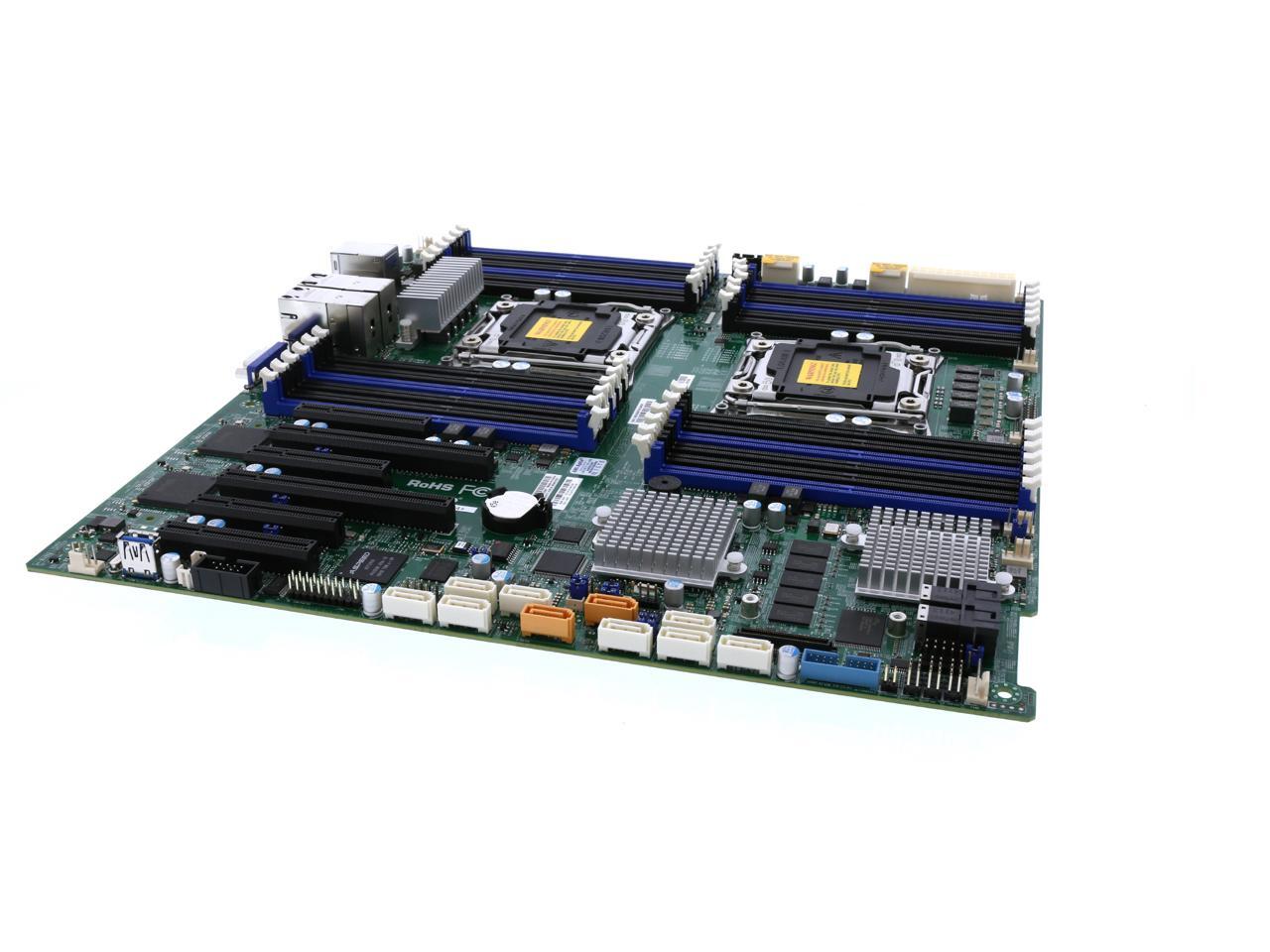

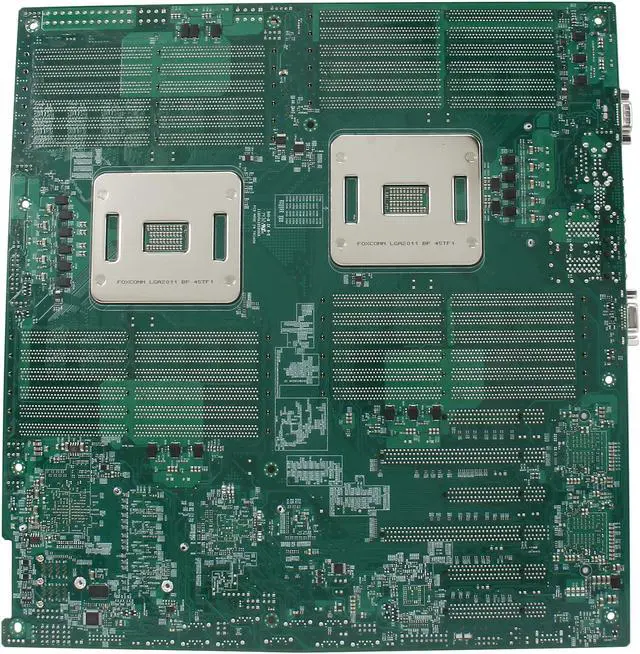

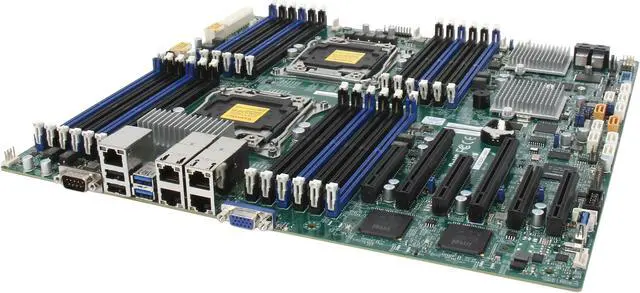

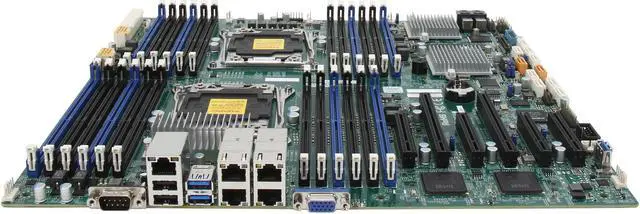

SUPERMICRO MBD-X10DRC-LN4+-O Enhanced Extended ATX Xeon Server Motherboard Dual LGA 2011-3 Intel C612

(3) Write a Review
  • Dual LGA 2011-3
  • Intel C612
Overview
Specs
Reviews (3)
MBD-X10DRC-LN4+-O

SUPERMICRO MBD-X10DRC-LN4+-O Server Motherboard

Features

MBD-X10DRC-LN4+-O
  • Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s
  • Intel® C612 chipset
  • Up to 3TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 24x DIMM slots
  • 2x PCI-E 3.0 x16, 3x PCI-E 3.0 x8, and 1x PCI-E 2.0 x4 (in x8) slot
  • Quad LAN w/ Intel® i350 GbE
  • 10x SATA3 (6Gbps) ports w/ Intel C612 controller; RAID 0, 1, 5, 10
  • 8x SAS3 (12Gbps) ports w/ LSI 3108 controller; RAID 0, 1, 5, 6, 10, 50, 60 SuperCap option support
  • Integrated IPMI 2.0 and KVM with Dedicated LAN
  • 5x USB 3.0 (2 rear, 1 Type A, 2 internal)

Specifications

Product SKUs
MBD-X10DRC-LN4+ -B X10DRC-LN4+ (Bulk Pack)
MBD-X10DRC-LN4+ -P X10DRC-LN4+ (Retail Pack)
Physical Stats
Form Factor Enhanced Extended ATX
Dimensions 13.68" x 13" (34.74cm x 33cm)
Processor/Cache
CPU
  • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP)
  • Dual Socket R3 (LGA 2011)
Cores / Cache Up to 22 Cores† / Up to 55MB† Cache
System Bus QPI up to 9.6 GT/s
Note † BIOS version 2.0 or above is required
Note ** Motherboard supports this maximum TDP. Please verify your system can thermally support.
System Memory
Memory Capacity
  • 24x 288-pin DDR4 DIMM slots
  • Up to 3TB† ECC 3DS LRDIMM, 768 ECC RDIMM
Memory Type 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
  • 3DS LRDIMM: 128GB
Memory Voltage 1.2 V
Error Detection Corrects single-bit errors
On-Board Devices
Chipset Intel® C612 chipset
SAS
  • LSI 3108 SAS3 (12Gbps) controller; HW RAID 0, 1, 5, 6, 10, 50, 60
  • 2GB Cache with optional SuperCap backup module
  • Supports up to 16 devices as default, more HDD devices support is also available as an option *
  • For special SKU, please contact your Supermicro Sales.
AHCI SATA SATA3 (6Gbps); RAID 0, 1, 5, 10
SCU SATA SATA3 (6Gbps); RAID 0, 1, 5, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Intel® i350 Quad Port Gigabit Ethernet
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8211E PHY (dedicated IPMI)
Video
  • ASPEED AST2400 BMC
  • Video resolution up to 1920x1200 @ 60Hz 32BPP
Input / Output
SATA 10x SATA3 (6Gbps) ports
SAS
  • 8x SAS3 (12Gbps) ports
  • SuperCap option support
LAN
  • 4x RJ45 Gigabit Ethernet LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 5x USB 3.0 (2 rear, 1 Type A, 2 internal)
  • 4x USB 2.0 (2 rear, 2 internal)
Video 1x VGA port
Serial Port / Header
  • 2x Fast UART 16550 serial
  • 2x COM Ports (1 rear, 1 header)
DOM 2x SuperDOM (Disk on Module) ports
TPM 1x TPM 1.2 20-pin Header
Expansion Slots
PCI-Express
  • 2x PCI-E 3.0 x16
  • 3x PCI-E 3.0 x8
  • 1x PCI-E 2.0 x4 (in x8)
System BIOS
BIOS Type 128Mb SPI Flash EEPROM with UEFI BIOS
BIOS Features
  • Plug and Play (PnP)
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • USB Keyboard support
  • SMBIOS 2.7.1
  • UEFI 2.3.1
Management
Software
  • Intel® Node Manager 3.0
  • NMI
  • SPM
  • SUM
  • SuperDoctor® 5
  • Watch Dog
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery
PC Health Monitoring
Voltage
  • Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory Voltages.
  • 6 Phase-switching voltage regulator
FAN
  • 8x 4-pin fan headers (up to 8 fans)
  • 8x fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Control for 8x Fan Connectors
  • Thermal Monitor 2 (TM2) support
  • PECI
LED
  • CPU / System Overheat LED
  • Suspend static indicator LED
  • UID/Remote UID
Other Features
  • Chassis Intrusion Detection
  • Chassis Intrusion Header
  • SDDC Support
  • RoHS

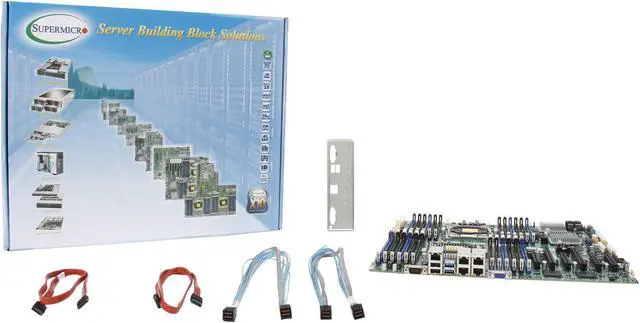

What's in the Box

MBD-X10DRC-LN4+-O
