Color | Black |
---|

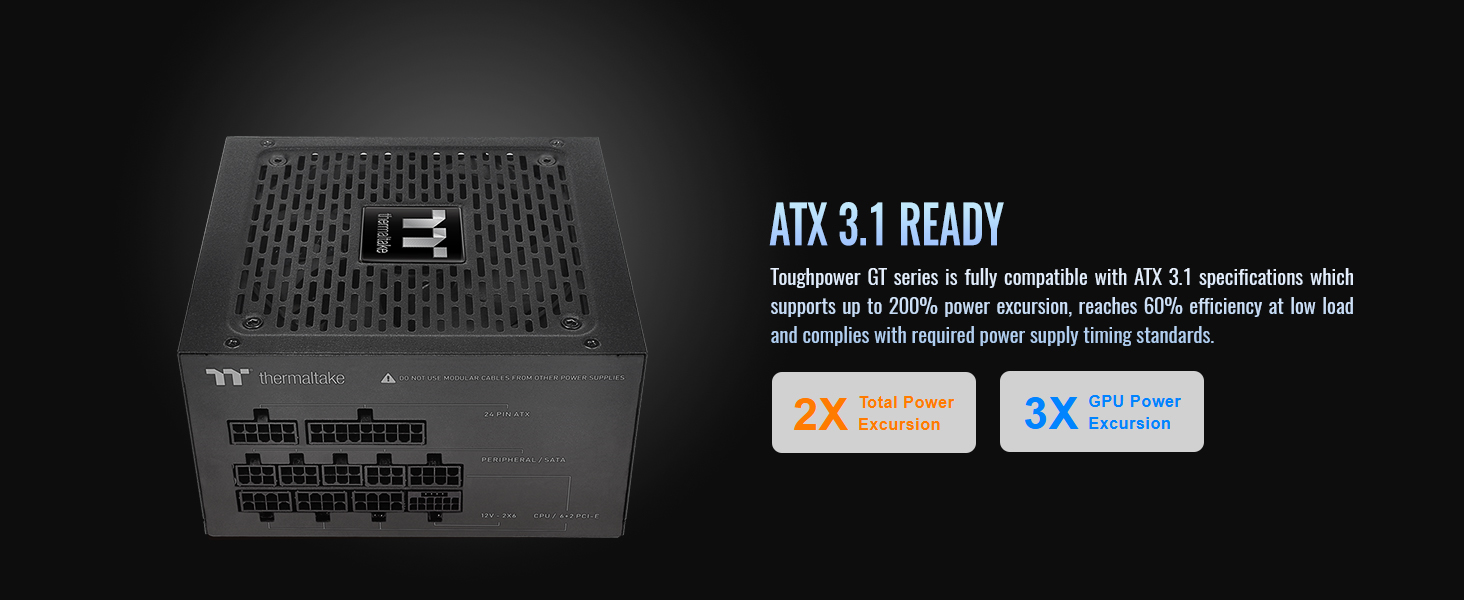

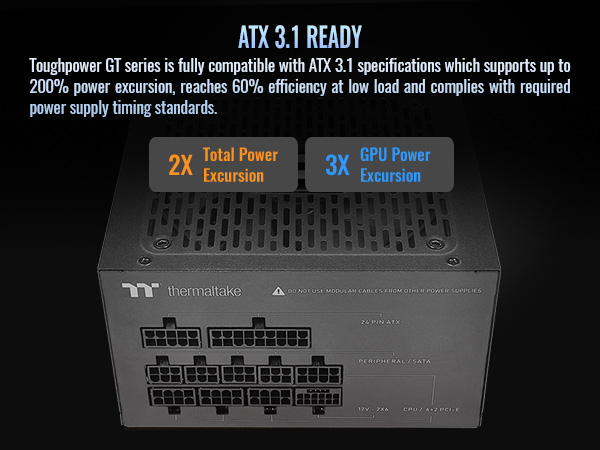

Type | ATX 3.1 Compatible |
---|
Maximum Power | 750 W |
---|

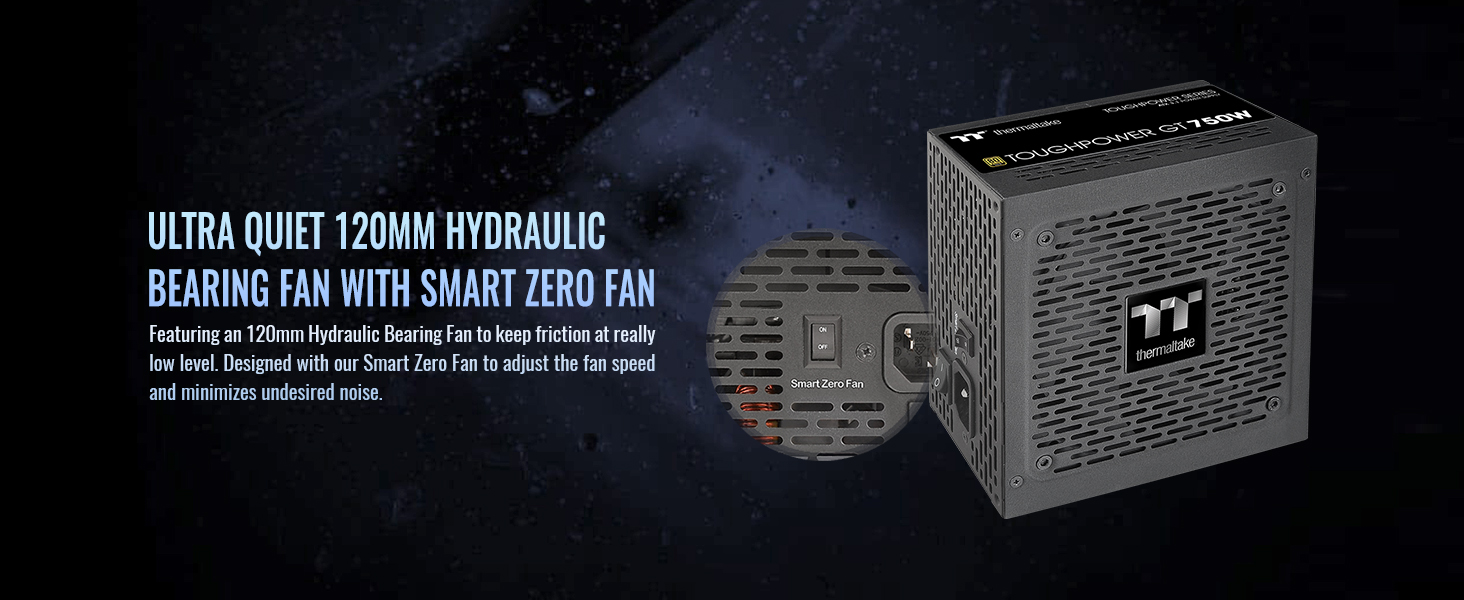

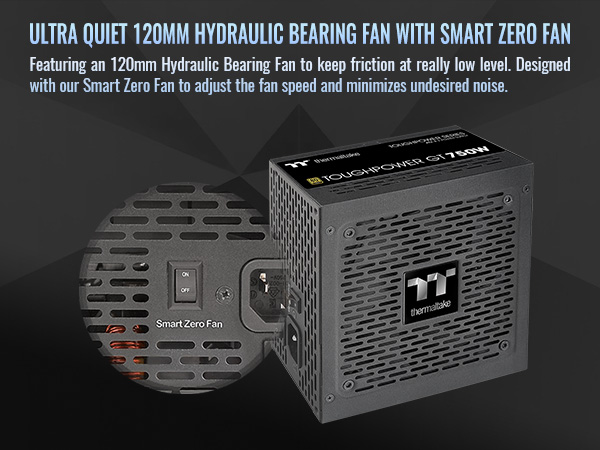

Fans | 12cm Hydraulic bearing fan |
---|
PFC | Active |
---|
Max PSU Length | 140 mm |
---|
Modular | Full Modular |
---|
Power Good Signal | 100-250 msec |
---|
Hold-up Time | > 17msec at 80% load |
---|
Energy-Efficient | Meet 80 PLUS Gold at 115Vac input. |
---|
Protection | OVP/UVP/OCP/OPP/OTP/SCP |
---|
Input Voltage | 100 - 240 V |
---|
Input Frequency Range | 50/60 Hz |
---|
Input Current | 10A Max. |
---|

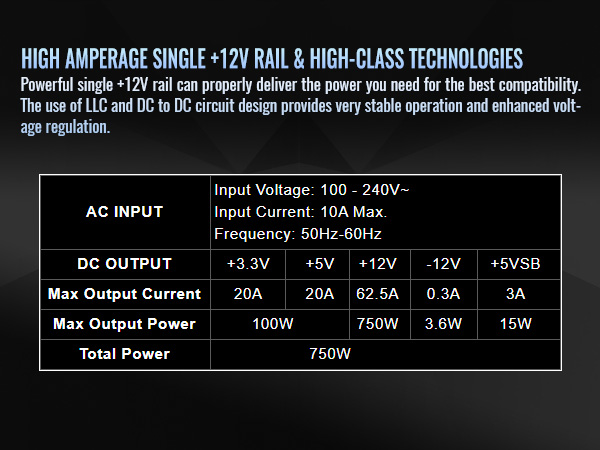

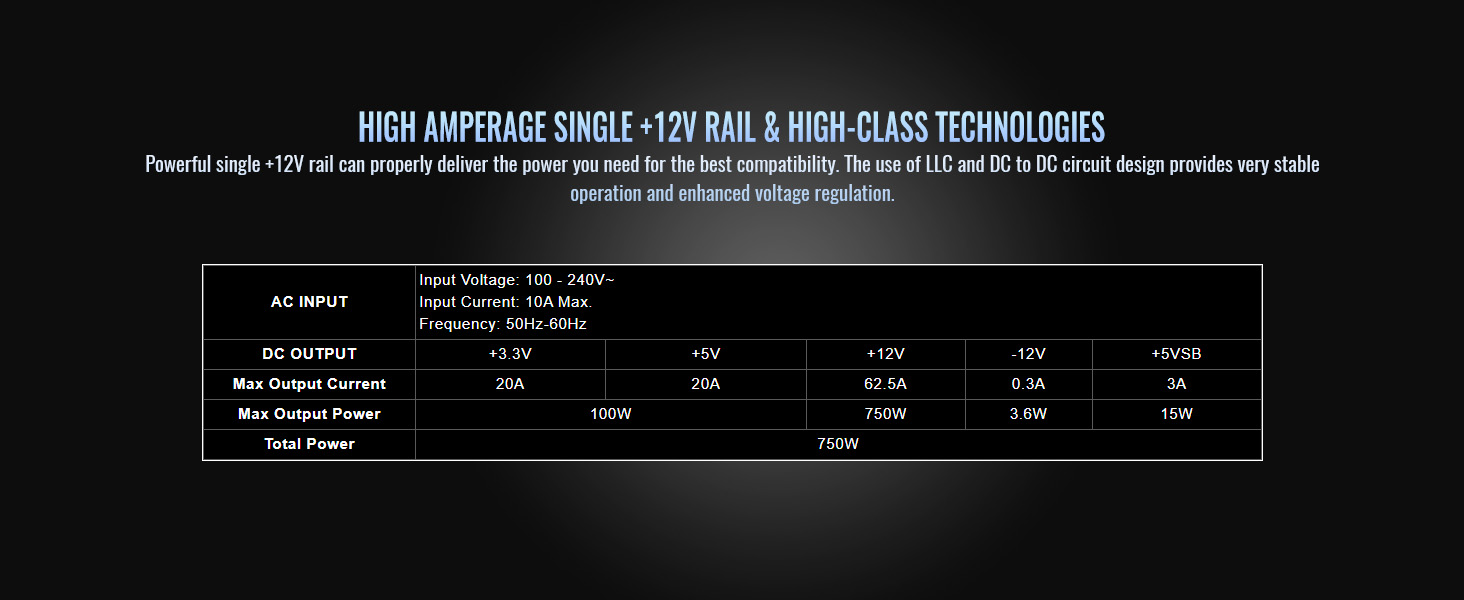

Output | +3.3V@20A, +5V@20A, [email protected], [email protected], +5VSB@3A |
---|
MTBF | >100,000 Hours |
---|
Approvals | CE/UKCA/ICES/TUV/LVD/RCM/CB/FCC/cTUVus/BSMI/CCC/BIS/S-MARK |
---|

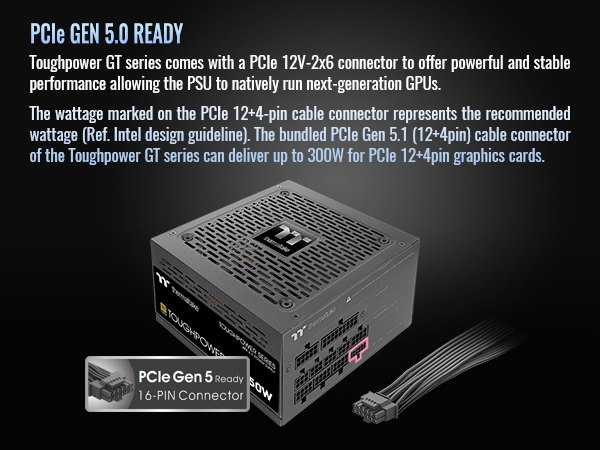

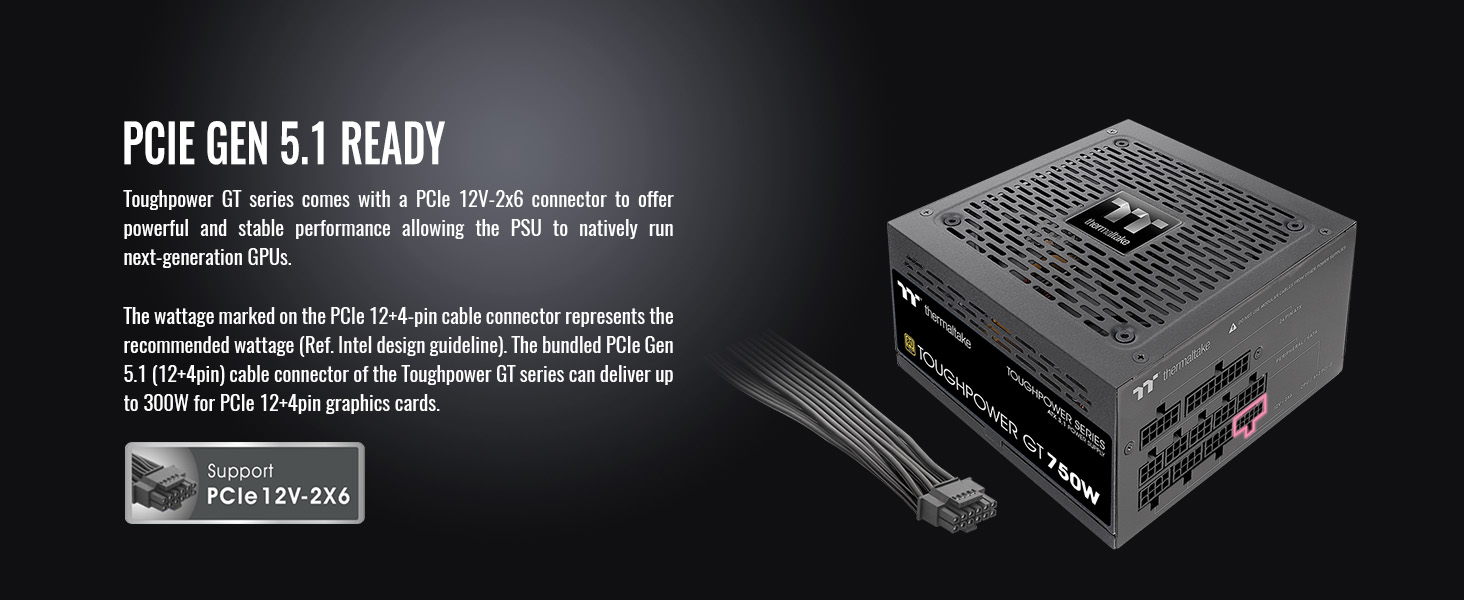

Connectors | 1 x 12VHPWR (12+4) PCIe / 1 x 24 pin (20+4) ATX / 4 x 4 pin Peripheral / 4 x 8 pin (6+2) PCIe |
---|

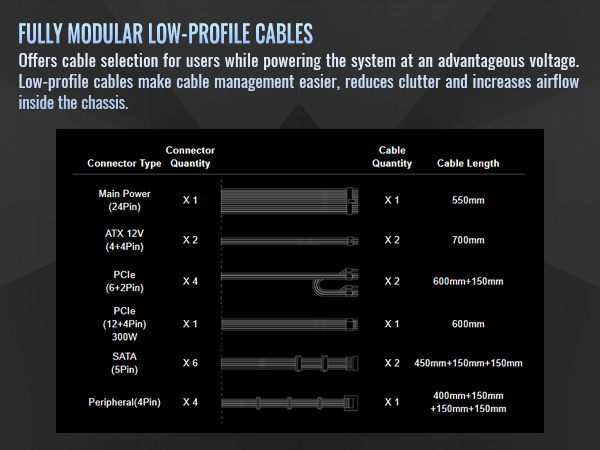

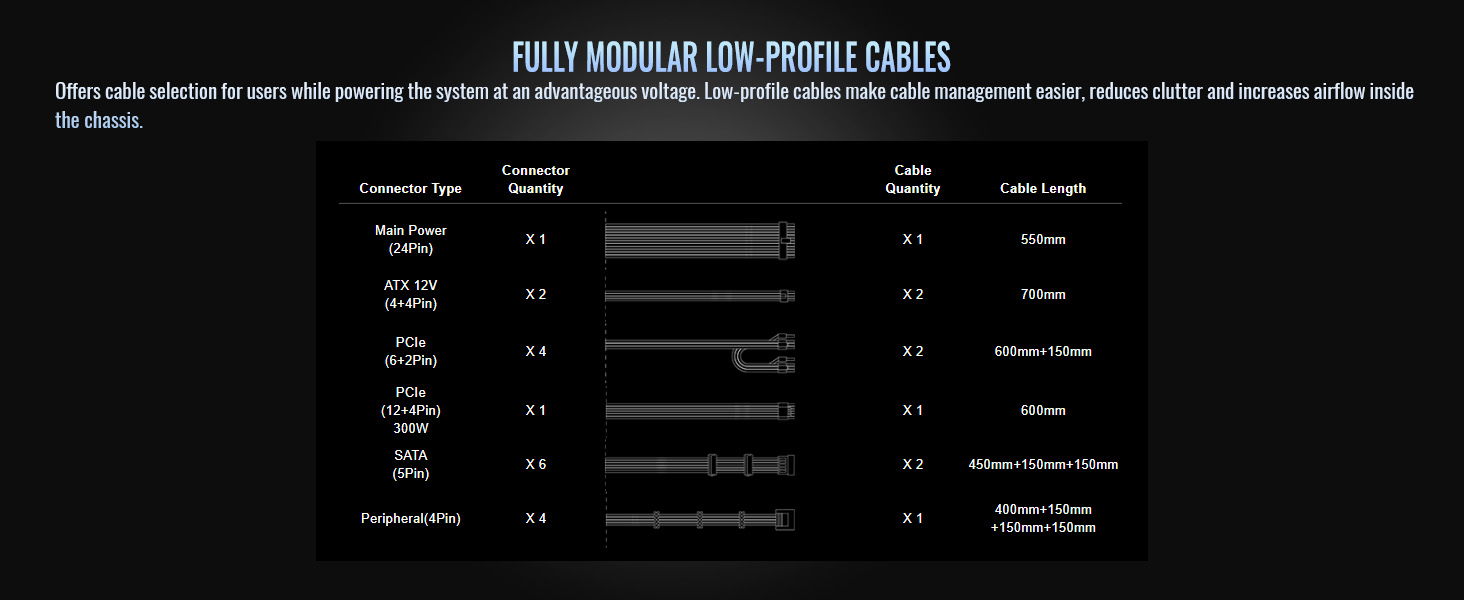

Cable Spec | 1 x Main Power (24Pin) x1 550mm 2 x ATX 12V(4+4Pin) x1 700mm 2 x PCIe(6+2Pin) x2 600mm+150mm 1 x PCIe(12+4Pin) 300W x1 600mm 2 x SATA (5Pin) x3 450mm+150mm+150mm 1 x Peripheral (4Pin) x4 400mm+150mm+150mm+150mm |
---|
