Question 1

does this connect wireless to the router or does it need a Ethernet cable in to transmit properly?

Accepted Answer

No it would need To be wire connected to a router and then wire would connect to another computer etc.

Question 2

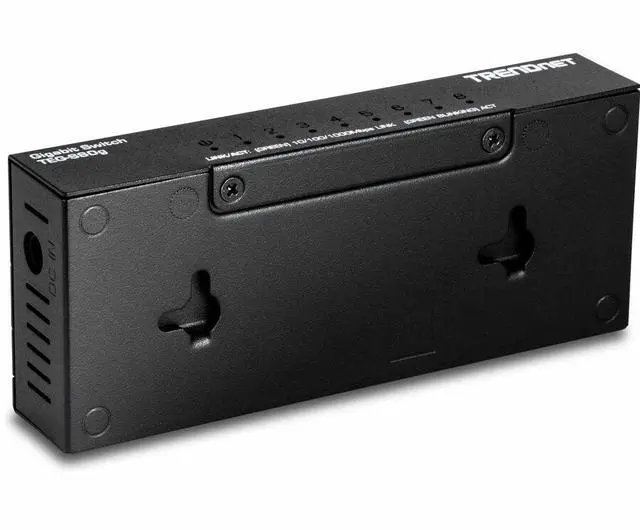

Does this unit include wall mount hardware or holes on the bottom of the chassis to wall mount it?

Accepted Answer

There are holes in the bottom of the one I got. Don't remember if any screws were.
Models and revs do change tho

Question 3

Can you plug a router into any of the ports or is their a specific designated port for WAN?

Basically, I want to build my own router and plug this switch into one of the routers Ethernet ports and then plug all my devices into the switch. Will it work or does it require anything special?

Accepted Answer

Any port on this switch can be used for any device.
I tend to plug the router or "daisy-chain" cable into port 1 simply to make it easy to identify but there is no requirement for that.
Unlike a router which has an "inside (LAN) and outside(WAN)" and thus a dedicated WAN port, this switch has all ports on the same subnet.

Question 4

what does it mean when it says "unmanaged"?

Accepted Answer

Enter an Amanda: That's correct. Managed switches give you more control over your LAN traffic and offer advanced features to control that traffic. An unmanaged switch simply allows Ethernet devices to communicate with one another, such as a PC or network printer, and those are typically what we call “plug and play.answer to this question.

Question 5

will support 100mg  network  computer?

Accepted Answer

If you mean a 100 Mbps (MegaBytePerSecond) network - then yes it will.  It will also be able to be used right from your incoming cable router if you have one.  Many people prefer switches, like this model, instead of just a router, because switches actually dedicate the output port to each device instead of sending all packets to every device and allowing each device to pick out its corresponding packets.  This means less network traffic and a better flow.

Question 6

Can I mix devices that are connected (I have one that is 100 and the rest are 1000) and those running gigabit will stay gigabit or will this slow them all to 100 speed?

Accepted Answer

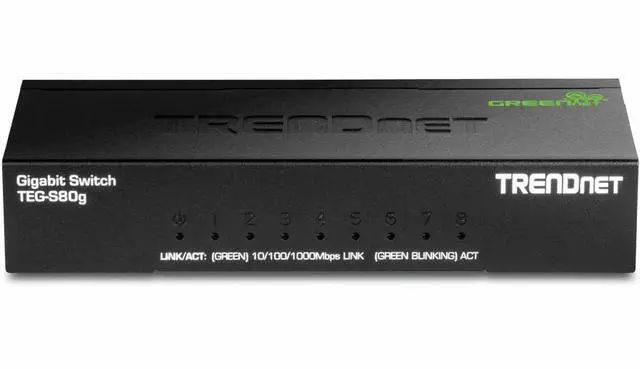

Yes you can mix, it auto detects speeds 100 orange light GBIT green light

Question 7

What is the difference between just the standard 8 port switch & the gigabit switch? Why one over the other?

Accepted Answer

I'm not sure which item is the standard 8 port switch you're referring to but this gigabit switch will transfer data at 1000Mbps or 1 Gigabit.  Some older/cheaper switches only transfer up to 100Mbps.  If you're just sharing internet it won't matter as most people have an internet speed far below 100Mbps but if you're sharing data between 2 devices on the network that are also Gigabit capable you'll get faster transfer speeds between them.  An example might be using a PS3 to play music or video located on a NAS device.  I would recommend getting a Gigabit switch to future-proof your set-up unless you are sure you have no intention of ever sharing anything other than your internet connection.

Question 8

Is the switch multi voltage capable (100-240V)? Also, is the supplied adapter sold in the US multi voltage? Does it indicate 100-240V on the adapter?

Accepted Answer

The switch requires a 5V DC, 1A input voltage to operate.

The power adapter is rated for 100-240V AC, .2A input and is indicated that way on the label. The power adapter is made by AMIGO, and the Model # is AMS47-0501000FU

Question 9

Do I need to worry about unshielded twisted pair "UTP" cabling around my electronics?

Accepted Answer

You do not.  The old adage "it never hurts" probably applies, but fluorescent lights are the only things I try to actively bypass.  With all that being said, the less overall interference amongst your copper is always best, I personally wouldn't go out of my way however.

Question 10

Is the adapter and switch multi voltage (100-240V)?

Accepted Answer

It is powered by a brick that is 100 - 240 volts 50/60 cycle so yes it is. At least mine is. It has been great for me. Had it 1.5 years now no issues.

Brand	TRENDnet
Model	TEG-S80G

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3az
Network Management Type	Unmanaged

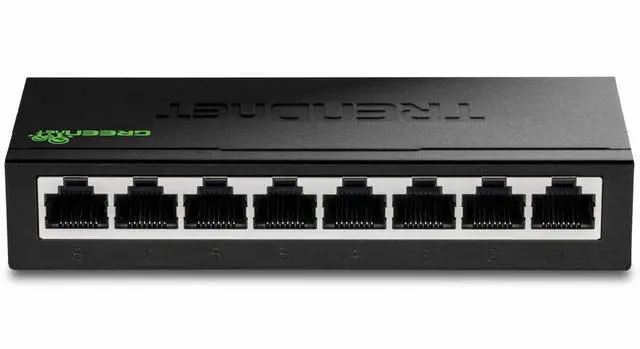

Primary Ports	8 x RJ45
Primary Port Speed	10/100/1000Mbps

MAC Address Table	8K
Jumbo Frames	9KB
Buffer Memory	256KB

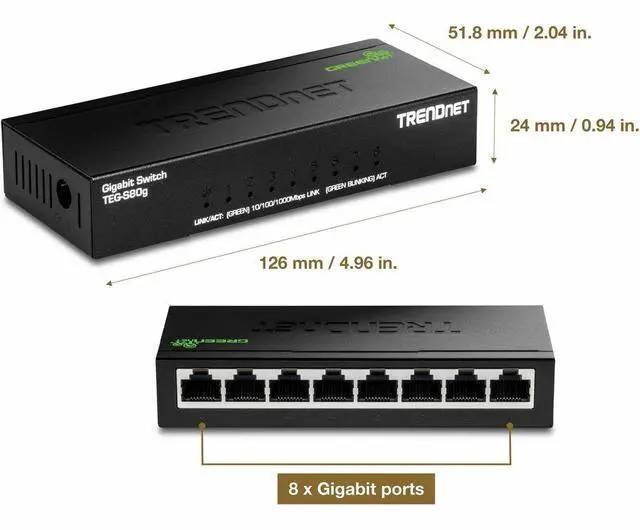

Dimensions	1.10" x 5.90" x 3.80
Weight	0.80 lb.

Best Sellers

TRENDnet 8-Port Unmanaged Gigabit GREENnet Desktop Metal Switch, Fanless, 16Gbps Switching Capacity, Plug & Play, Network Ethernet Switch, Lifetime Protection, Black, TEG-S80G

Learn more about the TRENDnet TEG-S80G

Customer Reviews of the TRENDnet TEG-S80G

Warranty & Returns

Warranty, Returns, And Additional Information

Return Policies*

Manufacturer Contact Info

Temperature	Operating Temperature: 0 ~ 40 degree Celsius (32 ~ 104 degree Fahrenheit)
Humidity	90% Maximum, Non-condensing

Item#: N82E16833156251
