Pro Max 16
USW-Pro-Max-16
Layer 3 Switch
- Performance: Reduces network congestion, stream- line traffic flow, and achieve high-speed, low latency performance at scale.
- Downlink Speed: The Pro Max 16 Switch delivers up to 2.5 Gbps downlink for modern networks.
- Pro A/V Support: Supports AV over IP solutions out of the box. Apply port profiles to speed Pro AV deployment, supporting protocols.

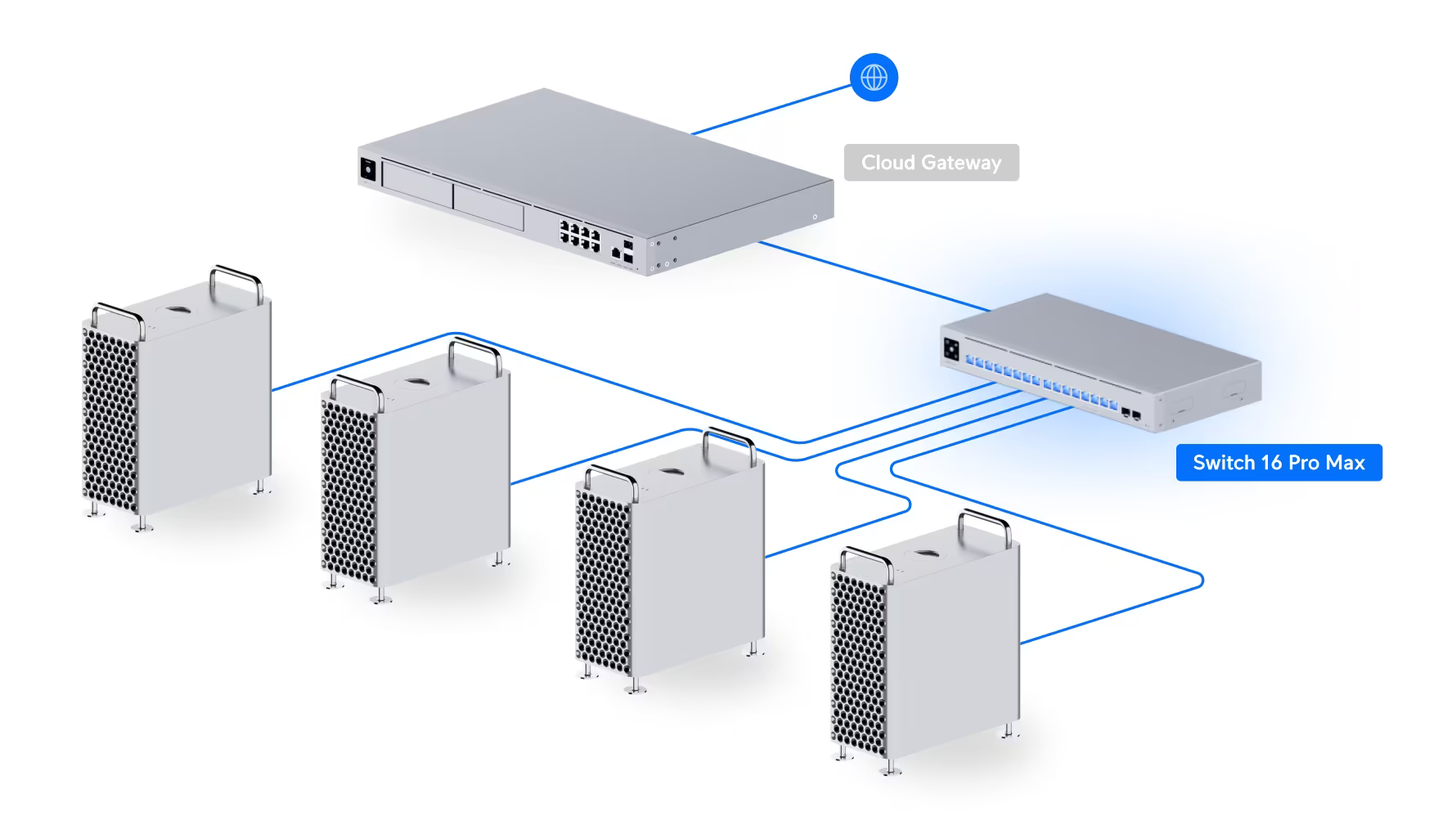

Deployment
The Pro Max 16 switch offers seamless deployment, ideal for high-performance Layer 3 networking with advanced port identification and silent operation.

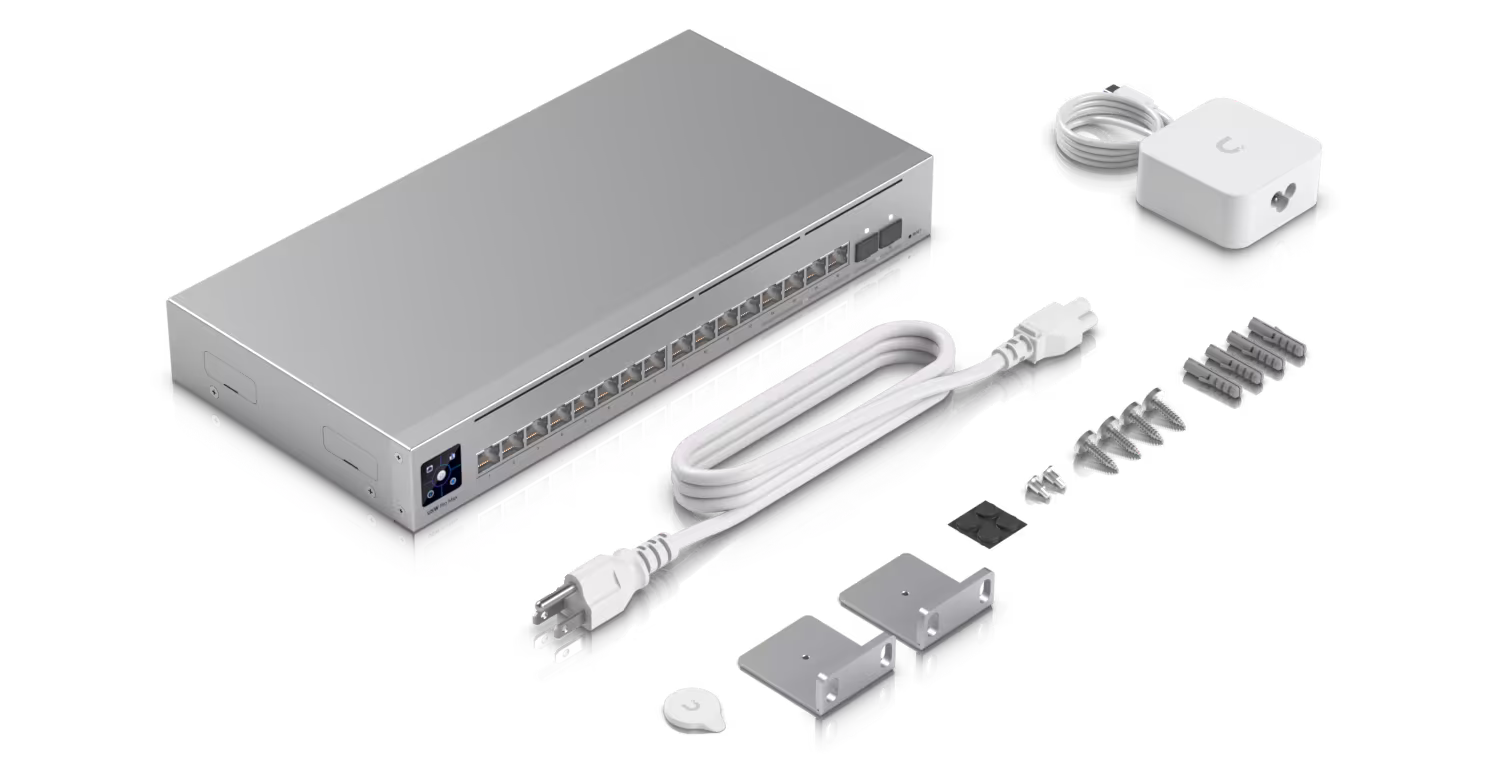

Package Content
Included:
- (1) Switch
- (1) Mounting Accessories
Product Comparison
|
Pro Max 48 48-port, Layer 3 Etherlighting™ switch with 2.5 GbE |
Pro Max 24 PoE Layer 3 Etherlighting™ switch with 2.5 GbE and PoE++ output |
Pro Max 24 24-port, Layer 3 Etherlighting™ switch with 2.5 GbE |
Pro Max 16 PoE Layer 3 Etherlighting™ switch with 2.5 GbE and PoE++ output |
Pro Max 16 16-port, Layer 3 Etherlighting™ switch with 2.5 GbE |
|
|
Dimensions |
442 x 325 x 44 mm (17.4 x 12.8 x 1.7") |
442 x 325 x 44 mm (17.4 x 12.8 x 1.7") |
442 x 325 x 44 mm (17.4 x 12.8 x 1.7") |
325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7") |
325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7") |
|
Port Count |
48 + 4 SFP+ | 24 + 2 SFP+ | 24 + 2 SFP+ | 16 + 2 SFP+ | 16 + 2 SFP+ |
|
Downlink Speed |
Up to 2.5 Gbps | Up to 2.5 Gbps | Up to 2.5 Gbps | Up to 2.5 Gbps | Up to 2.5 Gbps |
|
Uplink Speed |
10 Gbps | 10 Gbps | 10 Gbps | 10 Gbps | 10 Gbps |
|
PoE Output |
- | Up to PoE++ | - | Up to PoE++ | - |
|
PoE Availability |
- | 400 W | - | 180 W | - |
|
Etherlighting™ |
- | - | - | - | - |
|
Pro A/V Support |
✓ | ✓ | ✓ | ✓ | ✓ |
|
Mounting |
Rack | Rack | Rack | Desktop Wall Rack* | Desktop Wall Rack* |
|
Redundancy |
UniFi Power Backup ready | UniFi Power Backup ready | UniFi Power Backup ready | - | - |
Notes:
* With optional Rack Mount accessory.
