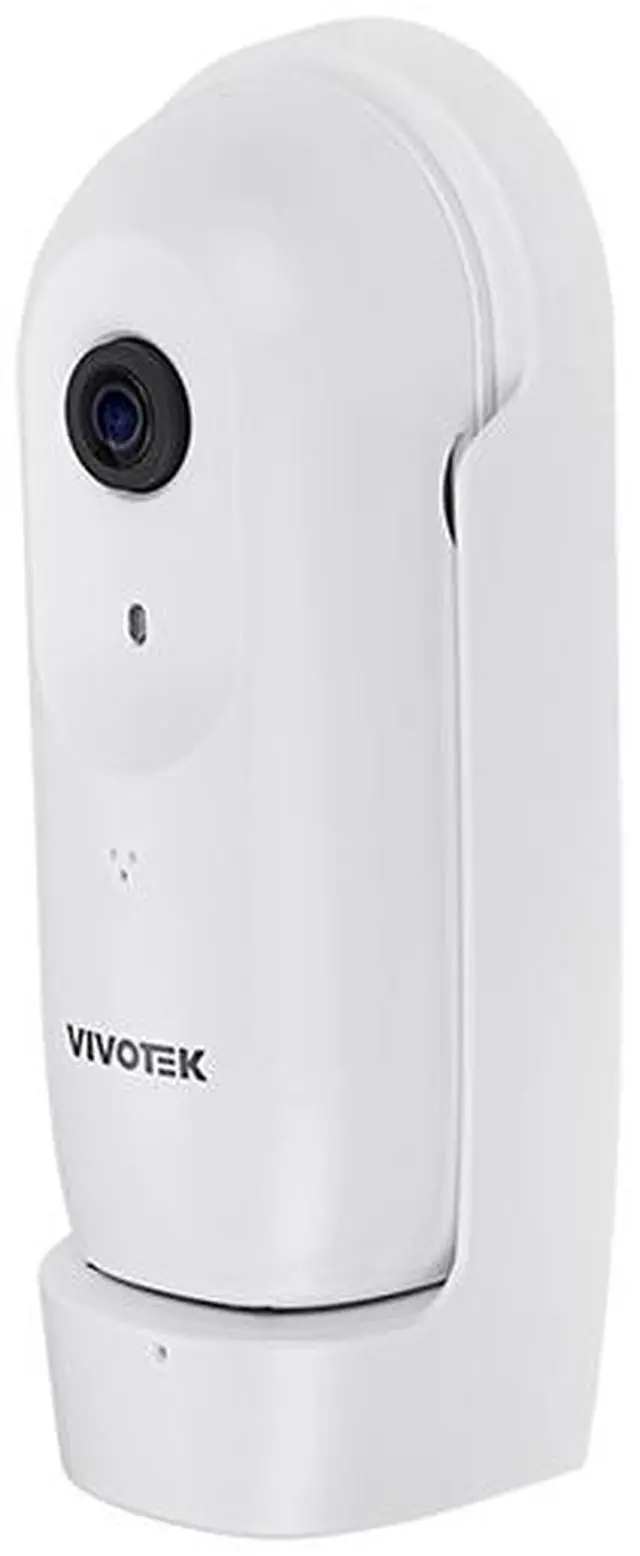

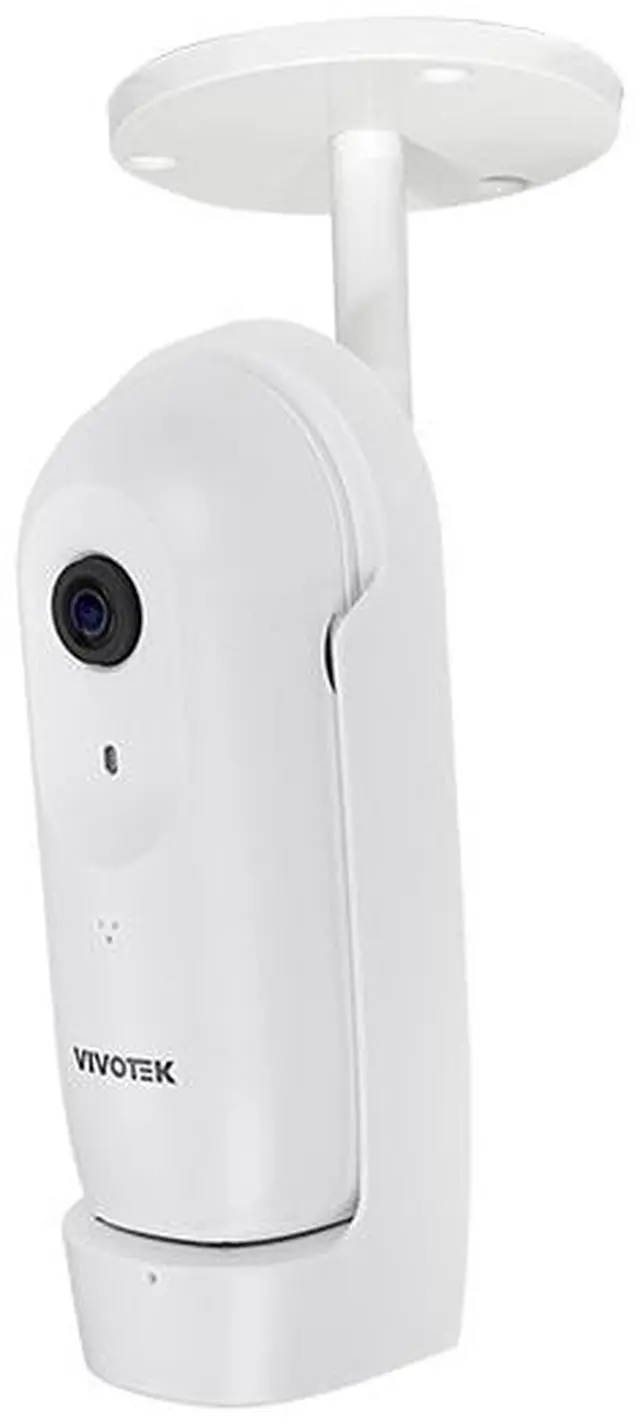

Vivotek CC9160-H, 2MP Compact Panoramic Network Camera
- 30 fps @ 1920x1080
- Smart Stream III: Maximize Bandwidth Efficiency
- WDR Pro 120 dB
- Digital Input, Digital Output, Built-in Microphone
- Trend Micro IoT Security
+
+
Specs
Reviews
Learn more about the VIVOTEK Inc. CC9160-H
| Brand | Vivotek |
|---|---|
| Series | C Series |
| Model | CC9160-H |
| Part Number | CC9160-H |
| Network Camera | Yes |
|---|---|
| Type | Compact Panoramic Camera |
| Networking Protocol | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP/HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP |
|---|---|
| ONVIF | Yes |
| Video Capture Resolution | VIDEO Compression: H.265, H.264, MJPEG Maximum Frame Rate: 30 fps @ 1920x1080 Maximum Streams: (Up to 8 configurable profiles) S/N Ratio: 66.2 dB Dynamic Range: 120 dB Video Streaming: Adjustable resolution, quality and constrained bit rate control, Smart Stream III |
|---|---|
| Security | Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management |
| Audio | Audio Capability: One-way Audio Compression: G.711, G.726 Interface: Built-in microphone Effective Range: 5 meters |
| Power | Power Input: IEEE 802.3af PoE Class 2 Power Consumption PoE: Max. 5W |
|---|
| Dimension | 61x147x41 mm |
|---|---|
| Weight | 127g |
| Features | CAMERA SPECIFICATIONS Image Sensor: 1/2.8" Progressive CMOS Max. Resolution: 1920x1080 (2MP) Lens Type: Fixed-focal Focal Length: f = 1.66 mm Aperture: F1.95 Iris Type: Fixed iris Field of View: 180° (Horizontal), 100° (Vertical), 180° (Diagonal) Shutter Time: 1/5 sec. to 1/32,000 sec. WDR Technology: WDR Pro Minimum Illumination: 0.03 [email protected] Pan/Tilt/Zoom Functionalities: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) Storage: Seamless Recording to MicroSD/SDHC/SDXC card (1TB capacity supported) and recording to network-attached storage (NAS) |
|---|
| First Listed on Newegg | November 21, 2025 |
|---|
