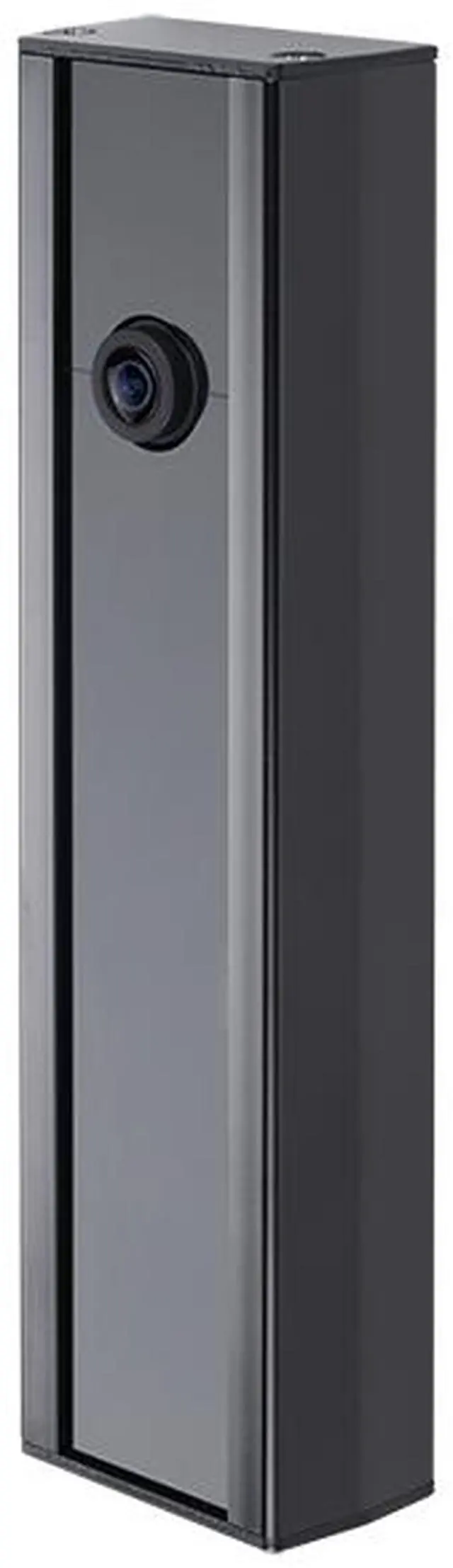

Vivotek CC9160-H (DJ), 2MP Compact Panoramic Network Camera
- 30 fps @ 1920x1080
- Smart Stream III: Maximize Bandwidth Efficiency
- WDR Pro 120 dB
- Digital Input, Digital Output
- Trend Micro IoT Security
+
+
Specs
Reviews
Learn more about the VIVOTEK Inc. CC9160-H (DJ)
| Brand | Vivotek |
|---|---|
| Series | C Series |
| Model | CC9160-H (DJ) |
| Part Number | CC9160-H (DJ) |
| Camera Type | Compact Panoramic |
|---|---|
| Network Camera | Yes |
| Connection Type | Connectors: RJ-45 cable connector for 10/100 Mpbs Network/PoE connection DI DO (DO+: 12V, 50mA; DO-: 30V, Open Drain, 1A) |
| Pan/Tilt | Pan/Tilt/Zoom Functionalities: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) |
|---|---|
| Sensor & Detector | CMOS |
| MAX Resolution | 1920 x 1080 |
| Video Capture Resolution | Video Compression: H.265, H.264, MJPEG Maximum Frame Rate: 30 fps @ 1920x1080 Maximum Streams: 3 video streams (Up to 8 configurable profiles) S/N Ratio: 66 dB Dynamic Range: 120 dB Video Streaming: Adjustable resolution, quality and constrained bit rate control, Smart Stream III Image Settings: General settings video title and time stamp overlay, video orientation (flip, mirror), Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR Exposure BLC, HLC, exposure control (exposure level, exposure time, gain control), AE speed adjustment, WDR Privacy mask Scheduled profile settings |
| Lens Type | Fixed Focal Lens |
| Shutter Control | Shutter Time: 1/5 sec. to 1/32,000 sec. |
| Power | Power Input: IEEE 802.3af PoE Class 2 Power Consumption: max: 5W |
|---|
| Humidity | Humidity: 90% RH (non-condensing) |
|---|---|
| Temperature | Operating Temperature: Starting Temperature: 0°C ~ 45°C (32°F ~113°F) Working Temperature: -10°C ~ 45°C (14°F ~113°F) |
| Dimension | 28 x 50 x 184 mm |
|---|---|
| Weight | 199g |
| Operating Systems Supported | Operating System: Microsoft Windows 10/8/7 Mac 10.12 (Chrome only) Web Browser: Chrome 58.0 or above Internet Explorer 10/11 Other Players: VLC: 1.1.11 or above |
|---|---|
| Features | Alarm & Events Event Trigger: camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, system boot, digital input Event Action: Event notification via email, HTTP, FTP, NAS server, SD card, push notification, digital output File upload via email, HTTP, FTP, NAS server, SD card |
| First Listed on Newegg | November 21, 2025 |
|---|
