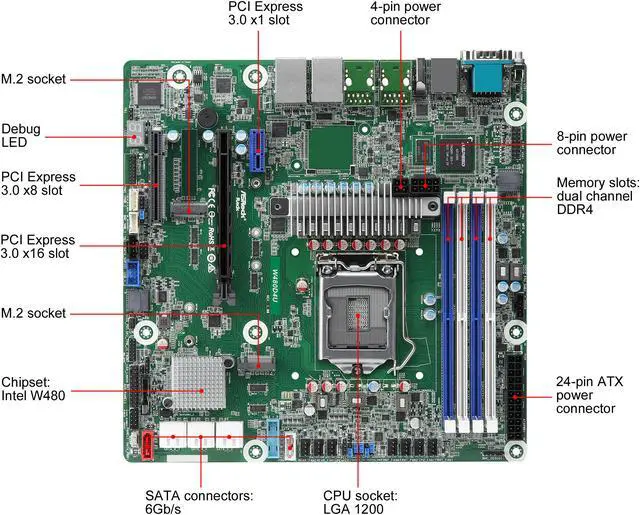

AsRock Rack W480D4U mATX Server Motherboard Intel LGA 1200 Xeon W-1200 00 W480
- mATX 9.6" x 9.6"
- Support Intel Xeon W-1200 & Intel 10th Gen Intel Core Processors
- Support 4 x DIMM slots, Dual Channel DDR4 ECC/ UDIMMs, max 32GB per DIMM, max. 2933MHz
- Support 1 x PCIe 3.0 x16 + 1 x PCIe 3.0 x8 + 1 x PCIe 3.0 x1 + 2 x M.2
- Support 8 x SATA 6Gb/s
- Support 2 x RJ45 1GbE LAN ports by Intel i210 + 1 x Dedicated IPMI
+
+
Specs
Reviews (1)
Learn more about the ASRock Rack W480D4U
| Brand | AsRock Rack |
|---|---|
| Model | W480D4U |
| CPU Socket Type | LGA 1200 |
|---|---|
| CPU Type | Supports Intel Xeon W-1200, Intel 10th Gen Intel Core Processors |
| North Bridge | Intel W480 |
|---|
| Number of DDR4 Slots | 4 x 288-pin |
|---|---|
| DDR4 Standard | 2933*/2666/2400 MHz *2933 MHz support varies by CPU. |
| Channel Supported | Dual Channel |
| ECC Supported | ECC Memory (ECC mode) support varies by CPU. |
| PCI Express 3.0 x16 | Slot 6: Gen3 x16 link, auto switch to x8 link if Slot 4 is occupied (Physical x16, EE x16/x8 (from CPU), shared with Slot 4) |
|---|---|
| PCI Express x8 | Slot 4: Gen3 x8 link (Physical x8, EE x0/x8 (from CPU), shared with Slot 6) |
| PCI Express x1 | Slot 7: Gen3 x1 link (Physical x1, EEx1 (from PCH)) |
| SATA | 8 x SATA 6Gb/s (SATA0-7, SATA_0 supports SATA DOM) |
|---|---|
| M.2 | 2 (M2_1: 22110/2280/2260, Supports PCIe 3.0(x4); M2_2:2280/2260, Supports PCIe 3.0(x4)) |
| Onboard Video Chipset | Aspeed AST2500 |
|---|
| LAN Chipset | Intel I210 |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | RTL8211E |
| Second LAN Speed | 10/100/1000Mbps |

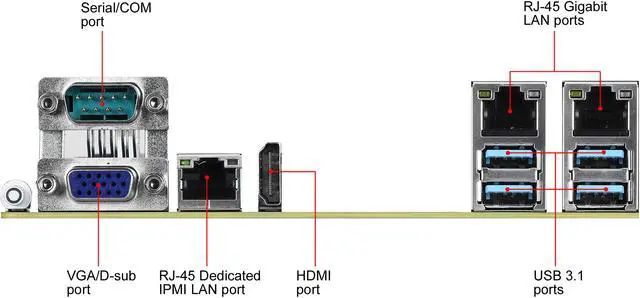

| Video Ports | 1 x HDMI, 1 x D-Sub |
|---|---|
| RJ45 | 3 x RJ45 |
| USB 3.1 | 2 x USB 3.1 Gen1 Port Type-A (5Gbps) 2 x USB 3.1 Gen2 Port Type-A (10Gbps) |
| Other Connectors | SATA DOM: 1 Auxiliary Panel Header: 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus TPM Header: 1 (17-pin, LPC)*, 1 (13-pin, SPI) *support LPC interface TPM module by default. Please contact ASRock Rack sales for SPI interface TPM module support. Thermal Sensor Header: 1 IPMB Header: 1 VGA Header: 1 PMBus CONN: 1 Buzzer: 1 Fan Header: 7 (4-pin) USB 3.1 (Gen1) Header: 1 (supports 2 USB 3.2 Gen1 ports) USB 2.0 Header: 1 (supports 2 USB 2.0 ports) Thunderbolt AIC Connector: 1 (BTO) System Panel: 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED Speaker Header: 1 BMC_SMB Header: 1 SGPIO Header: 1 Power Connector: 24-pin (ATX), 8-pin (12V), 4pin (12V) ME/SPS Recovery: 1 Clear CMOS: 1 (contact pads) |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| Date First Available | July 16, 2020 |
|---|
