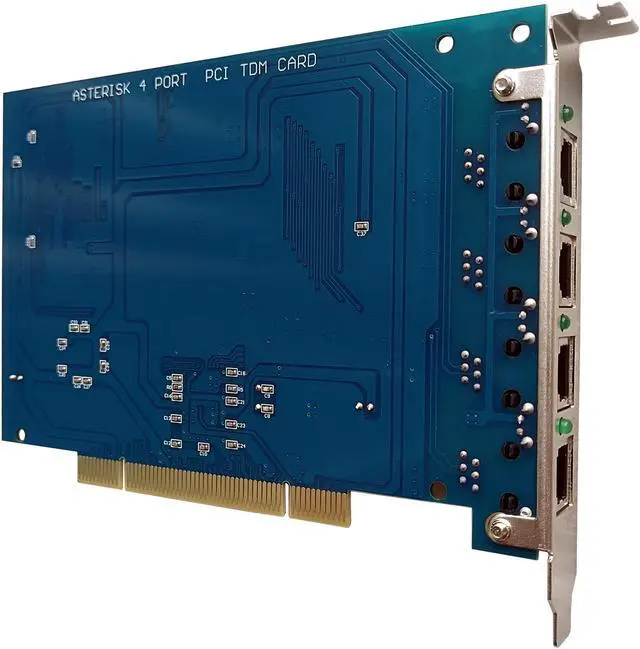

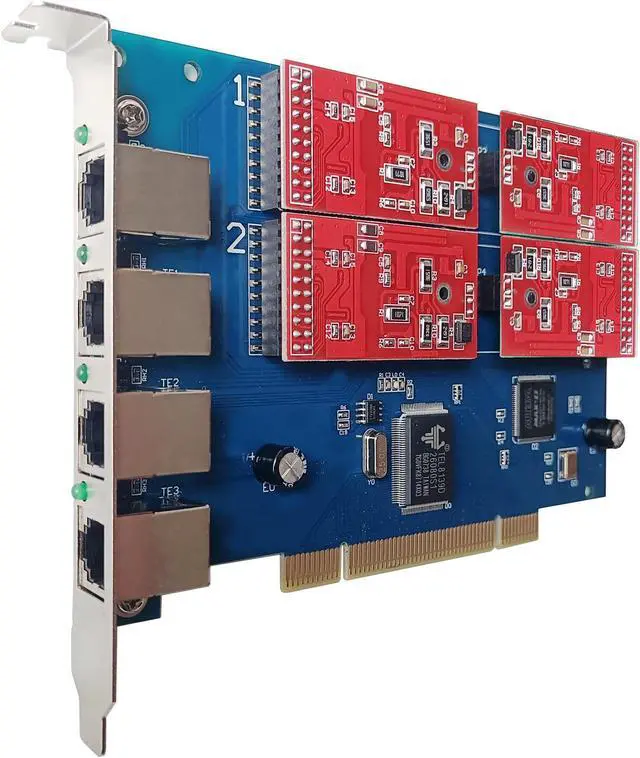

Asterisk Card with 4 FXO Port,PCI Interface,Supports Asterisk FreePBX Issabel Dahdi Free PBX,Dahdi PCI Board For SIP phone System

Purchase Notice:

1). The card is with 4 FXO ports .

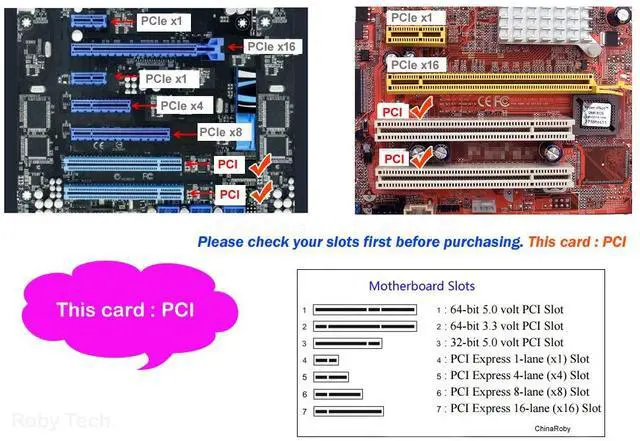

2). The card is with PCI connector.
3). It supports Asterisk,Issabel,AsteriskNow,Freepbx,...Dahdi driver.You can build a telephone solution / IP PBX / call center /SIP server based on the card easily at a very low cost.

Description :

Using the card, open source Asterisk PBX and stand alone PC, users can create their SOHO telephony solution,IP PBX,call center include all the sophisticated features of traditional PBX, and extend features such as voice mail,IVR,Call meeting,SIP trunk,outbound route,inbound route,call waiting ,call forwarding ...
It supports standard dahdi / zaptel drivers , can work with Asterisk / FreePbx / Issabel /AsteriskNow Dahdi...


Specification:

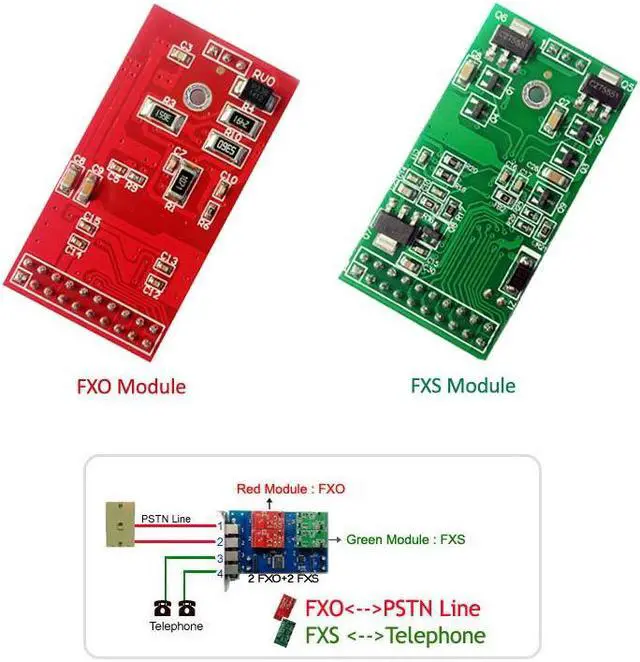

The card is bundled with 4 FXO or FXS modules.

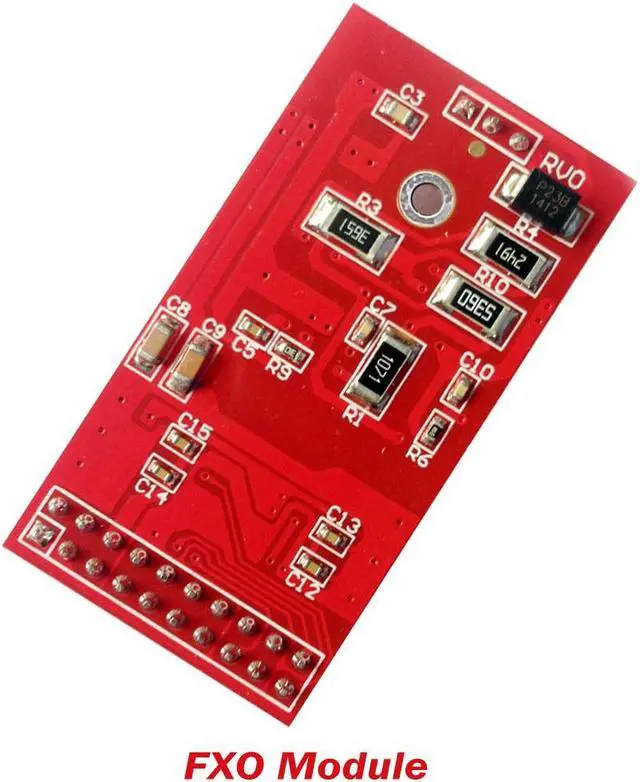

The FXO module is in red and the FXS model is in green .
FXO port connects to PSTN line and the FXS port connects to the telephone.

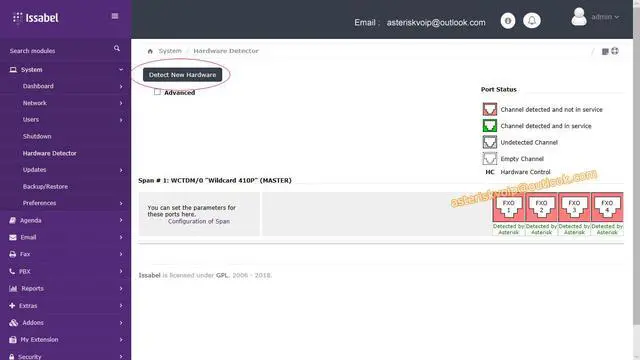

Issabel, AsteriskNow, Freepbx Settings:

[Issabel.localdomain ~]# dahdi_genconf
[Issabel.localdomain ~]# dahdi_cfg -vvvv
DAHDI Tools Version - 2.2.0
DAHDI Version: 2.2.0
Echo Canceller(s): MG2
Configuration
======================


Channel map:

Channel 01: FXS Kewlstart (Default) (Echo Canceler: mg2) (Slaves: 01)
Channel 02: FXS Kewlstart (Default) (Echo Canceler: mg2) (Slaves: 02)
Channel 03: FXS Kewlstart (Default) (Echo Canceler: mg2) (Slaves: 03)
Channel 04: FXS Kewlstart (Default) (Echo Canceler: mg2) (Slaves: 04)

[Issabel.localdomain ~]# asterisk -vvr

Issabel*CLI> dahdi show channels

pseudo default en default In Service
1 from-pstn en default In Service
2 from-pstn en default In Service
3 from-pstn en default In Service
4 from-pstn en default In Service


------------------------------------------------
Refer to,
https://www.freepbx.org/
https://www.issabel.org/
https://www.asterisk.org/
