PROCESSOR: Intel Core Ultra 5 225H processor (18M Cache, up to 4.90 GHz) , Total 14 Cores(4P,8E,2 Low Power E)
MEMORY SUPPORT: Handles up to 96GB dual-channel DDR5-6400 RAM, enabling smooth multitasking and demanding workloads
GRAPHICS & SECURITY: Features Intel Arc Graphics for enhanced visual performance and Intel vPro technology for enterprise-level security
DISPLAY CONNECTIVITY: Supports up to four 4K displays through dual HDMI 2.1 ports and Thunderbolt 4 with DisplayPort 2.1

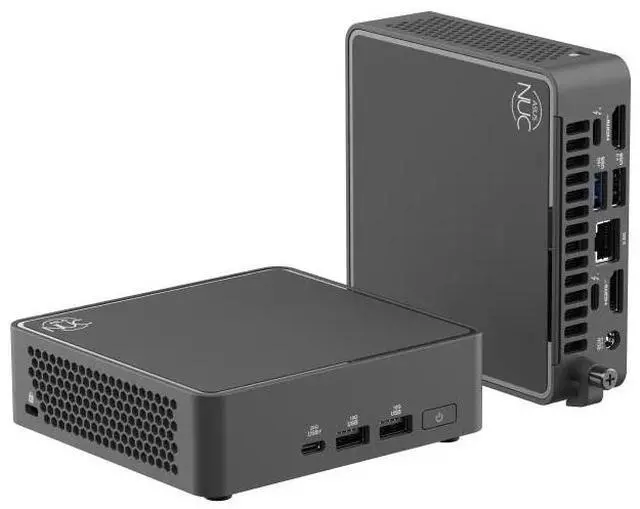

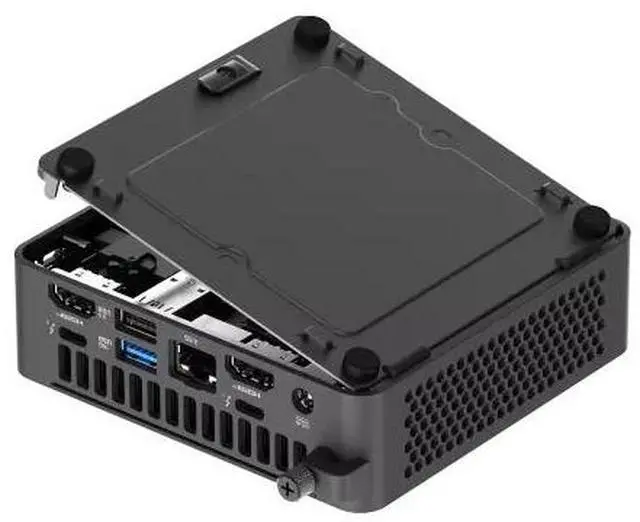

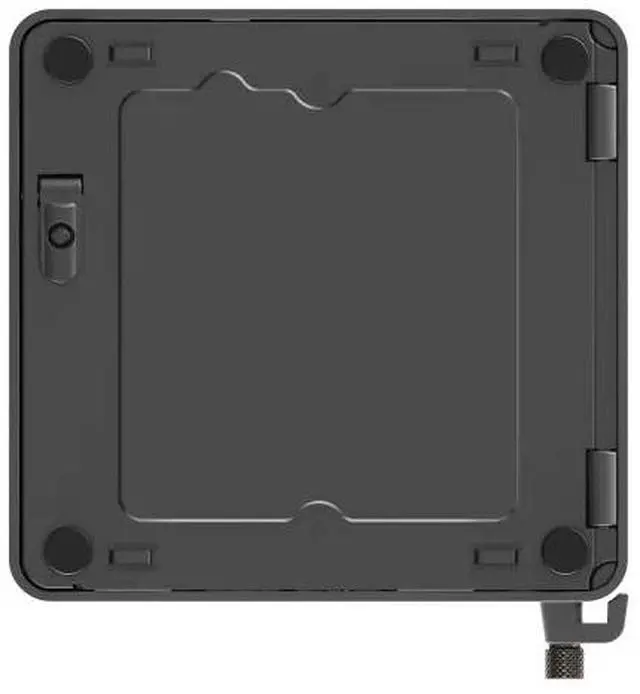

COMPACT DESIGN: 0.48L tool-less chassis design allows quick access for upgrades while maintaining a small footprint
+
+
Overview
Specs
Reviews (1)
PROCESSOR: Intel Core Ultra 5 225H processor (18M Cache, up to 4.90 GHz), Total 14 Cores(4P, 8E, 2 Low Power E) MEMORY SUPPORT: Handles up to 96GB dual-channel DDR5-6400 RAM, enabling smooth multitasking and demanding workloads GRAPHICS & SECURITY: Features Intel Arc Graphics for enhanced visual performance and Intel vPro technology for enterprise-level security DISPLAY CONNECTIVITY: Supports up to four 4K displays through dual HDMI 2.1 ports and Thunderbolt 4 with DisplayPort 2.1 COMPACT DESIGN: 0.48L tool-less chassis design allows quick access for upgrades while maintaining a small footprint

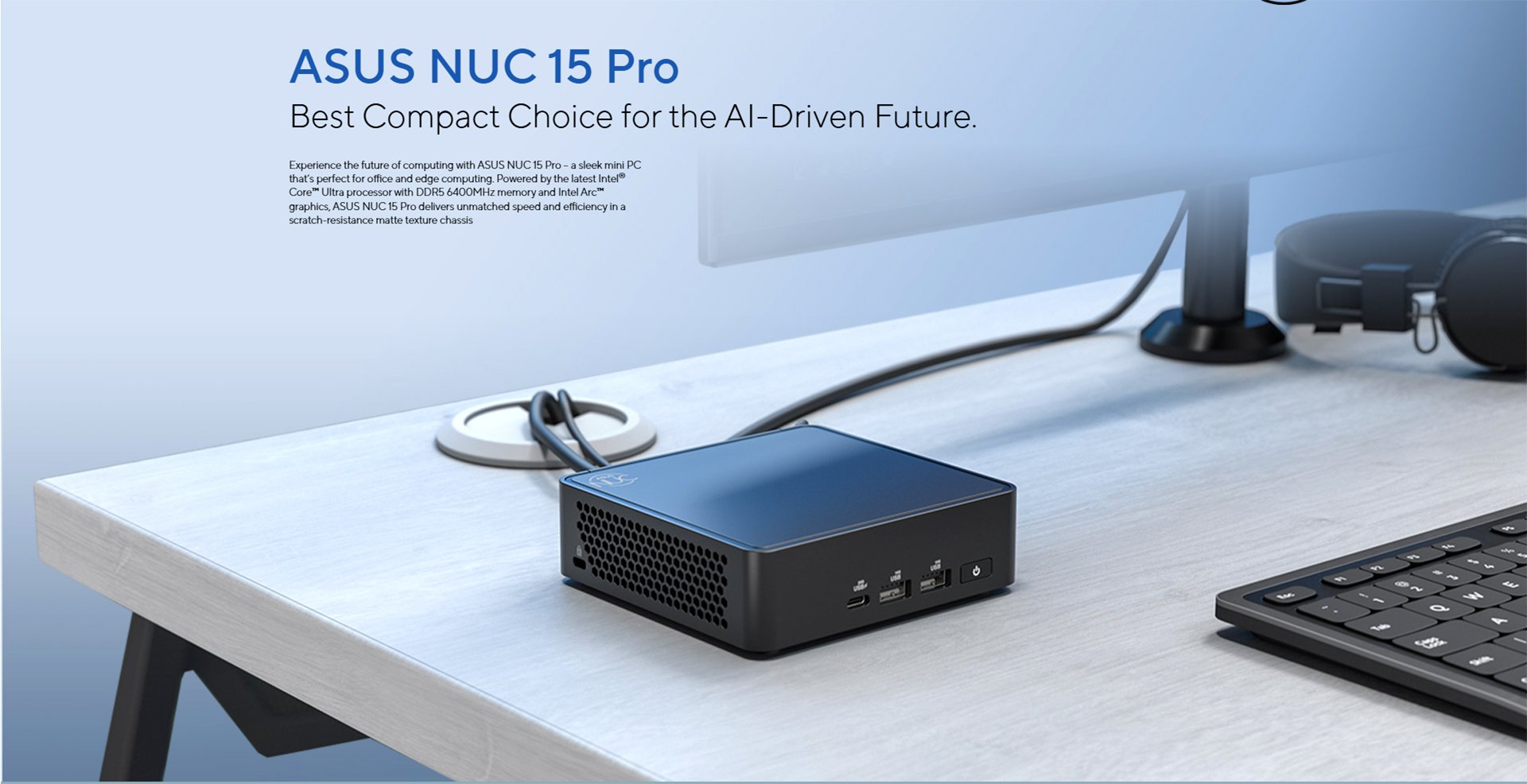

Learn more about the ASUS NUC15CRKU5
Model
Brand
ASUS
Series
NUC 15 PRO
Model
NUC15CRKU5
General
Form Factor
Slim
AI Features
AI Ready
CPU Supported
CPU Type
Intel Core Ultra 5 225H
Memory Supported
Memory installed
No Memory
Memory slot
2 x 262Pin SO-DIMM
Memory Type Supported
DDR5 5600
Max Memory Supported
96GB
Dual Channel Memory Supported
Yes
Storage
Hard Drive Installed
No Hard Drive
M.2
1 x M.2 2280 NVMe PCIe G4x4 SSD 1 x M.2 2242 NVMe PCIe x4 SSD
Graphics
Discrete Graphic Card
Intel Arc Graphics
Audio
Onboard Audio
Integrated
Channel
7.1 Channel
Communications
LAN
Intel i226V
Max LAN Speed
10/100/1000/2500Mbps
Wireless LAN
802.11ax
WiFi Generation
Wi-Fi 7
Bluetooth
Bluetooth 5.4

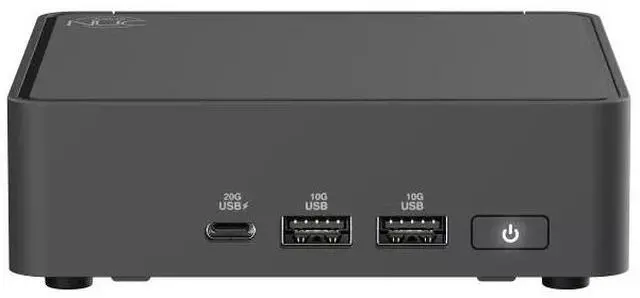

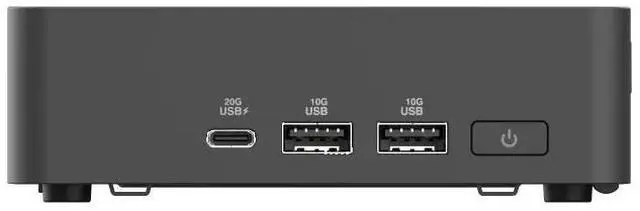

Front Panel Ports
Front USB
1 x USB 3.2 Gen2x2 Type-C 2 x USB 3.2 Gen2 Type-A

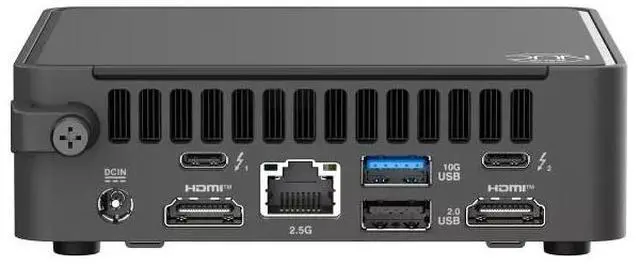

Back Panel Ports
HDMI
2 x HDMI 2.1 (up to 4K@60Hz)
Thunderbolt
2 x Thunderbolt 4 (with DP1.4 | 5V/3A, 40Gbps)
Rear USB
1 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps) 1 x USB 2.0 Type-A (5V/0.5A, 480Mbps)
RJ45
1 x Intel 2.5G LAN (RJ45)
Other Rear Ports
1 x Kensington 1 x DC-in
Power Supply
Input
120W
Physical SPEC
Dimensions
117mm x 112mm x 54mm
Weight
1.3 lbs
Packaging
Packaging
VESA Mount & Screws / AC Power Adapter/ Power Cord
