NZ$1,961^.90

GST-Inclusive Price

NZ$143.00 Shipping

Limit 2 per customer.

Add to PC build list

Ships from United States.

Add to wish list

Sold by Newegg

Shipped by Newegg

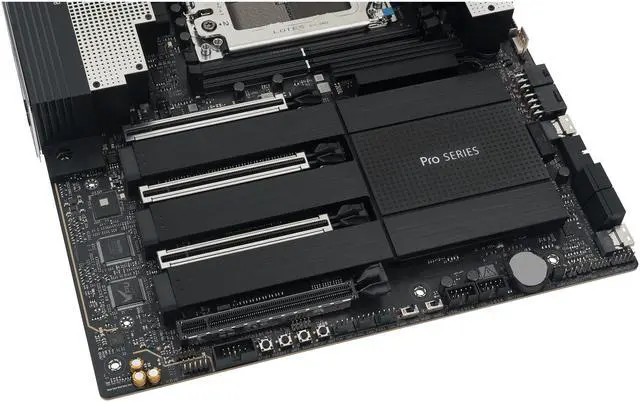

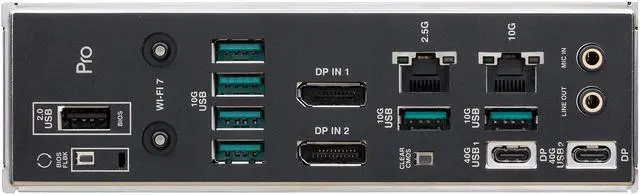

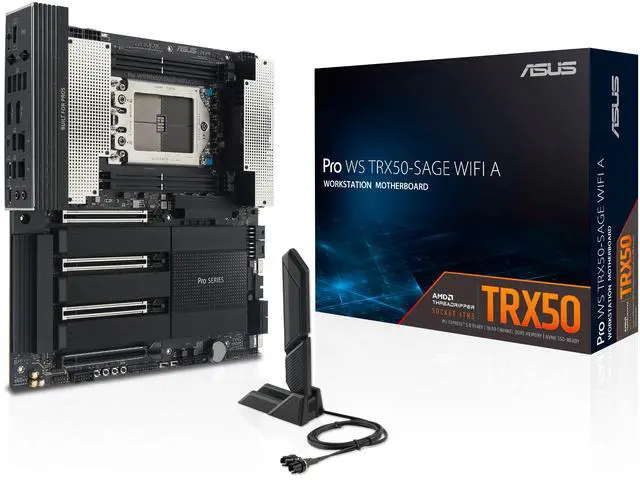

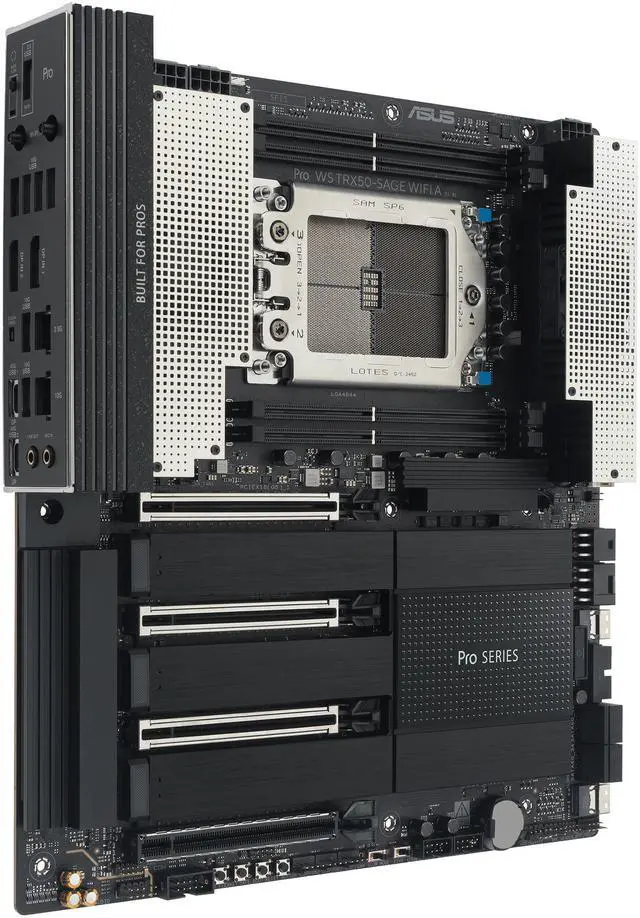

Main image of ASUS Pro WS TRX50-SAGE WIFI A AMD TRX50 TR5 CEB workstation motherboard, CPU & memory overclocking ready, robust 20 power-stage design, PCIe 5.0 x 16, M.2, USB4, 10 Gb & 2.5 Gb LAN, multi-GPU support

Alt view image 2 of 12 - ASUS Pro WS TRX50-SAGE WIFI A AMD TRX50 TR5 CEB workstation motherboard, CPU & memory overclocking ready, robust 20 power-stage design, PCIe 5.0 x 16, M.2, USB4, 10 Gb & 2.5 Gb LAN, multi-GPU support

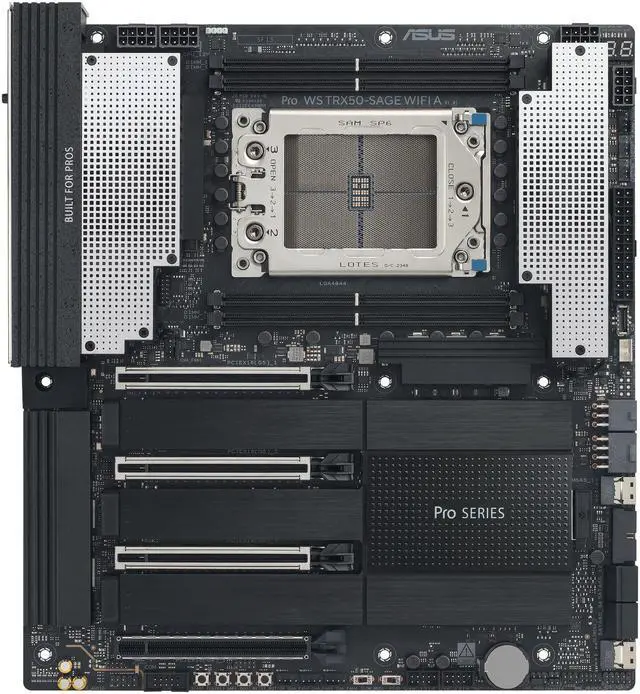

Alt view image 3 of 12 - ASUS Pro WS TRX50-SAGE WIFI A AMD TRX50 TR5 CEB workstation motherboard, CPU & memory overclocking ready, robust 20 power-stage design, PCIe 5.0 x 16, M.2, USB4, 10 Gb & 2.5 Gb LAN, multi-GPU support

Alt view image 4 of 12 - ASUS Pro WS TRX50-SAGE WIFI A AMD TRX50 TR5 CEB workstation motherboard, CPU & memory overclocking ready, robust 20 power-stage design, PCIe 5.0 x 16, M.2, USB4, 10 Gb & 2.5 Gb LAN, multi-GPU support

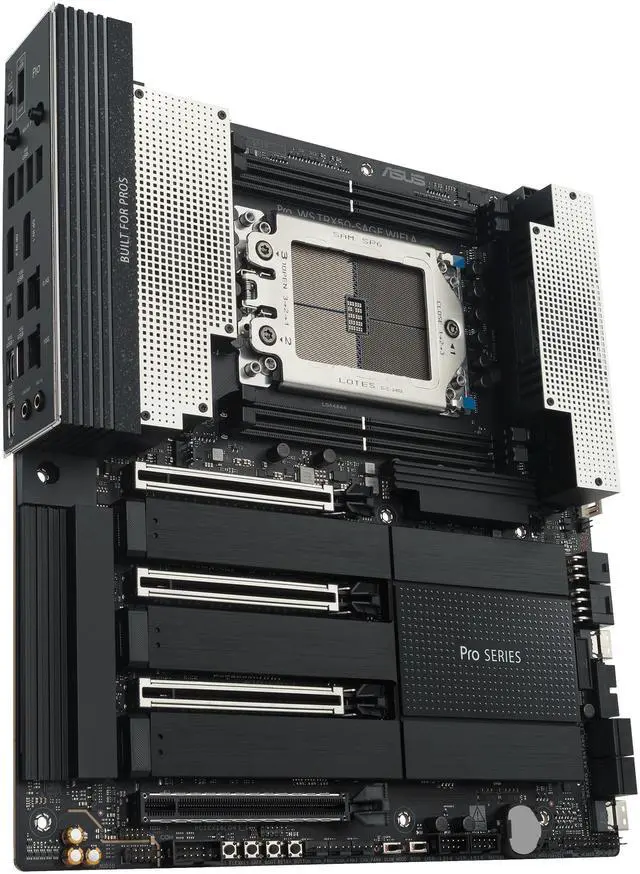

Alt view image 5 of 12 - ASUS Pro WS TRX50-SAGE WIFI A AMD TRX50 TR5 CEB workstation motherboard, CPU & memory overclocking ready, robust 20 power-stage design, PCIe 5.0 x 16, M.2, USB4, 10 Gb & 2.5 Gb LAN, multi-GPU support

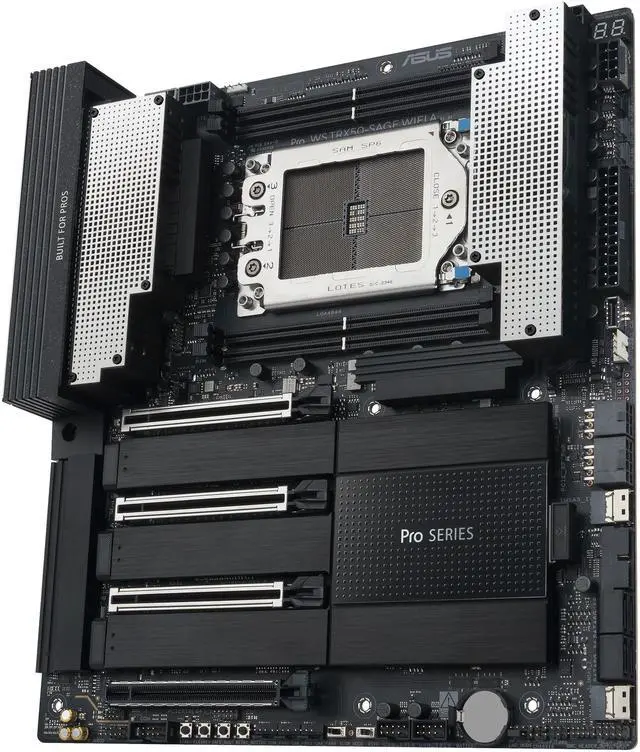

Alt view image 6 of 12 - ASUS Pro WS TRX50-SAGE WIFI A AMD TRX50 TR5 CEB workstation motherboard, CPU & memory overclocking ready, robust 20 power-stage design, PCIe 5.0 x 16, M.2, USB4, 10 Gb & 2.5 Gb LAN, multi-GPU support

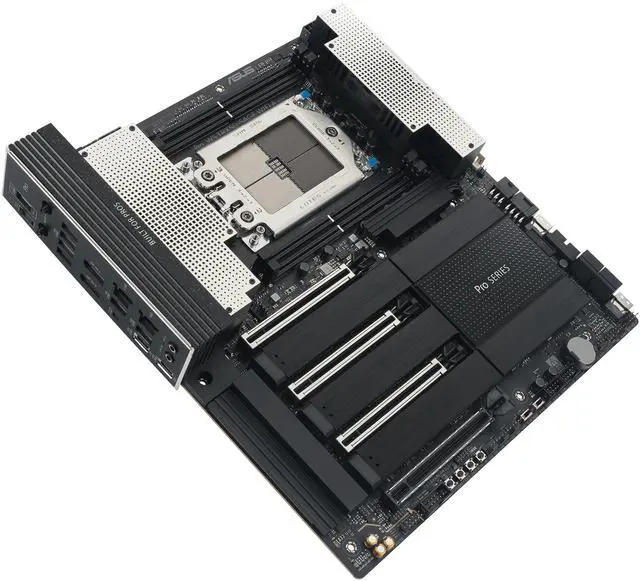

Alt view image 7 of 12 - ASUS Pro WS TRX50-SAGE WIFI A AMD TRX50 TR5 CEB workstation motherboard, CPU & memory overclocking ready, robust 20 power-stage design, PCIe 5.0 x 16, M.2, USB4, 10 Gb & 2.5 Gb LAN, multi-GPU support

Alt view image 8 of 12 - ASUS Pro WS TRX50-SAGE WIFI A AMD TRX50 TR5 CEB workstation motherboard, CPU & memory overclocking ready, robust 20 power-stage design, PCIe 5.0 x 16, M.2, USB4, 10 Gb & 2.5 Gb LAN, multi-GPU support

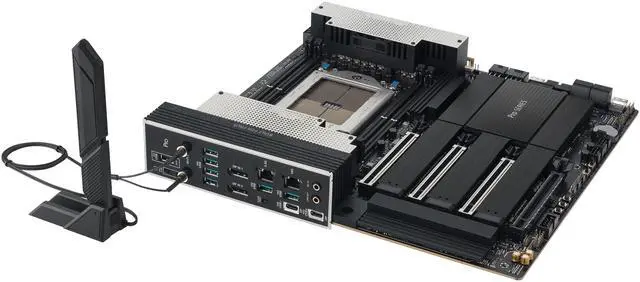

Alt view image 9 of 12 - ASUS Pro WS TRX50-SAGE WIFI A AMD TRX50 TR5 CEB workstation motherboard, CPU & memory overclocking ready, robust 20 power-stage design, PCIe 5.0 x 16, M.2, USB4, 10 Gb & 2.5 Gb LAN, multi-GPU support

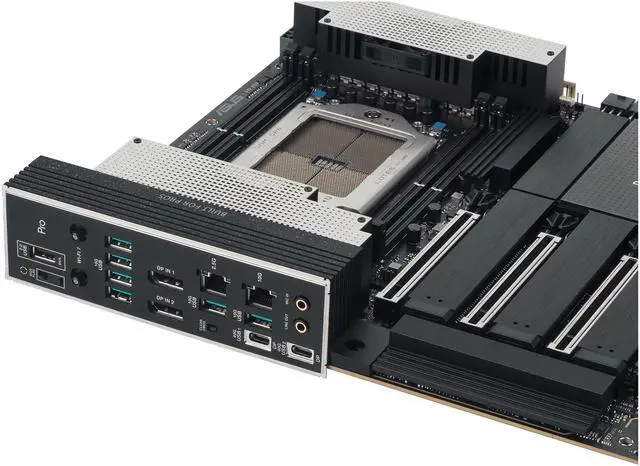

Alt view image 10 of 12 - ASUS Pro WS TRX50-SAGE WIFI A AMD TRX50 TR5 CEB workstation motherboard, CPU & memory overclocking ready, robust 20 power-stage design, PCIe 5.0 x 16, M.2, USB4, 10 Gb & 2.5 Gb LAN, multi-GPU support

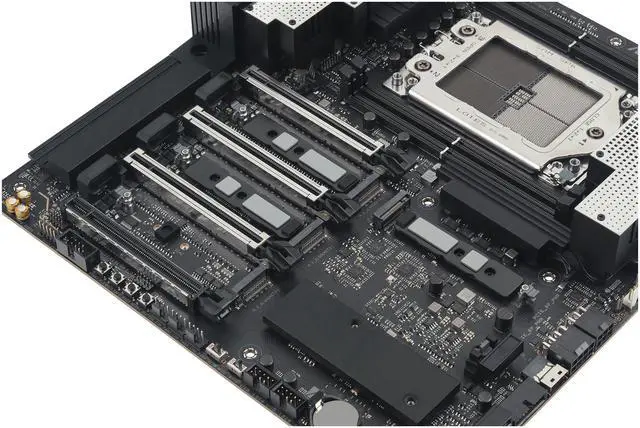

Alt view image 11 of 12 - ASUS Pro WS TRX50-SAGE WIFI A AMD TRX50 TR5 CEB workstation motherboard, CPU & memory overclocking ready, robust 20 power-stage design, PCIe 5.0 x 16, M.2, USB4, 10 Gb & 2.5 Gb LAN, multi-GPU support

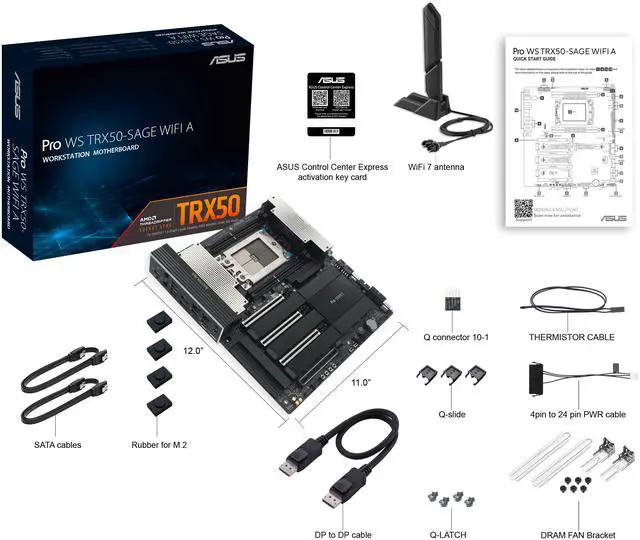

Alt view image 12 of 12 - ASUS Pro WS TRX50-SAGE WIFI A AMD TRX50 TR5 CEB workstation motherboard, CPU & memory overclocking ready, robust 20 power-stage design, PCIe 5.0 x 16, M.2, USB4, 10 Gb & 2.5 Gb LAN, multi-GPU support

Shop All ASUS Products

ASUS Pro WS TRX50-SAGE WIFI A AMD TRX50 TR5 CEB workstation motherboard, CPU & memory overclocking ready, robust 20 power-stage design, PCIe 5.0 x 16, M.2, USB4, 10 Gb & 2.5 Gb LAN, multi-GPU support

Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
AMD sTR5 Socket Supports up to 96-Core CPUs: Ready for AMD Socket sTR5 for Ryzen Threadripper PRO 9000 & 7000 WX-Series and Ryzen Threadripper 9000 & 7000 Series Processors
CPU and Memory Overclocking: Support for up to 1TB ECC R-DIMM DDR5 memory modules (1DPC)
Robust Power & Thermal Design: 20 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks, and M.2 thermal pad
Ultrafast Connectivity: Three PCIe 5.0 x16 slots, one PCIe 4.0 x16 slot, two USB4 (40Gbps) ports, 10 Gb & 2.5 Gb LAN ports, four M.2 slots, front USB 20Gbps Type-C ports, and SlimSAS NVMe support
Server-Grade IPMI Remote Management: hardware and software support for ASUS IPMI expansion cards, plus ASUS Control Center Express software for real-time monitoring and management

Overview

Specs

Reviews

Warranty & Returns

Warranty, Returns, And Additional Information

Return Policies*

Return for refund within: 30 days

Returns are subject to restocking fees and return shipping fees. Please click here to learn more about restocking fees and return shipping fees.

This item is covered by Newegg.com's International Order Return Policy. Read full return policy for details.
*Subject to applicable law
Warranty Notice:
This product does not include manufacturer warranty when purchased or used outside of its designated sales region. By purchasing internationally, you acknowledge that warranty support from the manufacturer will not be available.

CPU Socket Type	sTR5
CPU Type	Ryzen Threadripper PRO 7000 Series / Ryzen Threadripper PRO 9000 Series

Number of Memory Slots	4x288pin (DDR5)
Channel Supported	Quad Channel
ECC Supported	Yes
Registered	Yes

PCI Express 5.0 x16	3 x PCI Express 5.0 x16
PCI Express 4.0 x16	1 x PCI Express 4.0 x16

Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	AMD Ryzen Threadripper PRO 9000 & 7000 WX-Series and AMD Ryzen Threadripper 9000 & 7000 Series Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD TRX50 Chipset M.2_3 slot (Key M), type 2280(supports PCIe 4.0 x4 mode),shared bandwidth with SlimSAS_2* SlimSAS_2 slot supports PCIe 4.0 x4 mode NVMe device, shared bandwidth M.2_3* AMD Ryzen Threadripper PRO 9000 & 7000 WX-Series M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)** SlimSAS_1 slot supports PCIe 4.0 x4 mode NVMe device** * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. M.2_1 & M.2_2 slots only support PCIe 4.0 x4 mode when using Threadripper 7000 non-pro series CPUs * M.2_3 slot shares bandwidth with SlimSAS_2.When M.2_3 slot is operating, SlimSAS_2 will be disabled, and vice versa. **** Supported when the Threadripper PRO series CPU is installed
SATA RAID	AMD RAIDXpert2 Technology PCIe RAID 0/1/5/10 SATA RAID 0/1/5/10

LAN Chipset	Marvell AQtion
Second LAN Chipset	Intel I226-LM
Max LAN Speed	10Gbps + 2.5Gbps
Wireless LAN	Wi-Fi 802.11 be
Bluetooth	Bluetooth 5.4

ASUS Pro WS TRX50-SAGE WIFI A AMD TRX50 TR5 CEB workstation motherboard, CPU & memory overclocking ready, robust 20 power-stage design, PCIe 5.0 x 16, M.2, USB4, 10 Gb & 2.5 Gb LAN, multi-GPU support

Learn more about the ASUS Pro WS TRX50-SAGE WIFI A

Customer Reviews of the ASUS Pro WS TRX50-SAGE WIFI A

Warranty & Returns

Warranty, Returns, And Additional Information

Return Policies*

Manufacturer Contact Info

Onboard USB	1 x USB 20Gbps connector supports USB Type-C 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other Connectors	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x W_PUMP+ header 4 x 4-pin Chassis Fan headers 2 x 4-pin VRM Fan header (with VRM FAN onboard) Miscellaneous 1 x Addressable RGB Gen 2 header 1 x BMC header 1 x COM Port header 1 x FlexKey button 1 x Front panel audio header (F_AUDIO) 1 x Start button 1 x Safe boot button 1 x ReTry button 1 x LN2 mode jumper 1 x Slow mode switch 1 x SPI TPM header (14-1pin) 1 x 10-1 pin Front Panel System header 1 x Chassis intrusion header 1 x Thermal Sensor header 7 x ProbeIt Measurement Points

Form Factor	CEB
Dimensions (W x L)	12.0" x 11.0"
Power Pin	1 x 24-pin Main Power connectors 1 x 4-pin to 24-pin Main Power connectors 2 x 8-pin +12V CPU Power connector 2 x 8-pin PCIe to CPU power connectors 1 x 6-pin PCIe Power connector 1 x 8-pin PCIe Power connector

BIOS Feature	256 Mb Flash ROM, UEFI AMI BIOS
Software	ASUS Exclusive Software Armoury Crate - Fan Xpert 4 - Aura Sync ASUS CPU-Z ASUS DriverHub IT Management software supported - ASUS Control Center Express(ACCE) Adobe Creative Cloud (Free Trial) Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUSTeK. EzFlash Utility FlexKey
