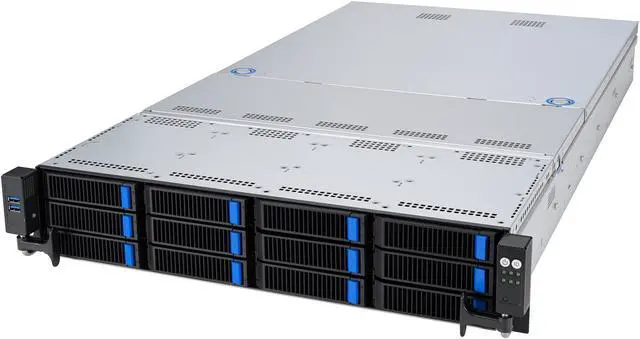

Main image of ASUS RS520A-E12-RS12U-16W1G2.5R 2U Rackmount Barebone Socket SP5 DDR5 4800/4400/4000/3600 RDIMM/ 3DS RDIMM

Shop All ASUS Products

ASUS RS520A-E12-RS12U-16W1G2.5R 2U Rackmount Barebone Socket SP5 DDR5 4800/4400/4000/3600 RDIMM/ 3DS RDIMM

Be the first to review this product...

Socket SP5
Supports AMD EPYC 9004 Series Processors (up to 400W)
24 x 288Pin Memory Slots
1600W Redundant 1+1, 80 Plus

Specs

Reviews

Learn more about the ASUS RS520A-E12-RS12U-16W1G2.5R

General
Brand	ASUS
Model	RS520A-E12-RS12U-16W1G2.5R
Form Factor	2U Rackmount
Workload	General Purpose Server

CPU Supported
CPU Type	Supports AMD EPYC 9004 Series Processors (up to 400W)
CPU Socket	Socket SP5
Installed CPU	No CPU Installed
Max Processors	1
CPU Features	Supports 4th Generation AMD EPYC Processors with AMD 3D V-Cache technology AMD EPYC 9004 Series Processors (Air cool with STD HSK up to 400W)

Memory Supported
Memory Slots	24 x 288Pin
Installed Memory Size	No Memory Installed
Max Memory Supported	6TB
Memory Type Supported	DDR5 4800/4400/4000/3600 RDIMM/ 3DS RDIMM
Channel Supported	12 Channel

Storage Supported
Installed HDD	No Storage Installed
Serial ATA	16 x SATA/SAS/NVME
M.2	2

Graphics
Support GPUs	Up to 4 single-slot or 2 double-slot GPU cards

Expansion Slots
PCI Express	Up to 5 PCIe Gen5 slots + 1 OCP3.0 2 x PCIe Gen5 x16, FHFL or 4 x PCIe Gen5 x8, FHFL 1 x PCIe Gen5 x8, LP 1 x OCP 3.0 Slot ( (PCIe Gen5 x16)

Communications
First LAN	Intel I350-AM2
Max. LAN Speed	1 Gigabit

Expansion Bays
2.5" Bays	2 x 2.5" SATA hot-swap drive bays (Rear)
3.5" Bays	12 x 3.5" hot-swap drive bays (Front)

Panel Ports
Front USB	2 x USB 3.2 Gen1
VGA	1 x VGA (Front), 1 x VGA (Rear)
Rear USB	2 x USB 3.2 Gen1
RJ45	2 x 1GbE

Power Supply
Max. Power	1600W Redundant 1+1, 80 Plus

Dimensions & Weight
Dimensions	33.17" x 17.68" x 3.47"
Weight	39.57 lbs.
