Delivers more airflow than traditional single fan thermal design.
Huge heat sink provides better heat dissipation.
Propeller Blade Technology
Produce 20% more airflow than traditional fan design.
Produces less noise than traditional fan designs.
Airflow Control technology
Deflects more airflow to heatpipes and improves airflow efficiency.
Increases the heatsink area to enhance dissipation efficiency.
Military Class 4 Components
Certified to MIL-STD-810G standards for top stability and quality.
Built with Hi-c CAP, Solid CAP, and New SFC components.

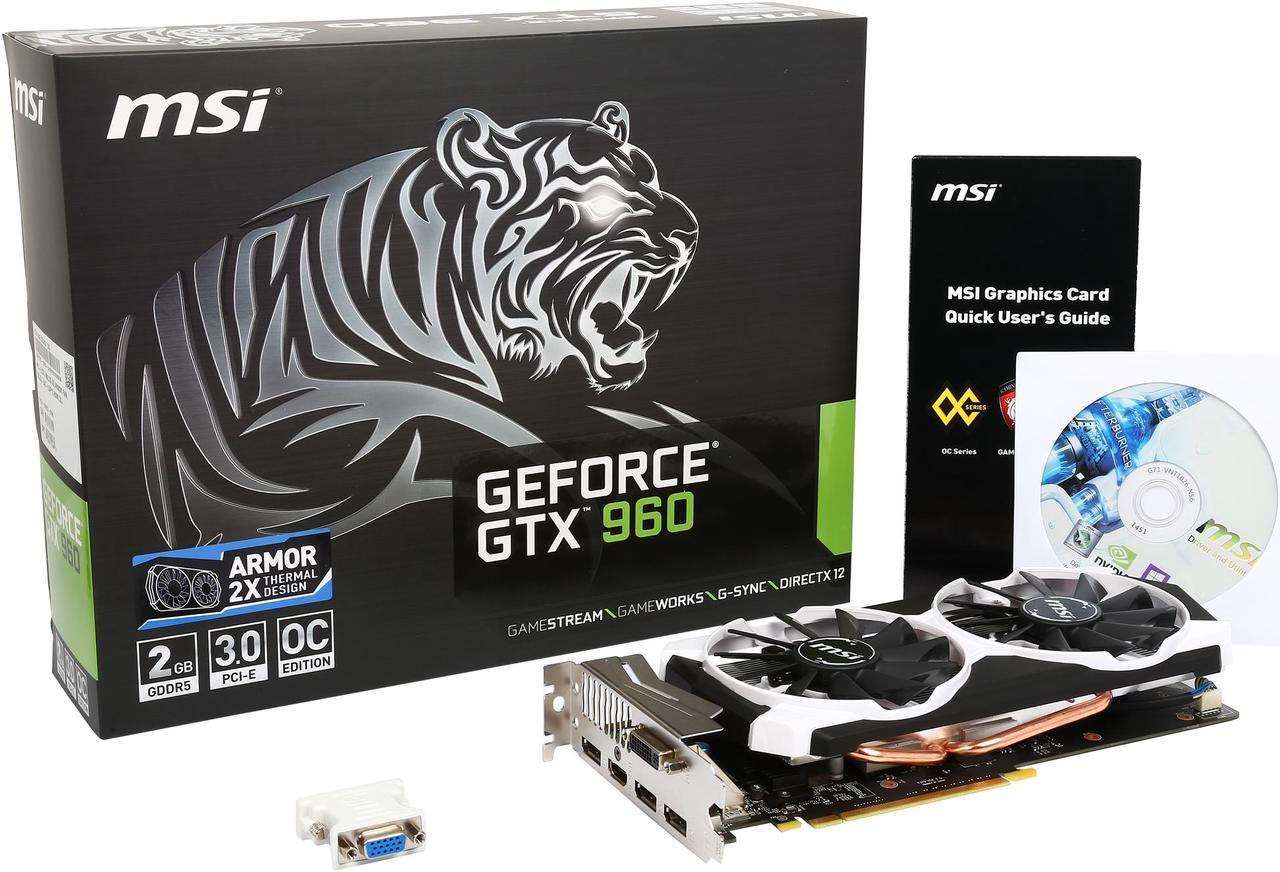

What's in the Box ?
MSI GTX 960 2GB Graphics Card
Driver CD
Installation Guide
DVI to VGA Dongle
Meet the new Maxwell ArchitectureThe GeForce GTX 960 GPU (Codename GM206-300) is based on the new Maxwell architecture. This revised architecture adds the VXGI (Voxel Global Illumination) Technology to accelerate dynamic lighting effects for a truly immersive cinematic experience. And the MFAA Technology delivers an impressive performance boost while maintaining smooth, high-quality edges by alternating sample calculations across each frame and each pixel. The Dynamic Super Resolution technology can delivers 4K-quality images to 1080p displays for exceptional detail and fidelity.
GPU Boost 2.0 TechnologyNVIDIA GPU Boost 2.0 Technology offers new levels of customization, including GPU temperature target, overclocking, and unlocked voltage. It ensures the GPU runs at its peak performance, and games run at the highest frame rate possible.
Operates fasterThe MSI GTX 960 2GD5T OC provides extra power at your disposal right out of the box. It is factory overclocked at 1178MHz (51MHz higher than the reference card), and goes to 1241MHz in boost mode.

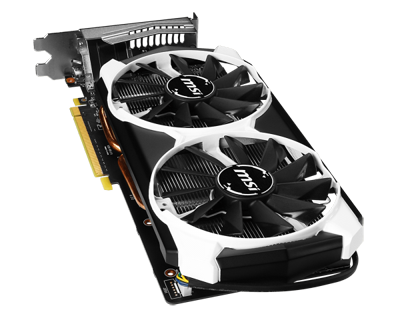

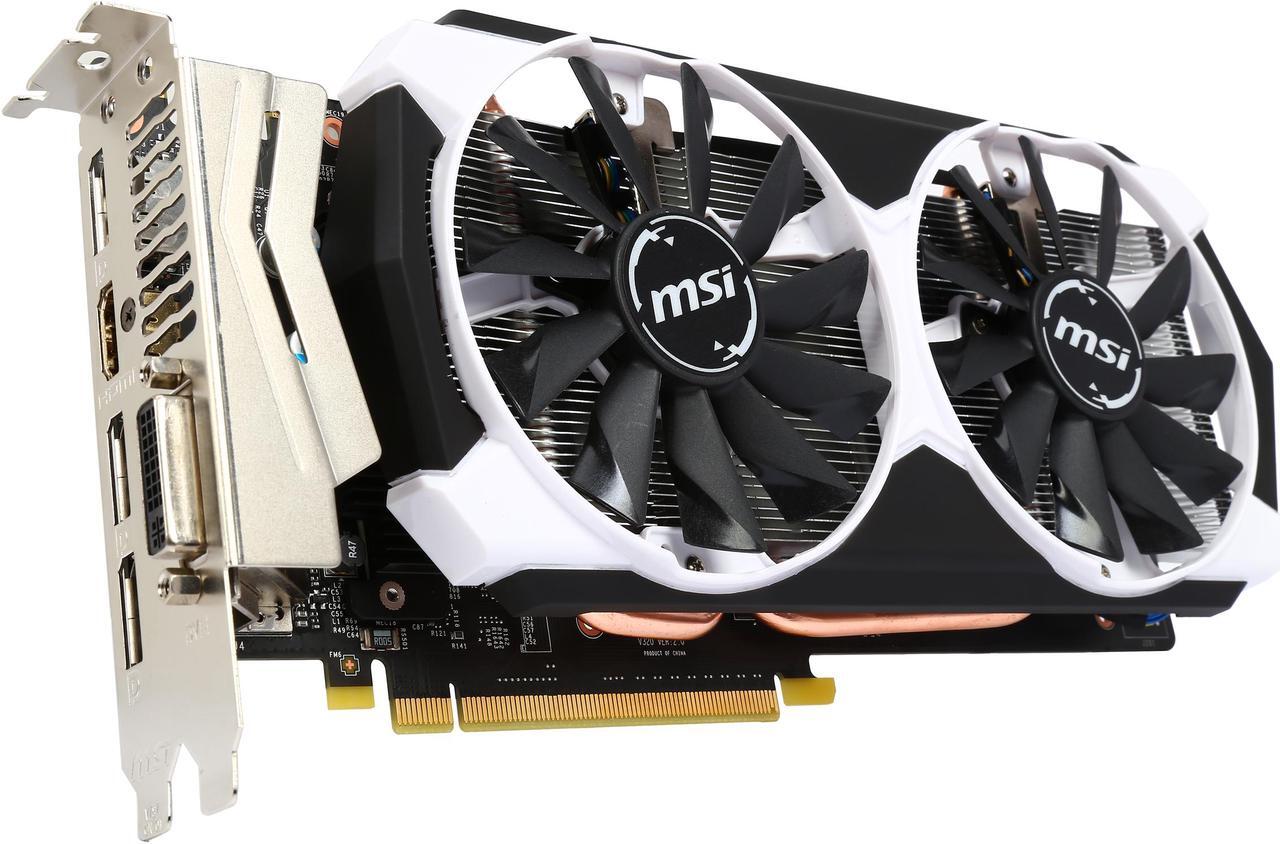

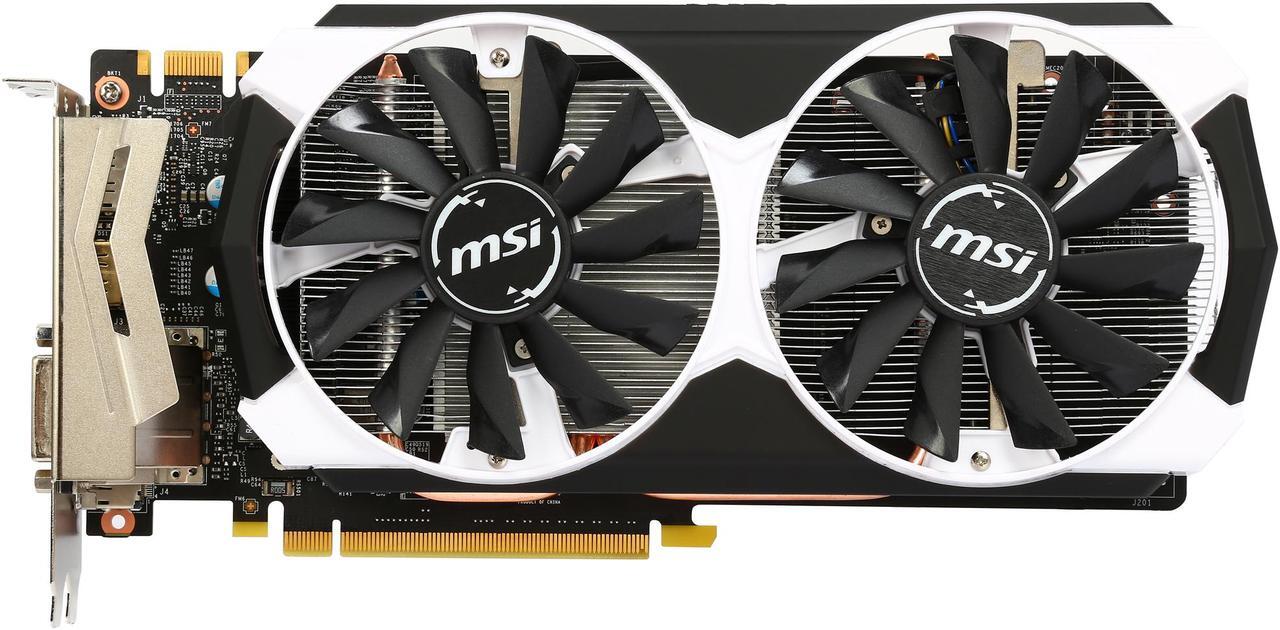

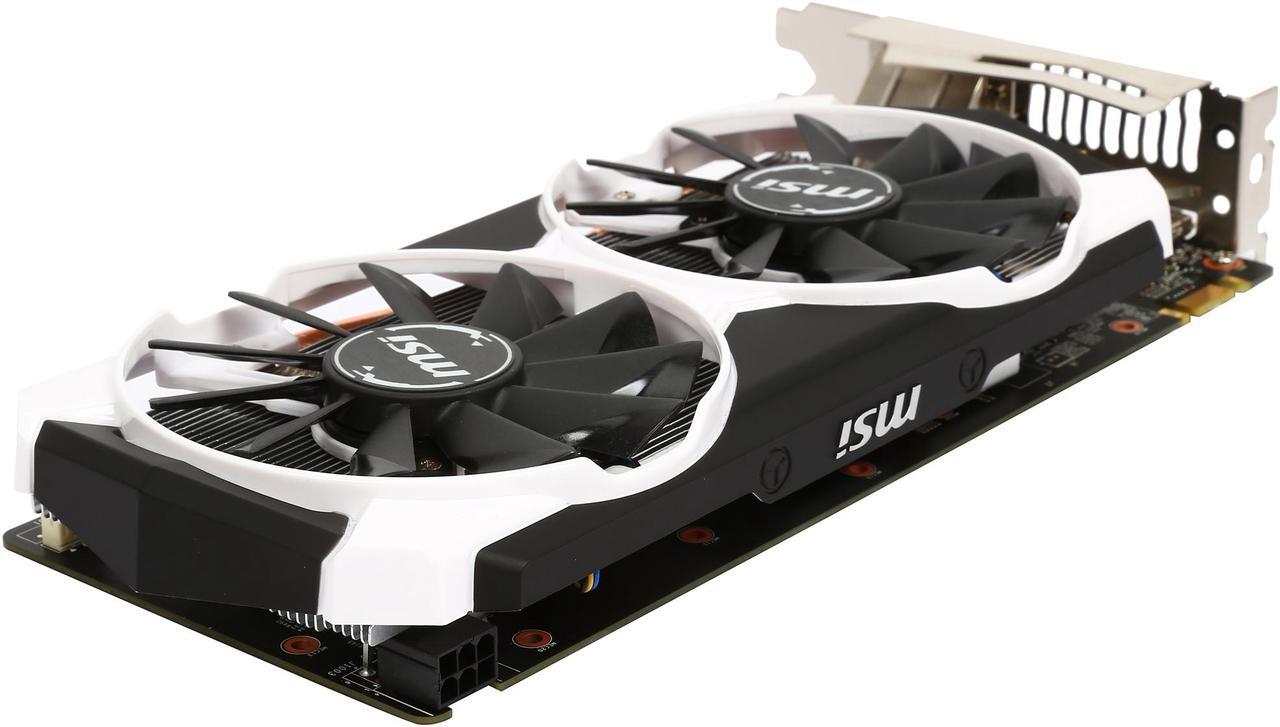

Cooler and quieterPair the overclocked GeForce GTX 960 GPU with MSI’s luxuriously-designed cooler. The two fans and the huge heat sink collaborate to provide better and quieter cooling performance. Each fan has 11 propeller blades to produce 20% more airflow and less noise than traditional fan designs. With airflow control technology, more airflow is deflected to the heat pipes for improved airflow efficiency. The increased heat sink area takes more heat away from the high-performance GTX 960 GPU.

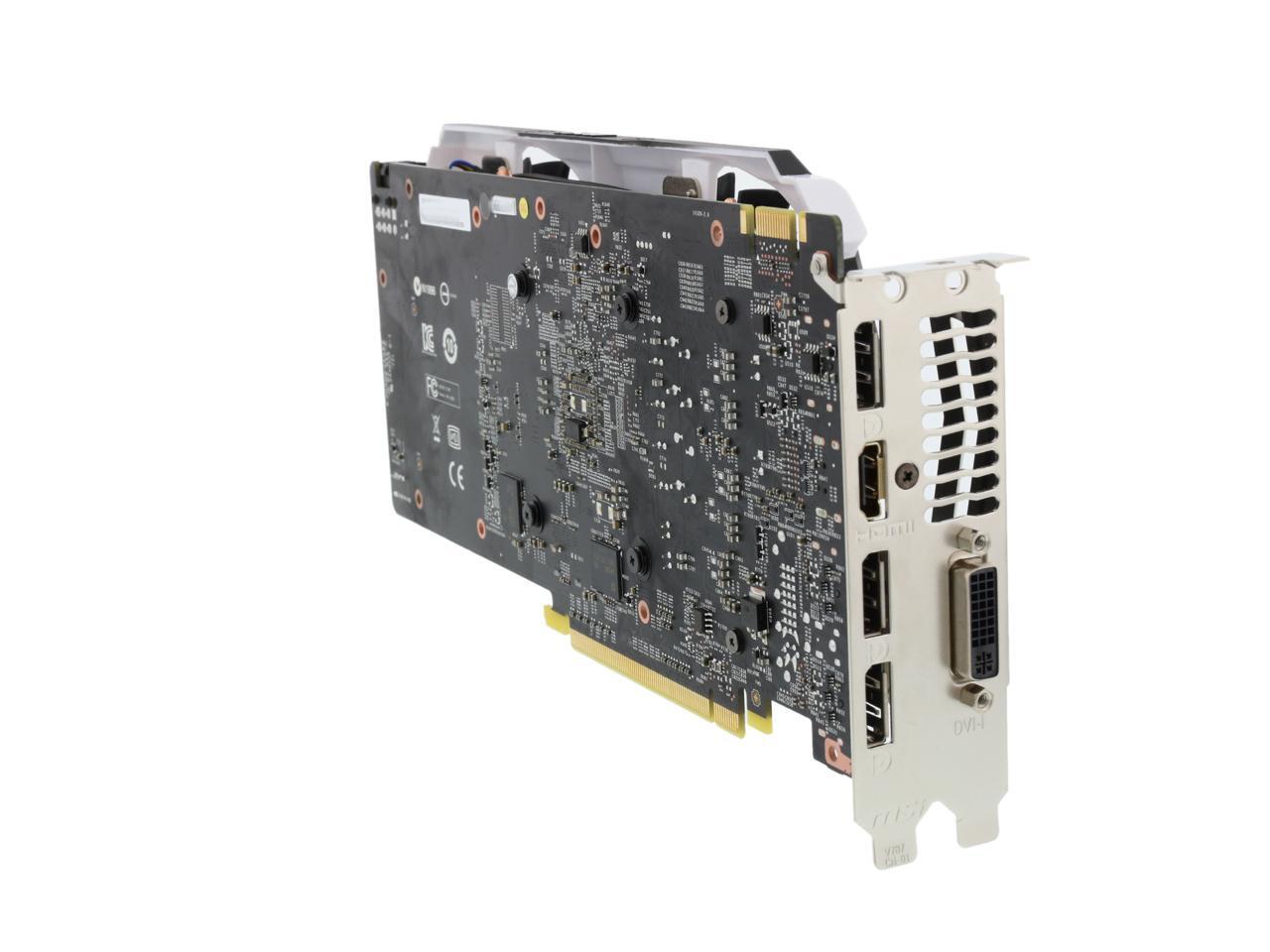

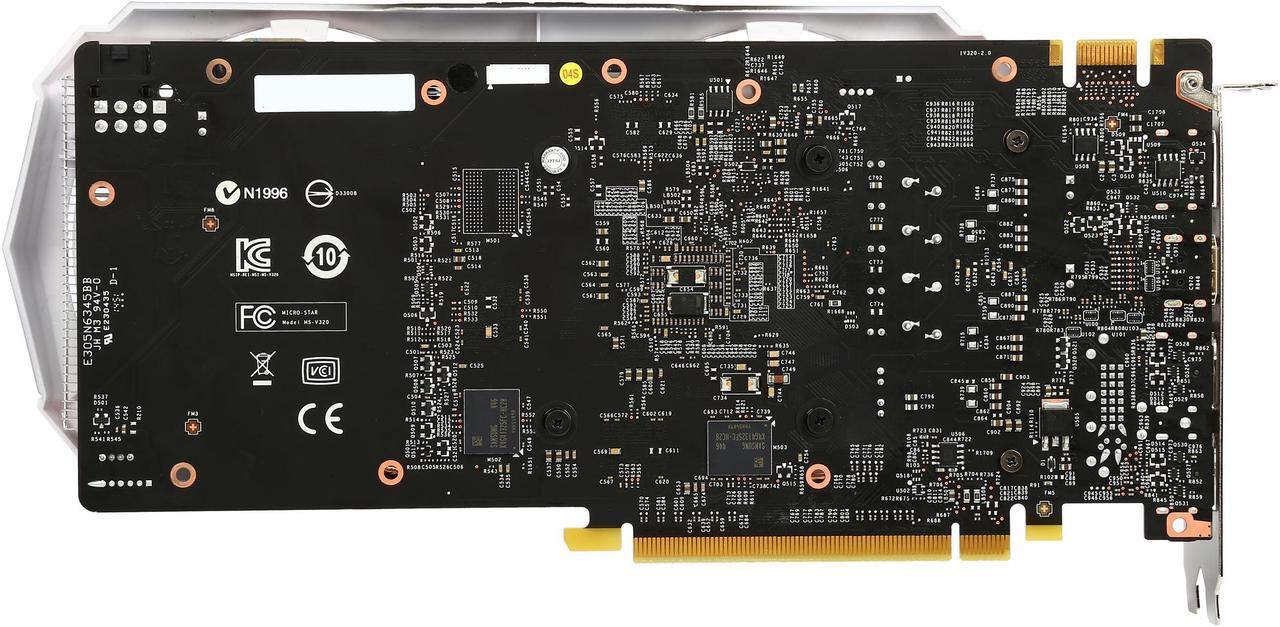

Enjoy military-class stability and qualityA well-built video card! On the PCB are Military Class 4 Components, like Hi-c Cap, SFC, and All Solid Cap. It meets the stringent MIL-STD-810G standards for the best stability and quality. Also, this video card offers the longest lifetime.
3D Vision SurroundExpand your games across three displays in full stereoscopic 3D for the ultimate “inside the game” experience with the power of NVIDIA 3D Vision technology. Up to four display outputs are supported on one single card, allowing gamers to take full advantage of multiple displays and multi-tasking while gaming.
Learn more about the MSI GTX 960 2GD5T OC
Model
Brand
MSI
Model
GTX 960 2GD5T OC
Interface
Interface
PCI Express 3.0 x16
Chipset
Chipset Manufacturer
NVIDIA
GPU Series
NVIDIA GeForce GTX 900 Series
GPU
GeForce GTX 960
Core Clock
1178 MHz
Boost Clock
1241 MHz
CUDA Cores
1024 Cores
Memory
Effective Memory Clock
7010 MHz
Memory Size
2GB
Memory Interface
128-Bit
Memory Type
GDDR5
3D API
DirectX
DirectX 12
OpenGL
OpenGL 4.4

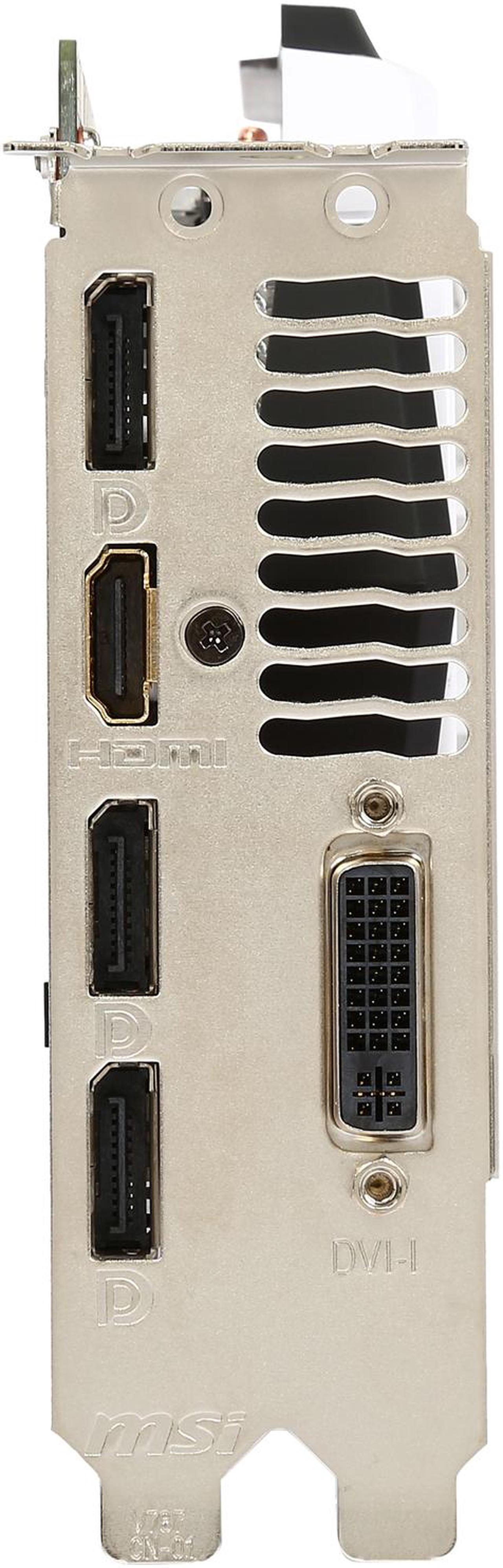

Ports
Multi-Monitor Support
4
HDMI
1 x HDMI 2.0
DisplayPort
3 x DisplayPort 1.2
DVI
1 x Dual-link DVI-I
Details
RAMDAC
400MHz
Max Resolution
4096 x 2160
3D VISION Game Ready
Yes
SLI Support
2-Way SLI
Cooler
Double Fans
Thermal Design Power
120W
System Requirements
Power Consumption: 120W Recommended PSU: 400W
Power Connector
6-Pin
Dual-Link DVI Supported
Yes
HDCP Ready
Yes
Features
Features
Armor 2X Thermal Design - Delivers more airflow than traditional single fan thermal design. - Huge heat sink provides better heat dissipation.
Propeller Blade Technology - Produce 20% more airflow than traditional fan design. - Produces less noise than traditional fan designs.
Airflow Control technology - Deflects more airflow to heatpipes and improves airflow efficiency. - Increases the heatsink area to enhance dissipation efficiency.
Military Class 4 Components - Certified to MIL-STD-810G standards for top stability and quality. - Built with Hi-c CAP, Solid CAP, and New SFC components.
