NETGEAR
BUSINESS

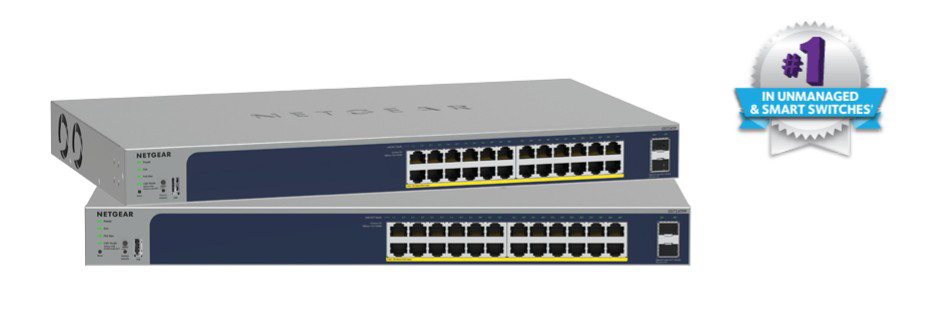

26 Port Gigabit PoE+ Smart Switch with
Optional Insight Cloud Management (190W)
[ GS724TP ]
Going Gigabit and PoE+ Just Got More Cost-Effective!
Highlights
More Powerful Switch for High Power Devices
- 24 x PoE+ Gigabit ports with 190W PoE budget (GS724TP) or 380W PoE budget (GS724TPP)
- 2 dedicated Gigabit SFP fiber uplink ports
- Advanced QoS (Quality of Service) for traffic prioritization including port- based, 802.1p and L2/L3/L4 DSCP- based
- Auto “denial-of-service” (DoS) prevention
- IGMP Snooping and Querier for multicast optimization
- Egress Rate limiting and priority queuing for better bandwidth allocation
- Port mirroring for network monitoring
- Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings
- IPv6 management: IPv6 QoS, IPv6 ACL, IPv6 Multicast, and static and dynamic IPv6 address assignment
- Cable test to troubleshoot connection issues
Fast and flexible solution for SMB data, voice and video converged network
- Non-blocking switching with 52Gbps
- Flexible rack-mounting option
Powerful Connectivity and Security
- Advanced VLAN support for better network segmentation
- Easy-to-use Web browser-based management GUI available in English, German and Japanese
- SNMP v1, v2c, v3 and RMON remote monitoring
Fully-integrated cloud-manageable devices
Remote/Cloud Management capability with NETGEAR Insight. Instantly activate NETGEAR Insight Cloud management from the web GUI, for simpler configuration and deployment from anywhere using the NETGEAR Insight app on mobile devices or the Insight Cloud portal through a web browser
Smart IT, not Big IT
- NETGEAR Insight remote/cloud management, monitoring and maintenance using the NETGEAR Insight mobile app or Insight Cloud Portal for network-level management
- L2/L3/L4 access control lists (ACLs) for granular network access control including 802.1x port authentication
- Advanced per port PoE controls for remote power management of PoE connected devices including operation scheduling
- NETGEAR Switch Discovery Tool (NSDT) to discover, register and access to the local browser interface to configure the switches
- Network Management System (NMS300), allowing all NETGEAR business products to be deployed and managed through this single interface
- Text-based Lite Command-line Interface (CLI)
NETGEAR Quality and Reliability
- Worry-free Limited Lifetime Warranty*, online technical chat support and Next Business Day (NBD) replacement.
- 90-days Free 24x7 Advanced Technical Phone Support**

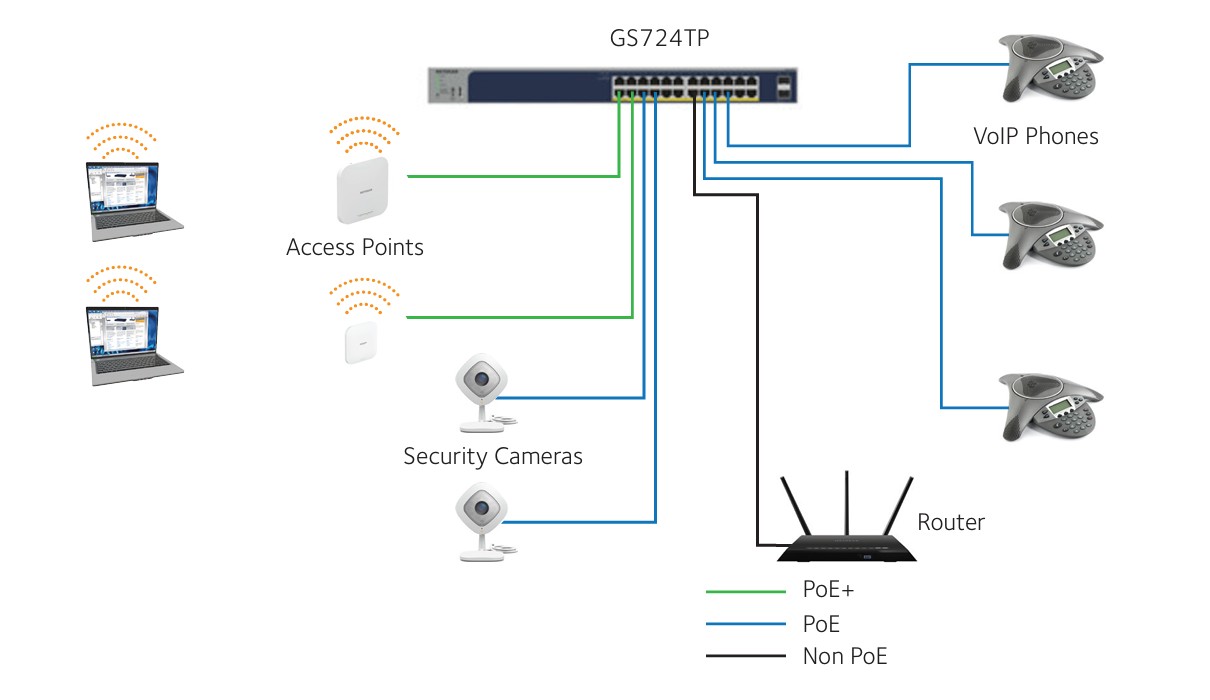

Example Application
Power The Devices in Your Business
The new standalone GS724TP and GS724TPP switch are designed with 24 ports PoE+ and 2 SFP ports. With 190W power on GS724TP and 380W power on GS724TPP, the two switches can meet the current and future needs of wireless converged networks. Within small and medium-sized organizations, there is growing adoption of PoE devices such as VoIP phones, IP security cameras, wireless access points, proximity sensors, LED lighting, door locks, and other IoT devices that require network switches capable of supporting dense PoE installations. Wireless access points and pan-tilt-zoom HD cameras using Wave 2 802.11ac Wi-Fi also require PoE+ power (802.3at), increasing the power demands on PoE switches.
Hardware at a Glance
|
|

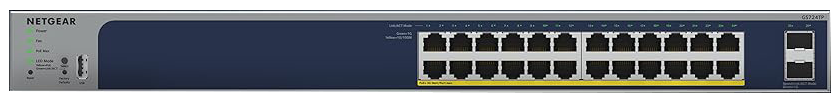

FRONT |
REAR |
SIDE |
|||
Model Name |
Form-Factor |
10/100/1000BASE-T RJ-45 Copper Ports |
1G SFP Uplink |
PoE+ 802.3 at Ports (Budget) |
Power Supply (PoE Budget) |
Fans |
| GS724TP | Rack mount | 24 | 2 | 24 (190W) | 1 internal PSU, fixed | 2 internal fans, fixed |
| GS724TPP | Rack mount | 24 | 2 | 24 (380W) | 1 internal PSU, fixed | 2 internal fans, fixed |
Software at a Glance
LAYER 2+ / LAYER 3 Lite FEATURES |
|||||||
Device Management |
Network-wide Management (Insight Management) |
PoE Control Features |
IPv4/IPv6 ACL and QoS |
IPv4/IPv6 Multicast Filtering |
VLANs |
Convergence |
Link Aggregation |
| Web Browser-based GUI (HTTP/HTTPS) Text-based Lite Commandline Interface (CLI) RMON, SNMP NETGEAR Insight mobile app or Insight Cloud Portal for local/remote/anywhere management from your mobile device, PC, Mac, or tablet | Centralized network configuration (policies) Auto-join & configure (zero-touch provisioning) Mulit-site, multi-network single pane-of-glass view Multi-switch/multi-port concurrent configuration | PoE on/off Dynamic PoE budget allocation PoE power priority setting PoE Power Usage Metering PoE scheduling | L2, L3, L4, ingress | IGMP Snooping, Querier | Static, Dynamic, VoIP, Voice, 16K Max MAC (256 VLANs) | LLDP-MED, RADIUS, 802.1X | LACP and Manual Static LAGs (up to 16 LAGs with max 8 members) |
Performance at a Glance
Model Name |
Packet buffer |
CPU |
ACLs |
MAC Address Table VLANs |
Fabric |
Latency (64-byte packets) |
Multicast IGMP Groups |
| GS724TP | 1.5MB | 800MHz ARM A55 Single Core 512MB RAM 64MB FLASH |
100 shared ingress | 16K MAC 256 VLANs | 52 Gbps line-rate | 1G Copper: < 3.749 µs; 1G Fiber: < 3.129 µs | 512 |
| GS724TPP | 1G Copper: < 3.563 µs; 1G Fiber: < 2.574 µs | ||||||
| GS724TP | 1.5MB | 800MHz ARM A55 Single Core 512MB RAM 64MB FLASH |
100 shared ingress | 16K MAC 256 VLANs | 52 Gbps line-rate | 1G Copper: < 3.749 µs; 1G Fiber: < 3.129 µs | 512 |
| GS724TPP | 1.5MB | 800MHz ARM A55 Single Core 512MB RAM 64MB FLASH |
100 shared ingress | 16K MAC 256 VLANs | 52 Gbps line-rate | 1G Copper: < 3.563 µs; 1G Fiber: < 2.574 µs | 512 |
* This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and covers unmodified hardware, fans and internal power supplies – not software or external power supplies, and requires product registration at https://www.netgear.com/business/registration within 90 days of purchase; see https:// www.netgear.com/about/warranty for details. Intended for indoor use only.
** The NETGEAR OnCall 24x7 contract provides unlimited phone and email technical support for your networking product. For ProSAFE products purchased prior to 06/2014, also includes next business-day hardware replacement.
